Voltage, Current, Power and Energy Are Different

Voltage, current, power and energy describe different parts of an electrical event. Voltage compares electric potential between two points. Current measures the rate at which charge crosses a boundary. Power measures the instantaneous rate of energy transfer or conversion. Energy accumulates that transfer over time. Keeping those four meanings separate makes circuit ratings, battery labels, appliance loads and electricity bills much easier to interpret.

Voltage is a comparison between two points

Open full image

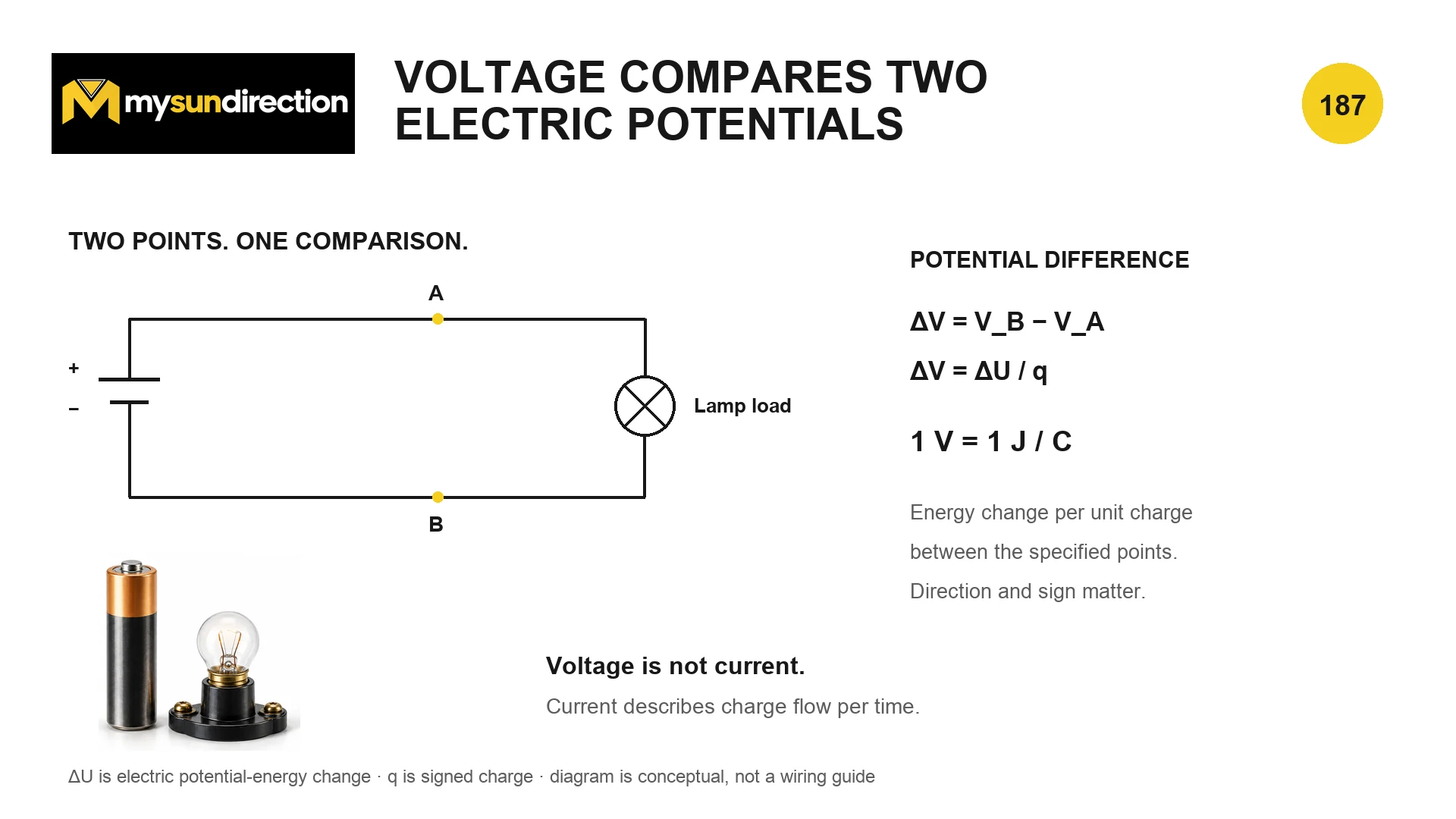

Diagram description

A conceptual battery and lamp loop marks an upper point A and lower point B. Equations define potential difference as the potential at B minus the potential at A and as potential-energy change per unit signed charge.

Electric potential difference

ΔV = ΔU ÷ q; 1 V = 1 J/C

Voltage does not belong to one isolated point without a reference. Saying V_B − V_A specifies both points and the sign convention. Circuit diagrams often choose one node as a zero-volt reference, but that choice alone does not imply connection to Earth.

ΔV

electric potential difference, V

ΔU

change in electric potential energy, J

q

signed electric charge, C

Example

A 12 V source establishes a 12-joule-per-coulomb potential difference across its specified terminals under the stated condition. Its terminal voltage may change with load and state.

Voltage can exist while current is zero: for example, across an open switch connected to an energized source. Conversely, a point described only as “five volts” is incomplete unless the reference node is understood. Voltage is measured across or between points; it is not a substance flowing through a wire.

Current is charge flow per time

Average and instantaneous current

I_avg = Δq ÷ Δt; i = dq/dt; 1 A = 1 C/s

Current is defined through a chosen surface or circuit branch with a chosen positive direction. A negative result means the actual signed charge transfer is opposite that reference direction; it does not mean the calculation has failed.

I_avg

average current, A

i

instantaneous current, A

q

electric charge, C

t

time, s

Example

If 6 C of net charge crosses a section of conductor in 3 s at a steady rate, the current magnitude is 2 A.

Open full image

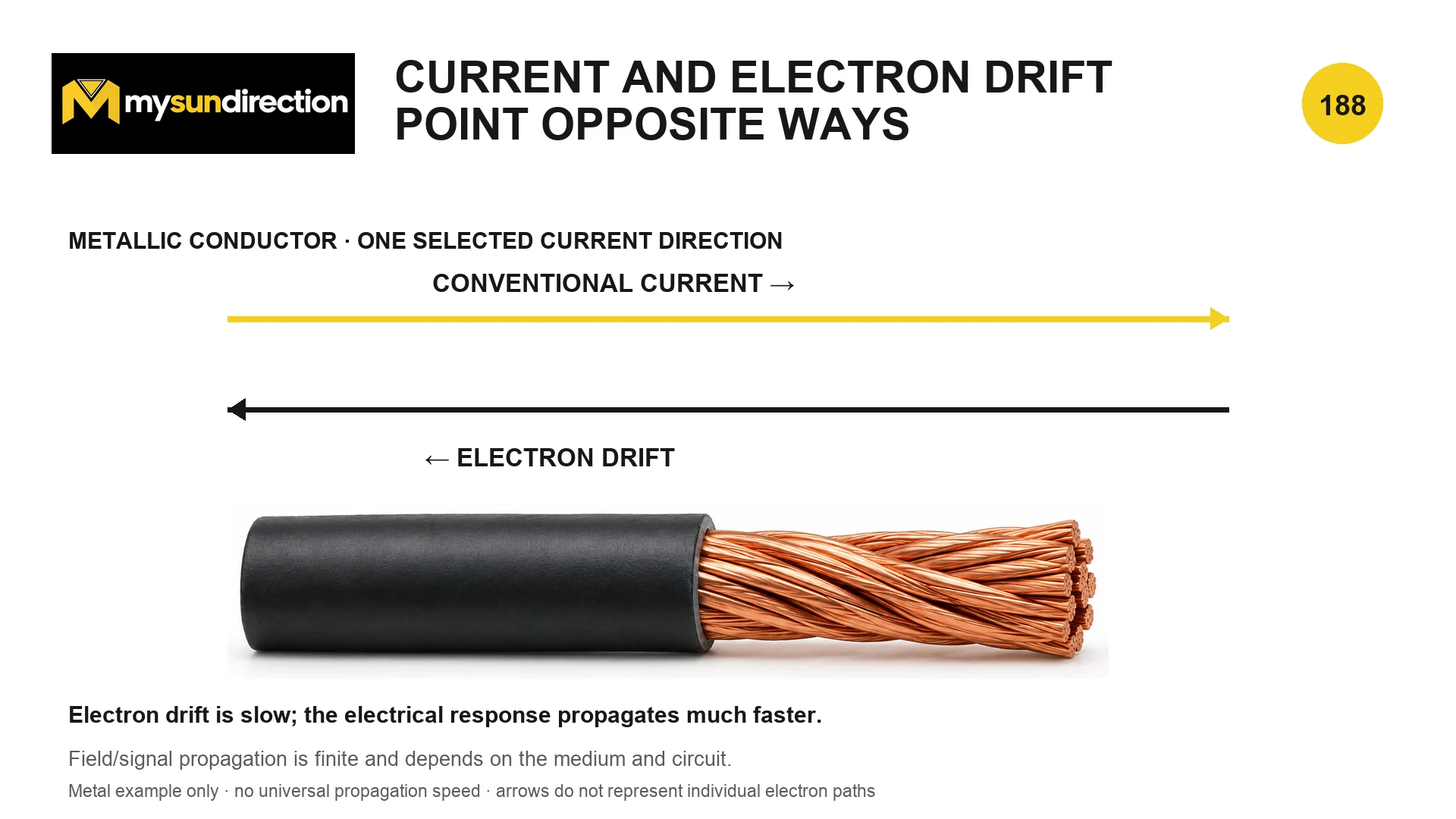

Diagram description

A yellow arrow labelled conventional current points right above a copper cable. A dark arrow labelled electron drift points left. Notes distinguish slow carrier drift from much faster field and signal propagation.

The opposite arrows are not a contradiction. Conventional current was defined using positive charge direction and remains the standard sign convention for circuit equations. In copper, the mobile carriers are negatively charged electrons, so their average drift is opposite the conventional-current arrow. In electrolytes, semiconductors and other media, more than one carrier type may contribute; the conventional-current definition still works.

Power is the rate of energy transfer

Electrical power with a consistent sign convention

p = vi; 1 W = 1 J/s

With the passive sign convention, current is referenced into the terminal marked positive for voltage. Positive p means the element absorbs electrical power; negative p means it delivers power to the rest of the circuit. For steady DC, P = VI. AC and switched waveforms may require instantaneous or average-power analysis rather than multiplying unrelated headline values.

p

instantaneous electrical power, W

v

instantaneous terminal voltage, V

i

instantaneous current entering the chosen positive terminal, A

Example

A DC load drawing 2.0 A at 12.0 V absorbs 24 W under those steady conditions: 12 V × 2 A = 24 W.

Energy adds power over time

Open full image

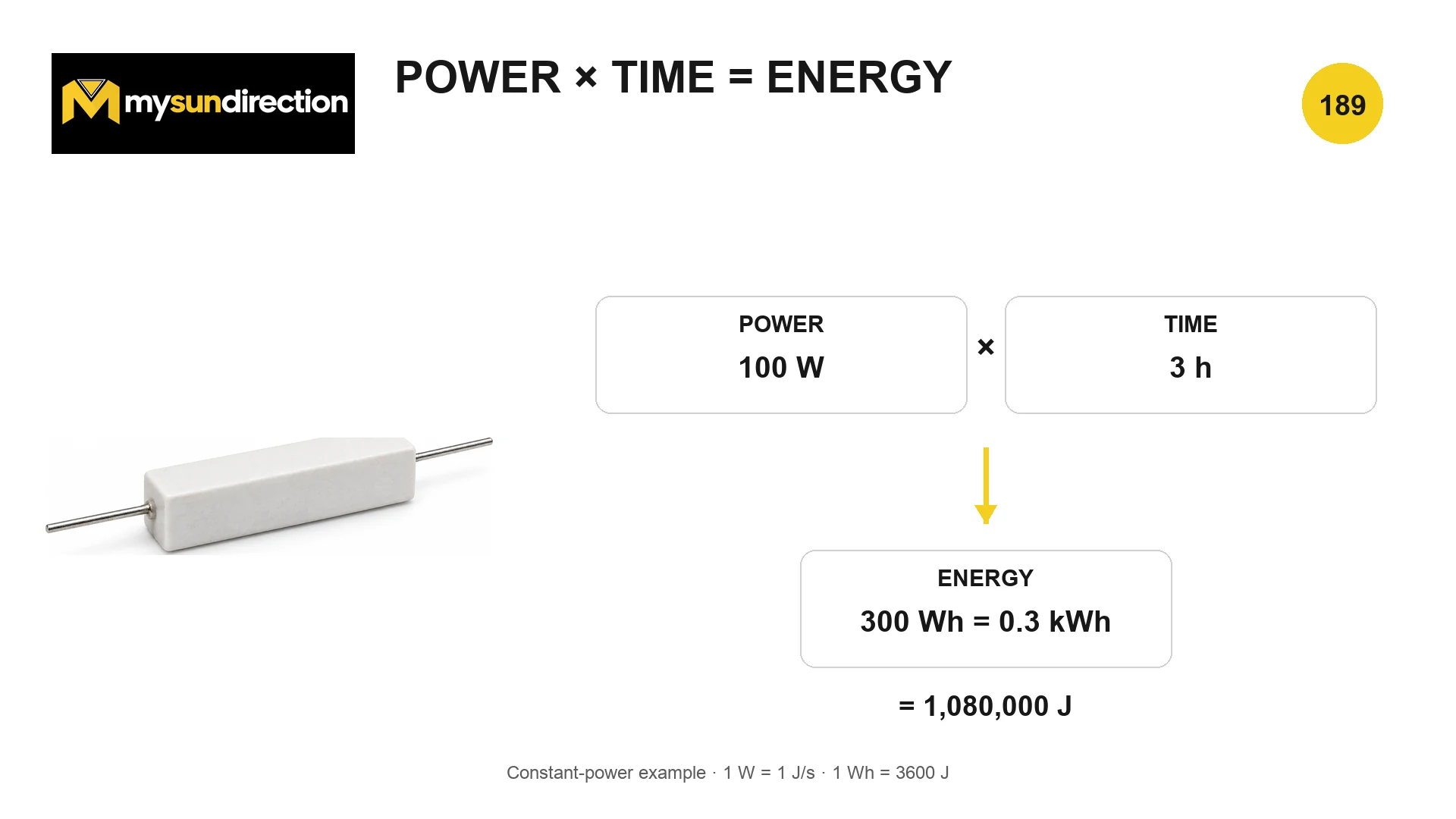

Diagram description

A 100-watt load and a three-hour time interval feed an energy result of 300 watt-hours or 0.3 kilowatt-hours, with the equivalent 1,080,000 joules shown below.

Energy from power

E = ∫p(t)dt; constant power: E = Pt

Use compatible units. Watts multiplied by seconds produce joules. Watts multiplied by hours produce watt-hours. One watt-hour equals 3600 joules, and one kilowatt-hour equals 3.6 megajoules.

E

transferred or converted energy, J, Wh or kWh

p(t)

power as a function of time, W

P

constant power, W

t

elapsed time, s or h as matched to the energy unit

Example

100 W × 3 h = 300 Wh = 0.300 kWh. In joules: 100 J/s × 10,800 s = 1,080,000 J.

A real device may cycle or change power. A 100 W maximum label does not prove it consumes 100 W continuously. If it uses 100 W for one hour and 20 W for two hours, its energy is 100 Wh + 40 Wh = 140 Wh. A power meter or time-resolved model is needed when the waveform or duty varies.

One familiar load connects all four quantities

Where the water analogy helps—and where it breaks

Pressure difference can help a beginner remember that voltage is a difference, and volumetric flow can suggest current as a rate. The analogy does not define electric fields, charge signs, electromagnetic propagation, AC phase, capacitance, inductance or semiconductor behavior. Use it to remember a distinction, then return to the electrical definitions and units.

For a billing-scale application of power and energy, continue with From Electricity Units to a Real Solar Bill. The same distinctions apply: instantaneous solar or load power is measured in watts or kilowatts, while generation and consumption accumulated over time are measured in watt-hours or kilowatt-hours.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Voltage, Current, Power and Energy Are Different?

A unit is part of the quantity. Twelve volts, two amperes, twenty-four watts and twenty-four watt-hours are not four ways to state the same thing. Each value answers a different question. A calculation is incomplete until the physical quantity, unit, reference points and relevant time interval are clear.

Which assumption can change the conclusion?

Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.

What can go wrong if I copy the example directly?

Small-looking quantities can still be hazardous. Electrical risk depends on source capability, voltage, available fault current, energy, path through the body, duration and environment—not on one headline number. Do not probe, modify or energize unfamiliar circuits from these equations alone.

How do I verify the result in the real system?

Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
