What Happens When a Starter Motor Engages?
Understand starter solenoid actuation and the heavy-current path.
A real system shows a symptom related to “What Happens When a Starter Motor Engages?”, and you need to find the cause before replacing parts or changing settings.
Separate the low-current control request from solenoid actuation, pinion engagement, main-contact closure and the high-current cranking loop in a conventional pre-engaged starter.
- Select or check first
- One actuator, two functions. The solenoid does not simply relay power. In the illustrated architecture its motion advances the pinion and closes the main electrical contacts. Actual coil arrangements, gear reduction and control electronics vary by vehicle.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- A vehicle starter can move the machine unexpectedly. The starting circuit combines high current, moving gears, hot conductors, a battery capable of severe short-circuit current and an engine that may start.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “What Happens When a Starter Motor Engages?”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
A conventional pre-engaged starter has two linked jobs: move a small pinion into the engine's ring gear and connect battery power to a high-current DC motor. The driver's request belongs to a control path; the motor current belongs to a separate power path. Joining those paths is the starter solenoid or magnetic switch, whose plunger moves the engagement mechanism and closes heavy contacts.

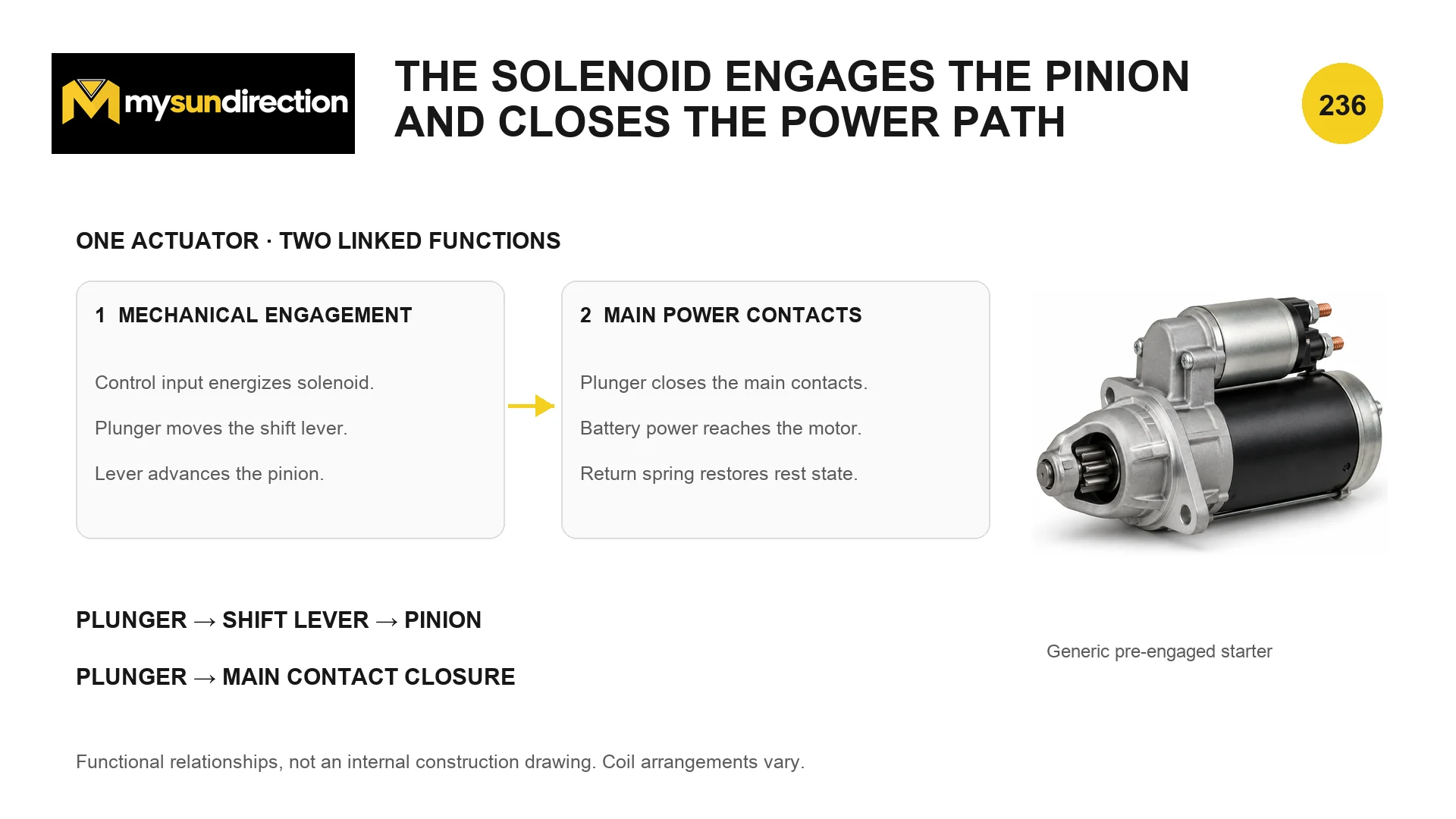

The control request becomes mechanical movement and contact closure
Diagram description
The plate notes that coil arrangements vary and shows the return spring restoring the rest state.
| Path | Typical elements | Purpose | Diagnostic question |
|---|---|---|---|
| Control request | Start command, interlocks, relay/module and solenoid coil | Authorizes and creates plunger force | Does the solenoid receive an allowed request under load? |
| Mechanical engagement | Plunger, shift lever, drive spring and pinion | Meshes the pinion with the ring gear | Does movement reach the required position without binding? |
| Main power | Battery, cable, solenoid contacts, starter motor and return path | Delivers cranking current | Does usable terminal voltage reach the motor while current flows? |
| Protection/release | Overrunning clutch, return spring and control release | Limits engine-driven overspeed and withdraws the pinion | Does the drive overrun briefly and retract promptly? |
Many solenoids use pull-in and hold-in windings or an equivalent strategy: strong initial force moves the plunger, then less current holds it. Do not infer coil terminals or test connections from this general description. The vehicle schematic determines how the start request, immobilizer, transmission/clutch interlocks and engine controller participate.

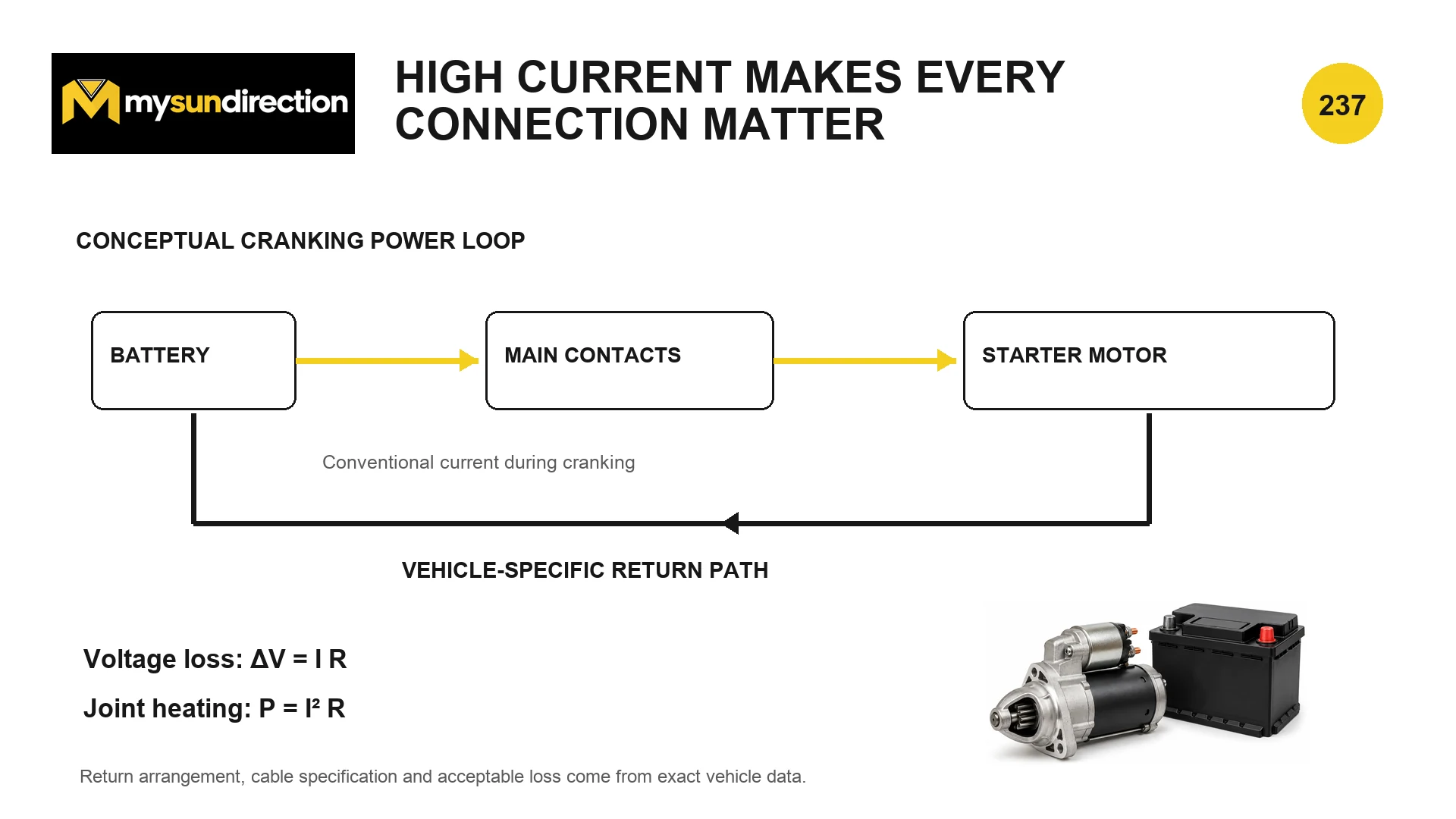

Cranking current must complete a full loop
Diagram description
The image uses conventional current and states voltage loss as delta V equals I R and joint heating as I squared R.
Small resistance becomes important at cranking current
ΔV = I·R; P_loss = I²R
These relations apply to a connection or cable segment. Because starter current can be high, a resistance too small to notice with no load can produce a large loaded voltage drop and heating. No universal acceptable value is implied; temperature, current, cable design and vehicle limits matter.
- ΔV
- voltage across the segment while current flows, V
- I
- current through the segment, A
- R
- effective segment resistance, Ω
- P_loss
- heat generated in the segment, W
At 200 A, 5 mΩ produces 1.0 V loss and 200 W of heat while the current flows. The arithmetic illustrates sensitivity, not an acceptable vehicle limit.
| Stage | Mechanical state | Electrical state |
|---|---|---|
| Rest | Pinion retracted | Main contacts open |
| Request | Plunger begins moving | Control current energizes the solenoid |
| Approach/mesh | Lever advances pinion; spring can cushion tooth contact | Main motor path is not yet fully established in the simplified sequence |
| Crank | Pinion drives ring gear | Main contacts carry battery-to-motor current |
| Engine fires | Ring gear can drive pinion faster | Overrunning clutch permits temporary overrun |
| Release | Return spring withdraws pinion | Main contacts open and motor current ceases |
Why a click does not identify one failed part
A click can show that something moved, but not that the pinion fully engaged, the main contacts closed with low resistance, the battery maintained voltage, both high-current sides were sound, or the motor and engine could rotate. Likewise, silence can begin in the command, an interlock, wiring, the coil or a mechanical bind. Evidence must be collected at the relevant boundary.
The battery's starting and capacity ratings are separated in Lead-Acid Batteries, Capacity and Starting Power. The motor's zero-speed back-EMF and starting-current behavior are explained in Why a Brushed DC Motor Starts Differently.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for What Happens When a Starter Motor Engages?
One actuator, two functions. The solenoid does not simply relay power. In the illustrated architecture its motion advances the pinion and closes the main electrical contacts. Actual coil arrangements, gear reduction and control electronics vary by vehicle.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
A vehicle starter can move the machine unexpectedly. The starting circuit combines high current, moving gears, hot conductors, a battery capable of severe short-circuit current and an engine that may start.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
