Wiring and Protection
Two-Way and Intermediate Switching
Understand how multiple switches control one load through alternate paths.
You are applying “Two-Way and Intermediate Switching” to a real system and need the concept, assumptions and verification boundary to stay clear.
Understand multi-location lamp control as path selection: two end changeover switches choose between a pair of travellers, while each intermediate switch either preserves or swaps that pair.
- Select or check first
- Abstract the contacts. Label common and traveller functions from the correct manufacturer documentation; do not infer them from screw position.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Conceptual logic, not installation instructions. Fixed mains wiring can injure, kill or start a fire. Cable identification, conductor colours, box arrangements, protective devices and permitted switching methods depend on the location and existing installation.
- Proof
- Treat all conductors as hazardous. Switch position and a dark lamp are not safe-isolation tests. Isolation and verification belong to qualified work practices.
Start with the basics Optional foundation before “Two-Way and Intermediate Switching”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
One lamp can be controlled from several locations without giving any switch a permanent ON position. The circuit works by changing continuity through alternate paths. In IEC and Indian usage, the two end devices are commonly called two-way switches and an added middle device is an intermediate switch. In North American usage, the corresponding names are three-way and four-way. The names differ; the underlying path-selection logic is the same.

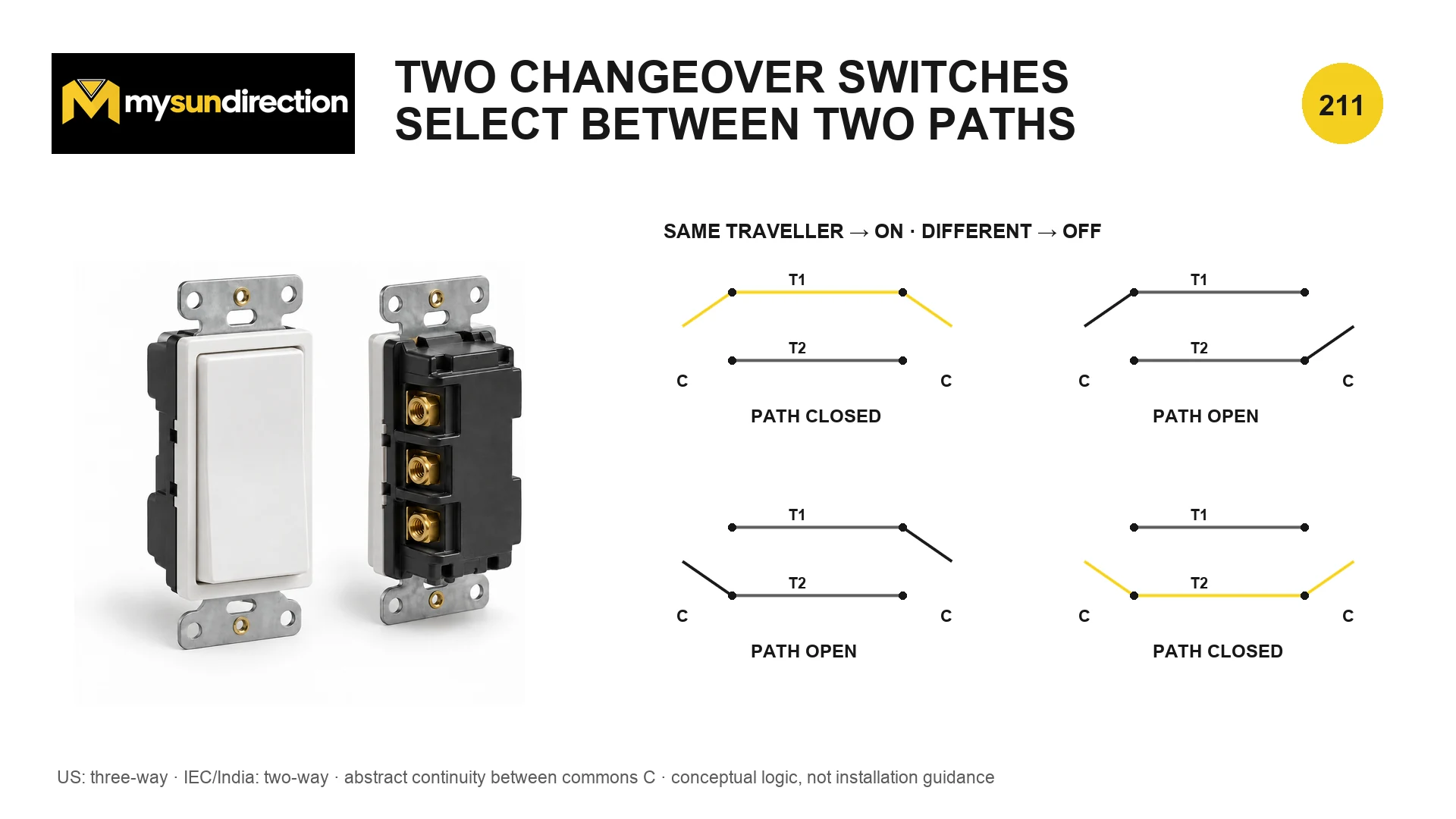

Two end switches select one of two traveller paths
Diagram description
The plate separates switch logic from terminal layout and notes the regional names. It shows continuity states only; it is not a cable-colour, box-layout or mains-wiring diagram.
Each end device is a single-pole changeover contact: its common connects to exactly one of two traveller terminals. The two travellers run between the end devices. If both commons reach the same traveller, continuity exists from one end to the other. If they select different travellers, that route is open. Operating either switch changes one selection, so it reverses the present output state regardless of the other handle position.
| End A selects | End B selects | Path between commons |
|---|---|---|
| T1 | T1 | Closed |
| T1 | T2 | Open |
| T2 | T1 | Open |
| T2 | T2 | Closed |

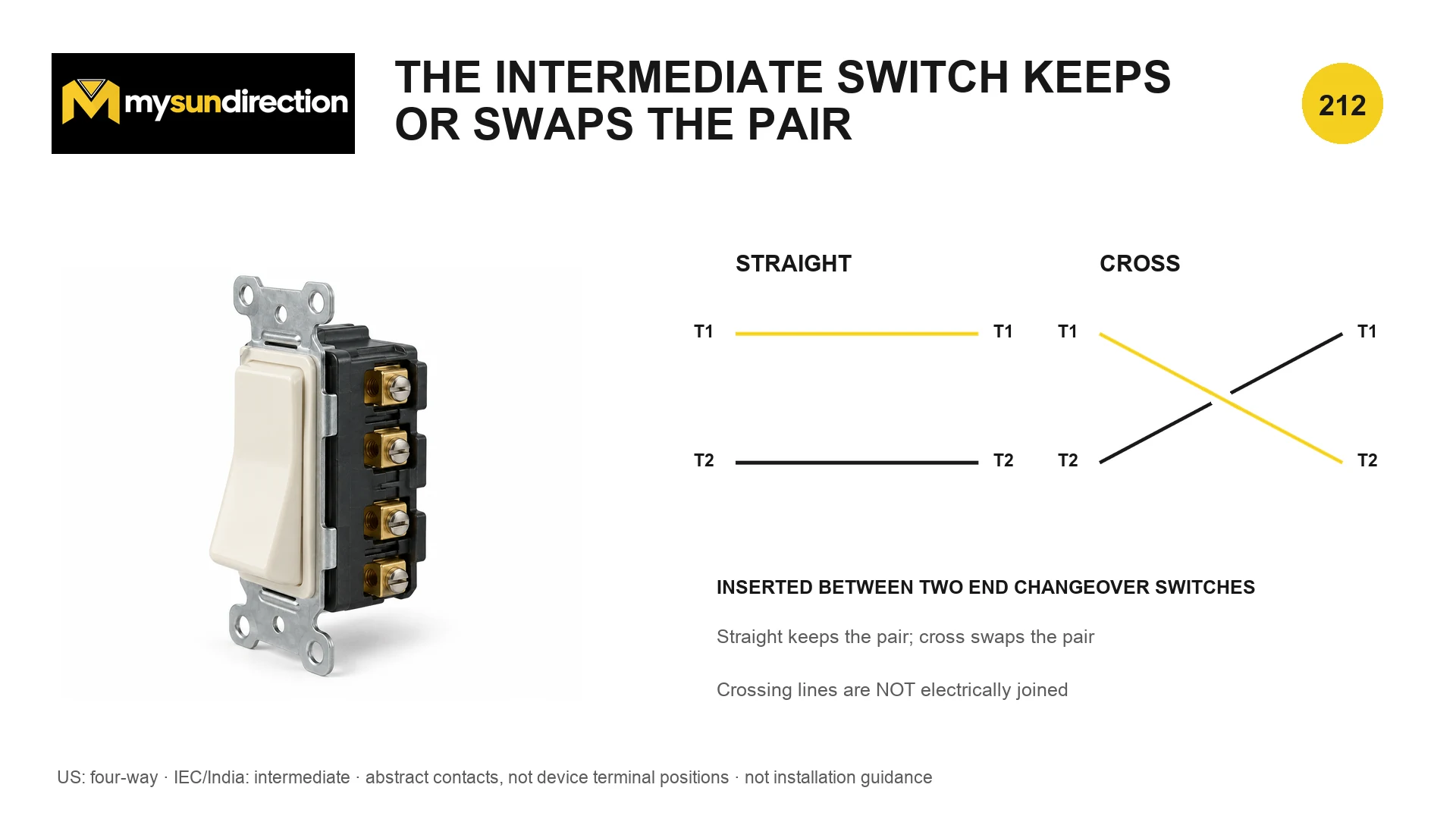

An intermediate switch either keeps or swaps the pair
Diagram description
The crossing lines represent two insulated paths that swap destinations; they are not joined at their intersection. The image uses abstract contact labels rather than manufacturer terminal positions.
The middle device changes the parity of the route. In one state, incoming T1 continues to outgoing T1 and T2 continues to T2. In the other, T1 is sent to T2 and T2 to T1. Flipping it therefore changes whether the end selections meet. More control locations are obtained by placing additional intermediate functions in the traveller pair, while retaining changeover devices at the two ends.
| Position | Contact action | Common naming |
|---|---|---|
| First end | Common selects one of two travellers | Two-way (IEC/India); three-way (US) |
| Middle, if present | Keeps or swaps the two-traveller pair | Intermediate (IEC/India); four-way (US) |
| Last end | One traveller connects to the common leading toward the load | Two-way (IEC/India); three-way (US) |

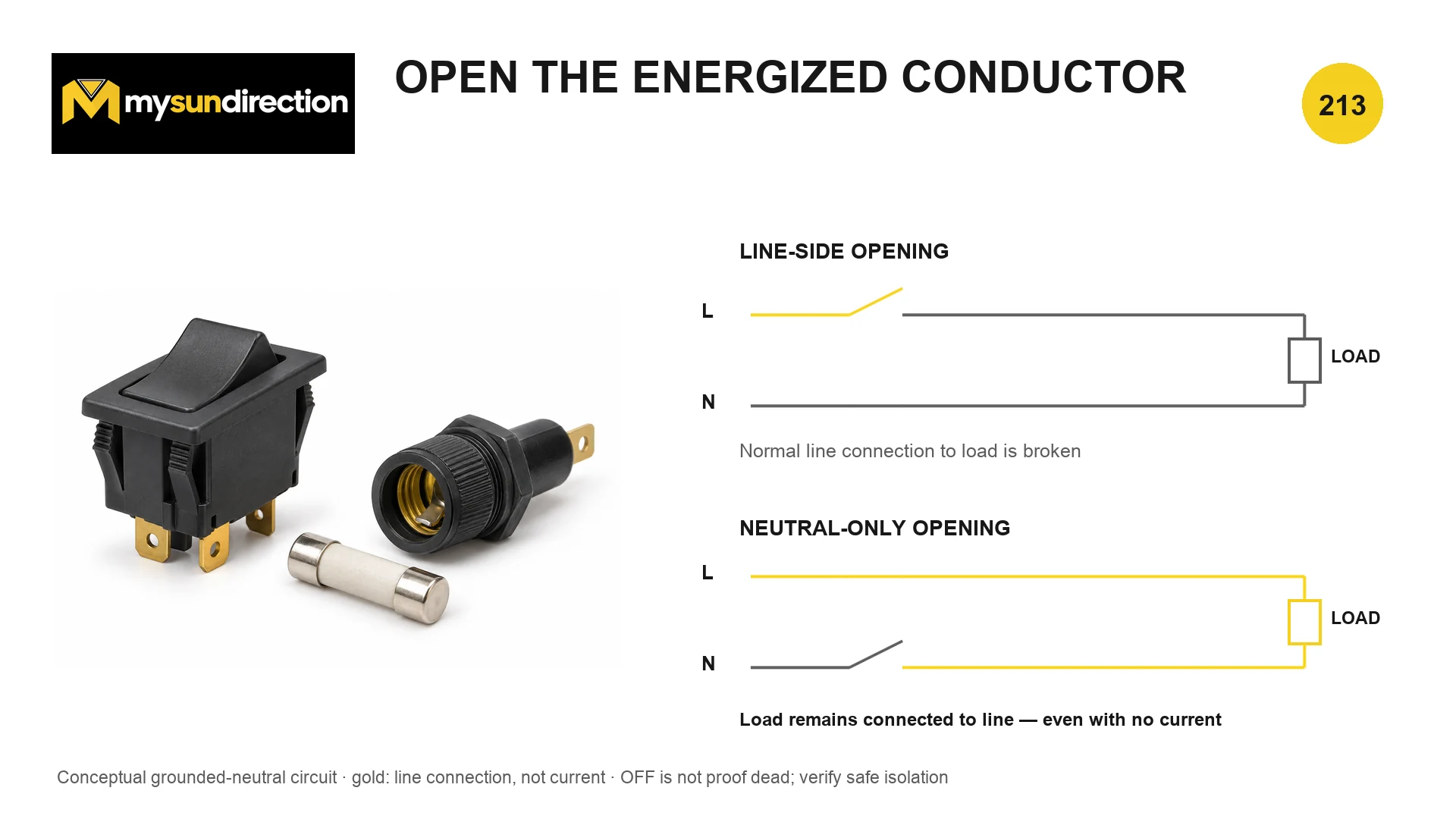

A switch should remove the energized connection from the load
Diagram description
The gold path denotes connection to the energized line, not current flow. The drawing is a simplified grounded-neutral example and explicitly requires verified isolation; an OFF state is not proof that a circuit is dead.
Current stopping and a load becoming safe are not the same claim. In the simplified example, opening only the neutral interrupts the loop, so the lamp or appliance stops. Yet its internal wiring remains connected to line through the load side. A person who assumes that non-operation proves isolation can encounter hazardous voltage. Applicable rules determine which live conductors must be switched and when multipole disconnection is required.
Reason about an unfamiliar diagram safely
- Abstract the contactsLabel common and traveller functions from the correct manufacturer documentation; do not infer them from screw position.
- Trace continuityFor each switch state, follow a possible route from the source-side common to the load-side common.
- Separate logic from protectionA functional route says nothing about conductor rating, overcurrent protection, earthing, enclosure or permitted installation method.
- Treat all conductors as hazardousSwitch position and a dark lamp are not safe-isolation tests. Isolation and verification belong to qualified work practices.
Why smart multi-location controls may not use the same traveller logic
Electronic dimmers, occupancy sensors and networked controls may designate a master plus companion devices, send low-energy signalling on a particular conductor, or require a neutral. Their terminals are not interchangeable with conventional mechanical changeover contacts. Only the exact approved diagram for the selected model and installation applies.
For the contact itself, continue with Mechanical Relays and Their Electrical Ratings; both switches and relays must be selected for the actual load, fault protection and environment.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Two-Way and Intermediate Switching?
Abstract the contacts. Label common and traveller functions from the correct manufacturer documentation; do not infer them from screw position.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Conceptual logic, not installation instructions. Fixed mains wiring can injure, kill or start a fire. Cable identification, conductor colours, box arrangements, protective devices and permitted switching methods depend on the location and existing installation.
How do I verify the result in the real system?
Treat all conductors as hazardous. Switch position and a dark lamp are not safe-isolation tests. Isolation and verification belong to qualified work practices.
