How to Read a Three-Phase Motor Nameplate
Interpret ratings and winding connections before a drive is selected.
You need to understand the internal functions in “How to Read a Three-Phase Motor Nameplate” before selecting, connecting or troubleshooting the real equipment.
Read a three-phase motor nameplate as one matched operating point, distinguish line quantities from winding quantities, and carry the correct ratings into a starter or variable-frequency drive selection.
- Select or check first
- Treat each rating row as a complete operating point. If a plate gives more than one voltage, current or connection, preserve the pairings exactly as printed. Do not mix the voltage from one row with the connection, current or frequency from another.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- A six-stud terminal board does not prove a permissible connection. Lead markings, internal winding arrangement and the nameplate diagram decide eligibility. Some motors have a different lead count, fixed internal connection, multiple windings, special part-winding schemes or converter-only ratings.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “How to Read a Three-Phase Motor Nameplate”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A motor nameplate is a compact declaration of the conditions under which the manufacturer rated that machine. Voltage, connection, frequency, current, output power, speed, duty and thermal information belong together. Reading one number without its paired connection or frequency can lead to excessive winding voltage, poor torque, overheating or a wrongly sized starter or drive.
Identify what each field actually rates

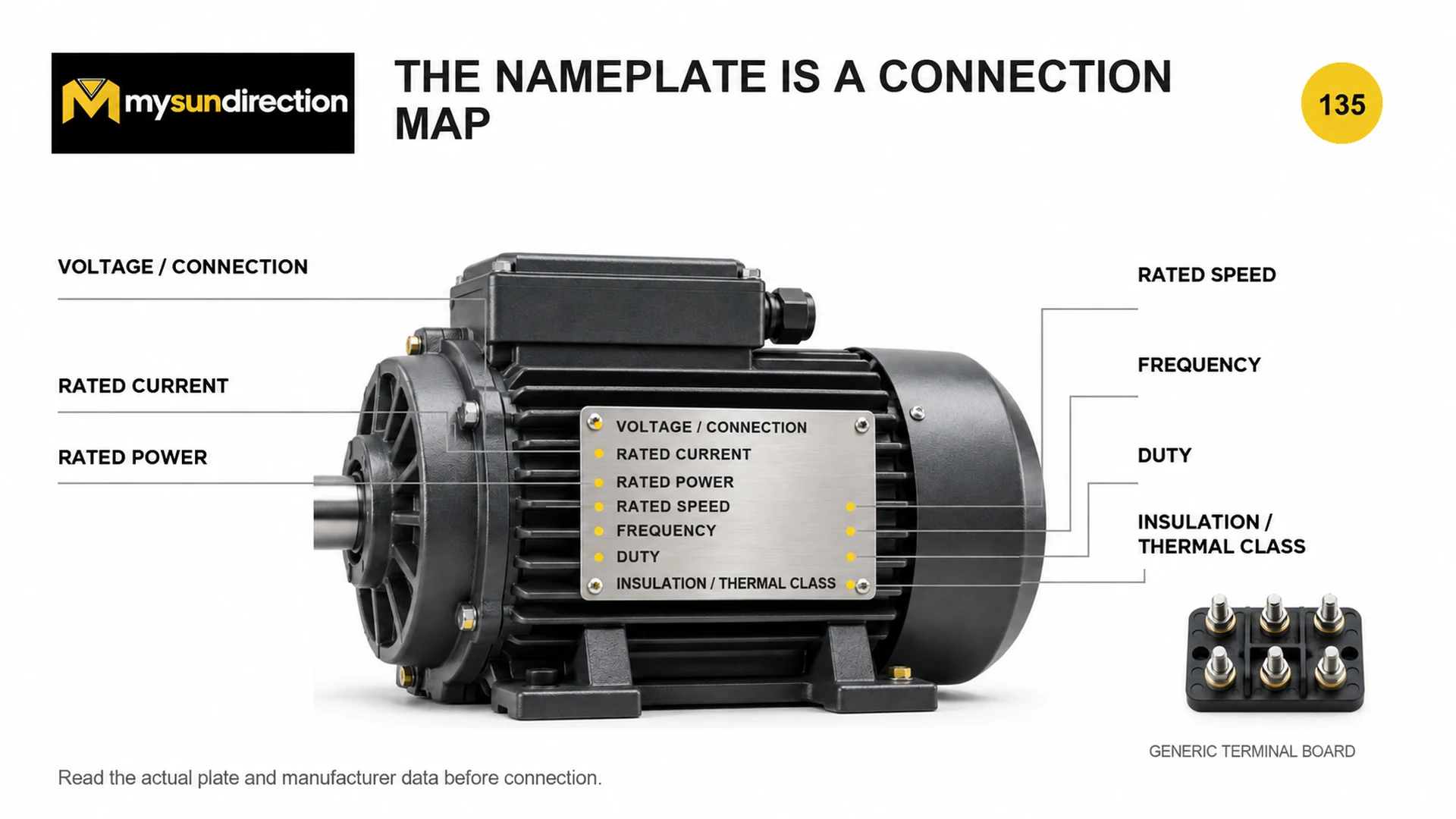

Diagram description
This is an illustrative teaching plate with no numerical ratings. The terminal board is generic, not a wiring instruction or evidence that every motor exposes six winding ends.
| Field | What it describes | What must stay associated |
|---|---|---|
| Voltage / connection | Rated line-to-line terminal voltage for a stated winding connection | The exact symbol or diagram, frequency and corresponding current |
| Rated current | Line current at the stated rated condition | Voltage, connection, frequency, output and duty |
| Rated power | Usually mechanical shaft output for a motor, not electrical input | Efficiency and power factor are needed to relate it to input power |
| Rated speed | Shaft speed at a stated load and frequency | Pole count and induction-motor slip explain why it is below field speed |
| Frequency | Rated electrical supply frequency | Voltage, flux, speed and cooling assumptions |
| Duty | Permitted load-and-time pattern | Starts, rest periods, ambient and cooling conditions |
| Insulation / thermal class | Thermal capability of the insulation system | Allowed temperature rise is a separate requirement; class is not an operating-temperature command |
Line ratings and winding ratings are different quantities
The supply is normally described by line-to-line voltage and line current. Each stator winding sees a phase voltage and carries a winding current determined by the connection. In a balanced star connection, each winding sees line voltage divided by the square root of three and winding current equals line current. In delta, each winding sees line voltage and line current is the square root of three times winding current. These relations explain the paired connection markings; they do not authorize changing links without the motor’s own diagram.
Balanced three-phase connection relationships
Star: V_w = V_L/√3, I_w = I_L; Delta: V_w = V_L, I_L = √3·I_w
The equations assume a balanced three-phase set and correctly identified winding ends. A nameplate current is ordinarily a line current at the stated rating; do not substitute winding current when setting line-side protection or a drive.
- V_w
- RMS voltage across one winding, V
- V_L
- RMS line-to-line terminal voltage, V
- I_w
- current in one winding, A
- I_L
- line conductor current, A
Transfer nameplate data to a drive without changing its meaning
| Input | Why the drive needs it | Boundary |
|---|---|---|
| Rated motor voltage and connection | Sets the intended terminal-voltage basis | Drive output capability and actual motor connection must agree |
| Rated current | Supports current rating, protection and motor-model setup | Choose using manufacturer overload and ambient rules, not power alone |
| Rated frequency and speed | Establishes base operating data and slip | Do not enter synchronous speed in place of rated shaft speed |
| Rated power | Checks application and drive-size plausibility | Motor output power is not equal to electrical input power |
| Duty and starts | Exposes thermal and repeated-acceleration demands | A continuous-duty rating does not define every cyclic application |
| Service factor, efficiency and power factor when present | Refines thermal, input and loading interpretation | Meanings depend on the governing motor standard |
| Ambient, altitude, enclosure and cooling | Determines derating and heat-removal limits | A VFD can reduce shaft-fan cooling at low speed |
Why rated speed is not the same as synchronous speed
The rotating stator field has a synchronous speed set by frequency and pole count. A normally motoring induction rotor must run below that field speed so relative motion induces rotor current and torque. The plate’s rated speed is a loaded shaft speed at stated conditions; it already includes rated slip and mechanical losses. Entering field speed as rated motor speed can corrupt a drive’s motor model.
Use a repeatable reading sequence
| Step | Action | Output |
|---|---|---|
| 1 | Photograph and transcribe the complete plate and connection diagram | A traceable record, including units and symbols |
| 2 | Group every voltage, connection, current and frequency row | No cross-paired ratings |
| 3 | Identify the governing standard and manufacturer manual | Correct meanings for duty, thermal and service markings |
| 4 | Compare supply or drive output with the permitted motor operating point | Voltage, frequency and connection compatibility |
| 5 | Add load torque, inertia, speed range, braking and environment | A system-level drive or starter specification |
| 6 | Have the final connection and protection design verified | Documented settings and commissioning checks |
Use Follow Energy Through an Electrical System to place the motor inside its complete power path. For the difference between torque-producing current, speed and back EMF in a simpler machine, review Why a Brushed DC Motor Starts Differently.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for How to Read a Three-Phase Motor Nameplate?
Treat each rating row as a complete operating point. If a plate gives more than one voltage, current or connection, preserve the pairings exactly as printed. Do not mix the voltage from one row with the connection, current or frequency from another.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
A six-stud terminal board does not prove a permissible connection. Lead markings, internal winding arrangement and the nameplate diagram decide eligibility. Some motors have a different lead count, fixed internal connection, multiple windings, special part-winding schemes or converter-only ratings.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
