Incandescent Lamps Versus LEDs

Compare filament inrush, semiconductor light and dimming compatibility.

  • By MySunDirection
  • 13 min read
Share this explanation
One-minute answer

You must choose between real alternatives covered by “Incandescent Lamps Versus LEDs” for a defined machine, circuit or installation.

Follow energy through incandescent and LED lamps, explain cold-filament inrush, and choose an LED whose driver, fixture and dimmer are compatible.

Select or check first
Lumens describe light; watts describe input power. A lower-watt lamp is not automatically dimmer. Compare rated luminous flux in lumens for light output, watts for electrical input, and efficacy in lumens per watt. Beam direction and fixture optics still affect how much light reaches the task.
Controlling assumption
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
Top risk
Treat the lampholder as mains equipment. Turn off and isolate the correct circuit before changing damaged fittings or investigating wiring. A wall switch may not isolate every conductor, and electronic lamps can contain charged capacitors.
Proof
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Incandescent Lamps Versus LEDs”

Electrical-engineering basics

Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.

Voltage
Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
Current
Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
Resistance and impedance
Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
Power and heat
Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
Rating versus operating point
A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.

How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.

On this page
  1. The two lamps take different energy paths
  2. A cold filament can draw a switch-on surge
  3. The driver and dimmer must work as a system

An incandescent lamp and an LED lamp can fit the same socket while converting electricity by very different routes. The filament lamp intentionally heats tungsten until it radiates visible light. An LED produces light when carriers recombine in a semiconductor junction, but a mains LED lamp also needs a driver and thermal path. Compare complete products by useful light, electrical input, colour, control compatibility, temperature limits and verified lifetime—not by the light-making element alone.

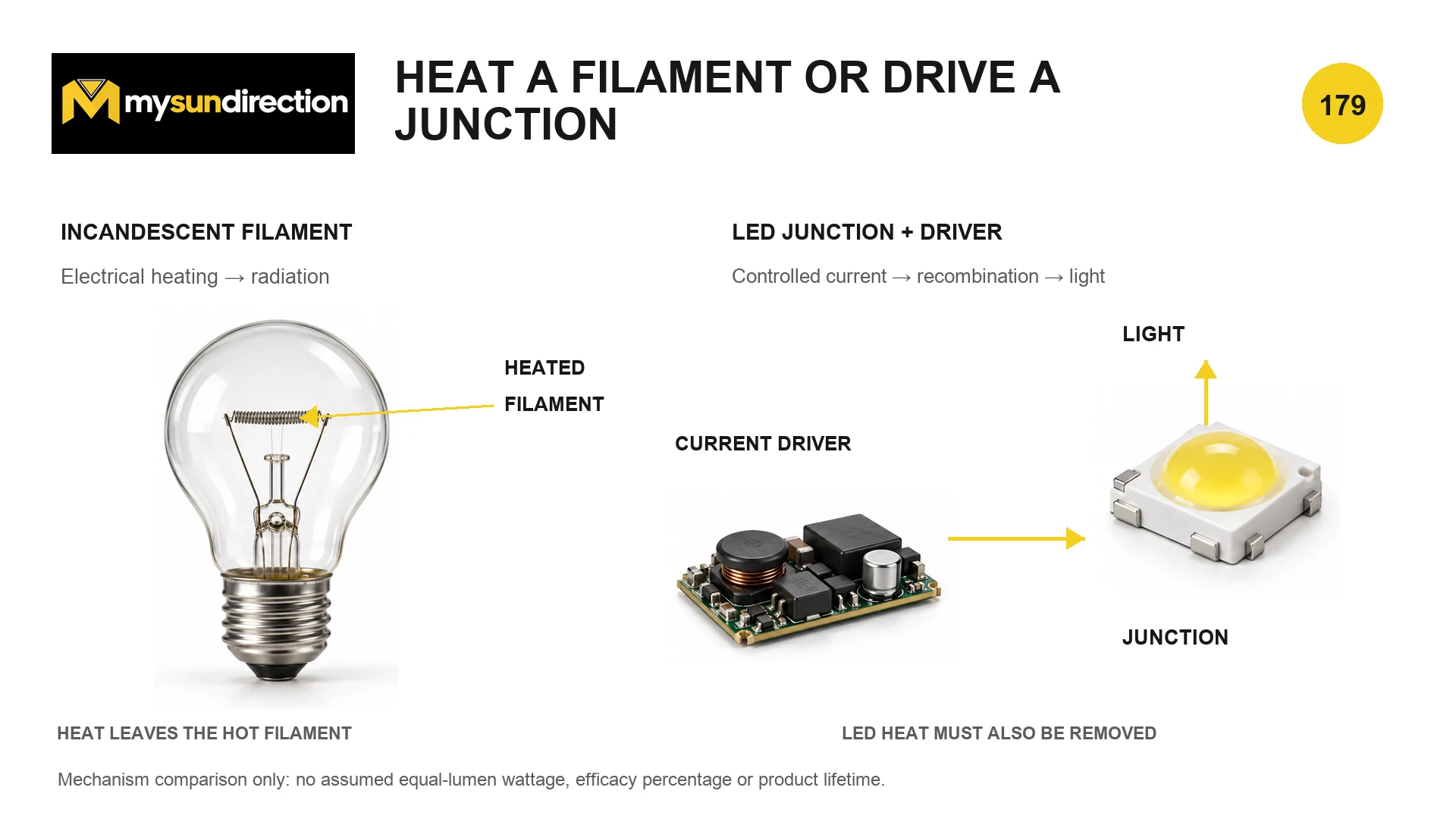

The two lamps take different energy paths

Incandescent light follows electrical heating and thermal radiation; LED light follows controlled current and semiconductor recombination. Both paths create heat.
Diagram description

The plate compares the functional conversion stages without asserting a universal wattage, lumen output or lifetime.

Compare the complete installed system
QuestionIncandescent lampLED replacement
How is light made?A resistively heated filament radiatesA driver controls junction current; recombination produces photons
Where does heat go?Hot filament and broad radiationJunction heat conducts through package, board, heat sink and surrounding air
What sets current?Hot-filament resistance and supply voltageDriver topology, controls and protection
How does it dim?Filament responds smoothly to reduced RMS power in many conventional circuitsOnly when the lamp/driver is designed and tested for the dimmer and load range
What should be specified?Voltage, power, base, envelope and applicationLumens, voltage, base, CCT, colour quality, beam, enclosure and dimmer compatibility

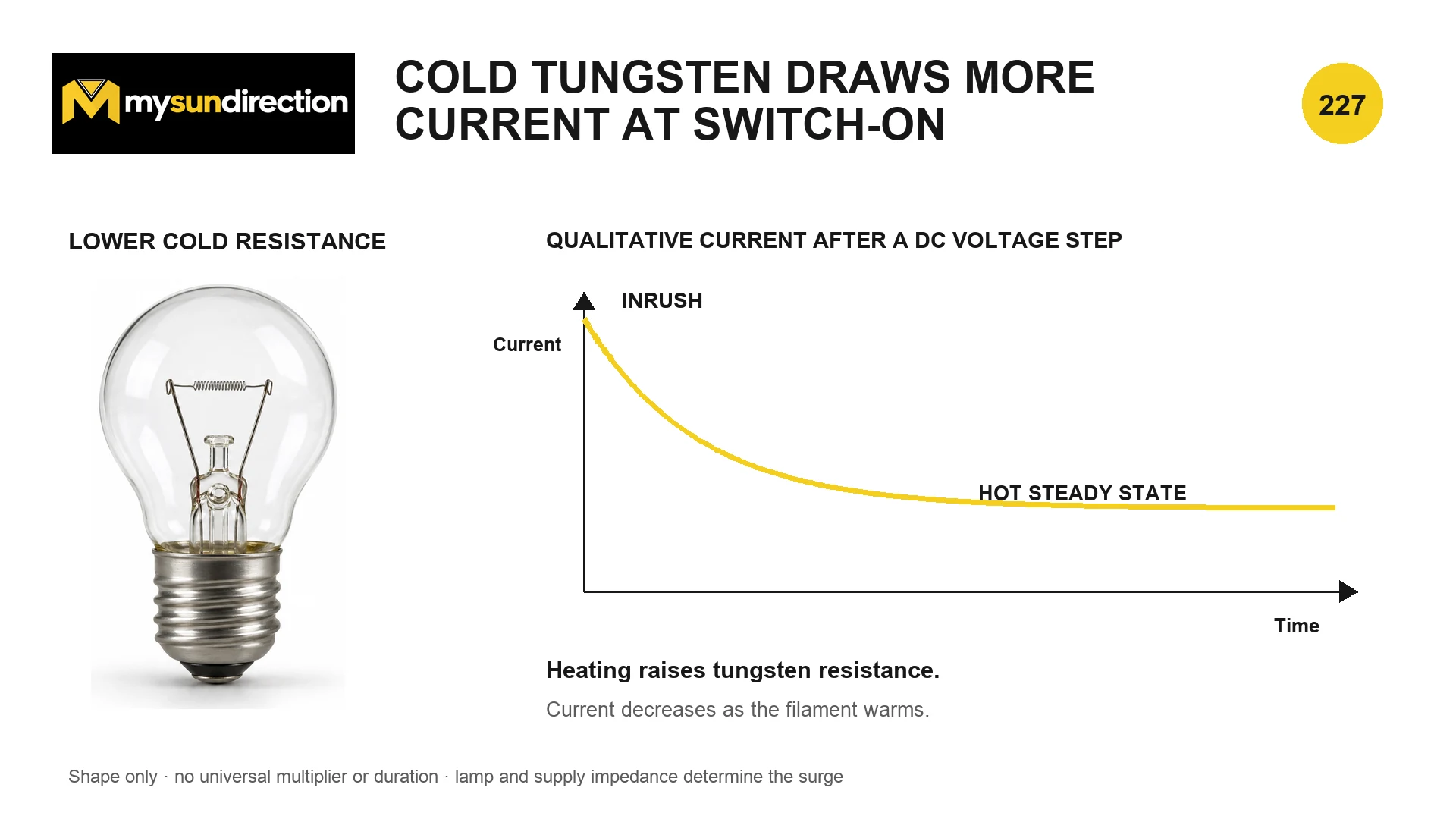

A cold filament can draw a switch-on surge

Cold tungsten has lower resistance than hot tungsten, so current can begin above its warmed steady value. The actual peak and duration belong to the lamp and source circuit.
Diagram description

The independent scales are qualitative and intentionally show no universal surge multiplier or time.

A useful first model

i(t) ≈ v(t) / R_filament(t)

At switch-on the filament is cold and its resistance is lower. Current heats it, resistance rises, and current approaches the operating waveform. Supply impedance, switching phase, wiring and the lamp construction change the transient.

i(t)
instantaneous lamp current, A
v(t)
instantaneous applied voltage, V
R_filament(t)
temperature-dependent filament resistance, Ω

The driver and dimmer must work as a system

A legacy phase-cut dimmer changes the portion of each AC cycle delivered to the load and may need a minimum holding current. An LED driver may interpret that waveform well, flicker, drop out, buzz, refuse to start or remain faintly lit. A lamp marked dimmable is only the first filter: use the lamp maker’s tested compatibility list or a dimmer maker’s tested lamp list, respect the permitted lamp count and load range, and verify the required dimming depth in the real circuit.

Confirm these items before installation
CheckReason
Supply voltage and frequencyThe driver is designed for a stated input range
Base, size and weightA matching cap does not guarantee physical or mechanical fit
Enclosed-fixture ratingTrapped heat can raise driver and LED junction temperature
Dimmer model and load rangeCompatibility depends on electronics and the number of lamps
Lumens and beamA watt-equivalent label does not describe every task
CCT and colour renderingAppearance and colour fidelity are application choices
Emergency or sensor controlsElectronic controls may impose special leakage, switching or test requirements
Why LED lifetime is not a single universal promise

LED product life may be limited by gradual lumen depreciation, colour shift, driver components, solder joints or excess temperature. Rated life is tied to test conditions and a stated failure or lumen-maintenance criterion. A hot, enclosed fixture or incompatible control can produce a different outcome, so retain the product data and application limits.

For the relationships between voltage, current, power and billed energy, review Voltage, Current, Power and Energy Are Different. For the reason a hot filament is a nonlinear load, continue with Resistance, Nonlinear Loads and Heat.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Incandescent Lamps Versus LEDs?

Lumens describe light; watts describe input power. A lower-watt lamp is not automatically dimmer. Compare rated luminous flux in lumens for light output, watts for electrical input, and efficacy in lumens per watt. Beam direction and fixture optics still affect how much light reaches the task.

Which assumption can change the conclusion?

Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.

What can go wrong if I copy the example directly?

Treat the lampholder as mains equipment. Turn off and isolate the correct circuit before changing damaged fittings or investigating wiring. A wall switch may not isolate every conductor, and electronic lamps can contain charged capacitors.

How do I verify the result in the real system?

Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
