Combining Resistors and Building Voltage Dividers

Equivalent resistance lets a network be replaced by a simpler model at a chosen pair of terminals. That model can predict terminal current and voltage, but it does not erase current, voltage, power or temperature inside the original components. A voltage divider shows both sides of this idea: two resistors create a predictable unloaded ratio, then a connected load becomes part of the network and changes that ratio.

Reduce only groups that are truly series or parallel

Open full image

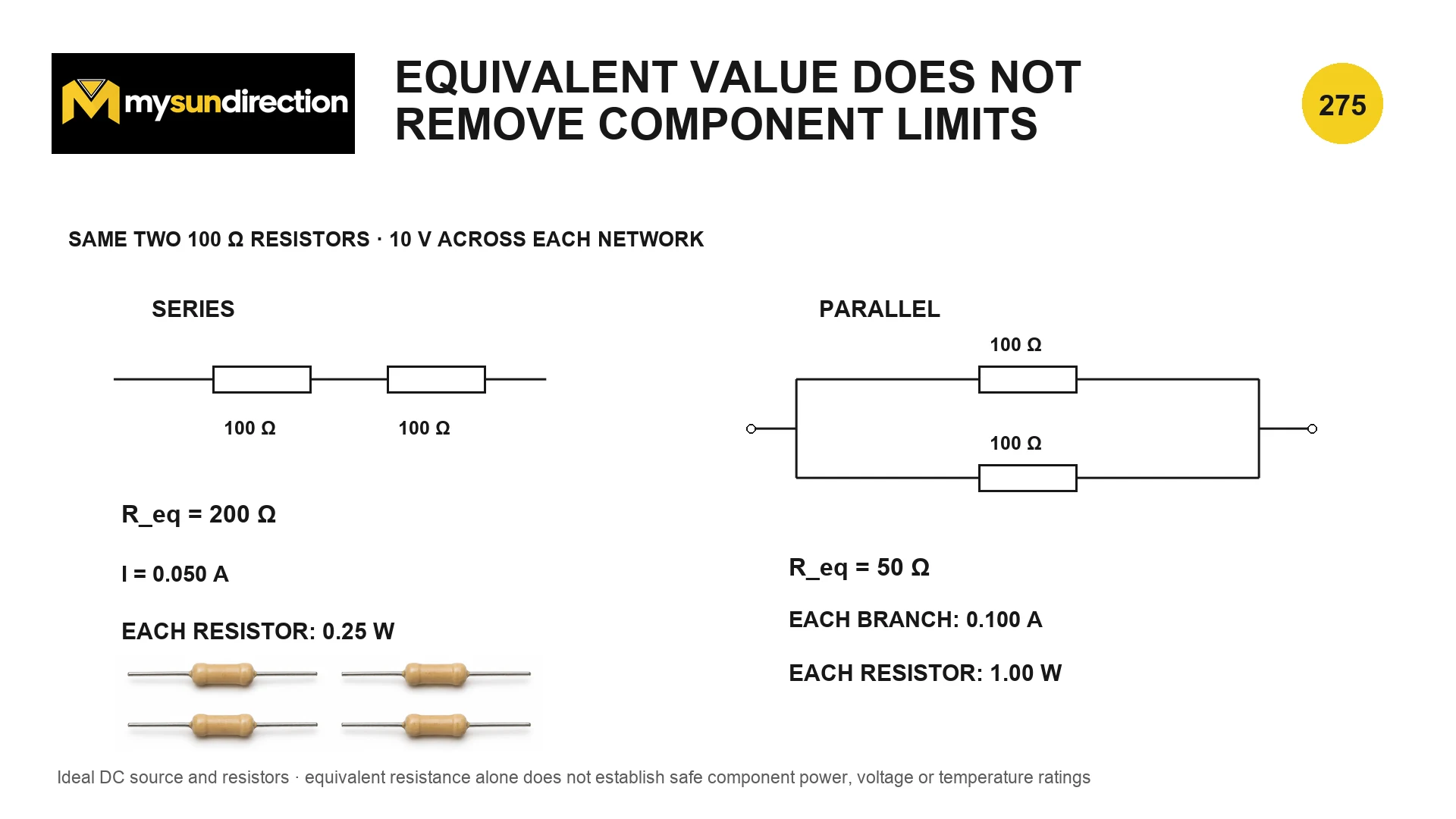

Diagram description

Two equal resistors appear first in one path and then in two branches. Calculations show 50 milliamperes in series versus 100 milliamperes in each parallel branch from an ideal 10-volt source.

Series and parallel reductions

Series: R_eq = ΣR_k; parallel: 1/R_eq = Σ(1/R_k)

The series formula requires a shared unbranched current. The parallel formula requires the same two terminal nodes. For two parallel resistors, R_eq = R₁R₂/(R₁ + R₂). These relations assume resistance values suitable for the operating condition.

R_eq

equivalent resistance at the selected terminals, Ω

R_k

an individual applicable resistance, Ω

Example

Two 100 Ω resistors give 200 Ω in series and (100 × 100)/(100 + 100) = 50 Ω in parallel.

An unloaded divider is a ratio of two series resistors

Ideal unloaded divider

V_out,0 = V_in × R₂/(R₁ + R₂)

R₁ connects from the input node to the output node, and R₂ from the output node to the reference node. With no other output current, the same current V_in/(R₁ + R₂) flows through both. The formula assumes an ideal source and ohmic values at the stated operating condition.

V_out,0

unloaded output voltage relative to the lower reference node, V

V_in

input voltage across the complete divider, V

R₁

upper divider resistance, Ω

R₂

lower divider resistance, Ω

Example

With 10 V input and R₁ = R₂ = 10 kΩ, the unloaded output is 10 × 10/(10 + 10) = 5.00 V. Divider current is 0.50 mA.

The output is not a zero-resistance power source. It is a node inside a resistive network. Drawing current from it changes the current through R₁ and R₂ and therefore changes output voltage. The simple unloaded ratio is appropriate for a negligible load, not for an arbitrary device attached later.

The load becomes part of the lower divider leg

Open full image

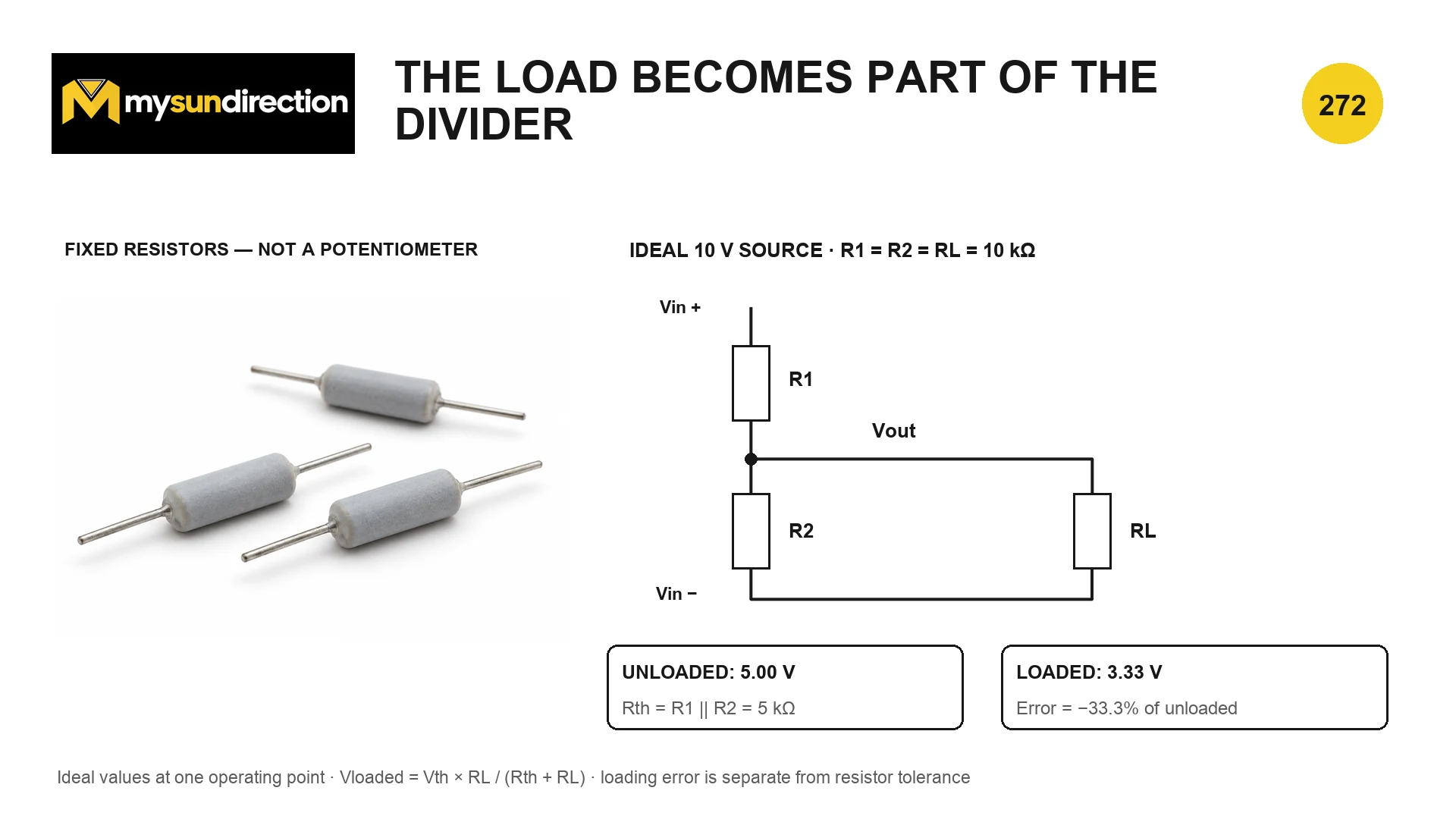

Diagram description

A fixed-resistor divider connects R1 above the output node and R2 below. A load resistor connects from output to the lower reference. Boxes compare the 5.00-volt unloaded result with the 3.33-volt loaded result.

Loaded divider by direct reduction

R_low = R₂ || R_L; V_out,L = V_in × R_low/(R₁ + R_low)

The notation A || B means AB/(A + B) for two finite positive resistances. This direct method makes the changed topology explicit. A nonlinear or time-varying load requires its operating-point model rather than one constant R_L.

R_low

effective loaded lower-leg resistance, Ω

R_L

load input resistance at the operating condition, Ω

V_out,L

loaded output voltage, V

Example

For R₁ = R₂ = R_L = 10 kΩ, R_low = 5 kΩ and V_out,L = 10 × 5/(10 + 5) = 3.33 V. Relative to 5.00 V unloaded, the change is −33.3%.

A Thévenin view exposes the divider's output resistance

Divider seen from its output terminals

V_th = V_inR₂/(R₁ + R₂); R_th = R₁ || R₂; V_L = V_th × R_L/(R_th + R_L)

For an ideal independent input-voltage source, set that source to zero when finding R_th, which shorts the input nodes together and leaves R₁ and R₂ in parallel. The model is equivalent at the output terminals for the stated linear network.

V_th

open-circuit or unloaded Thévenin voltage, V

R_th

Thévenin output resistance, Ω

V_L

voltage across the connected load, V

R_L

load resistance, Ω

Example

Two 10 kΩ divider resistors have V_th = 5 V and R_th = 5 kΩ. With R_L = 10 kΩ, V_L = 5 × 10/(5 + 10) = 3.33 V.

The often-repeated rule that load resistance should be “much larger” than divider resistance is incomplete until an allowable error is stated. If loading sag must be no more than 1%, the simple resistive model requires R_L at least 99 times R_th—not merely ten times. Other error sources may demand more margin.

Divider values trade current against stiffness and bandwidth

A divider is usually a signal or bias network, not a power supply

A fixed divider can scale a measurement signal, establish a bias or create a reference for a high-impedance input. It is usually poor at powering a variable load because output voltage changes with load and energy is continuously dissipated. A potentiometer adds an adjustable tap but still has loading, wiper-current, contact and power limits; the image specifically shows fixed resistors, not a potentiometer.

Finish with a worst-case and component-level check

For the node and branch rules behind the reductions, review Series, Parallel, Open and Short Circuits. Then include the value limits from Reading a Resistor's Value and Tolerance and the power, voltage and thermal limits from Resistance, Nonlinear Loads and Heat.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Combining Resistors and Building Voltage Dividers?

Equivalent at the terminals does not mean identical inside. Two networks can present the same resistance to a source while distributing current, voltage, power and heat differently among their parts.

Which assumption can change the conclusion?

Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.

What can go wrong if I copy the example directly?

The equivalent resistor cannot approve the physical parts. A 50 Ω equivalent does not mean each parallel resistor needs only the power expected in one 50 Ω component. Verify the voltage and power in each original resistor, then check its derating, working voltage, pulse and thermal limits.

How do I verify the result in the real system?

Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
