Why Capacitors Charge and Discharge Gradually
Understand an RC time constant without memorizing a graph alone.
You are connecting the subsystems described in “Why Capacitors Charge and Discharge Gradually” and need their mechanical, electrical and control interfaces to work together.
Connect capacitor charge, voltage and current to the exponential RC response, interpret one time constant as a milestone rather than completion, and account for the actual charging and discharge paths.
- Select or check first
- The curve follows from two relationships. For an ideal capacitor, i = C dv/dt: current is proportional to how quickly voltage changes. For the resistive path, current is also the remaining voltage difference divided by resistance. As the remaining difference decays, the rate of change decays with it.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Never assume elapsed time proves a capacitor is safe. The actual capacitance, initial voltage, leakage and discharge path may be unknown or failed. Some circuits recharge from another source, and dielectric absorption can cause voltage recovery.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Why Capacitors Charge and Discharge Gradually”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A capacitor's voltage changes only when charge moves onto or away from its terminals. In a simple resistance-capacitance circuit, the resistor controls that current. At first the difference between source voltage and capacitor voltage can be large, so current is large. As capacitor voltage approaches its new final value, the driving difference shrinks, current falls, and each equal interval produces a smaller voltage change. That feedback creates the familiar exponential curve.
Capacitance links stored charge and terminal voltage
Ideal capacitor relationships
q = Cv; i = C(dv/dt)
With a stated polarity and passive sign convention, positive current entering the positive-voltage terminal raises stored charge. A finite instantaneous voltage jump would require an ideal impulse of current. Real circuits instead have finite source impedance, equivalent series resistance, inductance and current limits.
- q
- charge associated with the capacitor terminal convention, C
- C
- capacitance, F
- v
- capacitor terminal voltage, V
- i
- current entering the chosen positive terminal, A
- dv/dt
- rate of capacitor-voltage change, V/s
A constant 1 mA into an ideal 100 μF capacitor changes voltage at i/C = 0.001/0.0001 = 10 V/s while that constant-current condition remains valid.
During charging, the remaining gap controls the current

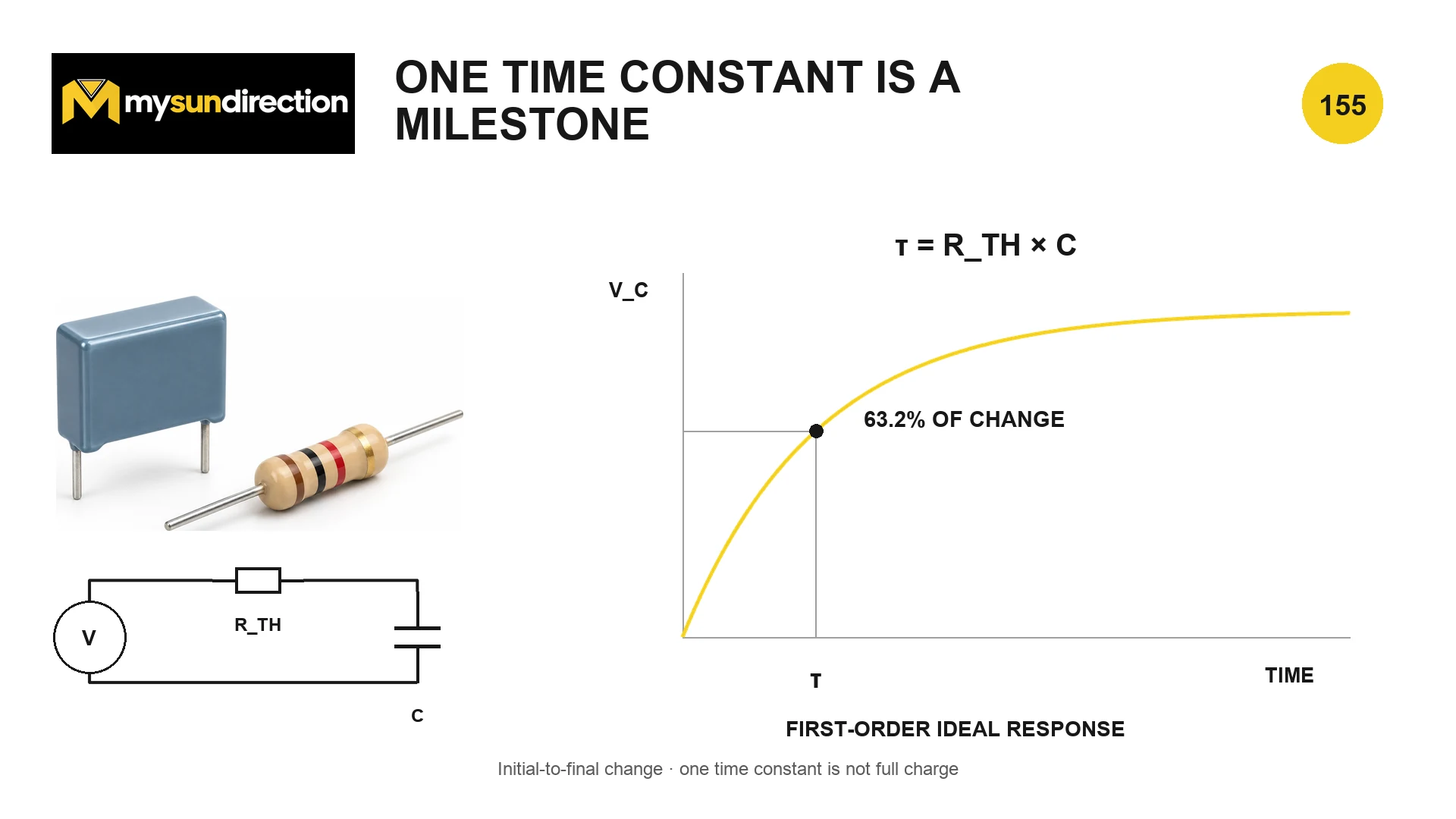

Diagram description
A source, equivalent resistance and capacitor form a series loop. The accompanying exponential voltage curve rises quickly at first, crosses a marked point at one time constant and gradually approaches its final value.
General first-order capacitor-voltage response
v_C(t) = V_final + (V_initial − V_final)e^(−t/τ); τ = R_thC
This form handles charging, discharging and transitions between two nonzero levels. V_initial is the capacitor voltage immediately before the switching event and, for an ideal finite-current network, immediately after it. V_final is the steady value approached with the new circuit held indefinitely. R_th is the resistance seen by the capacitor in that new configuration with independent ideal sources set to zero.
- v_C(t)
- capacitor voltage at time t, V
- V_initial
- capacitor voltage at the start of the interval, V
- V_final
- long-time voltage for the new circuit configuration, V
- τ
- first-order time constant, s
- R_th
- Thévenin resistance seen from the capacitor terminals, Ω
- C
- capacitance, F
An initially uncharged 100 μF capacitor charging toward 12 V through 10 kΩ has τ = 1.0 s and v_C(t) = 12[1 − e^(−t/1s)] V.
| Elapsed time | Change completed | Difference still remaining |
|---|---|---|
| 0τ | 0% | 100% |
| 1τ | 63.2% | 36.8% |
| 2τ | 86.5% | 13.5% |
| 3τ | 95.0% | 5.0% |
| 4τ | 98.2% | 1.8% |
| 5τ | 99.3% | 0.67% |
Charging current for the simple 0 V to V_S step
i(t) = (V_S/R_th)e^(−t/τ)
At t = 0, an initially uncharged ideal capacitor behaves as zero volts, so the resistive path initially sees the full source step. As v_C rises, resistor voltage and current fall. Source current limit, switch resistance, capacitor ESR and wiring may change the real initial value.
- V_S
- applied ideal step magnitude in the simple case, V
- R_th
- total effective resistance in the charging path, Ω
The 12 V, 10 kΩ, 100 μF example begins at 1.2 mA. At 1 s it has fallen to 1.2 mA × e⁻¹ ≈ 0.442 mA.
During discharge, the remaining voltage drives its own decay

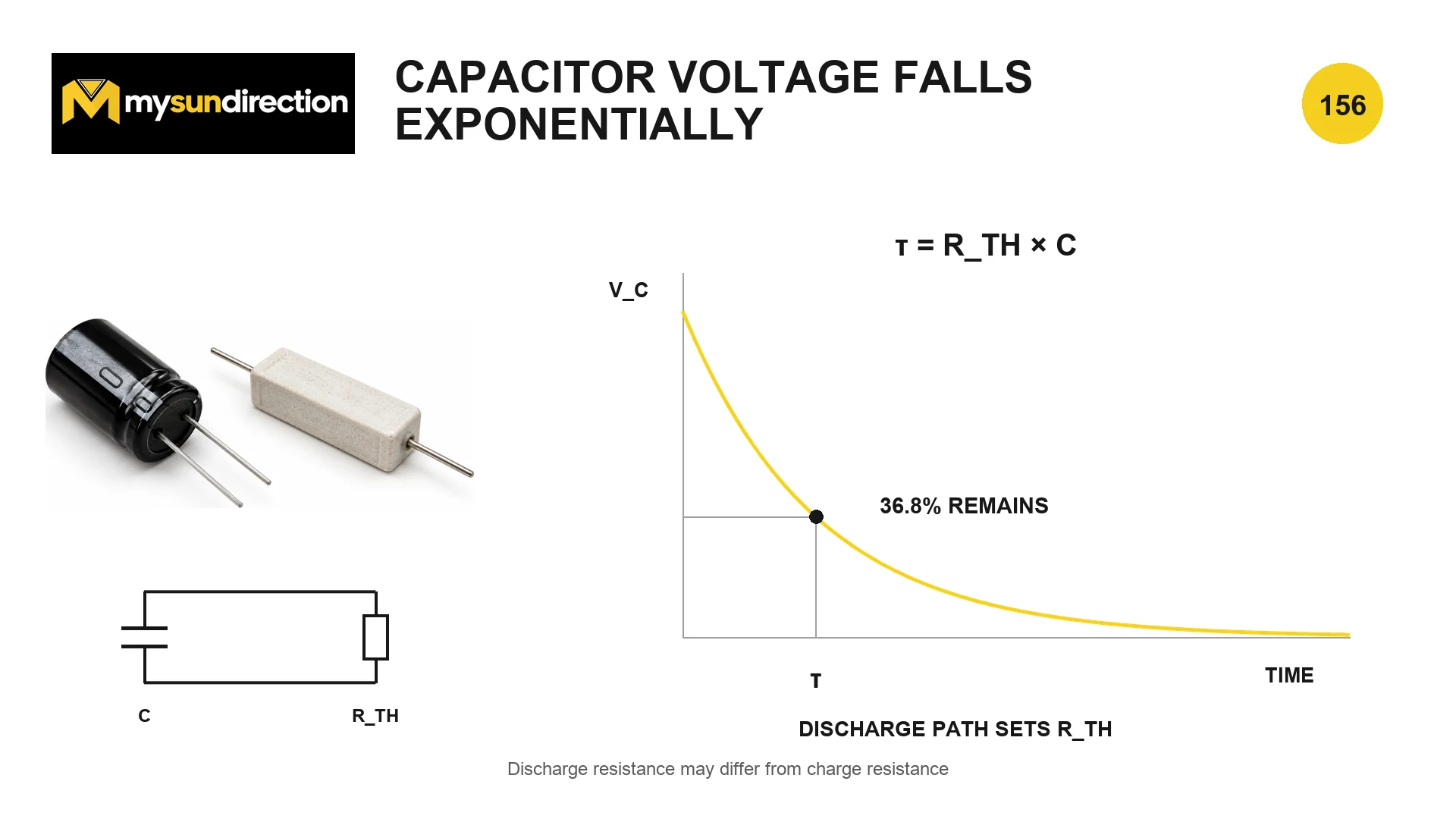

Diagram description
A capacitor and equivalent discharge resistance form a closed loop. The voltage curve falls steeply at first and approaches zero, with a marked one-time-constant point.
Simple discharge toward zero
v_C(t) = V_0e^(−t/(R_dischargeC)); |i(t)| = (V_0/R_discharge)e^(−t/(R_dischargeC))
Current direction is opposite the charging reference for the same capacitor polarity. R_discharge includes every relevant series path in the selected discharge configuration—not just a labelled bleeder resistor. Leakage paths can dominate when the intended path is very large.
- V_0
- initial capacitor voltage at discharge start, V
- R_discharge
- effective resistance in the discharge path, Ω
With V_0 = 12 V, R_discharge = 10 kΩ and C = 100 μF, τ = 1 s. After 5 s the ideal voltage is 12e⁻⁵ ≈ 0.081 V.
| Feature | Charging state | Discharge state |
|---|---|---|
| Driving value | New source and network final voltage | Often zero, but it can be another nonzero rail |
| Effective resistance | Source, switch and charge-path resistance seen by C | Bleeder, load, switch, leakage and discharge-path resistance seen by C |
| Initial current | Set by initial-to-final voltage difference and charge-path impedance | Set by initial voltage and discharge-path impedance |
| Protection concern | Inrush current, switch and source stress | Peak discharge current, resistor pulse energy and conductor stress |
| Long-time state | Approaches the new source-defined voltage | Approaches the new network-defined voltage, not always exactly 0 V |
Use the resistance seen by the capacitor
The resistor drawn next to the capacitor is not automatically R_th. Set independent ideal voltage sources to short circuits and independent ideal current sources to open circuits, keep dependent sources active, then find the resistance looking into the capacitor terminals. Switch position and active-device state matter. For a nonlinear network, one constant R_th may only approximate a local operating range.
| Non-ideal effect | Possible consequence |
|---|---|
| Capacitance tolerance and voltage/temperature dependence | Actual τ differs from nominal and can vary while charging |
| Equivalent series resistance | Extra initial voltage drop, heating and current limitation |
| Leakage and dielectric absorption | Long-time voltage differs from the ideal curve or partially rebounds after discharge |
| Source or switch current limiting | Early response may be closer to constant-current than exponential |
| Several capacitors or resistive paths | Multiple time constants rather than one simple exponential |
| Inductance and fast switching | Ringing, overshoot and high transient voltage or current |
| Measurement input resistance and capacitance | The instrument becomes another load and may change τ |
Voltage decay also means stored energy is being released
Energy stored in an ideal capacitor
E_C = ½CV²
Because energy depends on voltage squared, doubling voltage at the same capacitance quadruples stored energy. During a simple resistor discharge, that energy becomes heat in the resistance. The resistor must tolerate both instantaneous power and total pulse energy.
- E_C
- stored electrical energy, J
- C
- capacitance, F
- V
- capacitor voltage, V
A 1000 μF capacitor at 50 V stores 0.5 × 0.001 × 50² = 1.25 J. A bank with much larger C or V can store hazardous energy.
Solve an RC transition without memorizing a special-case graph
| Step | Question |
|---|---|
| 1. Define polarity | Which capacitor terminal is positive for v_C and current? |
| 2. Find V_initial | What was the steady or specified capacitor voltage immediately before switching? |
| 3. Find V_final | What voltage would the new circuit impose after a very long time? |
| 4. Find R_th | What resistance does the capacitor see in the new switch state? |
| 5. Calculate τ | Multiply that R_th by C and check units: Ω·F = s |
| 6. Use the general form | Evaluate V_final + (V_initial − V_final)e^(−t/τ) |
| 7. Verify limits | Check initial current, resistor pulse energy, capacitor voltage/polarity and real tolerances |
The same Thévenin idea used to find divider loading in Combining Resistors and Building Voltage Dividers finds the resistance seen by the capacitor here. For the safe measurement boundary around stored-energy circuits, revisit Using a Multimeter and a Diagnostic Sequence.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Why Capacitors Charge and Discharge Gradually?
The curve follows from two relationships. For an ideal capacitor, i = C dv/dt: current is proportional to how quickly voltage changes. For the resistive path, current is also the remaining voltage difference divided by resistance. As the remaining difference decays, the rate of change decays with it.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Never assume elapsed time proves a capacitor is safe. The actual capacitance, initial voltage, leakage and discharge path may be unknown or failed. Some circuits recharge from another source, and dielectric absorption can cause voltage recovery.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
