Semiconductors and Switching
High-Side, Low-Side and Relay Drive Choices
Understand where a switch sits relative to the load and the drive signal.
A real system shows a symptom related to “High-Side, Low-Side and Relay Drive Choices”, and you need to find the cause before replacing parts or changing settings.
Choose switch position from the load's required off-state, reference and fault behavior, then design the control path: low-side N-MOSFET drive is ground-referenced, high-side drive follows a moving source, and relay coils can be driven by either a properly biased BJT or a fully enhanced MOSFET.
- Select or check first
- Choose the off-state before the transistor. Ask which load terminal may remain connected to the supply, how the load is referenced to sensors or communications, and what a short to chassis, return or battery would do. Those system questions often determine high-side versus low-side before current or cost does.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- A bootstrap supply has operating constraints. A bootstrap circuit normally recharges while the switch node is pulled low. Very long high-side on-time, very light load, startup state or unusual PWM timing may prevent adequate recharge.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “High-Side, Low-Side and Relay Drive Choices”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
High-side and low-side describe where a switch sits in relation to the load and supply—not whether the switch is logically on or physically above another component. A low-side switch interrupts the return path. A high-side switch interrupts the positive supply path. Both can work, but they leave different nodes connected while off and demand different drive circuits.

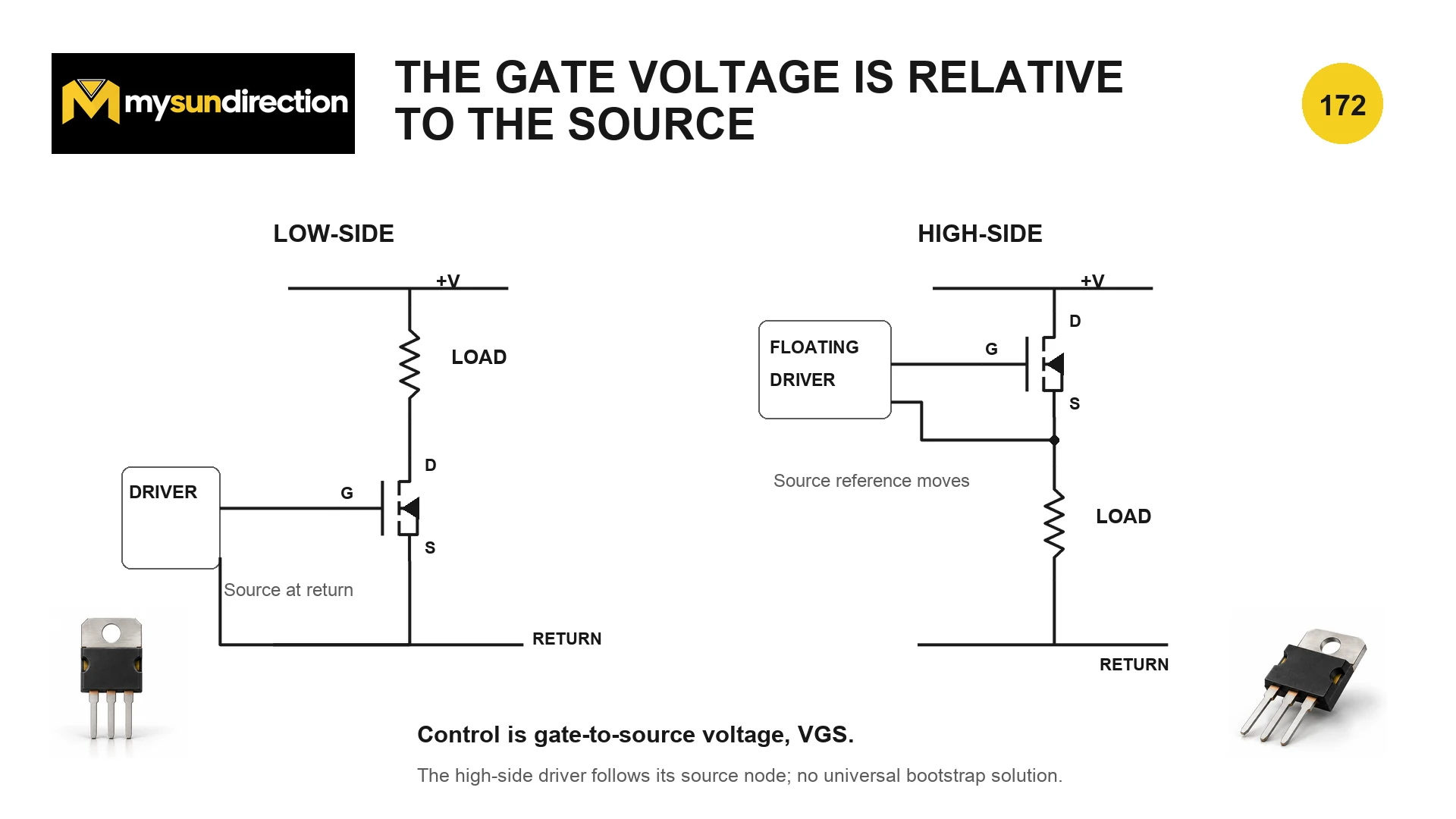

Switch position changes the reference and fault behavior
Diagram description
The low-side diagram uses a ground-referenced driver. The high-side diagram uses a floating driver referenced to the moving MOSFET source and explicitly warns that no bootstrap arrangement is universal.
| Question | Low-side switch | High-side switch |
|---|---|---|
| Switch location | Between load and return | Between positive supply and load |
| Typical N-MOS source reference | Near return while off and on | Moves from near return toward the positive rail |
| Load while off | One terminal may remain tied to +V | One terminal may remain tied to return |
| Simple logic reference | Often shares return with controller | Usually needs level shifting, a floating/isolated supply, bootstrap action or a suitable P-channel solution |
| Common fault concern | Load wire short to return may energize or bypass sensing depending on system | Load wire short to positive may energize or defeat switch depending on system |
| Use case | Convenient when a switched return is acceptable | Useful when the load must retain a defined return or supply disconnection is required |
The control voltage is gate to source
V_GS = V_G − V_S
A controller pin voltage measured to logic ground does not by itself tell whether a MOSFET is enhanced. For an N-channel high-side switch, the driver commonly has to raise the gate above the moving source while staying inside the device's maximum V_GS.
Translate the load into electrical requirements
| Input | Why it changes the solution |
|---|---|
| Supply range and transients | Sets blocking voltage, clamp and driver ratings |
| Steady, startup and stall current | Sets conduction, pulse and fault stress |
| Resistive, capacitive or inductive behavior | Changes inrush, turn-off voltage and protection |
| Required on/off rate | Changes switching loss, noise and gate-drive demand |
| Off-state leakage allowed | A semiconductor path may not behave like an open mechanical contact |
| Isolation requirement | Functional control separation is not automatically safety-rated isolation |
| Fail-safe state | Pull resistors, driver power loss and broken-wire behavior must leave a defined output |
| Environment and service life | Temperature, vibration and switching cycles influence semiconductor and relay choices |
A relay coil is an inductive load, not a logic input
A relay's input coil may need more current or a different voltage than a microcontroller output can provide. A driver transistor translates the logic signal to the coil circuit. The coil and its suppression network determine turn-on current, turn-off voltage and release time; the relay contacts form a separate load circuit with their own ratings.

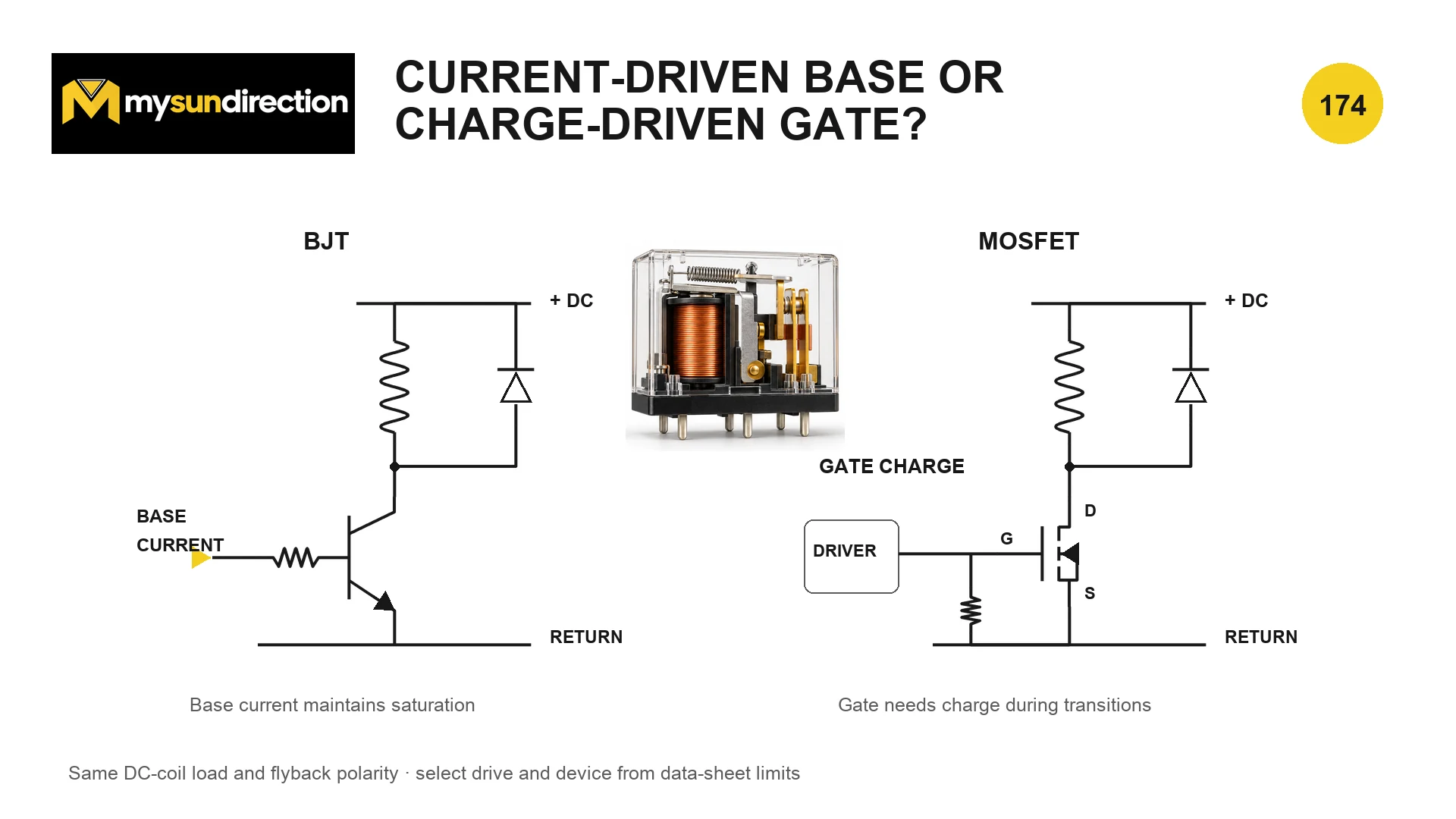

Diagram description
The two conceptual circuits operate the same DC coil and use the same flyback polarity, allowing the input-drive difference to be compared without claiming a universally preferred device.
BJT coil driver
Forced-beta base-current screen
I_B ≥ I_coil / β_forced; R_B ≈ (V_logic − V_BE) / I_B
Do not use the transistor's maximum or typical small-signal gain as a saturation guarantee. Verify V_CE(sat), base-current demand, controller-pin limits and resistor power from the chosen transistor's data sheet.
- I_B
- base current, A
- I_coil
- relay coil current at the applicable voltage and temperature, A
- β_forced
- conservative design ratio for saturation, dimensionless
- R_B
- base resistance, Ω
MOSFET coil driver
A MOSFET gate draws little steady DC current ideally, but the driver must charge and discharge it. Select a device whose on-resistance is guaranteed at the available V_GS, not merely one advertised as logic level. Add a gate-to-source pull resistor so reset, disconnection or an unpowered controller produces a defined off state. Check drain voltage including the chosen coil clamp and wiring transients.
| Property | BJT | MOSFET |
|---|---|---|
| Input demand while on | Continuous base current | Ideally little DC gate current; transient charge current |
| On-state loss model | Approximately V_CE(sat) × I_coil | Approximately I_coil² × hot R_DS(on) |
| Control component | Base resistor sized for saturation and logic-pin limit | Gate path/pull resistor; driver needed when timing, voltage or immunity demands it |
| Turn-off concern | Stored charge can delay turn-off | Gate charge and Miller coupling can delay or disturb turn-off |
| Best answer | Data-sheet and system calculation | Data-sheet and system calculation |
The clamp protects the switch and controls release
When coil current is interrupted, the magnetic field releases stored energy. A diode directly across a DC coil offers a low-voltage recirculation path, limiting switch stress but often slowing current decay and armature release. A Zener-assisted or other higher-voltage clamp can release faster but raises transistor and insulation stress. Follow relay and driver manufacturer guidance, confirm polarity, and measure release behavior in the real assembly.
Verify the whole path, including abnormal states
| State | Evidence |
|---|---|
| Controller starting or unpowered | Switch remains in the intended safe state |
| Minimum supply / hot coil | Relay reaches guaranteed pickup condition |
| Maximum supply / cold coil | Coil, switch and clamp stay within current, voltage and temperature limits |
| Turn-off | Drain or collector transient and relay release time meet limits |
| Open coil or disconnected load | Diagnostics do not create unsafe voltage or false actuation |
| Shorted load or transistor | Fuse/protection and system hazard analysis cover the fault |
| Repeated operation | Temperatures and switching life remain acceptable |
Where a P-channel MOSFET can simplify high-side switching
At moderate voltage and current, a P-channel MOSFET can put its source at the positive rail and turn on by pulling its gate downward, avoiding a gate voltage above the rail. It often has higher on-resistance than a comparable N-channel device and its gate still needs voltage limiting, defined off bias and controlled switching. It is an option, not a universal replacement for a high-side driver.
The node and fault distinctions in Series, Parallel, Open and Short Circuits help define what each switch position leaves connected. Use the bias-state discipline in Pull-Ups, Current Shunts and Failed Components to keep the driver off during reset and wiring faults.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for High-Side, Low-Side and Relay Drive Choices?
Choose the off-state before the transistor. Ask which load terminal may remain connected to the supply, how the load is referenced to sensors or communications, and what a short to chassis, return or battery would do. Those system questions often determine high-side versus low-side before current or cost does.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
A bootstrap supply has operating constraints. A bootstrap circuit normally recharges while the switch node is pulled low. Very long high-side on-time, very light load, startup state or unusual PWM timing may prevent adequate recharge.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
