How a Battery Cell Converts Chemical Energy
Understand the alkaline cell and why terminal voltage changes under load.
You are applying “How a Battery Cell Converts Chemical Energy” to a real system and need the concept, assumptions and verification boundary to stay clear.
Trace charge through a discharging alkaline cell, distinguish electron and ion paths, and interpret load-dependent terminal voltage without treating internal resistance as a fixed universal number.
- Select or check first
- Two paths complete one process. Electrons travel through the external metal circuit. Ions travel through the electrolyte and separator inside the cell. The separator permits ionic transport while preventing direct electronic contact that would internally short the electrodes.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Do not recharge a primary alkaline cell. A standard primary alkaline cell is not designed for charging. Forced charging, mixing chemistries or ages, short circuit, fire, puncture and reversed installation can cause leakage, heating, rupture or injury. Follow the cell maker’s handling and disposal instructions.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “How a Battery Cell Converts Chemical Energy”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A cell does not store a tank of electrons. It stores chemical reactants in a structure that can sustain separated electrochemical potentials. When an external circuit is closed, oxidation at one electrode releases electrons to the external path, reduction at the other consumes them, and ions move inside the cell to maintain charge balance. The terminal voltage and deliverable energy depend on chemistry, construction, state of charge, load, temperature and history.

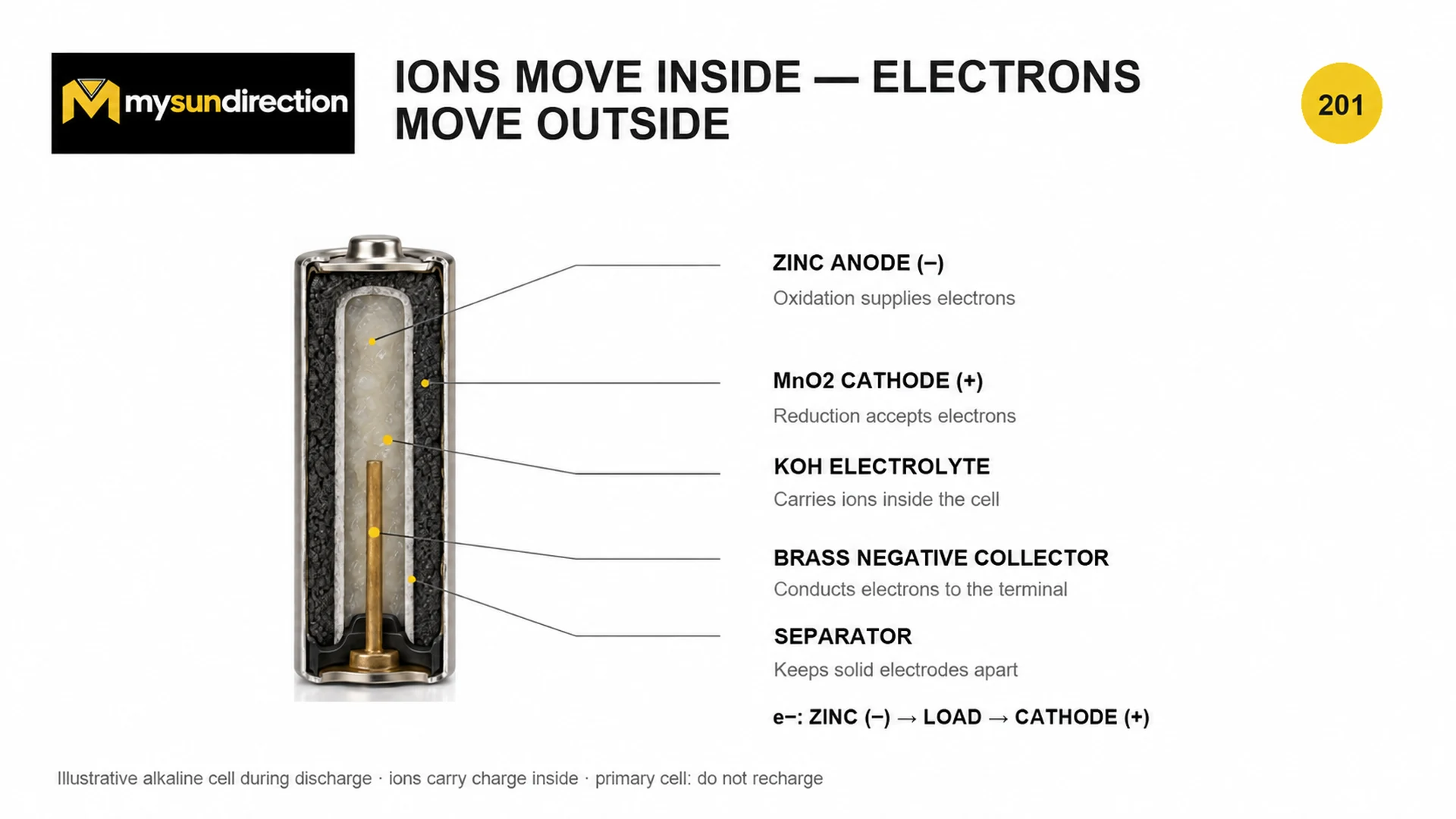

An alkaline cell couples zinc oxidation to manganese-dioxide reduction
Diagram description
Labels identify the zinc anode during discharge, manganese-dioxide cathode, separator and alkaline electrolyte.
| Part | Role during discharge | What moves |
|---|---|---|
| Negative electrode (anode) | Zinc is oxidized and supplies electrons to the external circuit | Electrons leave the negative terminal |
| Positive electrode (cathode) | Manganese-dioxide chemistry accepts electrons through reduction reactions | Electrons arrive from the load |
| Electrolyte | Provides ionic conductivity | Ionic species redistribute charge internally |
| Separator | Keeps electrodes electronically apart while allowing ions through | Ions pass; direct metal contact is blocked |
| External load | Receives electrical energy and converts it | Conventional current is opposite electron motion |
Why the reaction is written in more than one valid form
Alkaline zinc–manganese-dioxide chemistry proceeds through intermediate phases whose prominence changes with discharge conditions. Handbooks may present simplified overall reactions or more detailed pathways. The article therefore teaches electrode roles and charge transport without implying that one compact equation describes every stage inside every commercial cell.

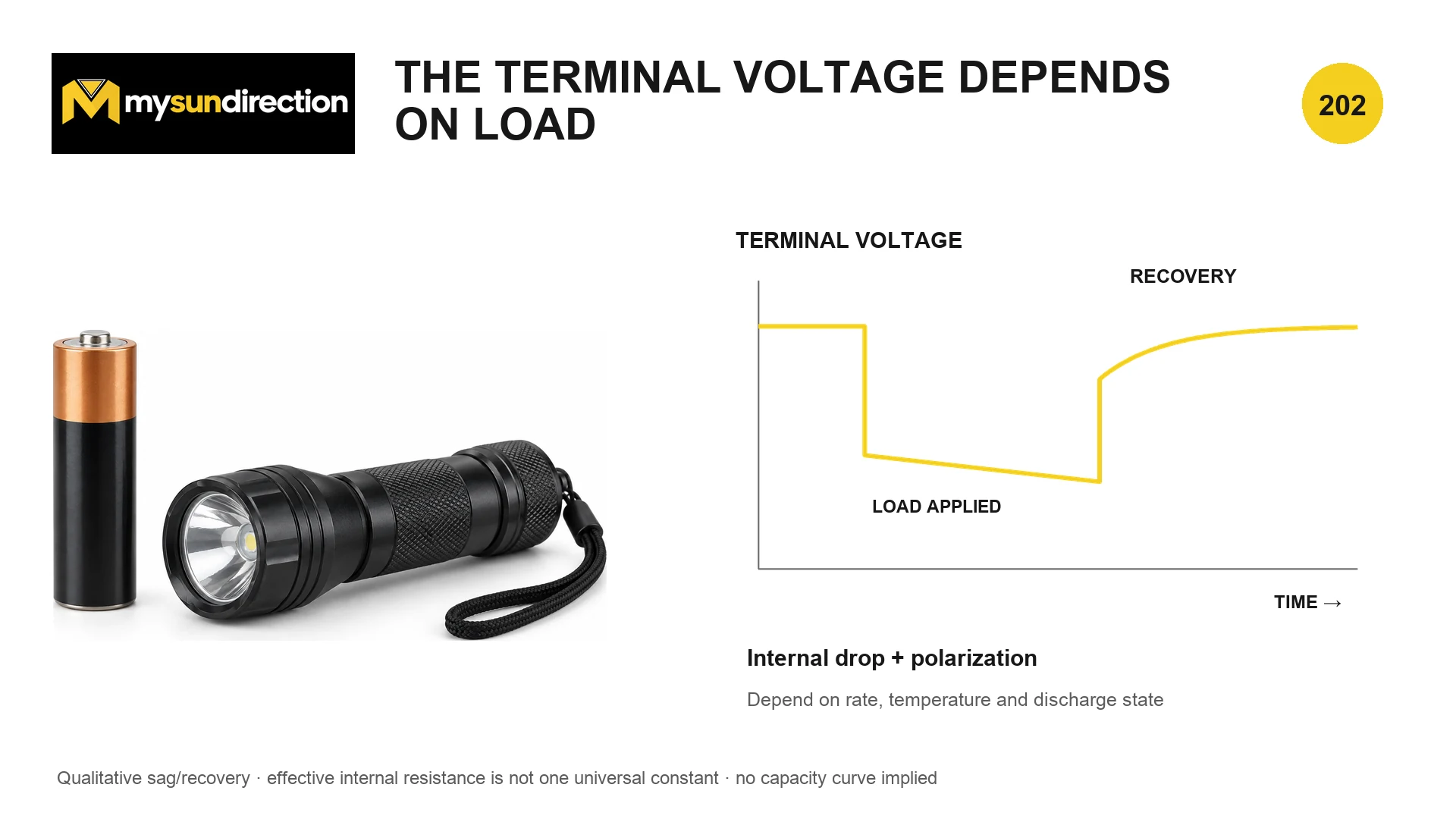

Terminal voltage falls under load and may partly recover
Diagram description
The qualitative trace separates an initial load step from slower change and recovery; no chemistry-independent timescale is implied.
Simple loaded-source model
V_terminal ≈ V_oc − I·R_effective
This is a local engineering model, not a complete electrochemical law. The effective resistance inferred from a pulse can vary with duration, state of charge, temperature, cell design, ageing and prior rest. Slower polarization and concentration effects need additional dynamic elements.
- V_terminal
- voltage measured at the terminals under load, V
- V_oc
- rested open-circuit voltage for the present state, V
- I
- discharge current, A
- R_effective
- condition- and timescale-dependent effective internal resistance, Ω
If a cell measures 1.50 V at rest and 1.32 V during a 0.60 A pulse, the pulse estimate is (1.50 − 1.32)/0.60 = 0.30 Ω for those conditions. It is not a permanent cell constant.
| Condition | Typical effect | Reason to record it |
|---|---|---|
| Higher discharge current | Earlier cutoff and more loss | Voltage drop and reaction transport become more influential |
| Lower temperature | Lower voltage and usable capacity | Reaction and ionic transport slow; effective resistance rises |
| Lower cutoff voltage | More charge may be extracted | The device may not operate correctly at that voltage |
| Rest after load | Terminal voltage can recover | Recovery is not the same as replenishing reactants |
| Age and storage history | More loss or leakage is possible | Calendar history changes performance |
Charge capacity and energy capacity are related but different
Electrical energy delivered
E = ∫ V(t)I(t) dt
Ampere-hours integrate current and report charge throughput. Watt-hours integrate electrical power and include the changing terminal voltage. A nominal-voltage multiplication is an estimate only when the voltage profile and rating conditions support it.
- E
- delivered electrical energy, J or Wh
- V(t)
- terminal voltage over time
- I(t)
- load current over time
The power and energy definitions used here are developed in Voltage, Current, Power and Energy Are Different. For the system-level difference between daytime production and storage, see Solar Generation During Day, Night and Bad Weather.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for How a Battery Cell Converts Chemical Energy?
Two paths complete one process. Electrons travel through the external metal circuit. Ions travel through the electrolyte and separator inside the cell. The separator permits ionic transport while preventing direct electronic contact that would internally short the electrodes.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Do not recharge a primary alkaline cell. A standard primary alkaline cell is not designed for charging. Forced charging, mixing chemistries or ages, short circuit, fire, puncture and reversed installation can cause leakage, heating, rupture or injury. Follow the cell maker’s handling and disposal instructions.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
