How an Alternator Charges a Battery
Discover generation, rectification and field-current regulation in a charging system.
You need to understand the internal functions in “How an Alternator Charges a Battery” before selecting, connecting or troubleshooting the real equipment.
Trace mechanical rotation through a typical automotive alternator's rotor field, three-phase stator and diode rectifier, then see how field-current feedback regulates the vehicle bus within speed, current and temperature limits.
- Select or check first
- The alternator does not create energy. Electrical output comes from mechanical shaft power. More electrical load requires more electromagnetic torque at the pulley, so the engine must supply additional mechanical power plus the alternator's losses.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- A charging system combines high current, moving parts and battery hazards. Keep tools, clothing and leads clear of belts and fans. Prevent short circuits at the unfused output terminal. Follow vehicle isolation procedures, and account for battery gas, acid, stored energy and electronically controlled engine restart.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “How an Alternator Charges a Battery”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
An automotive alternator converts engine-supplied mechanical power into electrical power for the vehicle bus. In a common claw-pole design, current in a rotating field winding establishes magnetic poles. Rotation sweeps that magnetic field past stationary stator windings, inducing three-phase AC. A diode assembly rectifies the phase voltages into pulsating DC, and the battery plus the electrical system receive the resulting bus current.

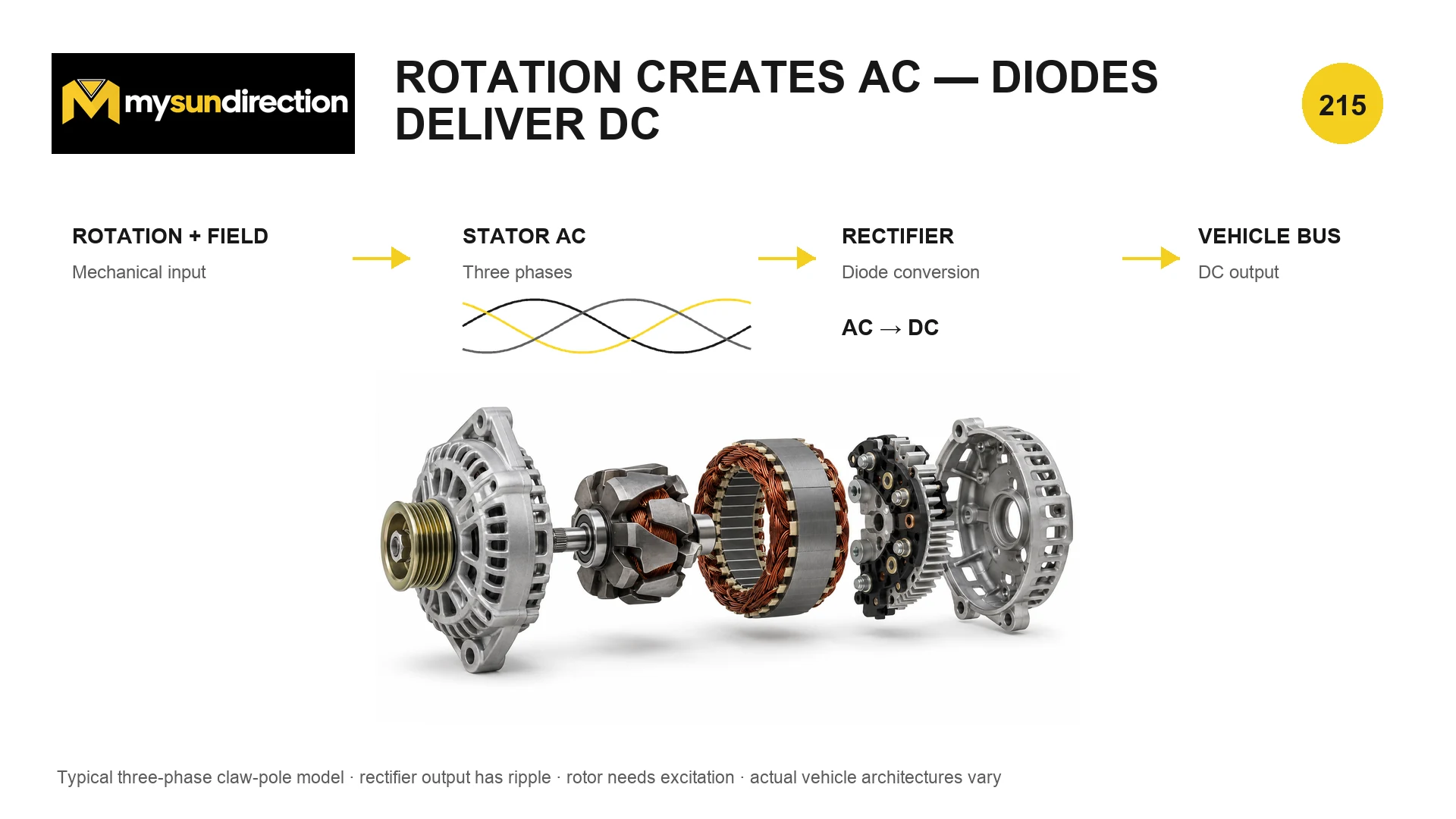

Rotation, magnetic field, stator AC, rectification, DC bus
Diagram description
The image is a functional overview rather than a universal parts layout. It notes that rectified output contains ripple, the rotor requires excitation and actual vehicle architectures vary.
| Stage | Job | What can limit it |
|---|---|---|
| Pulley and rotor | Accept mechanical power and rotate the magnetic field | Belt slip, low speed, bearing loss, engine strategy |
| Rotor field winding | Set magnetic excitation | Field-current limit, brush/slip-ring condition, regulator command |
| Three-phase stator | Generate alternating phase voltages | Speed, flux, winding temperature and current rating |
| Rectifier diodes | Route phase currents to one DC polarity | Forward loss, heat, diode failure and reverse-voltage stress |
| Battery and vehicle bus | Store energy, stabilize voltage and supply loads | Battery state, temperature, wiring drop and load demand |
Diodes make the output one-directional, not perfectly smooth
The three stator phases reach their positive and negative peaks at different rotor angles. The rectifier connects the appropriate phase paths to the positive and negative bus during each interval. This full-wave action keeps output polarity consistent, but the instantaneous voltage and current retain ripple. The battery and system capacitance reduce bus variation; they do not erase the switching pattern or every fault signature.
Power balance for diagnosis
P_mech = P_DC + P_copper + P_iron + P_diodes + P_mechanical + …
This accounting explains why an alternator heats and why increased electrical load increases pulley torque. It is not an efficiency value: every loss term changes with speed, output current, temperature and design.
- P_mech
- mechanical shaft input power, W
- P_DC
- useful DC bus output power, W
Delivering 1.0 kW electrically requires more than 1.0 kW at the shaft because winding, diode, core, bearing and airflow losses also need power.

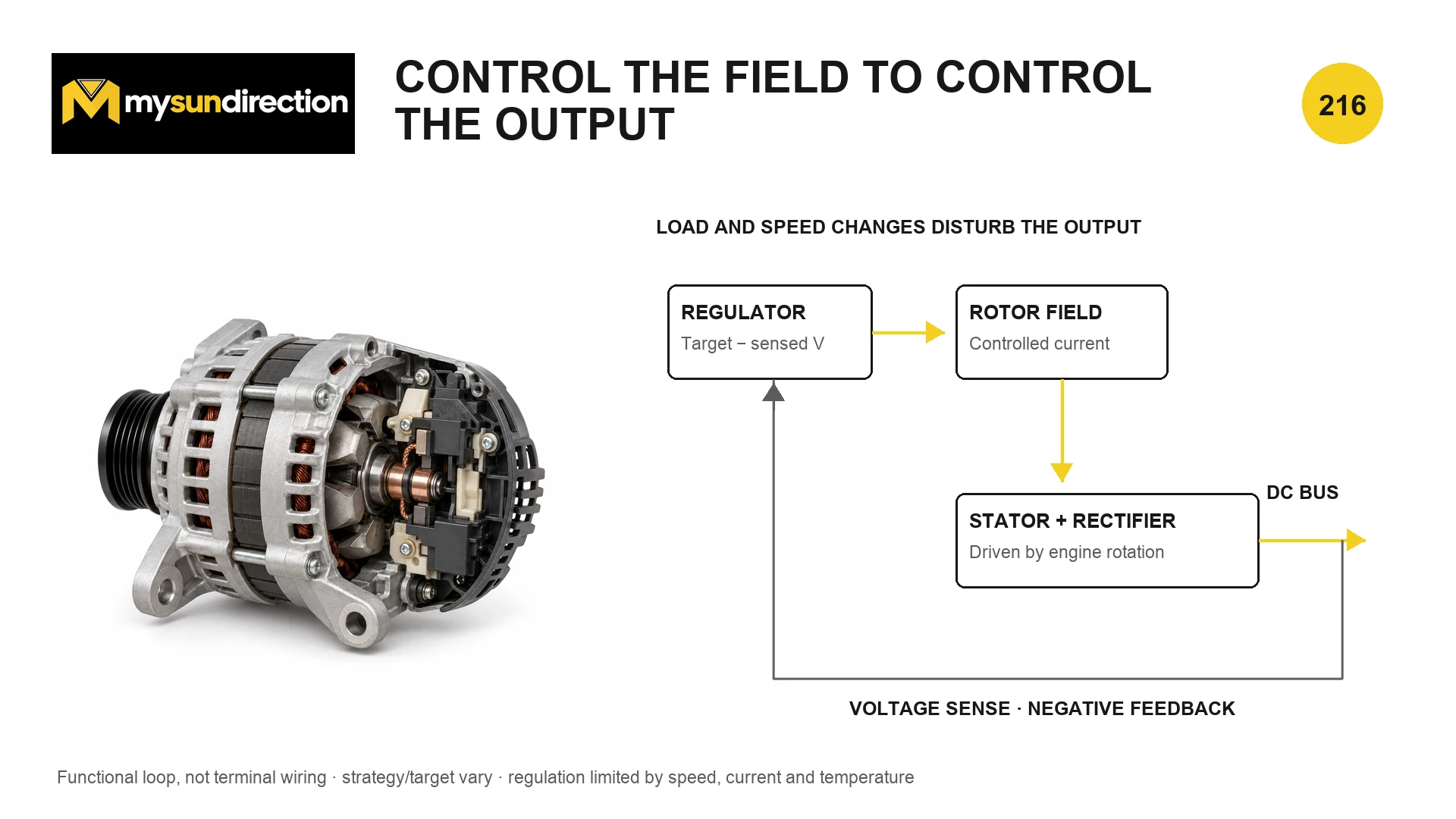

The regulator changes field current to influence output
Diagram description
The blocks show function, not terminal wiring. Control strategy and voltage target vary by vehicle, battery, temperature and operating mode; available output remains limited by speed, current and temperature.
If sensed bus voltage is below the active target and operating limits permit, a regulator can increase average field current. Stronger rotor flux raises generated stator voltage and available current. If voltage rises above target, the regulator can reduce field current. Modern vehicles may command a changing target using battery temperature, estimated state of charge, engine operation, fuel-saving strategy and load management. A single universal charging voltage should therefore not be assumed.
Simplified generated-voltage tendency
E_generated ∝ Φ_field·ω
This proportionality is a teaching approximation before saturation, winding drops, rectifier drops and control limits. Regulation can adjust field flux, but it cannot produce unlimited output at idle or exceed thermal and current constraints.
- E_generated
- internal generated-voltage scale
- Φ_field
- rotor-field flux scale
- ω
- rotor angular speed, rad/s
| Disturbance | Likely control response | Limit to remember |
|---|---|---|
| More vehicle load | Increase field command | Output-current and thermal limits |
| Lower engine speed | Increase field if possible | Low speed may cap generated voltage and current |
| Hot alternator | System may reduce allowable output | Semiconductor and winding temperature |
| Battery cold or hot | Change charging target according to strategy | Battery chemistry and maker limits |
| Open or failed diode | Regulator may demand more field | Ripple rises and rated output may fall |
Alternator and starter motor have opposite energy directions
| Machine | Main conversion | Typical operating time |
|---|---|---|
| Starter motor | Battery electrical energy to high mechanical cranking torque | Short engine-start interval |
| Alternator | Engine mechanical power to regulated electrical output | While the engine is running |
What ripple can—and cannot—tell a technician
Excessive or irregular AC content on the DC bus can support a diagnosis of a diode, stator or connection problem, but the acceptable waveform depends on machine design, speed, load, battery condition, measurement bandwidth and probe location. Use the vehicle maker's test method and limits. Never disconnect the battery from a running system as a casual alternator test; transients can damage electronics.
For the rectifier stage, review From AC to DC With a Diode Bridge. For battery-side limits and terminology, continue with Lead-Acid Batteries, Capacity and Starting Power.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for How an Alternator Charges a Battery?
The alternator does not create energy. Electrical output comes from mechanical shaft power. More electrical load requires more electromagnetic torque at the pulley, so the engine must supply additional mechanical power plus the alternator's losses.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
A charging system combines high current, moving parts and battery hazards. Keep tools, clothing and leads clear of belts and fans. Prevent short circuits at the unfused output terminal. Follow vehicle isolation procedures, and account for battery gas, acid, stored energy and electronically controlled engine restart.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
