Electricity and Circuit Foundations
Using a Multimeter and a Diagnostic Sequence
See where voltage/current measurements belong and how to investigate a fault logically.
A real system shows a symptom related to “Using a Multimeter and a Diagnostic Sequence”, and you need to find the cause before replacing parts or changing settings.
Understand what a digital multimeter changes when measuring voltage, current, resistance or continuity, then organize safe extra-low-voltage fault-finding as a sequence of evidence-based questions.
- Select or check first
- Function, socket, range, connection and rating must all agree. A correct dial symbol is only one part of a valid measurement. The lead inputs, AC or DC selection, expected range, connection topology, instrument and probe ratings, circuit state and test method must match the question.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- “Switched off” is not the same as verified de-energized. Isolation must account for every source, backfeed and stored-energy path. Workplace rules may require lockout or tagout and verification by a qualified person using suitable test equipment.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Using a Multimeter and a Diagnostic Sequence”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
- Each measurement mode interacts with the circuit differently
- Voltage mode asks about two points
- Current mode changes the current path
- Resistance and continuity belong on a de-energized, isolated path
- Validate the measuring system before believing the number
- Fault-finding works best as one testable question at a time
- Reading the protected 12 V lamp map
A multimeter does not merely display a number. Its selected function, input socket and connection become part of the circuit being examined. In voltage mode it samples a difference between two points. In current mode it must carry branch current through an internal measuring path. In resistance or continuity mode it applies its own small test stimulus. Choosing the wrong combination can invalidate the result, open a protective fuse or create a dangerous fault.
Each measurement mode interacts with the circuit differently

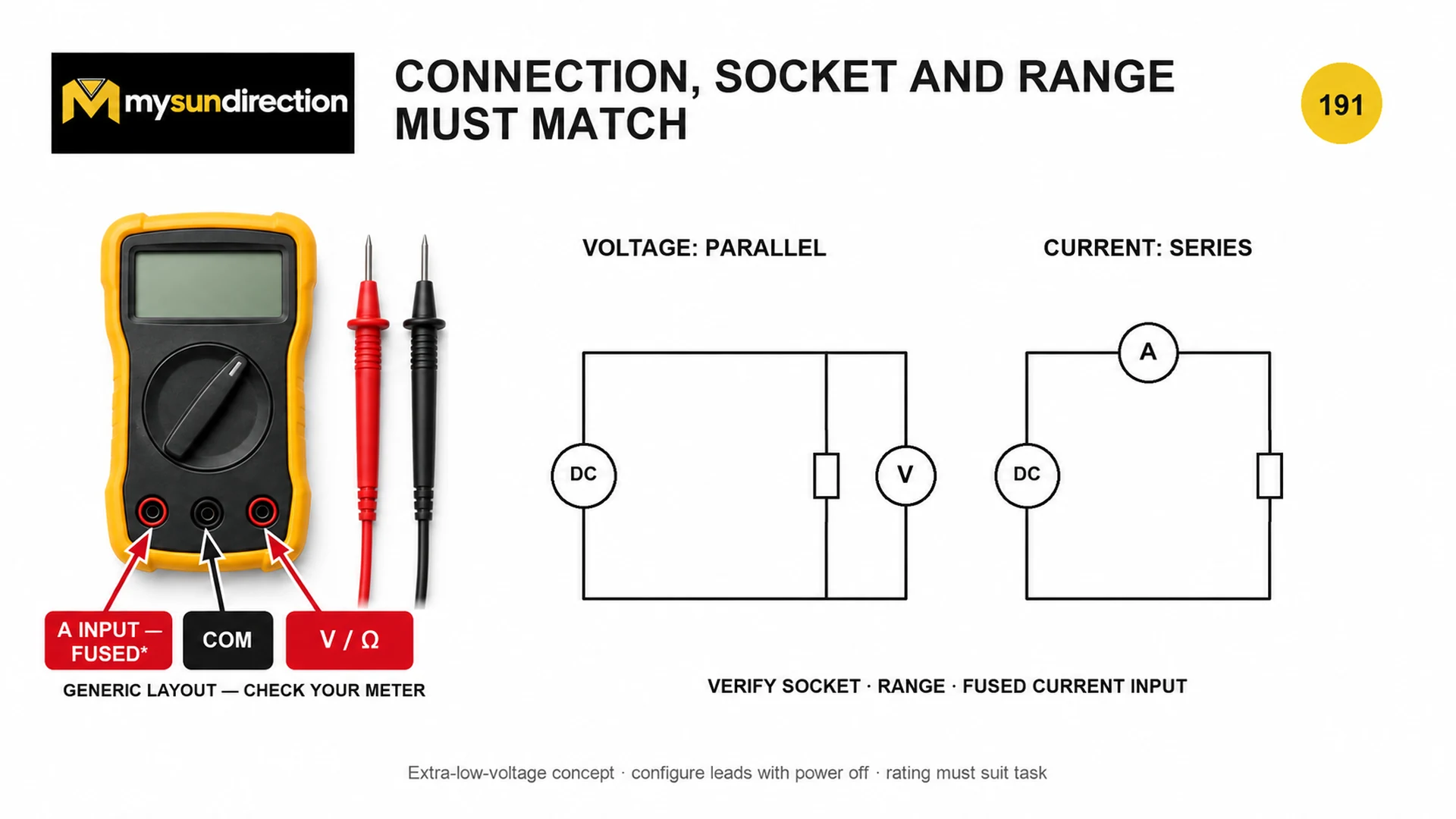

Diagram description
A generic digital multimeter has a fused ampere input, common input and voltage-ohm input. Separate conceptual circuits show a voltmeter across a load and an ammeter inserted into a series path.
| Mode | What the meter is trying to learn | Connection concept | Circuit state or major caution |
|---|---|---|---|
| Voltage | Potential difference between two selected points | Across the two points; commonly described as parallel | Circuit may need to operate for a functional test, so only competent persons should test where energized work is justified and controlled |
| Current | Charge-flow rate through a selected branch | Open the branch and insert the meter in series, or use a suitable non-intrusive current sensor | The meter's low-resistance current path can create a short if placed across a source |
| Resistance | Response to the meter's internal test stimulus | Across an isolated component or path | Power off, isolate and verify absence of voltage; stored charge and parallel paths can mislead or damage the meter |
| Continuity | Whether resistance is below the meter's indication threshold | Across an isolated path | Power off; a beep is threshold-dependent and does not prove a good connection under load |
| Diode or capacitance | A device response using a mode-specific stimulus | As specified by the instrument and component documentation | Isolate and discharge as required; polarity and circuit interaction matter |
Voltage mode asks about two points
A digital voltmeter is designed with high input impedance so that it draws relatively little current, but it is not perfectly invisible. The displayed sign depends on probe reference and polarity in DC mode. A zero or small reading may mean the two points are at similar potential, the source is absent, the circuit is loaded down, the probes are misplaced, the range or mode is wrong, or the meter path is not functioning. One reading needs context.
Current mode changes the current path
In direct current mode, a conventional handheld meter routes branch current through a shunt and protective path. This introduces burden voltage and may affect a low-voltage circuit. The input fuse protects within stated limits; it is not permission to connect carelessly. Leaving the red lead in a current socket and then probing across a source is a classic short-circuit error. Before any connection changes, de-energize where the task permits and return the lead to the voltage-resistance socket after current work.
Why a clamp or dedicated current sensor may be preferable
A compatible clamp or current probe can sense one conductor without opening the circuit, reducing intrusion. It still needs the correct AC, DC or waveform capability, range, jaw placement, zeroing method, conductor access and safety rating. Clamping around both outgoing and returning conductors usually measures their net magnetic effect rather than either branch current. Follow the exact sensor manual.
Resistance and continuity belong on a de-energized, isolated path
An ohmmeter supplies its own test signal. External voltage can corrupt the reading, damage the instrument or create a hazard. A component left in-circuit may be paralleled by other paths, so the value can be lower than expected even when the component itself is sound. Continuity mode usually beeps below a model-specific resistance threshold; it does not certify contact quality, current capacity, insulation integrity or behaviour under mechanical movement and load.
Validate the measuring system before believing the number
| Question | Why it matters |
|---|---|
| Is the person competent and the test necessary? | Energized testing can expose people to shock, arc, movement or unexpected startup |
| What value and waveform are reasonably expected? | The estimate determines function, AC/DC choice, range and whether the result is plausible |
| Are meter, probes and accessories intact and correctly rated? | The system rating is limited by the weakest applicable component and environment |
| Are the leads in the correct inputs and the current fuse suitable and intact? | Socket errors can short the source; an open fuse can produce a misleading zero-current result |
| What reference points or branch answer the question? | Random probing produces numbers without diagnostic meaning |
| Will the meter load or alter the circuit? | Input impedance, burden voltage and test stimulus can change the behaviour being measured |
| How will correct instrument operation be established? | A known source or prescribed before-and-after proving method can reveal a failed tester or lead |
Measurement-category and voltage markings describe transient environments, not simply the steady voltage on the display. A higher numbered category is associated with a different installation location and prospective transient energy. The meter, probes, accessories and technique must all suit the actual environment. Do not infer suitability from a large numeric range printed on an inexpensive meter.
Fault-finding works best as one testable question at a time

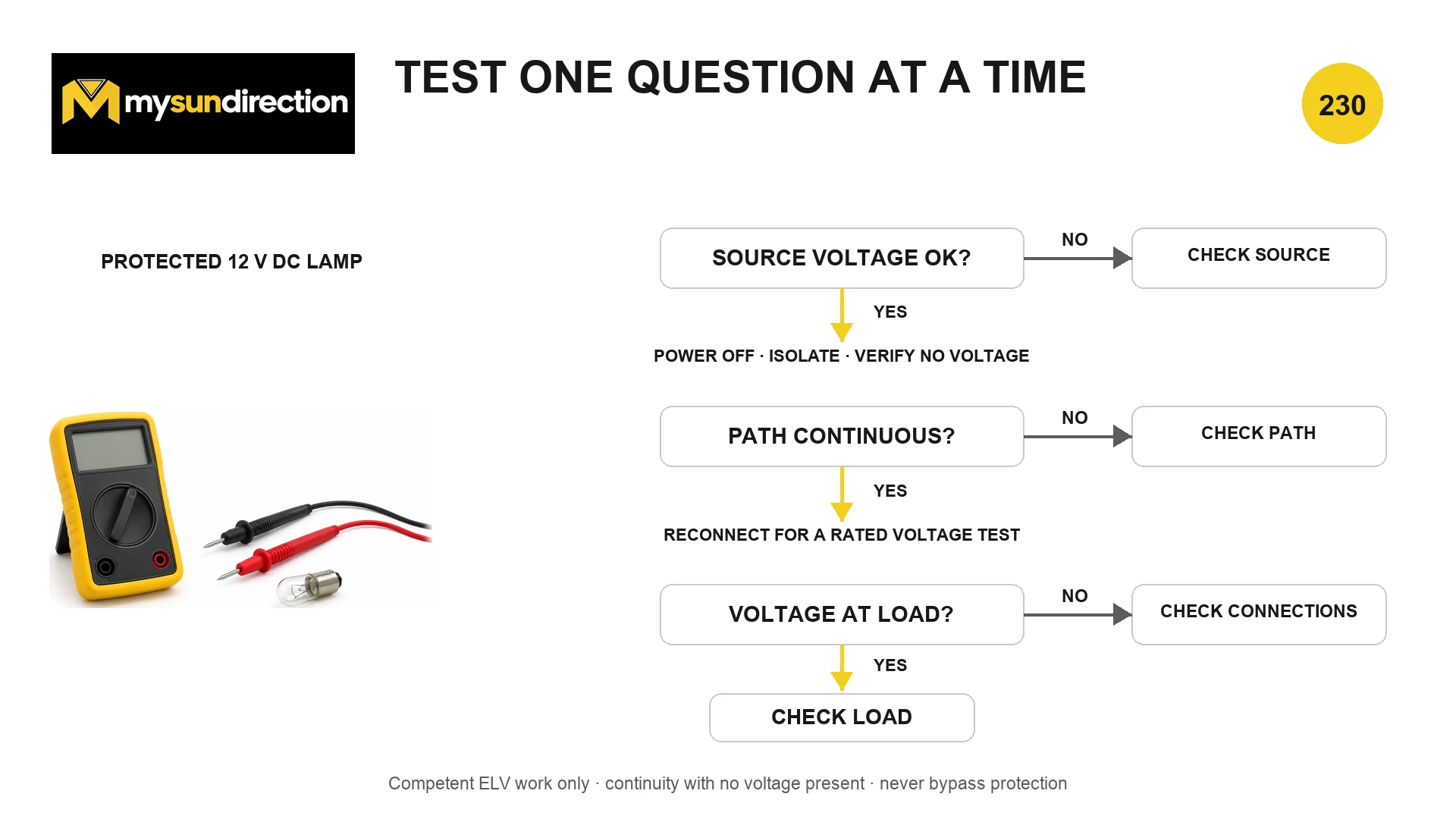

Diagram description
A flow diagram starts with source voltage, moves through a power-off continuity question, then returns to a rated voltage-at-load question. Failed checks direct attention to the source, path, connections or load.
| Stage | Action | Useful record |
|---|---|---|
| 1. Define the symptom | State what fails, when, and under which operating state | Expected behaviour versus observed behaviour |
| 2. Establish boundaries | Identify source, protection, conductors, connectors, control elements and load | A marked schematic and safe test points |
| 3. Review hazards | Identify all energy sources, stored energy, motion and consequences of bypass or restart | Approved isolation or energized-test plan |
| 4. Form one hypothesis | Choose a fault that would explain the current evidence | Prediction at a specific point |
| 5. Make one discriminating test | Select the safest measurement that separates possible causes | Mode, range, reference points, operating state and reading |
| 6. Update the model | Keep, refine or reject the hypothesis from the result | Next question—not a random part replacement |
| 7. Correct and verify | Repair the cause, restore protection and test the complete function | As-found, as-left and final verification evidence |
Reading the protected 12 V lamp map
Suppose a protected 12 V DC lamp does not illuminate. A source-voltage check addresses whether suitable supply is available at its defined output. If it is not, the investigation remains upstream. If it is, an approved isolation is established before a continuity or resistance question is asked about the de-energized path. After the circuit is correctly restored, an appropriately rated operational voltage measurement at the load separates a supply-path problem from a likely load problem.
| Observation | What it may suggest | What it does not prove |
|---|---|---|
| No suitable voltage at the defined source output | Source, upstream protection, enable condition or reference problem | That the lamp or downstream wiring is healthy |
| Source voltage present; isolated path open | Open protection, switch, connector or conductor | Which physical item is open without sectional testing |
| Continuity indicated; voltage collapses under load | High-resistance connection, weak source or protection operating | That every continuity-tested joint was good under current |
| Rated voltage reaches lamp terminals under load | Attention can move to lamp, holder, polarity or return conditions | That a visual-only inspection can replace a specified load test |
| Intermittent reading with motion or temperature | Connector, conductor, solder joint or component affected by condition | Permission to flex energized hazardous wiring |
What a useful measurement record contains
Write the date, equipment state, isolation or permit reference, instrument identifier, function and range, exact measurement points and polarity, expected value, actual value and uncertainty or stability observations. Record any configuration change separately. A bare note such as “12 V okay” cannot show where it was measured, relative to what, whether the load was connected or whether 12 V was actually the acceptable range.
Interpreting any displayed value depends on the distinct meanings introduced in Voltage, Current, Power and Energy Are Different. When a load does not follow a constant-resistance model, use the operating-point cautions in Resistance, Nonlinear Loads and Heat before predicting current or interpreting a resistance-like value.
E7 · Educational scene
Explore the decision in three states
Select a state to compare the starting condition, the important change and the evidence needed before acting. The same meaning remains in the static list.
Start
Understand what a digital multimeter changes when measuring voltage, current, resistance or continuity, then organize safe extra-low-voltage fault-finding as a sequence of evidence-based questions.
What changes
“Switched off” is not the same as verified de-energized. Isolation must account for every source, backfeed and stored-energy path. Workplace rules may require lockout or tagout and verification by a qualified person using suitable test equipment.
Verify
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
- Understand what a digital multimeter changes when measuring voltage, current, resistance or continuity, then organize safe extra-low-voltage fault-finding as a sequence of evidence-based questions.
- “Switched off” is not the same as verified de-energized. Isolation must account for every source, backfeed and stored-energy path. Workplace rules may require lockout or tagout and verification by a qualified person using suitable test equipment.
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Using a Multimeter and a Diagnostic Sequence?
Function, socket, range, connection and rating must all agree. A correct dial symbol is only one part of a valid measurement. The lead inputs, AC or DC selection, expected range, connection topology, instrument and probe ratings, circuit state and test method must match the question.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
“Switched off” is not the same as verified de-energized. Isolation must account for every source, backfeed and stored-energy path. Workplace rules may require lockout or tagout and verification by a qualified person using suitable test equipment.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
