From AC to DC With a Diode Bridge
Follow the two rectifier conduction states and ripple frequency.
You need to understand how “From AC to DC With a Diode Bridge” reached its present form so that older terminology and current practice are not confused.
Trace both current paths through a single-phase diode bridge, derive the full-wave output repetition rate, distinguish pulsating DC from filtered DC and budget two conducting diode drops.
- Select or check first
- Two diodes conduct in series on each half-cycle. One diode connects the presently positive AC terminal to the positive load terminal; another returns current from the negative load terminal to the presently negative AC terminal. The active pair swaps when input polarity reverses, while load current keeps the same direction.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Do not confuse RMS, average and capacitor-input DC. A transformer's secondary is normally specified in RMS volts, an unfiltered full-wave output has a different average, and a lightly loaded reservoir capacitor charges near the peak minus diode drops. Under load, ripple and source impedance lower the valley and average.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “From AC to DC With a Diode Bridge”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A four-diode bridge routes either polarity of a single-phase AC source through a load in the same direction. It is a polarity-steering circuit, not by itself a complete regulated DC supply. The bridge output is pulsating DC: its polarity is fixed, but its magnitude rises and falls. Filtering can reduce that variation, and regulation can control the resulting level under line and load changes.
Trace a complete loop for each source polarity

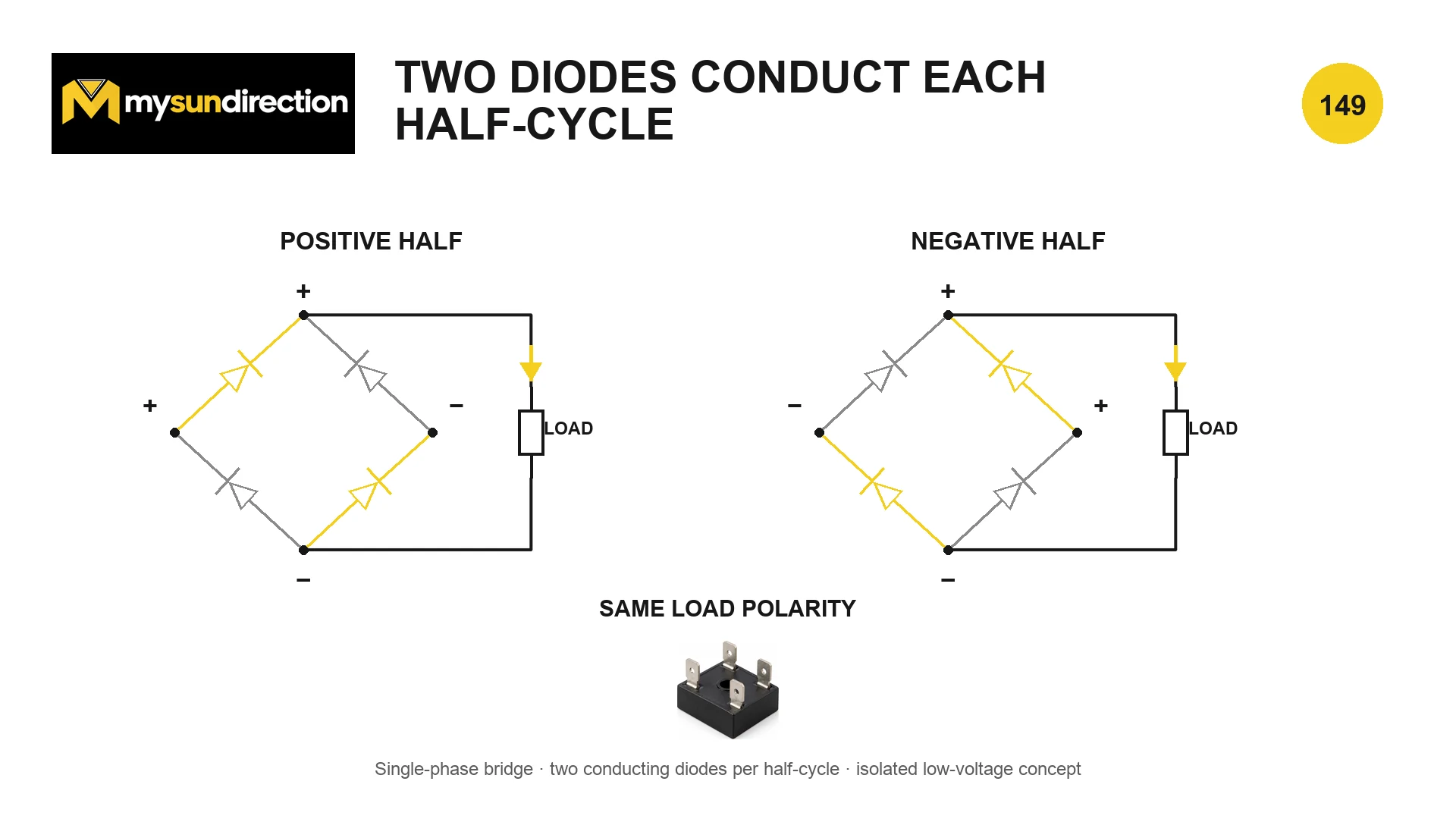

Diagram description
The diagram is a conceptual isolated low-voltage bridge with a resistive load. Yellow paths are forward-conducting; grey paths are reverse-biased.
| Source condition | Conduction sequence | Load result |
|---|---|---|
| AC terminal A positive relative to B | A → upper conducting diode → load positive → load → load negative → lower conducting diode → B | Positive-to-negative load current |
| AC terminal B positive relative to A | B → opposite upper diode → load positive → load → load negative → opposite lower diode → A | The same positive-to-negative load current |
| Near zero crossing | Available source magnitude may be below the required diode drops or stored output voltage | Current can be zero until a forward path is established |
A useful troubleshooting method is to stop thinking of the bridge as a black box. Mark the two AC pins and the + and − DC pins. Choose one instantaneous AC polarity, identify the forward-biased route from the positive source node through the load and back to the negative source node, then reverse the source polarity and repeat. A single reversed or open diode removes or distorts one path; a shorted diode can heavily load the source.
Ideal and first-order real output
ideal: v_o(t) = |v_s(t)|; rough conducting estimate: v_o ≈ |v_s| − 2v_F
The second expression is only a point-by-point screen. Each v_F depends on instantaneous current, junction temperature and diode type. Below the two-diode threshold a resistive load may receive no current. Source impedance also reduces the output under load.
- v_o
- instantaneous bridge output voltage, V
- v_s
- instantaneous AC source voltage, V
- v_F
- forward voltage of one conducting diode at that operating point, V
At an instantaneous source magnitude of 10 V and 0.8 V per conducting diode, the rough resistive-load output is 10 − 1.6 = 8.4 V. This is not the DC average, RMS value or reservoir-capacitor voltage.
Full-wave rectification creates two output peaks per input cycle

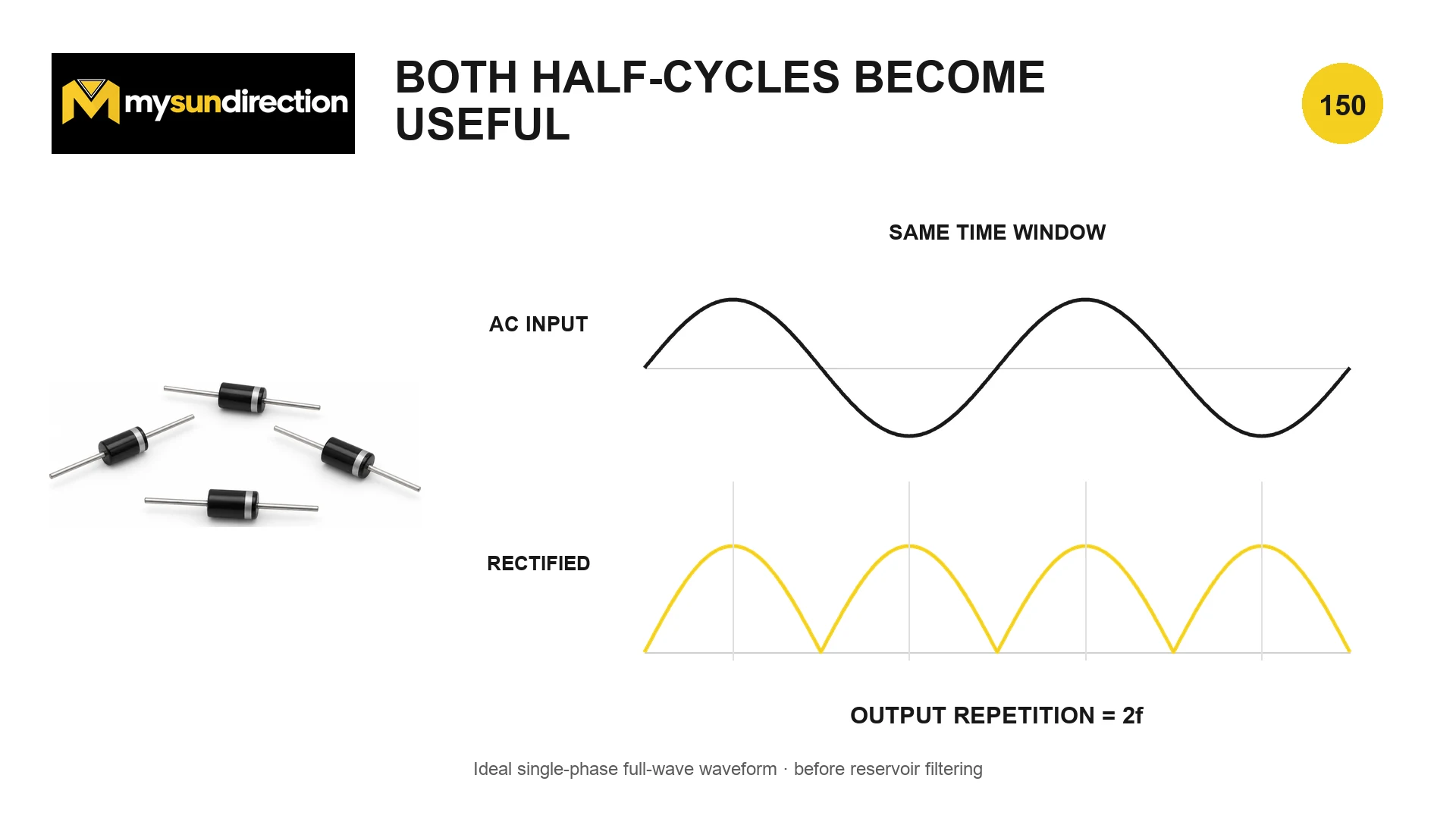

Diagram description
The waveform is ideal and shown before reservoir filtering. Real diode thresholds and source impedance alter its shape near zero crossings and under load.
Full-wave repetition frequency
f_ripple,unfiltered = 2f_source
Taking the absolute value maps each negative half-cycle into a positive hump, producing two peaks per source period. This statement applies to a single-phase full-wave rectifier. Three-phase and controlled rectifiers have different pulse numbers.
- f_ripple,unfiltered
- fundamental repetition rate of the rectified humps, Hz
- f_source
- single-phase AC source frequency, Hz
A 50 Hz source produces 100 rectified peaks per second. A 60 Hz source produces 120 peaks per second.
| Quantity | Ideal full-wave value | Meaning |
|---|---|---|
| Peak | V_m | Same magnitude as the source peak |
| Average | 2V_m/π ≈ 0.637V_m | Mean of |sin| over a cycle |
| RMS | V_m/√2 ≈ 0.707V_m | Same RMS magnitude as the original sine because squaring removes sign |
| Ripple repetition | 2f_source | Two positive humps per source cycle |
Filtering changes the conduction waveform as well as the voltage
With only a resistive load, current broadly follows the rectified voltage. Add a reservoir capacitor and the capacitor holds the output between peaks. The diodes then conduct mainly near peaks when the source exceeds the stored output plus two forward drops. The output voltage is smoother, but diode and transformer currents become pulsed and their RMS values can be much larger than the DC load current.
| Item | Required check |
|---|---|
| Source or transformer | RMS current, regulation, temperature, short-circuit behavior and isolation rating |
| Bridge forward current | Average, RMS, repetitive peak and startup surge under capacitor charging |
| Diode reverse voltage | Worst repetitive peak plus source tolerance, ringing and transients |
| Forward loss | Two junctions conduct; calculate waveform-dependent loss and thermal path |
| Reservoir capacitor | Voltage, capacitance, ripple-current rating, ESR, inrush and life |
| Protection | Fuse or current limit, surge control, discharge path and safe enclosure |
| Load | Minimum/maximum current and acceptable ripple or regulator dropout |
How to recognize common bridge faults
An open diode often leaves half-wave output: one broad output pulse per source cycle and increased ripple under the same load. A shorted diode can create a low-resistance source path during one half-cycle and open the fuse or damage the transformer. A high-resistance connection can produce load-dependent heating and asymmetry. De-energized diode tests are useful screens, but in-circuit parallel paths can confuse readings; isolate and discharge before testing.
Use the node and loop discipline from Series, Parallel, Open and Short Circuits to trace each conducting pair. Review the difference between instantaneous, average and energy quantities in Voltage, Current, Power and Energy Are Different before sizing a supply.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for From AC to DC With a Diode Bridge?
Two diodes conduct in series on each half-cycle. One diode connects the presently positive AC terminal to the positive load terminal; another returns current from the negative load terminal to the presently negative AC terminal. The active pair swaps when input polarity reverses, while load current keeps the same direction.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Do not confuse RMS, average and capacitor-input DC. A transformer's secondary is normally specified in RMS volts, an unfiltered full-wave output has a different average, and a lightly loaded reservoir capacitor charges near the peak minus diode drops. Under load, ripple and source impedance lower the valley and average.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
