Inside a Miniature Circuit Breaker

Learn thermal and magnetic trips and how an arc is interrupted.

  • By MySunDirection
  • 15 min read
Share this explanation
One-minute answer

You need to understand the internal functions in “Inside a Miniature Circuit Breaker” before selecting, connecting or troubleshooting the real equipment.

Follow an MCB from overcurrent detection through latch release, contact opening and arc interruption, while separating a trip indication from verified electrical isolation.

Select or check first
Detect, unlatch, interrupt. The sensing element does not itself break the fault current. It triggers a mechanism; the contacts begin separation; then the arc-control system must force current to cease and the insulation path to recover.
Controlling assumption
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
Top risk
A tripped or OFF handle is not proof dead. The mechanism may have opened only selected poles; energy may arrive from another source; a device can be miswired, damaged or backfed.
Proof
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Inside a Miniature Circuit Breaker”

Electrical-engineering basics

Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.

Voltage
Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
Current
Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
Resistance and impedance
Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
Power and heat
Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
Rating versus operating point
A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.

How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.

On this page
  1. Thermal and magnetic elements release one contact mechanism
  2. Overload heating and high-fault response live on different timescales
  3. Opening the contacts starts the interruption problem

A miniature circuit breaker is a reusable overcurrent protective device, not merely a switch with a current label. A typical thermal–magnetic MCB must sense an abnormal current, release a spring-loaded mechanism, separate its contacts and extinguish the arc that appears during interruption. Each job has different physics, and every rating applies only within the product's declared voltage, frequency, current, pole, standard and installation conditions.

Thermal and magnetic elements release one contact mechanism

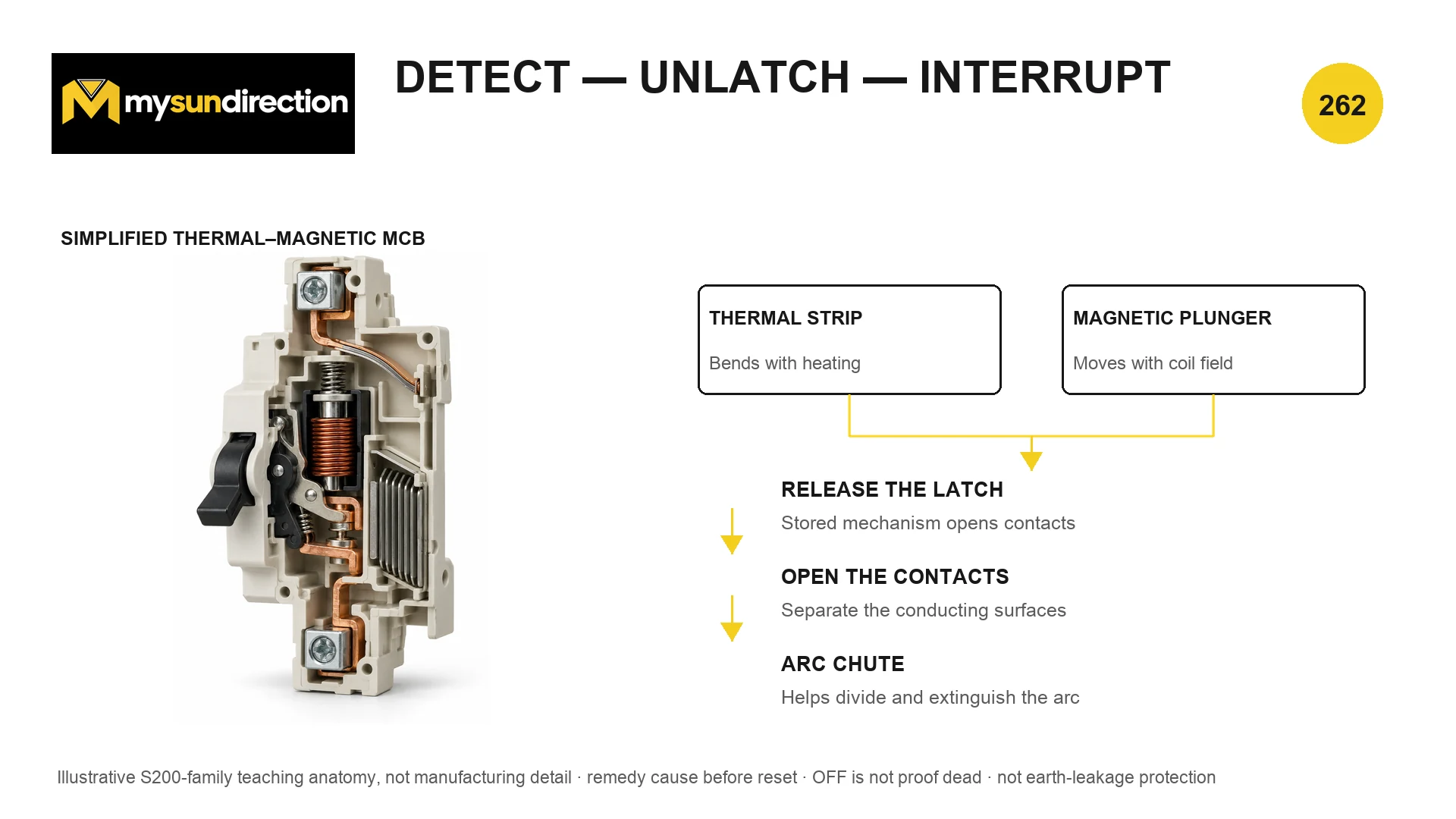

Two sensing responses feed a common trip mechanism. The teaching cutaway illustrates function, not exact manufacturing geometry.
Diagram description

The image is based on a familiar modular-breaker layout and explicitly warns that OFF is not proof of a de-energized circuit and that an MCB alone is not earth-leakage protection.

A trip is a sequence, not one instantaneous event
FunctionTypical partWhat it contributes
CarryTerminals, conductors and closed contactsPasses normal current within declared conditions
Sense overloadHeated bimetal elementAccumulates temperature-dependent deflection
Sense high fault currentElectromagnetic coil and armature/plungerProduces rapid force above a product-specific range
UnlatchTrip bar and stored-energy mechanismReleases contacts independently of handle restraint in a trip-free design
InterruptMoving contact, arc runner and arc chuteSeparates, divides, cools and deionizes the arc path
Indicate/resetHandle and mechanismShows mechanical state and permits reset after the cause is remedied

Overload heating and high-fault response live on different timescales

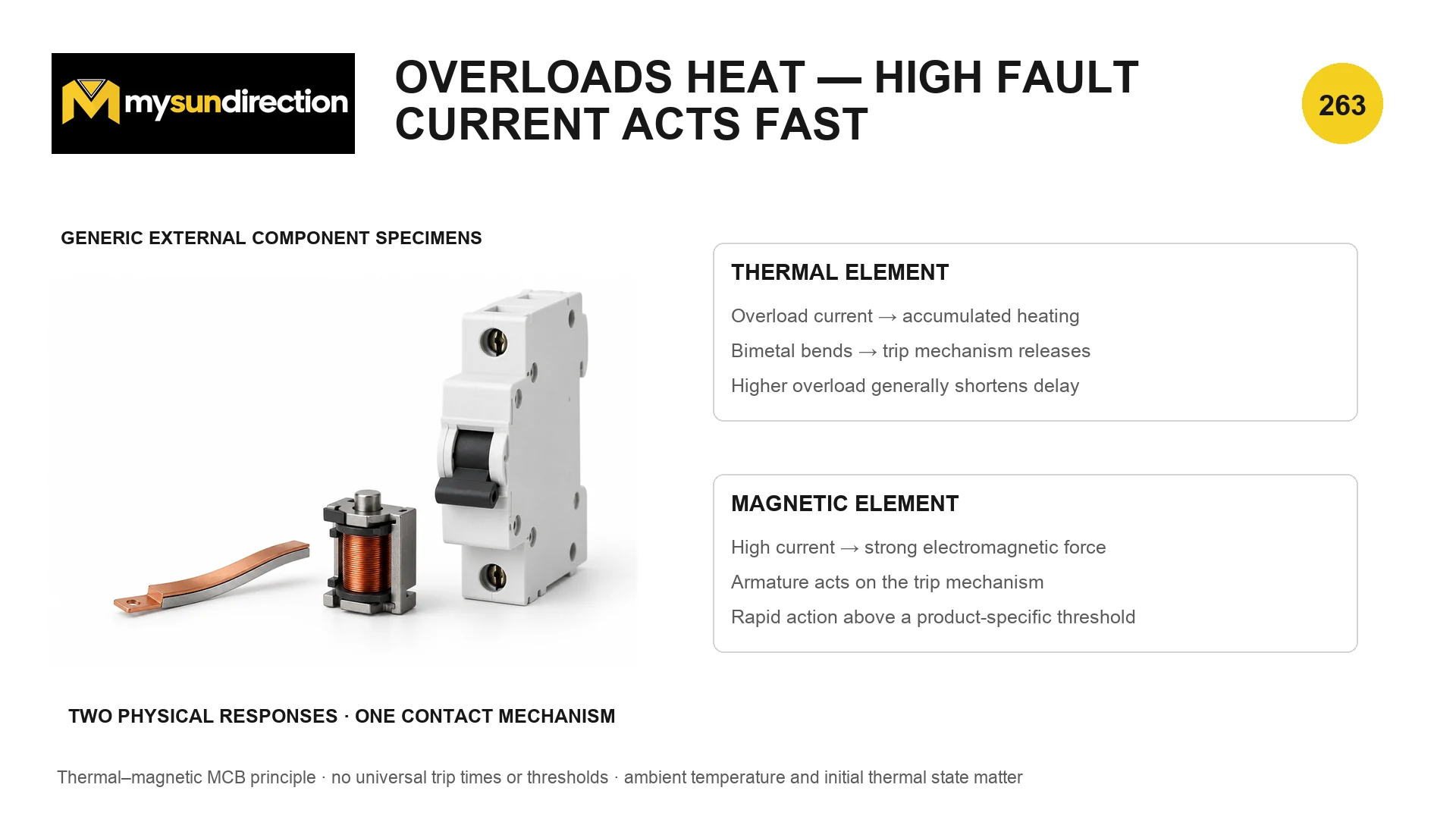

The thermal element permits a time-dependent overload response; the magnetic element acts rapidly at a product-specific high-current threshold.
Diagram description

The specimens are generic. No universal trip current or time is asserted because ambient temperature, prior loading and the exact curve matter.

A moderate overload heats the bimetal and surrounding breaker. More current usually shortens the thermal delay, but the starting temperature, enclosure, adjacent loaded poles and calibration matter. A much larger fault current produces strong magnetic force and rapid unlatching. “Instantaneous” is a protection-region name: the device still has finite sensing, mechanism, contact and arcing time.

Why overload response is thermal

P_conductor = I²R

The square relationship helps explain why increasing current quickly increases heating, but it is not a breaker trip-time equation. Heat capacity, heat transfer, bimetal geometry, ambient conditions and calibration shape the actual time-current band.

P_conductor
resistive heating rate, W
I
current through the current path, A
R
effective resistance of that path, Ω

Opening the contacts starts the interruption problem

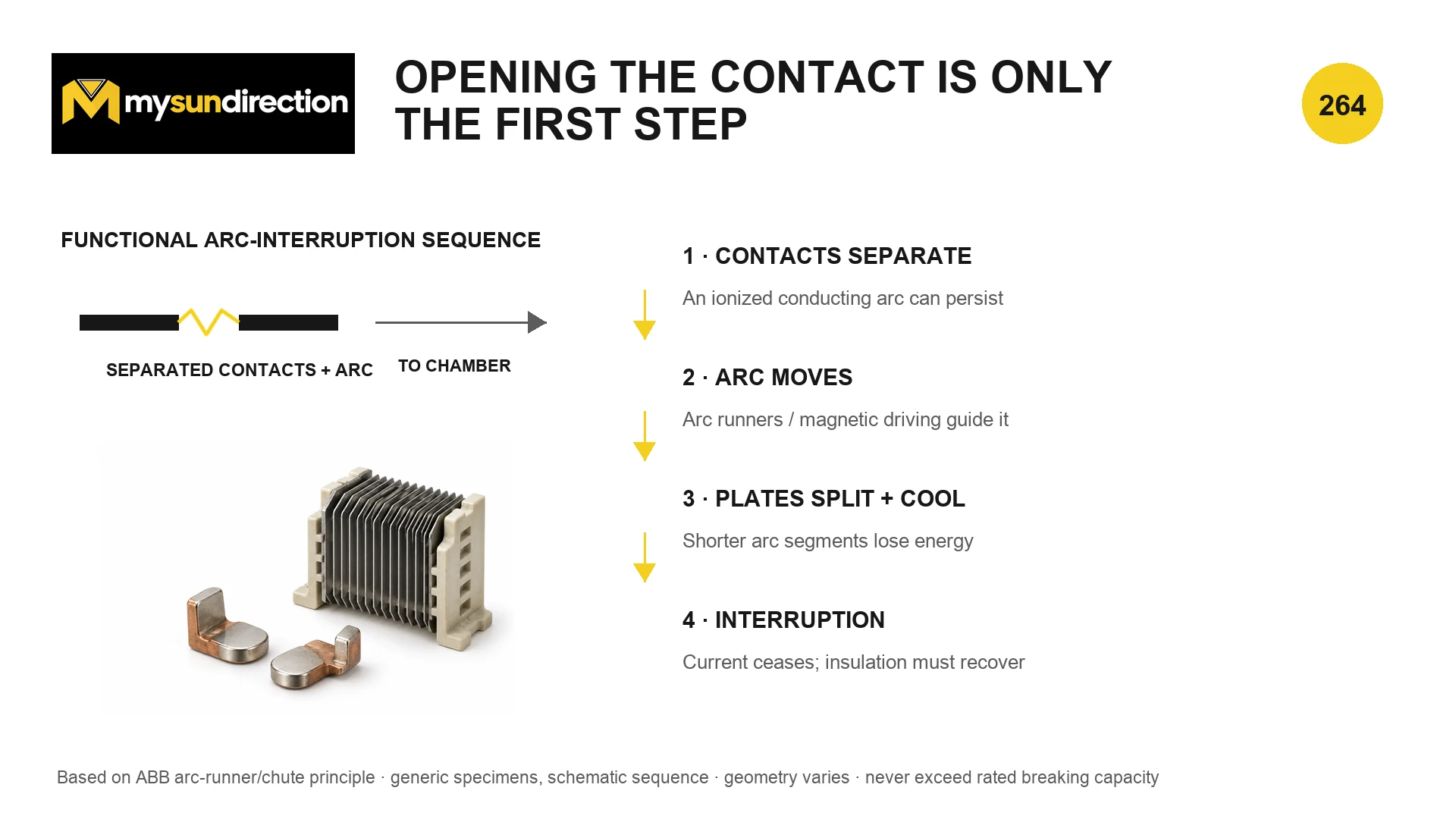

An ionized arc can conduct after metal contacts separate. Arc runners and chute plates control it so interruption can complete within the breaker's rating.
Diagram description

The sequence is functional; arc-chute geometry varies by device and must not be used to infer a breaking capacity.

As contacts part, current can continue through ionized gas. The breaker drives the arc toward a chamber where metal plates divide it into shorter segments, extract heat and support deionization. In AC equipment, natural current zero helps, but the dielectric path must recover fast enough to prevent restrike. DC interruption can be more demanding because there is no periodic natural zero, so AC and DC ratings are not interchangeable.

The handle current is only one selection input
Marking or documentQuestion answered
Rated current and reference conditionsWhat continuous/overload calibration basis applies?
Trip characteristicWhat permitted operating band applies at multiples of rated current?
Rated voltage, AC/DC and frequencyFor which system can the contacts and arc chamber interrupt?
Breaking capacityWhat prospective fault current can the device interrupt under the stated standard?
Pole arrangement and isolation designationWhich conductors are switched and whether the device is suitable for isolation?
Standards and accessoriesWhich tested construction, auxiliaries and installation rules apply?
Why resetting immediately is unsafe

A trip reports that the protection reacted, not why. Reclosing onto a persistent fault can expose the device and equipment to another interruption. Identify the affected circuit, follow the site's safe-isolation process, investigate the cause, confirm the breaker remains within its ratings and replace damaged equipment as required. Repeated reset attempts are not diagnosis.

For the difference between an open circuit, short circuit and normal load path, review Series, Parallel, Open and Short Circuits. For a measurement-led troubleshooting sequence, use Using a Multimeter and a Diagnostic Sequence.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Inside a Miniature Circuit Breaker?

Detect, unlatch, interrupt. The sensing element does not itself break the fault current. It triggers a mechanism; the contacts begin separation; then the arc-control system must force current to cease and the insulation path to recover.

Which assumption can change the conclusion?

Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.

What can go wrong if I copy the example directly?

A tripped or OFF handle is not proof dead. The mechanism may have opened only selected poles; energy may arrive from another source; a device can be miswired, damaged or backfed.

How do I verify the result in the real system?

Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
