A series resistor is often enough for one low-power indicator fed by a predictable DC rail. It is not a general replacement for a current-regulated lighting driver. As power, LED count, input range and dimming depth increase, the circuit must actively regulate current, stay within its voltage range and interpret a defined control interface.
A resistor can stabilize a low-voltage indicator branch

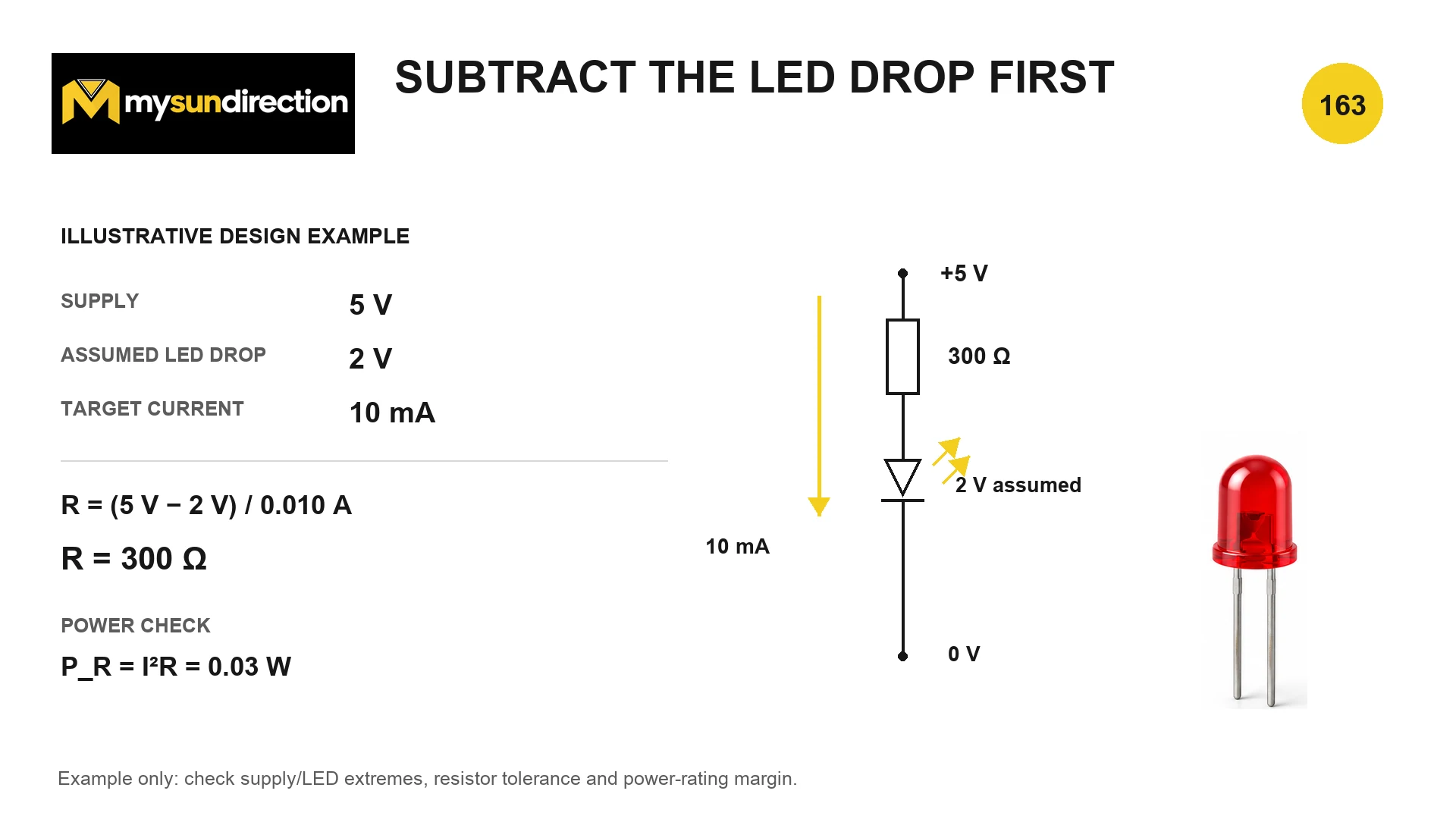

Diagram description
The diagram also checks nominal resistor power as 0.03 W and warns to examine supply and LED extremes, resistor tolerance and power margin.
Series-resistor starting value
R = (V_S − V_F) / I_F
This selects a nominal value for one DC branch when V_S is above V_F. Choose a preferred value that does not exceed the safe current, then recalculate current at the maximum and minimum supply, LED forward-voltage extremes and resistor tolerance.
- R
- series resistance, Ω
- V_S
- supply voltage at the operating condition, V
- V_F
- LED forward voltage at the chosen current and temperature, V
- I_F
- target forward current, A
At 5 V with an assumed 2 V LED drop and 10 mA target, R = 3 V / 0.010 A = 300 Ω. A nearby higher preferred value reduces current slightly and may be the safer choice after tolerances are included.
Resistor and LED power screens
P_R = I_F²R = (V_S − V_F)I_F; P_LED ≈ V_FI_F
Use worst-case current and voltage rather than nominal values. The resistor needs power-rating and surface-temperature margin for its mounting and ambient; LED electrical input is not equal to optical output.
| Quantity | Calculation corner |
|---|---|
| Maximum LED current | Maximum supply, minimum LED V_F, minimum resistor value |
| Minimum visible current | Minimum supply, maximum LED V_F, maximum resistor value |
| Maximum resistor power | Evaluate maximum voltage across and current through the resistor together |
| LED reverse stress | Check reverse supply, multiplexing and transients against LED limit |
| Source-pin stress | Include all simultaneous indicators and controller output limits |
| Fault behavior | Consider shorted LED, shorted resistor and miswiring |
A driver regulates string current over voltage variation

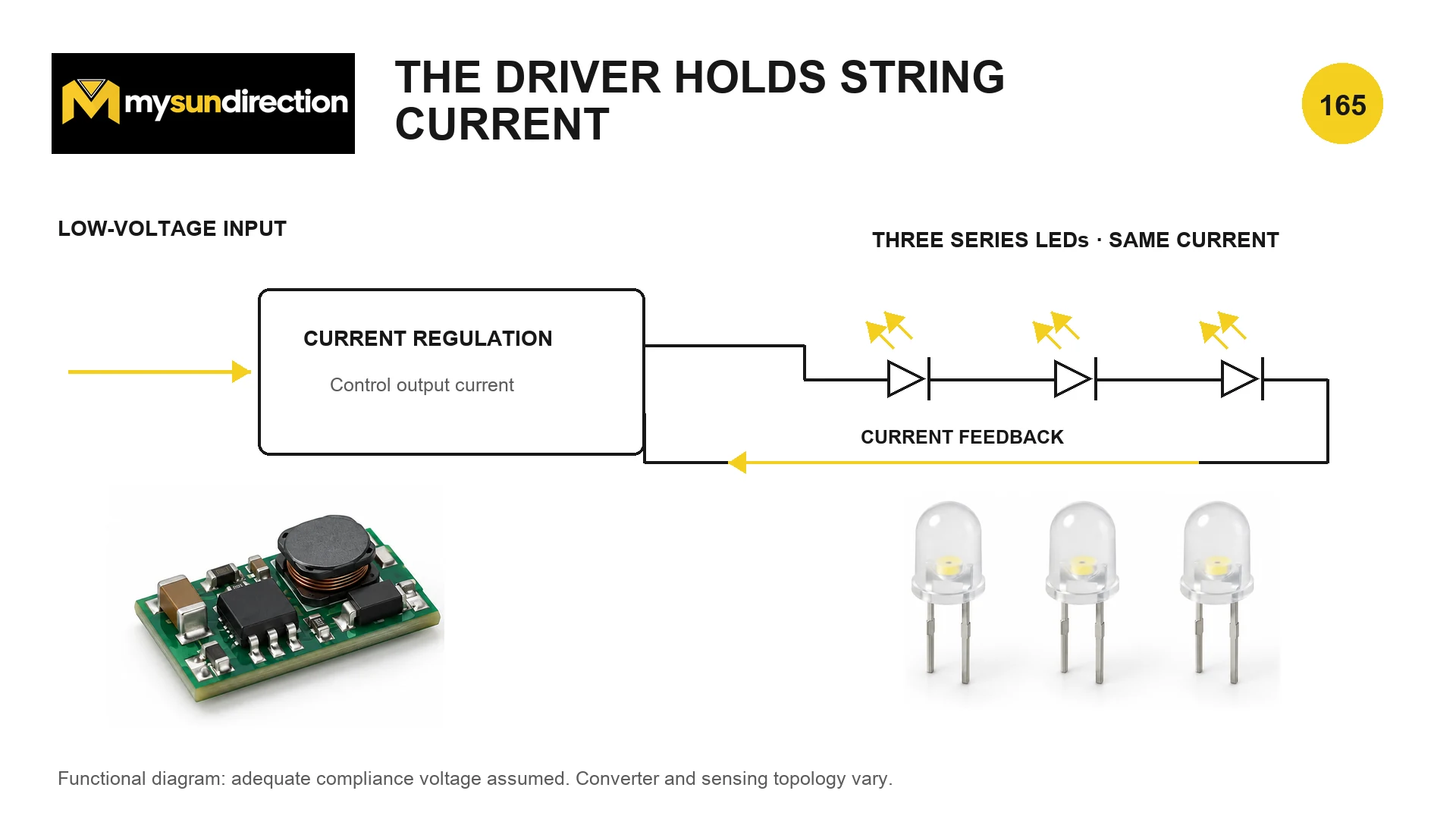

Diagram description
The figure is functional rather than a construction schematic. It assumes adequate compliance and states that converter and sensing topologies vary.
Series-string voltage range
V_string = ΣV_F,k; V_driver must cover V_string plus its required control headroom
Calculate minimum and maximum string voltage across LED bins, current and temperature. A buck driver needs input sufficiently above the required output; boost and buck-boost topologies have different boundaries. Use the exact driver's operating-area and transient limits.
| Input | What to verify |
|---|---|
| Supply range | Startup, brownout, surge, battery or rectified-line extremes |
| LED string | LED count, V_F range, current, power and open/short faults |
| Output regulation | Accuracy, ripple, channel matching and current-sense tolerance |
| Compliance / output voltage | Enough range at the cold, high-V_F corner without exceeding low-V_F limits |
| Efficiency and heat | Driver loss and LED heat at worst ambient and enclosure |
| Protection | Open-LED overvoltage, short circuit, overtemperature and input protection |
| Dimming | Interface, range, frequency, minimum level, startup and shutdown behavior |
| Safety and EMC | Isolation class, creepage/clearance, harmonic, surge and emissions requirements |
Parallel strings need independent sharing control
Putting bare LED strings directly in parallel does not guarantee equal current because their forward voltages differ and change with temperature. Multi-channel drivers use separate current sinks or regulators, or a design may add ballast and binning where appropriate. One current-sense element in the common return controls only total current unless the topology actively balances individual branches.
Analog and PWM dimming control light differently
| Method | What changes | Design concern |
|---|---|---|
| Analog current dimming | Regulated LED-current amplitude | Color and efficiency can shift; minimum controllable current matters |
| PWM enable dimming | LED current is switched on and off; average output follows duty cycle approximately | Startup delay, minimum pulse width, ripple and visible/camera flicker |
| Shunt-FET PWM | A fast switch diverts current around the LED string | Driver dynamics, switch stress and current path need a purpose-designed topology |
| Hybrid dimming | Uses analog and PWM ranges together | Transition between modes must avoid steps and color artifacts |
| Digital command | Driver receives an encoded target | Protocol, addressing, fade curve and behavior after communication loss |
A PWM label alone does not specify optical flicker. Frequency, duty cycle, driver delay, current ripple, phosphor persistence, camera shutter and human sensitivity all matter. Record the actual light waveform at low, middle and full output when flicker or imaging is important.
Mains phase-cut dimming is a compatibility problem

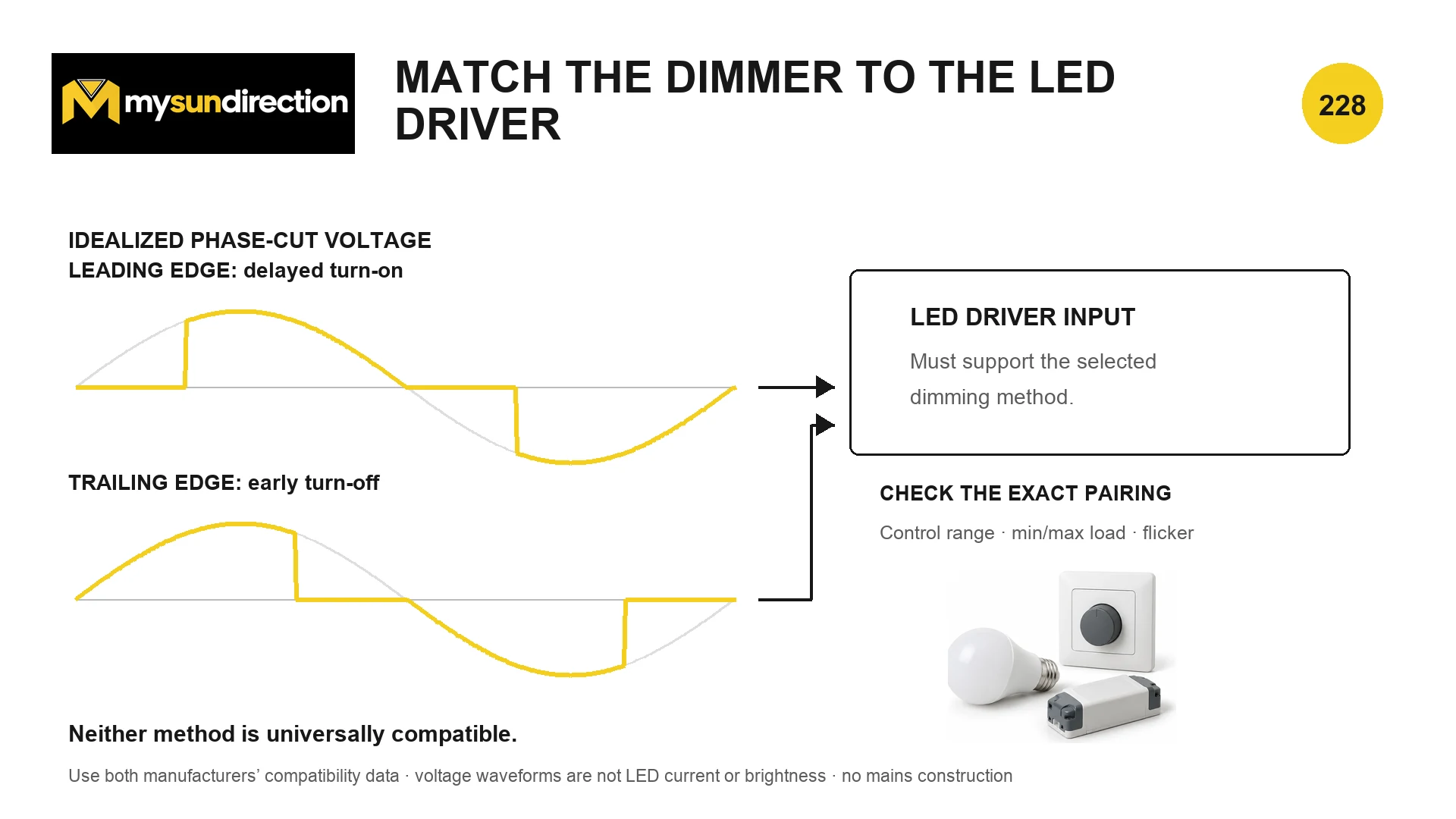

Diagram description
The image labels the voltage shapes idealized and warns that they are not LED current or brightness waveforms. It provides no mains-construction details.
A leading-edge dimmer delays turn-on during each half-cycle; a trailing-edge dimmer turns off before the half-cycle ends. The LED driver's rectifier, EMI filter, energy storage and control loop determine how it interprets that chopped waveform. Two products separately marked dimmable can still buzz, flicker, drop out, flash when off, have poor low-end range or overstress the dimmer when paired.
| Check | Why |
|---|---|
| Permitted dimming type | Forward phase, reverse phase, 0–10 V, digital and PWM inputs are different |
| Minimum and maximum number of drivers | Electronic loads can require holding current and can create cumulative inrush |
| Input voltage and frequency | Compatibility test results are market- and supply-specific |
| Low-end trim and control range | Prevents dropout, flashing or a large first step |
| Inrush and repetitive peak current | Dimmer semiconductor stress is not predicted by LED watts alone |
| Neutral requirement and wiring | Some controls need a neutral; bypass current can glow or flash some lamps |
| Published compatibility report | Testing the exact lamp/driver and dimmer is stronger than generic labels |
| Flicker and audible noise | Assess installed products across the full dimming range |
Commission the complete source, control, driver and LED chain
| Operating point | Record |
|---|---|
| Cold start at minimum and maximum line | Startup time, overshoot, flash and protection behavior |
| Lowest commanded level | Dropout, flicker, color, audible noise and standby input |
| Maximum output / worst ambient | LED current, driver temperature and LED thermal reference |
| Rapid dimming and power cycling | Control-loop stability, repeatability and inrush |
| Open or short LED | Output clamp and safe recovery |
| Multiple units on one dimmer | Combined inrush, low-end stability and maximum loading |
| Camera-sensitive use | Optical waveform with the intended frame rate and shutter |
Why a more efficient driver can still fail thermally
Efficiency is a ratio. A high-power driver at high efficiency can still dissipate several watts, and those watts may be trapped in a small sealed enclosure. Loss also moves among the switching device, magnetics, rectifier, sense element and control supply as input and dimming change. Use component temperatures and the manufacturer's thermal limits at the worst operating point, not efficiency percentage alone.
Use the power and energy definitions in Voltage, Current, Power and Energy Are Different for resistor and driver loss. The steep LED I–V curve is another application of the nonlinear-load reasoning in Resistance, Nonlinear Loads and Heat.
