Diode Forward Voltage and Reverse Limits
Learn why diode type, forward drop and reverse rating affect circuits.
You need to size or verify a real system using “Diode Forward Voltage and Reverse Limits”, with units, duty and limits that match the application.
Read diode forward curves and reverse ratings as operating-condition limits, then compare standard, ultrafast and Schottky rectifiers without relying on category stereotypes.
- Select or check first
- A data-sheet condition belongs to every number. A forward-voltage value without current and junction temperature is incomplete. A recovery time without its current, di/dt and measurement circuit is incomplete. A reverse rating is a limit—not a recommended operating point.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Do not design an ordinary rectifier to avalanche by accident. Some devices have characterized avalanche energy; many rectifier data sheets do not promise repetitive avalanche operation.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Diode Forward Voltage and Reverse Limits”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A diode does not behave like a perfect one-way switch with a universal voltage drop. Its current depends nonlinearly on junction voltage, temperature and device construction. In the reverse direction it passes leakage until a breakdown region is reached, but ordinary rectifiers are normally designed to remain below their specified repetitive reverse limit. Forward loss, reverse stress, recovery, leakage and temperature all belong in the selection.
Forward voltage changes with current and temperature
Diagram description

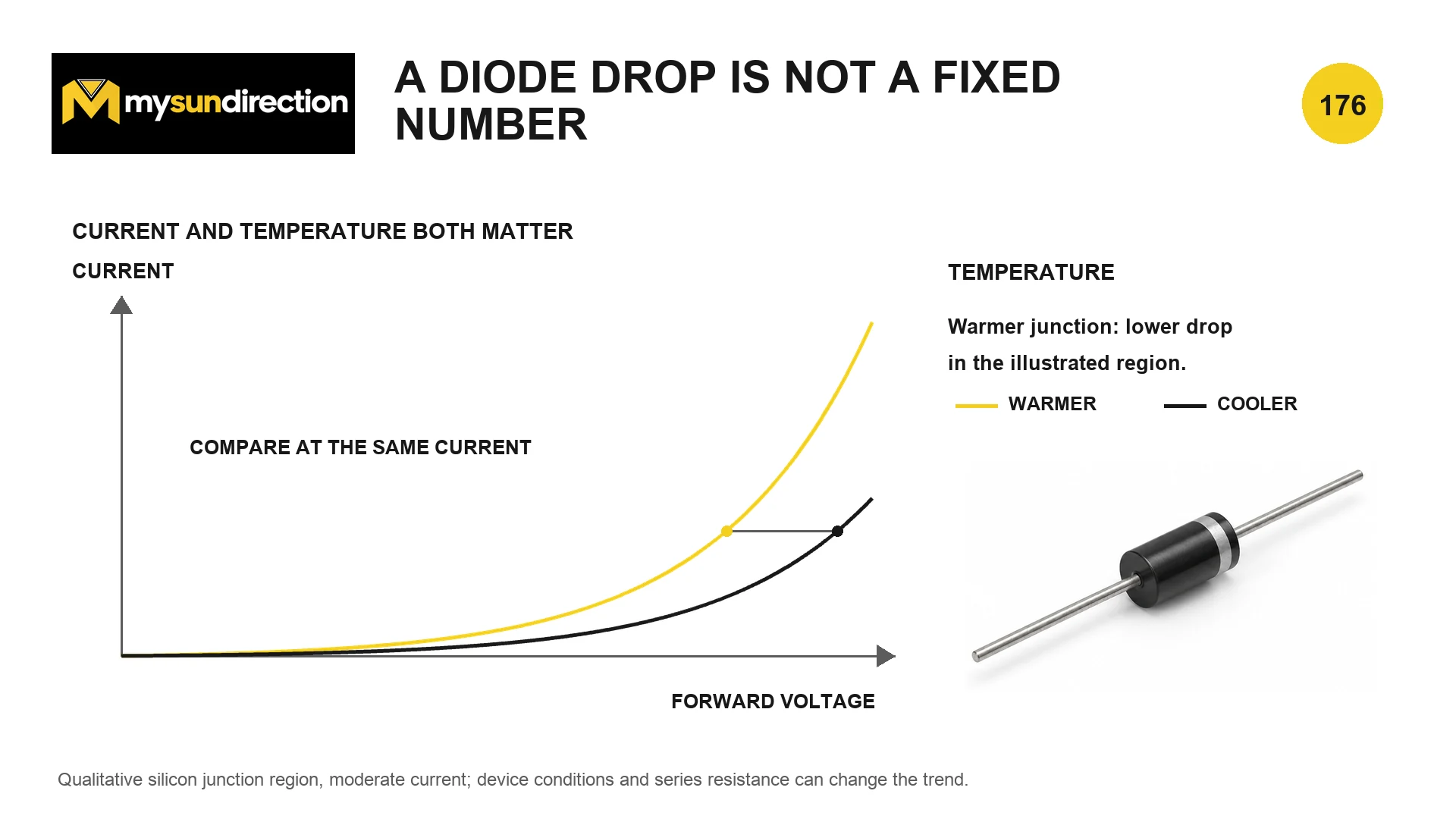

The curves are qualitative and do not represent every silicon, Schottky or wide-bandgap diode. Use the selected part's curves and test conditions.
The exponential junction relation is valuable intuition, but a power-diode terminal curve also includes ohmic resistance, conductivity modulation, package resistance and self-heating. The often-quoted 0.7 V for silicon is therefore only a rough teaching approximation. A data sheet commonly gives a maximum instantaneous forward voltage at one or more pulsed test currents, plus typical curves across temperature.
Forward conduction-loss screen
P_cond,avg ≈ (1/T)∫v_F(t)i_F(t)dt; rough screen: P ≈ V_F·I_F,avg
Use the actual waveform and temperature-dependent forward characteristic for serious design. Multiplying one data-sheet V_F by average current is only a screen, especially for pulsed current with a large crest factor.
- P_cond,avg
- average forward-conduction loss, W
- v_F
- instantaneous forward voltage, V
- i_F
- instantaneous forward current, A
- T
- waveform period, s
If a rough 0.85 V drop accompanies 1.2 A whenever a diode conducts for half the cycle, the screen is 0.85 × 1.2 × 0.5 ≈ 0.51 W. Junction-temperature verification still requires the waveform, thermal path and data-sheet curves.
| Check | Reason |
|---|---|
| Instantaneous and average current | Forward voltage and heating depend on the waveform |
| Surge current | Capacitor charging and startup can greatly exceed load current |
| Junction temperature | V_F, leakage, recovery and lifetime change with temperature |
| Thermal resistance and mounting | Package rating assumes specified lead, copper or heat-sink conditions |
| Parallel sharing | Negative temperature coefficient in some regions can promote current imbalance |
| Switching frequency | Recovery and capacitance loss may outweigh a small conduction-loss difference |
Reverse rating and avalanche breakdown are different ideas
Diagram description

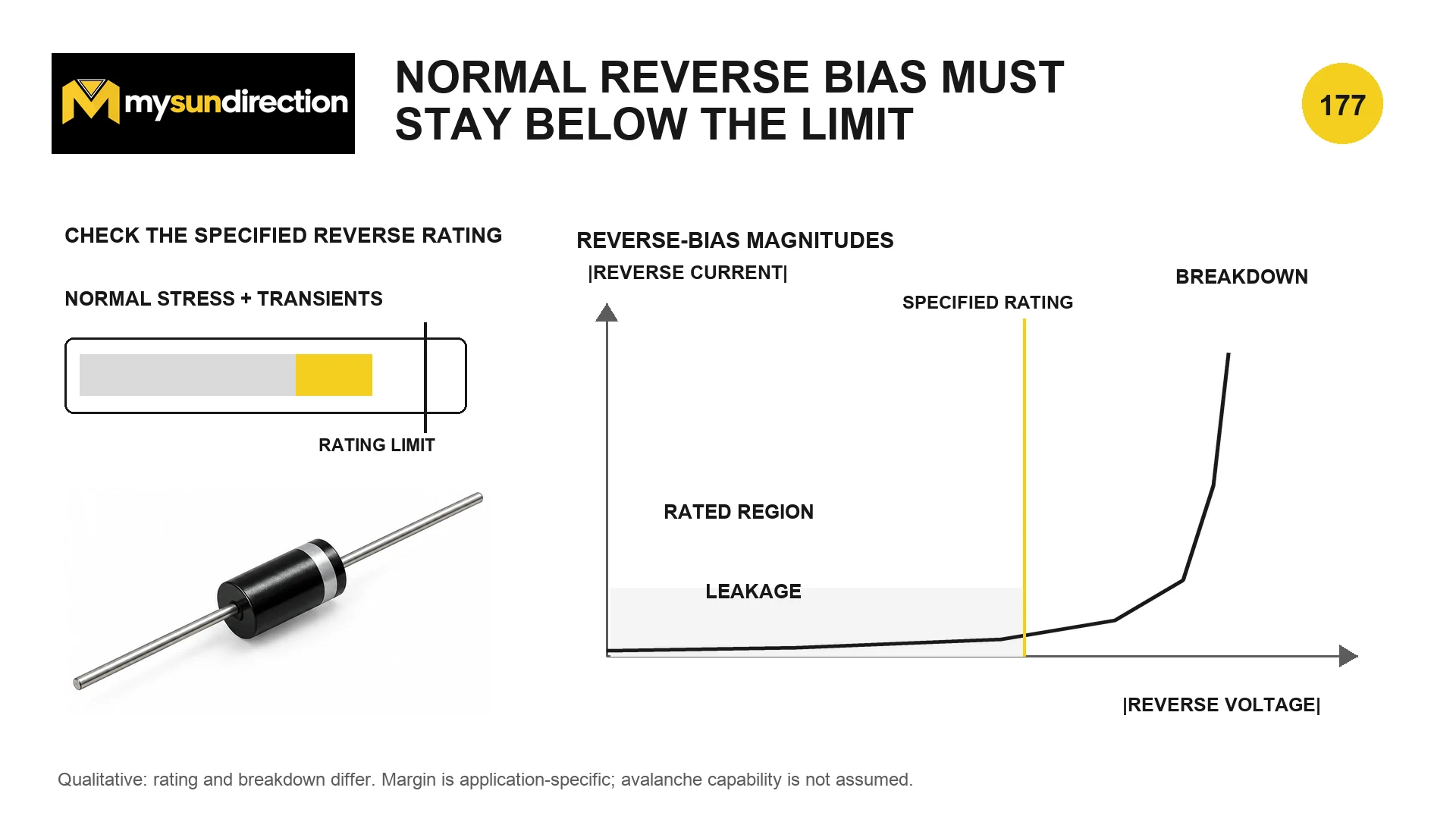

The conceptual curve separates a data-sheet reverse-voltage limit from physical breakdown. Neither the knee nor an acceptable design margin is universal.
Common symbols include V_RRM for maximum repetitive peak reverse voltage, V_R for a stated reverse voltage and I_R for reverse leakage under specified voltage and temperature. Some data sheets also specify non-repetitive peak reverse voltage. Those categories have distinct test conditions. Never substitute a one-time surge number for a repetitive operating rating.
| Contribution | Where it comes from |
|---|---|
| Nominal reverse voltage | Topology and source amplitude |
| Line or source tolerance | High-line operation and regulation error |
| Transformer leakage spike | Commutation and winding leakage inductance |
| Layout ringing | Package/trace inductance resonating with junction capacitance |
| Load transient | Energy returning from inductors or motors |
| Temperature leakage | Reverse current often rises strongly with junction temperature |
| Measurement uncertainty | Probe bandwidth, grounding and unobserved worst cases |
Diode families trade conduction, recovery and reverse behavior
Diagram description
A standard rectifier is associated with general-purpose rectification, an ultrafast PN diode with high-frequency recovery, and a silicon Schottky with low-voltage high-frequency service and comparatively important leakage and reverse-voltage checks.
| Example | Useful characteristic | Important trade-off |
|---|---|---|
| 1N4001 standard rectifier | General-purpose 1 A rectification; 50 V V_RRM in this family position | No ultrafast recovery time is specified for high-frequency switching selection |
| UF4001 ultrafast rectifier | Ultrafast recovery family intended for switching converters | Recovery is defined under stated test conditions; forward loss and voltage rating still matter |
| 1N5817 silicon Schottky | Low forward loss and extremely fast switching for low-voltage use | 20 V V_RRM for this exact part and reverse leakage rises strongly with temperature |
A standard PN rectifier can be entirely appropriate at mains-frequency or other low-frequency service. An ultrafast PN diode reduces stored-charge recovery in faster switching but may have different forward loss. A silicon Schottky is a majority-carrier device with little conventional reverse-recovery charge, yet its junction capacitance, leakage and relatively low reverse rating can dominate. Silicon-carbide Schottky devices occupy a different voltage and performance space and must not be inferred from the 1N5817 example.
What reverse recovery does to a switching circuit
A forward-conducting PN diode stores charge. When circuit voltage reverses, current can briefly flow in the reverse direction while that charge is removed. The switching device may have to carry this recovery current on top of load current, increasing loss, ringing and electromagnetic interference. Data-sheet t_rr and Q_rr depend on forward current, reverse voltage, current slope and temperature; compare parts only under relevant conditions.
The nonlinear-curve and operating-point method from Resistance, Nonlinear Loads and Heat prevents the fixed-drop misconception. For failure diagnosis, use the de-energized checks and measurement hierarchy in Pull-Ups, Current Shunts and Failed Components.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Diode Forward Voltage and Reverse Limits?
A data-sheet condition belongs to every number. A forward-voltage value without current and junction temperature is incomplete. A recovery time without its current, di/dt and measurement circuit is incomplete. A reverse rating is a limit—not a recommended operating point.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Do not design an ordinary rectifier to avalanche by accident. Some devices have characterized avalanche energy; many rectifier data sheets do not promise repetitive avalanche operation.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
