Frequency, Motor Speed and V/f Control
Connect synchronous speed, motor flux assumptions and acceleration ramps.
You need to size or verify a real system using “Frequency, Motor Speed and V/f Control”, with units, duty and limits that match the application.
Relate electrical frequency and pole count to synchronous field speed, distinguish induction-motor slip from field speed, set the boundaries of scalar V/f control, and understand why acceleration time depends on torque, current and inertia.
- Select or check first
- A ramp does not guarantee the same tracking error. Open-loop scalar control may allow speed to vary with load and slip. A closed-loop system can correct speed more tightly, but encoder resolution, torque limit, tuning and mechanical compliance still bound the response.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Commission within documented motor, drive and machine limits. Unexpected rotation, overspeed and stored mechanical energy can injure. Secure the driven machine, verify direction and limits with an approved commissioning method, and keep people clear.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Frequency, Motor Speed and V/f Control”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A drive controls the electrical frequency applied to a motor, but frequency is not identical to shaft speed. Pole count fixes the rotating field’s synchronous speed. A motoring induction rotor must lag that field by slip to produce torque. The control method then schedules voltage and current within drive, motor and load limits while the mechanical system accelerates.
Frequency and pole count set field speed
Diagram description

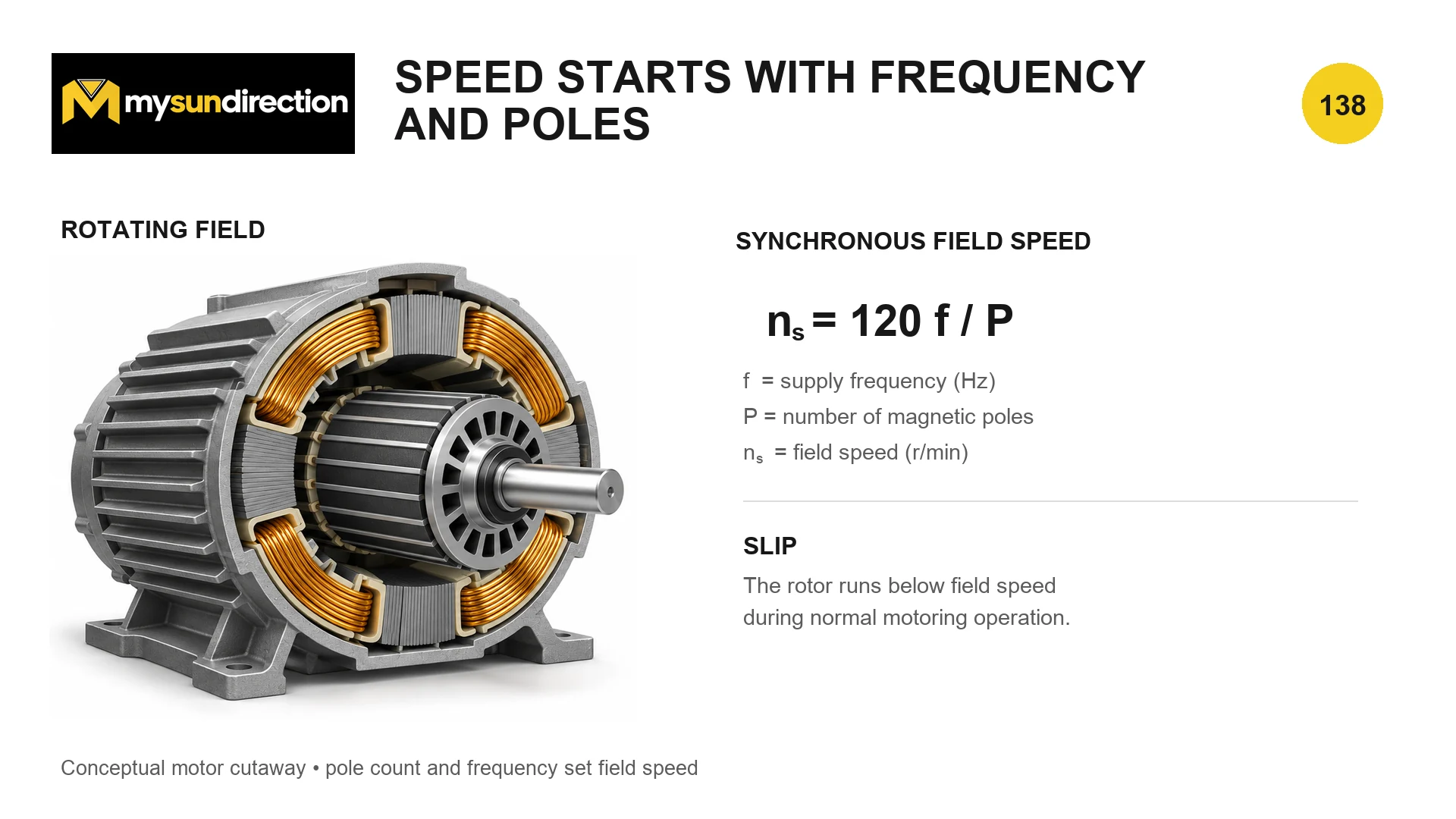

The motor cutaway is conceptual. Pole count refers to the electromagnetic field pattern, not a count inferred from the visible rendering.
Synchronous field speed
n_s = 120·f/P
This form uses total pole count. An equivalent form is n_s = 60f/p when p is pole-pair count. The result is the rotating magnetic-field speed, not the guaranteed shaft speed of an induction motor.
- n_s
- synchronous field speed, r/min
- f
- electrical fundamental frequency, Hz
- P
- number of magnetic poles
- p
- number of pole pairs
Induction-motor torque requires slip
Slip
s = (n_s − n_r)/n_s
During ordinary positive-torque motoring, rotor speed n_r is below n_s and slip is positive. Slip changes with torque, rotor design, voltage, temperature and control. A nameplate’s rated speed is a loaded operating value, not a universal offset to subtract at every frequency.
- s
- per-unit slip; multiply by 100 for percent
- n_s
- synchronous field speed, r/min
- n_r
- mechanical rotor speed, r/min
| Quantity | Set mainly by | What it tells you |
|---|---|---|
| Commanded frequency | Controller setpoint and limits | The requested electrical fundamental frequency |
| Synchronous field speed | Frequency and pole count | Speed of the rotating stator field |
| Rotor shaft speed | Field speed, slip, torque balance and control | Actual mechanical speed; measure or estimate it |
| Nameplate rated speed | Manufacturer test at stated rating | One rated loaded shaft-speed point |
V/f control preserves flux only approximately
Diagram description

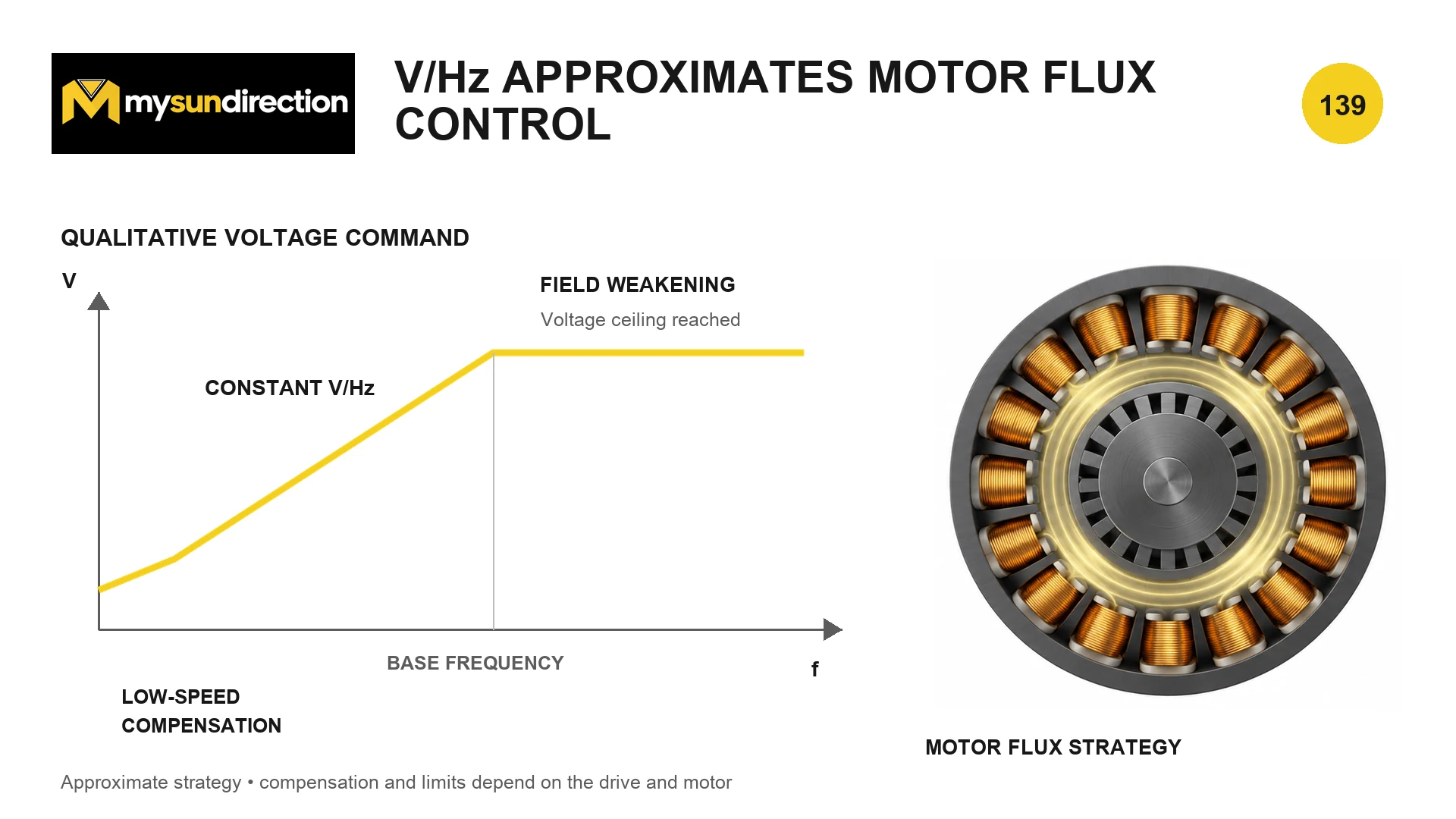

The graph has no numerical axes and is an approximate strategy. Its low-speed boost, base point and field-weakening region depend on the drive, motor, supply and application.
Simplified flux relationship
|ψ| ∝ V₁/f₁
The relation neglects stator resistance drop, leakage, saturation, harmonics and dynamic effects. At low frequency, resistance drop becomes important, so a simple straight line can under-flux the motor unless the drive compensates. Excess voltage per hertz can over-flux and saturate the machine.
- |ψ|
- approximate air-gap flux magnitude
- V₁
- fundamental stator-voltage magnitude, V
- f₁
- fundamental electrical frequency, Hz
| Region | Control intention | Important limit |
|---|---|---|
| Very low frequency | Add model-based compensation for stator voltage drop | Too much boost raises current and heating; too little reduces available torque |
| Below base frequency | Keep an approximately constant voltage-to-frequency ratio | Current, torque, cooling and minimum-speed limits still apply |
| At base frequency | Reach the motor’s rated voltage/frequency region | Use the actual nameplate and connection, not a generic value |
| Above base frequency | Frequency rises after available voltage reaches its ceiling | Flux weakens and continuous torque capability generally falls |
| Vector or direct-torque mode | Use a motor model and measured/estimated variables | The simple open-loop V/f picture is no longer the complete description |
A frequency ramp requests motion; torque makes it happen
Diagram description

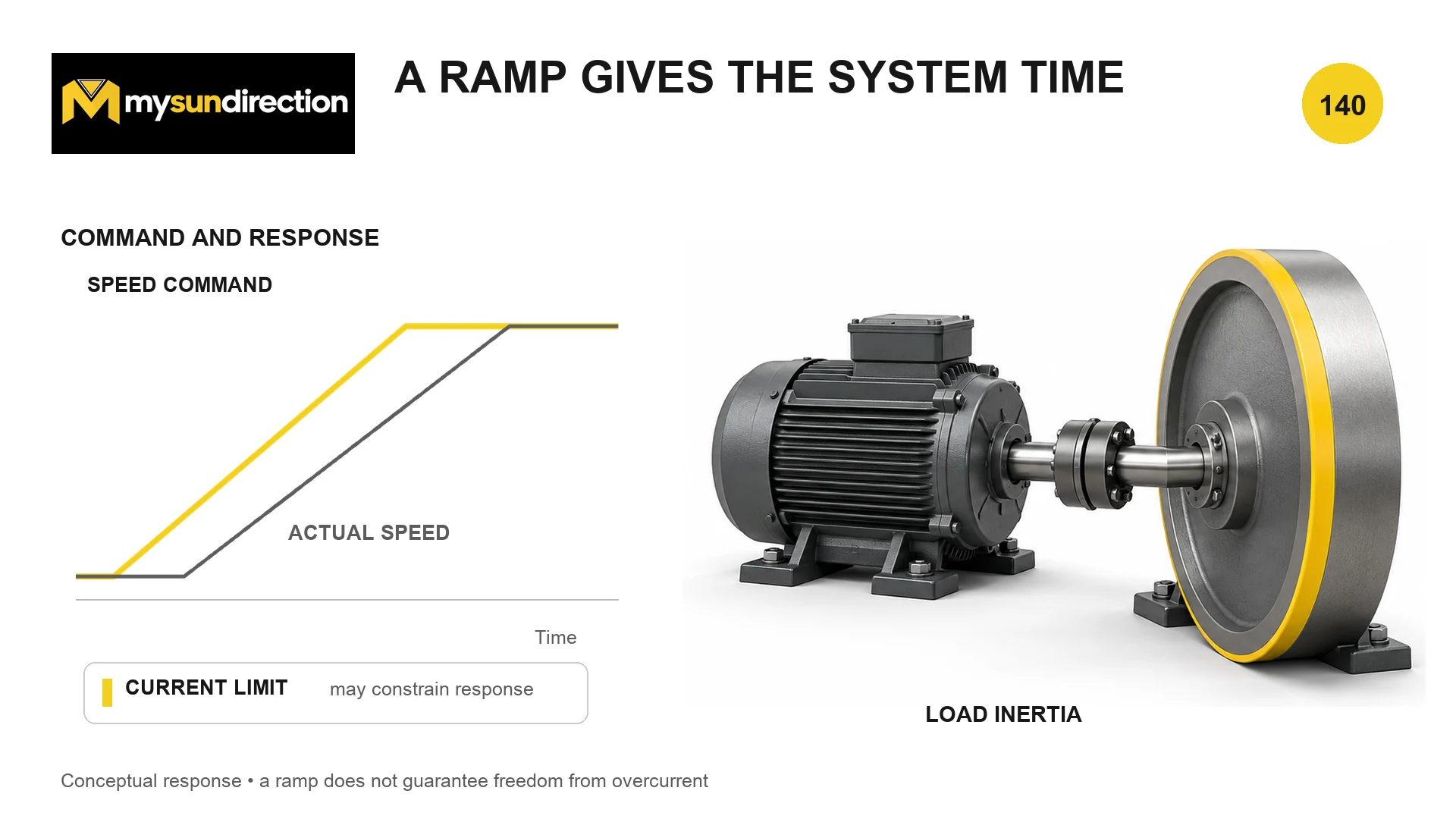

The command and response traces are conceptual. They provide no universal lag, current, ramp time or allowable stress.
