BJT Transistors as Amplifiers and Switches

Understand base control, operating regions and base-drive sizing.

By MySunDirection
Published 13 October 2026
Updated 14 October 2026
19 min read

One-minute answer

You need to size or verify a real system using “BJT Transistors as Amplifiers and Switches”, with units, duty and limits that match the application.

See how an NPN transistor's base-emitter drive controls its collector path, distinguish cutoff, forward-active and saturation operation, and size a practical base resistor from guaranteed switching conditions rather than typical gain.

Select or check first: Saturation is not “maximum possible collector current”. Saturation means both transistor junctions are forward biased. The external supply and load still set collector current. Increasing base current beyond what is needed may reduce V_CE only slightly while increasing driver load and stored charge.
Controlling assumption: Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
Top risk: Package appearance does not identify pinout or capability. TO-92 and other three-lead packages are used with multiple lead orders and many unrelated ratings. Confirm the exact part number, package drawing and pin assignment. Never infer collector, base and emitter from the flat face alone.
Proof: Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.

Start with the basics Optional foundation before “BJT Transistors as Amplifiers and Switches”

Electrical-engineering basics

Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.

Voltage: Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
Current: Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
Resistance and impedance: Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
Power and heat: Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
Rating versus operating point: A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.

How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.

On this page

Base-emitter drive controls the collector path
Junction bias defines the operating region
A switch is designed from the load backward
An amplifier keeps the transistor out of saturation

A bipolar junction transistor uses a small input at its base-emitter junction to control a larger collector-emitter path. The same device can operate as an analog amplifier or as an on/off switch, but those jobs use different bias conditions. Calling every conducting BJT “saturated” or assuming one constant current gain hides the distinctions that make a circuit reliable.

Base-emitter drive controls the collector path

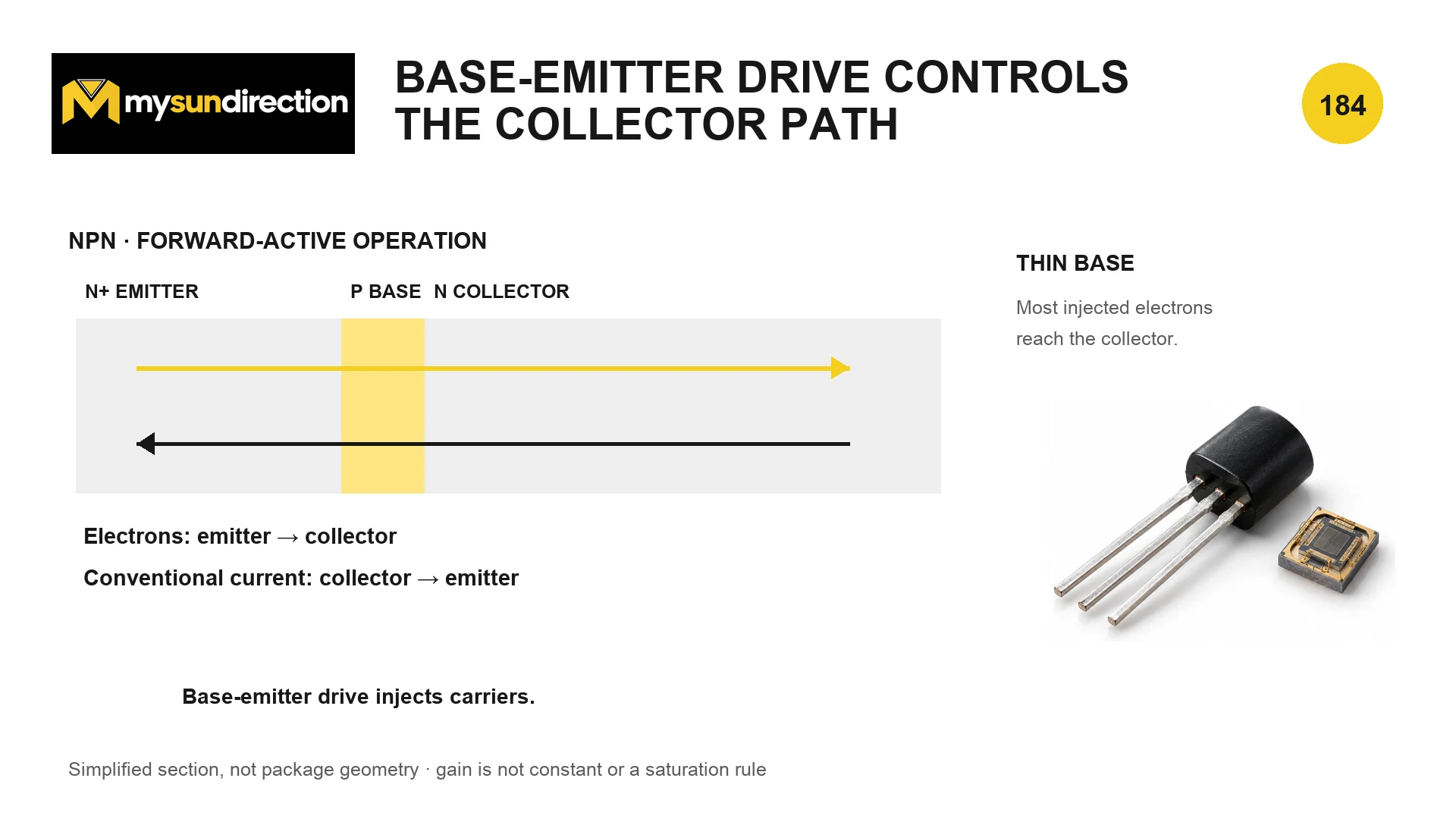

Simplified NPN transistor cross-section showing an N-plus emitter, thin P base and N collector, with electron motion from emitter to collector and conventional current in the opposite direction. — In forward-active operation, the forward-biased base-emitter junction injects carriers and the reverse-biased base-collector junction collects most of them. The cross-section is conceptual, not a package pinout.

For an NPN BJT in forward-active operation, the base-emitter junction is forward biased and the base-collector junction is reverse biased. Electrons injected from the heavily doped emitter cross the thin base; most reach the collector while a smaller fraction recombines and contributes to base current. PNP operation uses opposite polarities and carrier types, but the same regional logic.

Forward-active current-gain model

I_C ≈ βI_B; I_E = I_C + I_B

β, also written h_FE for a stated DC test, is not a device-wide constant. It varies between units and with collector current, collector-emitter voltage and temperature. Use guaranteed data-sheet limits for an amplifier operating point and feedback where gain accuracy matters.

I_C: collector current, A
I_B: base current, A
I_E: emitter current, A
β: forward-active common-emitter current gain under stated conditions

Example

A measured β of 150 at one current does not prove the same transistor will provide 150 at another current or in saturation.

Junction bias defines the operating region

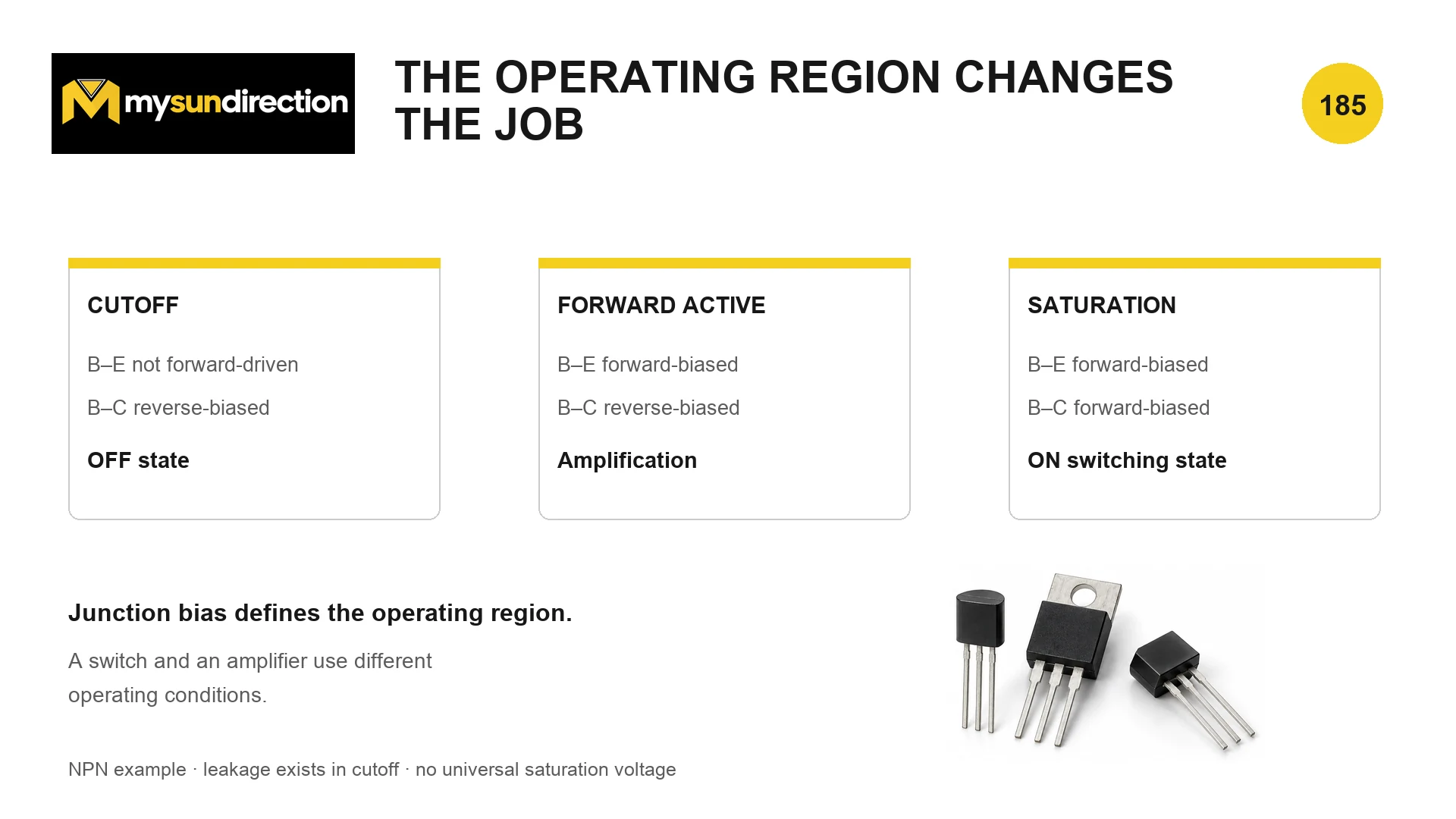

Three panels comparing NPN cutoff, forward-active and saturation regions by the bias state of the base-emitter and base-collector junctions. — An amplifier normally uses forward-active operation. A hard-switched BJT uses cutoff for off and saturation for on, accepting stored charge and a finite V_CE(sat).

Region	Junction condition	Typical job	Important limitation
Cutoff	Base-emitter not intentionally forward driven; base-collector reverse biased	Off switch	Leakage remains and excess reverse B-E voltage can damage the device
Forward active	B-E forward biased; B-C reverse biased	Linear amplification	Collector current depends on β, bias and temperature; sufficient V_CE headroom is required
Saturation	B-E and B-C forward biased	On switch	I_C is load-limited; V_CE(sat) depends on I_C, I_B and temperature, and stored charge slows turn-off
Reverse active	Junction roles exchanged	Usually unintended	Gain and ratings are generally poor compared with normal orientation
Breakdown	A junction exceeds its rated reverse voltage	Not a normal BJT state unless explicitly rated	Can cause destructive current and long-term degradation

A switch is designed from the load backward

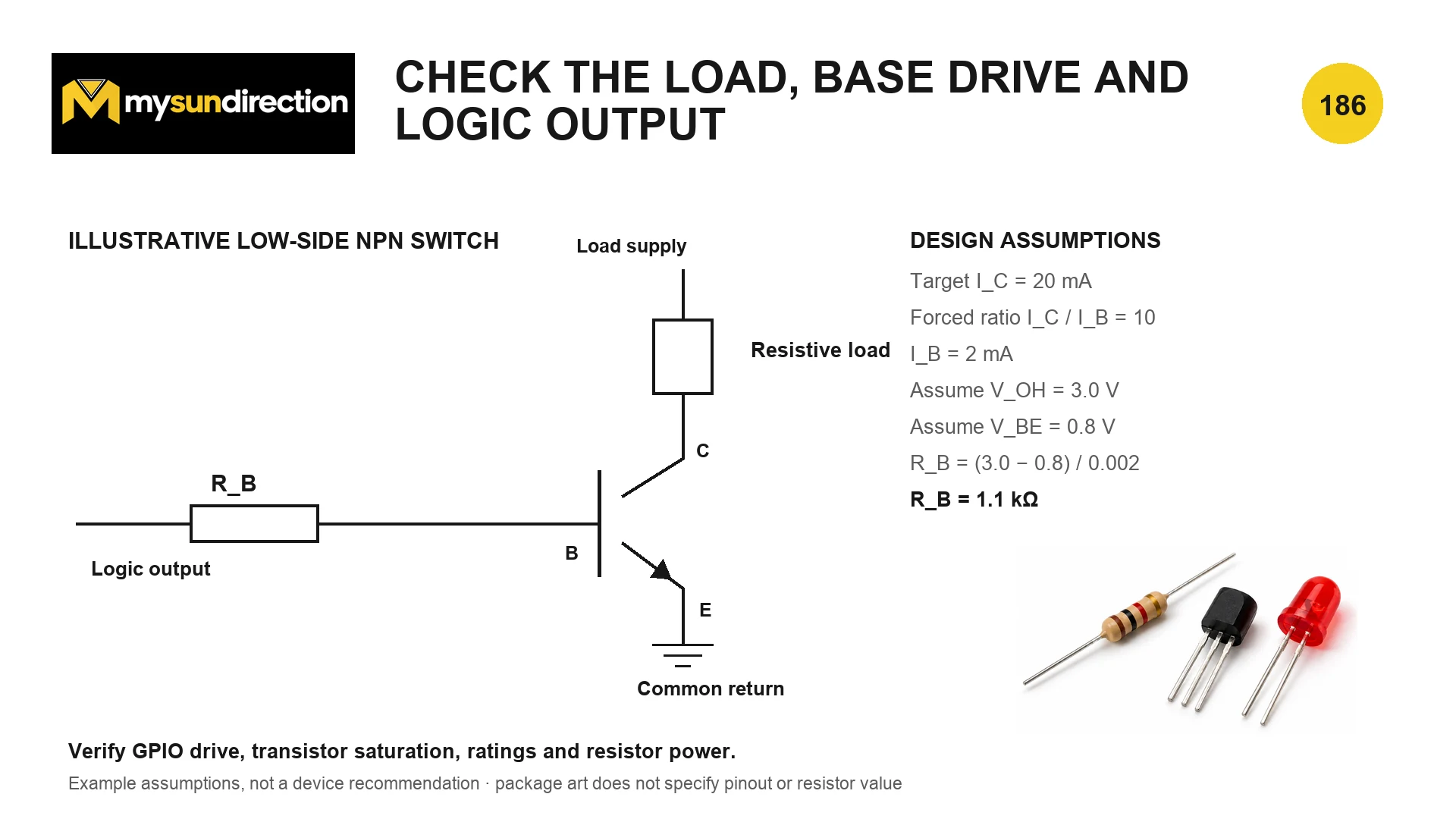

Illustrative low-side NPN transistor switch with a base resistor, grounded emitter, resistive collector load and a worked 20 milliamp collector-current base-drive example. — The 1.1 kΩ result follows stated assumptions: 20 mA collector current, a forced I_C/I_B ratio of 10, 3.0 V guaranteed logic high and 0.8 V assumed base-emitter voltage. It is not a universal resistor value.

Base-drive sizing screen

I_B = I_C/β_forced; R_B = (V_OH(min) − V_BE(design))/I_B

β_forced is a conservative design ratio selected to match or exceed the data-sheet V_CE(sat) test conditions; it is not the forward-active h_FE specification. Use the controller's guaranteed V_OH at the resulting source current, not its unloaded supply voltage. Check base-emitter voltage across temperature.

I_B: required base drive, A
I_C: target collector current, A
β_forced: chosen collector-to-base current ratio for switching
V_OH(min): minimum guaranteed driver-high voltage at I_B, V
V_BE(design): base-emitter design voltage at the intended current and temperature, V
R_B: base resistance, Ω

Example

For I_C = 20 mA, β_forced = 10, V_OH(min) = 3.0 V and V_BE = 0.8 V: I_B = 2 mA and R_B = 2.2 V/2 mA = 1.1 kΩ. Then verify that both the exact transistor and GPIO support those conditions.

Part	Check
Load	Maximum steady, inrush and fault current at supply tolerance
BJT	V_CEO, I_C, V_CE(sat) at stated I_C/I_B, power, temperature and SOA
Base resistor	Tolerance, pulse/steady dissipation and worst-case V_OH/V_BE
Logic output	Guaranteed source current and V_OH; reset and unpowered states
Off state	Leakage, noise immunity and optional base-emitter pull-down
Inductive load	Intentional flyback/clamp path and resulting switch voltage
Thermal path	Junction-to-ambient assumptions, PCB copper and ambient temperature

Conduction-loss screen

P_Q(on) ≈ V_CE(sat)I_C; P_RB = I_B²R_B

Use worst-case values and duty cycle. During switching, voltage and current overlap, adding loss. At higher frequency, saturation storage can dominate timing and a shallower saturation clamp or different device may be preferable.

P_Q(on): BJT on-state dissipation, W
V_CE(sat): collector-emitter saturation voltage under the selected conditions, V
P_RB: base-resistor dissipation while driven, W

Example

At 20 mA and an assumed 0.2 V V_CE(sat), transistor conduction loss is about 4 mW. That number is valid only if the data sheet supports 0.2 V at the chosen collector and base currents.

An amplifier keeps the transistor out of saturation

A linear common-emitter stage establishes a quiescent point with both voltage and current headroom so a small input variation can move collector current in either direction. Bias networks and emitter degeneration reduce sensitivity to β and temperature. The collector load converts current variation to voltage variation, commonly producing an inverted output. Small-signal gain is a local property around that operating point, not the same as DC β.

Question	Amplifier	Switch
Desired states	Continuous region around a bias point	Cutoff and saturated or low-V_CE on state
Collector current	Controlled signal around quiescent current	Primarily established by load and supply
Base drive	Bias plus small signal; often feedback stabilized	Enough guaranteed current for desired V_CE(sat)
Voltage headroom	Preserved for undistorted swing	Minimized in on state
Speed concern	Bandwidth, capacitances and linearity	Charge storage, rise/fall time and switching loss

Read a BJT data sheet without mixing conditions

Specification	How to use it
V_CEO, V_CBO, V_EBO	Separate breakdown ratings with different terminal conditions; they are not interchangeable
h_FE	Forward-active gain range at stated I_C and V_CE, not a saturation guarantee
V_CE(sat)	Maximum/typical at a stated I_C and I_B; use the same or more conservative drive relationship
V_BE(sat)	Bounds the driver and resistor calculation at stated currents
SOA	Permitted combinations of V_CE, I_C, pulse duration and temperature
Switching times	Valid only for the published test circuit and drive currents
Thermal resistance	Useful only with the corresponding package, mounting and temperature reference

Base-resistor tolerance and power follow the methods in Reading a Resistor’s Value and Tolerance. For a structured power-off, resistance and diode check before replacing a suspected transistor, use Using a Multimeter and a Diagnostic Sequence. Inductive loads additionally require a deliberately rated clamp path.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for BJT Transistors as Amplifiers and Switches?

Saturation is not “maximum possible collector current”. Saturation means both transistor junctions are forward biased. The external supply and load still set collector current. Increasing base current beyond what is needed may reduce V_CE only slightly while increasing driver load and stored charge.

Which assumption can change the conclusion?

Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.

What can go wrong if I copy the example directly?

Package appearance does not identify pinout or capability. TO-92 and other three-lead packages are used with multiple lead orders and many unrelated ratings. Confirm the exact part number, package drawing and pin assignment. Never infer collector, base and emitter from the flat face alone.

How do I verify the result in the real system?

Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
