Capacitors, Inductors and Conversion
Capacitors in Series and Parallel
Compare voltage sharing, combined capacitance and stored energy.
You need to size or verify a real system using “Capacitors in Series and Parallel”, with units, duty and limits that match the application.
Calculate equivalent capacitance and stored charge in series and parallel networks, then account for voltage rating, leakage, balancing, ripple current and the square-law growth of stored energy.
- Select or check first
- Do not add the wrong rating. Parallel capacitances add, but their voltage ratings do not. Series voltage ratings cannot be added safely unless each capacitor's actual transient and steady-state voltage is controlled within its own rating. Connection arithmetic is the beginning of a design, not its approval.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Steady DC sharing follows leakage, not the ideal equal-charge picture. Real capacitors conduct leakage that varies with part, voltage, temperature, ageing and history. The lower-leakage capacitor may acquire the higher voltage in a series string.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Capacitors in Series and Parallel”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
Parallel capacitors share the same two-node voltage and add their charge-storage capacity. Series capacitors carry the same ideal incremental series charge, so their voltages divide according to capacitance—but real steady DC voltage sharing is strongly affected by leakage. Equivalent capacitance describes the terminal relationship; every physical capacitor still needs its own voltage, ripple, temperature, lifetime and fault review.
Parallel capacitors share voltage and add capacitance

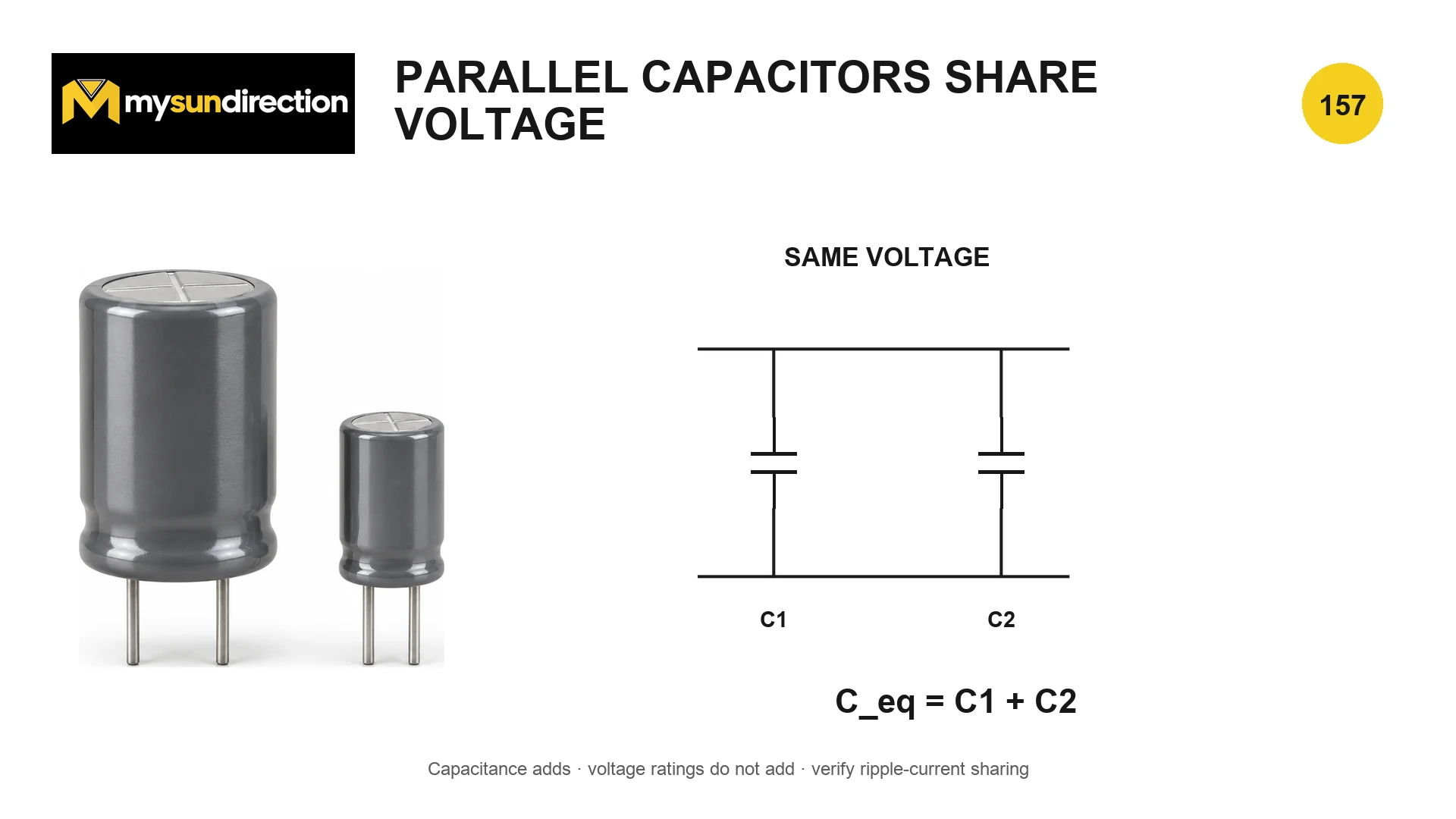

Diagram description
Two capacitor symbols share both rails beside two generic electrolytic capacitors. A note warns that voltage ratings do not add and ripple sharing needs verification.
Parallel equivalent capacitance
C_eq = C₁ + C₂ + … + Cₙ; Q_total = Σ(C_kV)
The same voltage V appears across every ideal parallel element. Adding Q_k = C_kV gives Q_total = C_eqV. The result does not say that transient current divides equally among real parts.
- C_eq
- equivalent capacitance, F
- C_k
- individual capacitance, F
- Q_total
- total stored charge magnitude at the terminals, C
- V
- shared terminal voltage, V
A 100 μF and 220 μF capacitor in parallel give 320 μF nominal. At 10 V their ideal stored charges are 1.0 mC and 2.2 mC, totaling 3.2 mC.
| Property | Ideal result | Real design check |
|---|---|---|
| Voltage | Same across every branch | Each part must withstand maximum DC, ripple and transient voltage with margin |
| Capacitance | Values add | Tolerance, bias, temperature and ageing change actual total |
| Ripple current | Divides according to branch impedance | ESR, ESL, temperature and layout can produce unequal sharing |
| Inrush | Larger C needs more charge | Source, switch, fuse, connector and precharge stress |
| Failure | One open reduces total C | One short can place the full source across the fault and other branches |
Series capacitors reduce equivalent capacitance and divide voltage

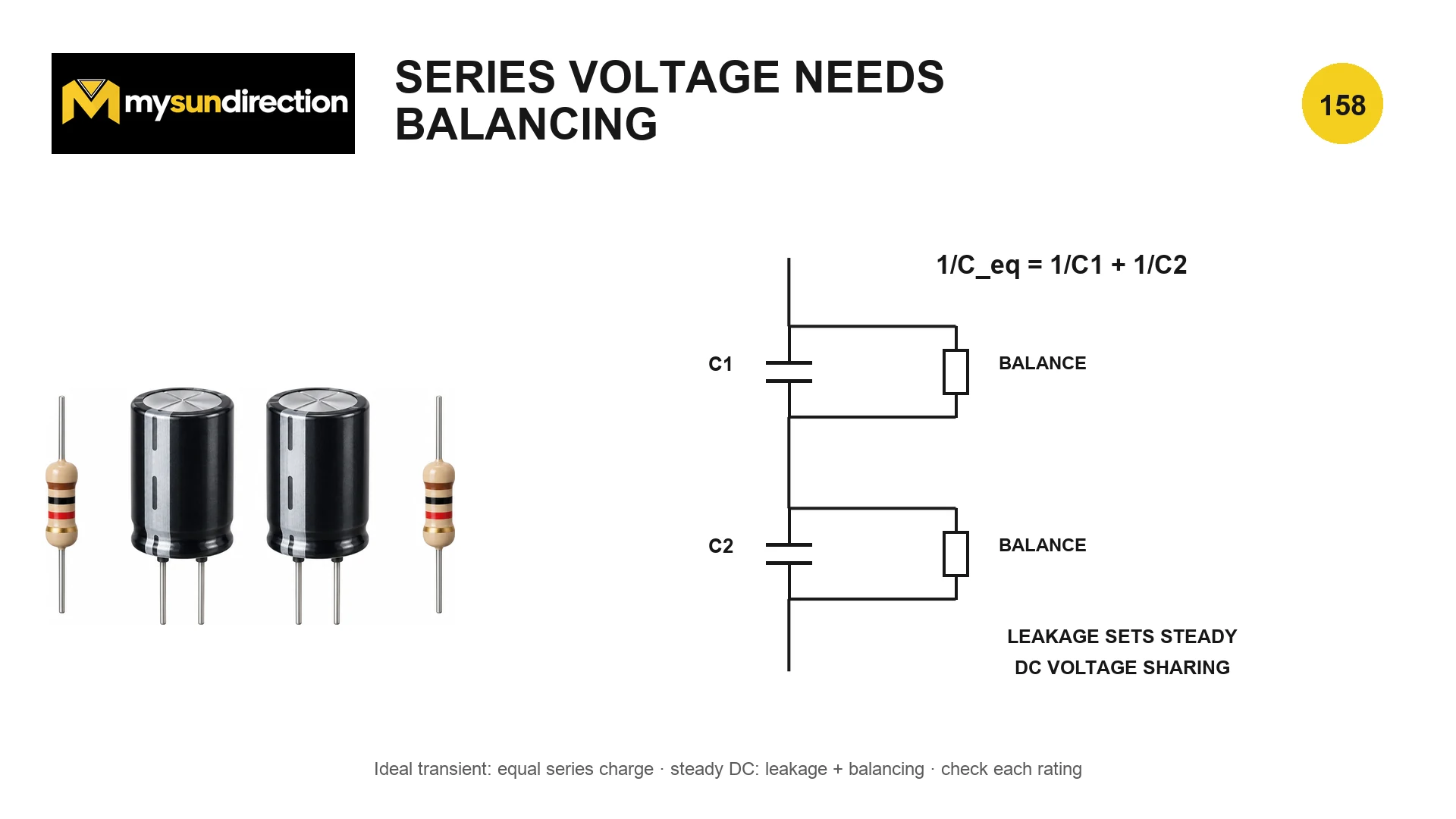

Diagram description
Two series capacitor symbols each have a parallel balance resistor. Notes distinguish the ideal transient from steady-state leakage-controlled sharing.
Series equivalent capacitance and ideal voltage
1/C_eq = 1/C₁ + 1/C₂ + …; V_k = Q/C_k
For initially uncharged ideal capacitors in a simple series chain, equal-magnitude charge appears on each. The smaller capacitance therefore takes the larger voltage. Two equal capacitors give half the individual capacitance and ideally split voltage equally during the modeled transient.
- Q
- ideal common series charge magnitude, C
- V_k
- voltage across capacitor k, V
Two ideal 100 μF capacitors in series give 50 μF. At 200 V total, equal values would ideally hold 100 V each—but tolerance and leakage can upset that division.
| Question | Why it matters |
|---|---|
| What are worst-case capacitance and leakage? | They affect transient and steady voltage division differently |
| Are equalizing resistors required and correctly rated? | They set sharing only when their current sufficiently dominates leakage spread |
| What happens during charging and discharge? | Dynamic division depends on capacitance, ESR, paths and switching sequence |
| Can any capacitor exceed polarity or voltage limits? | One overstressed part can cascade failure through the string |
| What is the resistor loss? | Balance resistors continuously dissipate power and also act as bleeders |
| How is failed-open or failed-short behavior handled? | The remaining parts can receive excessive voltage or energy |
Stored energy rises with capacitance and with voltage squared

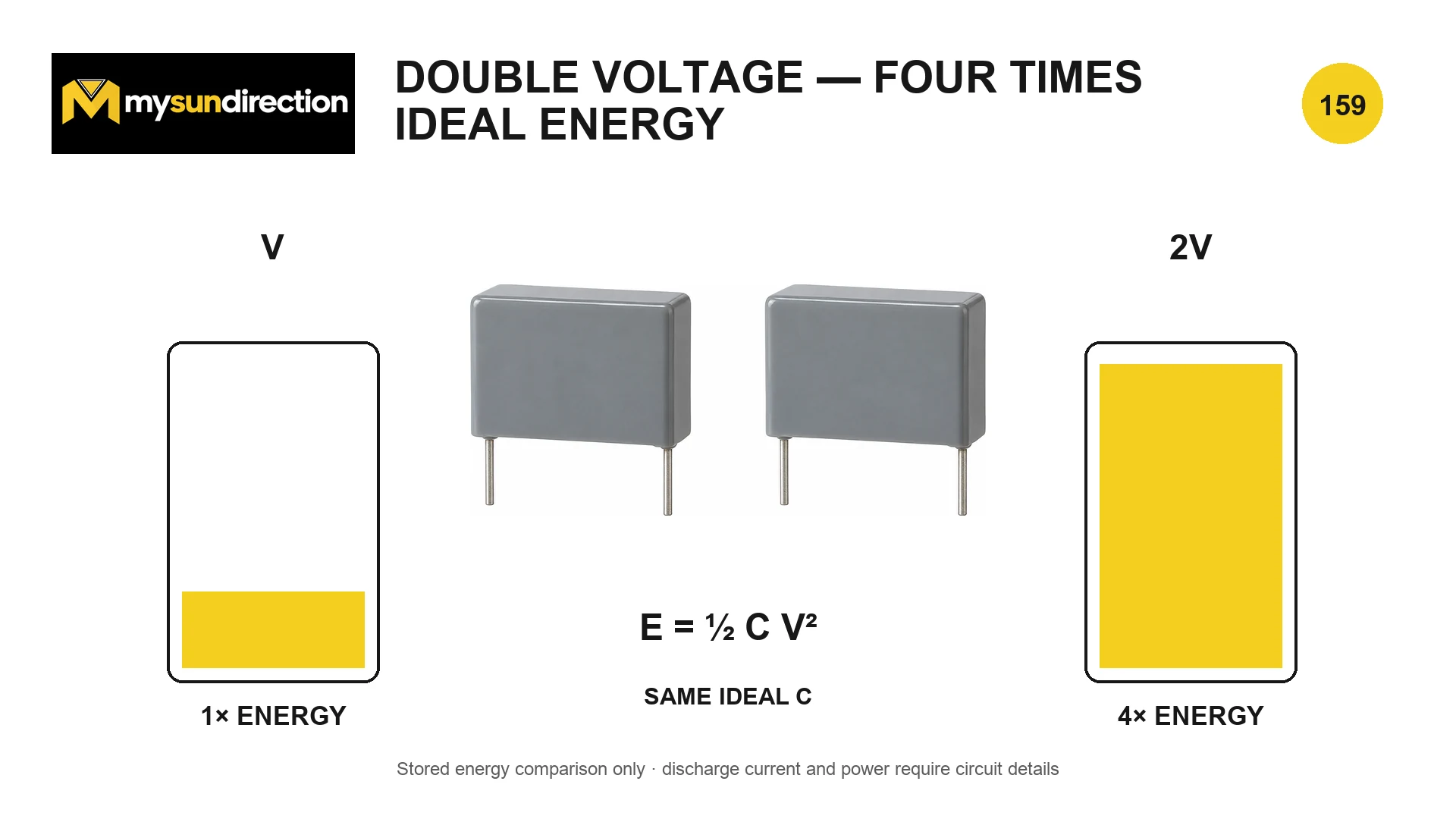

Diagram description
Two energy bars compare a capacitor at V and 2V around the expression one-half C V squared.
Equivalent forms of capacitor energy
E = ½CV² = ½QV = Q²/(2C)
Use the form matching what remains fixed. At fixed voltage, more parallel capacitance stores more energy. At fixed C, twice the voltage stores four times the energy. A network's total energy is the sum of energies in its physical capacitors.
- E
- stored electrical-field energy, J
- C
- capacitance, F
- V
- capacitor voltage, V
- Q
- stored charge magnitude, C
A 1000 μF capacitor stores 0.05 J at 10 V and 0.20 J at 20 V. The voltage doubled; energy quadrupled.
| Connection | C_eq | Voltage per equal capacitor | Total ideal energy |
|---|---|---|---|
| Parallel | 200 μF | 100 V each | ½ × 200 μF × 100² = 1.0 J |
| Series | 50 μF | 50 V each ideally | ½ × 50 μF × 100² = 0.25 J |
| One capacitor alone | 100 μF | 100 V | 0.50 J |
Why paralleling different capacitor technologies can be useful—and difficult
A large electrolytic may provide bulk energy while a smaller film or ceramic capacitor supplies lower impedance at higher frequency. Their behavior is not captured by capacitance alone: ESR, ESL, dielectric voltage dependence, resonance, ripple rating, temperature and placement matter. A low-ESR branch can carry disproportionate ripple and overheat even when total capacitance appears adequate.
Use Why Capacitors Charge and Discharge Gradually to calculate the time-dependent response and discharge interval. The node and branch definitions in Series, Parallel, Open and Short Circuits still apply, but capacitance combines oppositely to resistance.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Capacitors in Series and Parallel?
Do not add the wrong rating. Parallel capacitances add, but their voltage ratings do not. Series voltage ratings cannot be added safely unless each capacitor's actual transient and steady-state voltage is controlled within its own rating. Connection arithmetic is the beginning of a design, not its approval.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Steady DC sharing follows leakage, not the ideal equal-charge picture. Real capacitors conduct leakage that varies with part, voltage, temperature, ageing and history. The lower-leakage capacitor may acquire the higher voltage in a series string.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Sources and further reading
- Capacitors in Series and in Parallel — University Physics Volume 2OpenStax, Rice University · 2026-10-13University physics source reviewed for charge, voltage and equivalent-capacitance relationships in ideal series and parallel networks.
- Energy Stored in a Capacitor — University Physics Volume 2OpenStax, Rice University · 2026-10-13University physics source reviewed for E = ½CV², equivalent energy forms and summing physical capacitor energies.
- Radial Aluminum Electrolytic Capacitors — ESE SeriesKEMET · 2026-10-13Manufacturer datasheet reviewed for electrolytic leakage, balancing-resistor guidance and safety-device mounting context; its product-specific formula is not generalized to all capacitor series.
