How a MOSFET Gate Controls Current
Learn what threshold voltage means and what it does not guarantee.
You need to understand the internal functions in “How a MOSFET Gate Controls Current” before selecting, connecting or troubleshooting the real equipment.
Understand how gate-to-source voltage induces a channel in an enhancement-mode N-channel MOSFET, why threshold marks only the beginning of conduction, and how to choose drive voltage from guaranteed on-resistance conditions.
- Select or check first
- Measure drive relative to the source. V_GS = V_G − V_S. A gate at 5 V is not necessarily driven by 5 V: if the source rises to 4 V, V_GS is only 1 V. This is why high-side N-channel stages normally need a driver that moves the gate above the switching source node.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- “Logic-level” is not a complete specification. Confirm that maximum R_DS(on) is actually specified at the logic rail your driver can guarantee. A device with a 1–2 V threshold may still have R_DS(on) guaranteed only at 4.5 V, 6 V or 10 V. Typical transfer curves do not guarantee production extremes.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “How a MOSFET Gate Controls Current”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A MOSFET controls a drain-to-source current path with an electric field produced by voltage between gate and source. In an enhancement-mode N-channel device, sufficient positive V_GS attracts carriers near the insulated gate and forms a conducting channel. That makes the gate a voltage-controlled terminal in steady state—but charging and discharging it during switching still requires current.
Gate-to-source voltage creates the channel

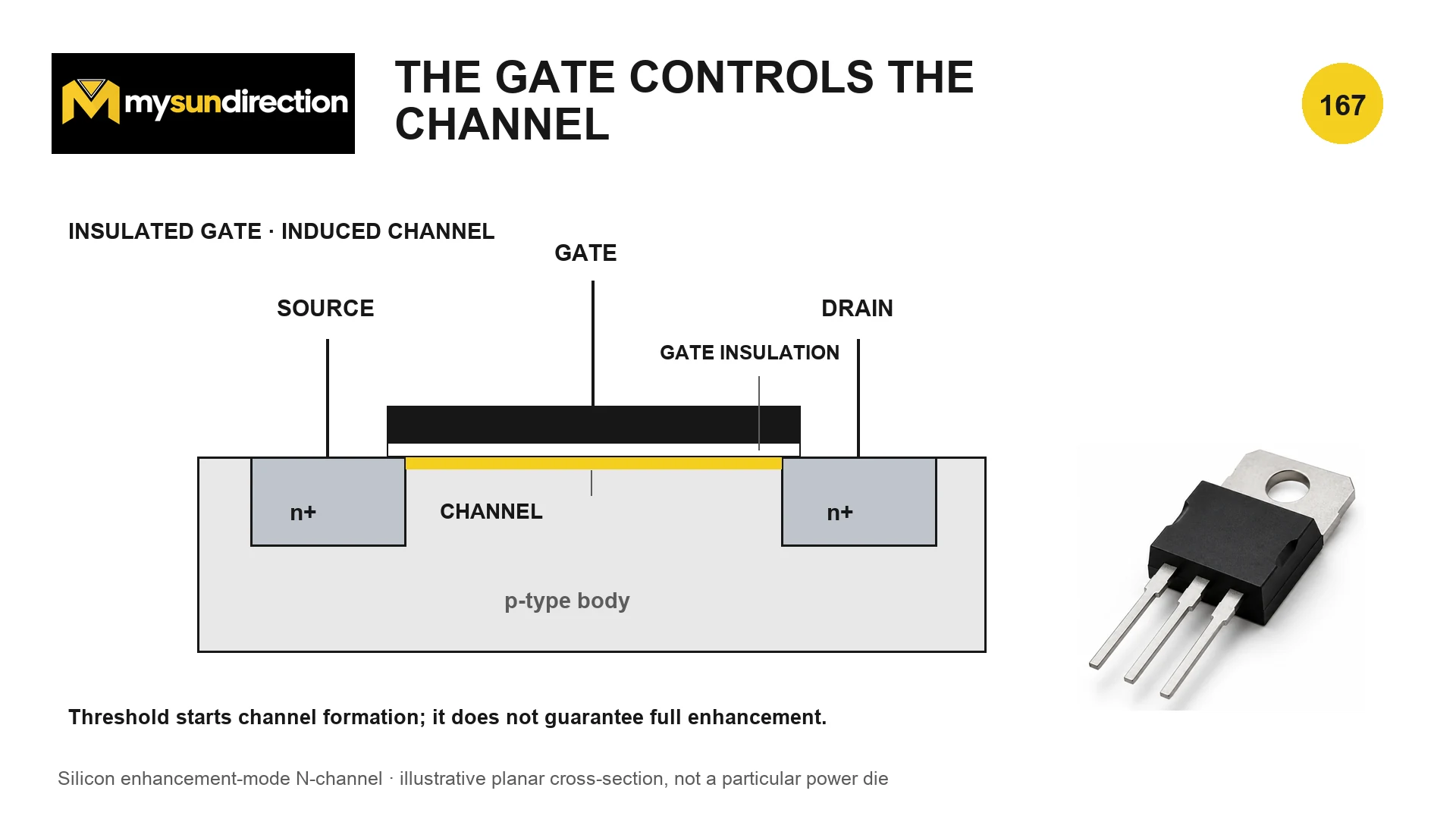

Diagram description
A gate electrode sits above a thin insulating layer between N-plus source and drain regions in a P-type body. A highlighted strip under the gate marks the induced channel.
| Gate-to-source condition | Channel state | Circuit interpretation |
|---|---|---|
| V_GS below threshold range | Strong inversion channel not established | Device intended off, though leakage and capacitance remain |
| V_GS near threshold | Channel just beginning to conduct | Small test current or transition-region behavior; not a low-resistance switch |
| V_GS at a data-sheet R_DS(on) test voltage | Channel strongly enhanced for stated conditions | Use guaranteed R_DS(on) to screen conduction loss |
| V_GS beyond absolute maximum | Gate oxide overstressed | Permanent damage can occur even if drain current is limited |
Threshold voltage is a test point, not a full-on command

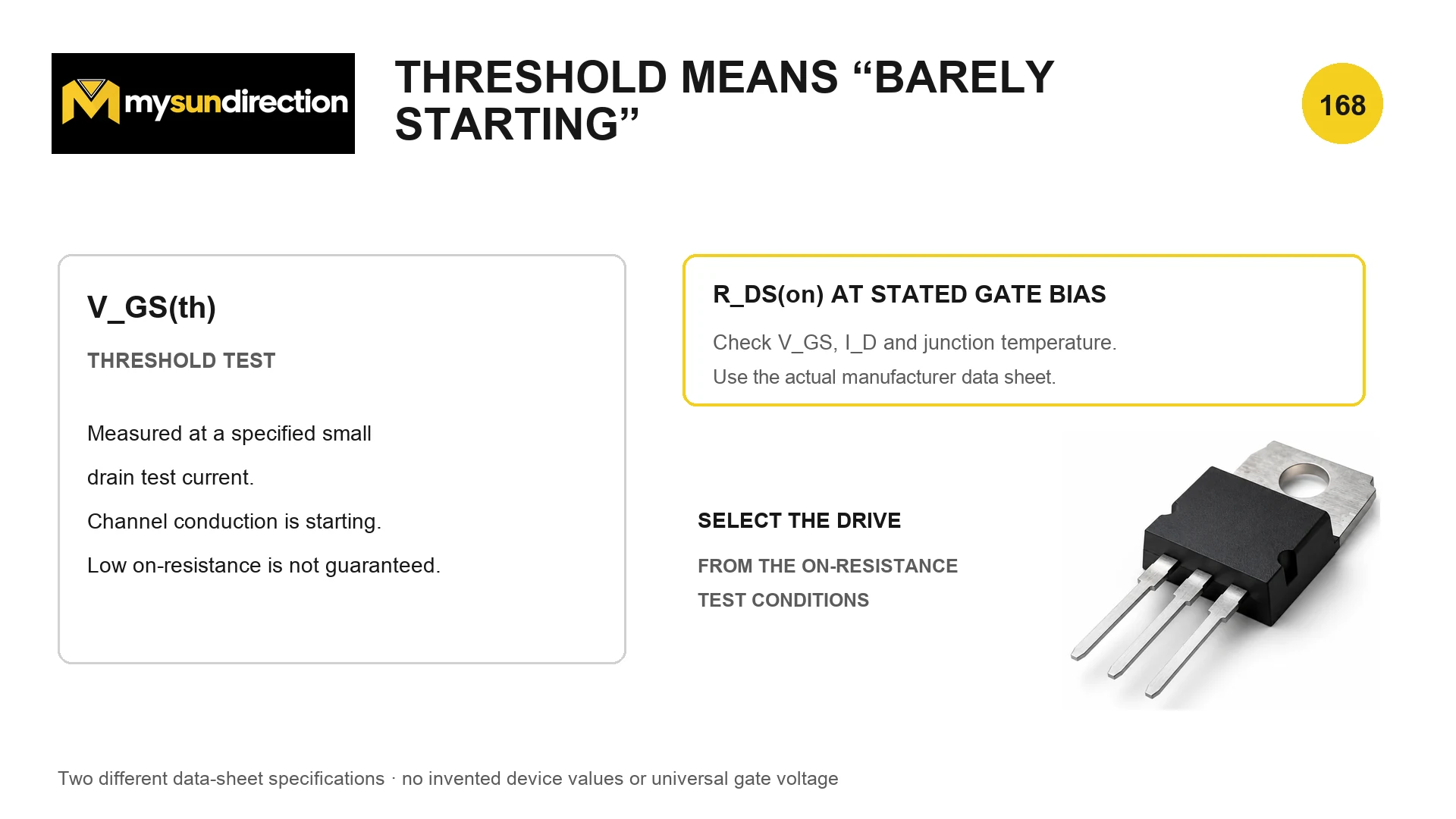

Diagram description
One panel labels threshold as a small-current test with no low-resistance guarantee. A second panel instructs the reader to use the R_DS(on) gate-bias, drain-current and temperature conditions.
Gate and source define the controlling voltage
V_GS = V_G − V_S
Use the instantaneous source potential. Source inductance and wiring resistance can create transient source voltage that reduces or increases effective drive. The same reference matters when checking the maximum positive and negative V_GS ratings.
- V_GS
- gate-to-source voltage, V
- V_G
- gate potential relative to the selected circuit reference, V
- V_S
- source potential relative to the same reference, V
For a low-side switch with source at 0.2 V during a current transient and gate at 5.0 V, V_GS is 4.8 V, not 5.0 V.
| Specification | Typical test meaning | Proper use |
|---|---|---|
| V_GS(th) | A small drain current with V_GS often equal to V_DS | Off-state margin and start-of-conduction information; not a drive recommendation |
| R_DS(on) | Specified at one or more stated V_GS, I_D and temperature conditions | Conduction-loss calculation at a supported drive condition |
| Transfer curve | Typical I_D versus V_GS at selected V_DS and temperatures | Understand trends; do not replace guaranteed limits with a typical curve |
| ±V_GS(max) | Absolute gate-oxide voltage limit | Keep every transient below the limit with margin |
| Q_G and gate-charge curve | Charge for stated V_DS, I_D and gate excursion | Driver current, switching time and switching-loss design |
| SOA | Allowed V_DS/I_D combinations for pulse durations and temperature | Check switching transitions, faults and linear operation |
On-resistance turns current into heat
Resistive conduction-loss screen
V_DS(on) ≈ I_DR_DS(on); P_cond ≈ I_D²R_DS(on)D
Use the maximum R_DS(on) appropriate to gate drive and junction temperature. For nonconstant current, use the mean of i²R over the conduction interval rather than simply squaring average current. Package, PCB and thermal path must keep junction temperature within rating.
- V_DS(on)
- on-state drain-to-source voltage, V
- I_D
- drain current, A
- R_DS(on)
- on-resistance at stated conditions, Ω
- P_cond
- average conduction loss, W
- D
- fraction of time conducting
At 4 A, 25 mΩ and 60% duty, the simple screen gives 4² × 0.025 × 0.60 = 0.24 W. If hot R_DS(on) is 45 mΩ, the same screen becomes 0.432 W.
An insulated gate is capacitive, not current-free
Average gate-drive current and power screen
I_G(avg) = Q_Gf_SW; P_gate ≈ Q_GV_drivef_SW
The driver supplies positive and negative current pulses to move gate charge. Q_G from the data sheet is more useful than one input-capacitance number for switching-time estimates, but it is still tied to stated drain voltage, current and gate excursion. Peak current and gate resistance set edge rate.
- I_G(avg)
- average charge-transfer current, A
- Q_G
- total gate charge for specified conditions, C
- f_SW
- switching frequency, Hz
- P_gate
- approximate energy per cycle times frequency, W
- V_drive
- gate-drive excursion, V
A 30 nC gate switched at 100 kHz moves an average 3 mA of charge. With a 10 V excursion, the approximate drive power is 30 mW, although peak current can be much larger.
| Element | Purpose | Failure mode to consider |
|---|---|---|
| Gate driver | Sources and sinks required peak current at valid voltage | Weak sink can cause slow turn-off or false turn-on |
| Series gate resistor | Controls ringing, peak current and edge rate | Too large raises switching loss; too small can worsen ringing/EMI |
| Gate-source pull-down | Defines off state during reset or disconnection | Too weak may lose to leakage or dv/dt current |
| Gate clamp if needed | Protects oxide from positive/negative transients | Clamp capacitance and tolerance affect drive |
| Kelvin source where provided | Separates gate-loop source from power-path inductance | Incorrect routing couples load di/dt into V_GS |
Channel drive is only one selection gate
| Design axis | Evidence |
|---|---|
| Voltage | V_DSS margin for supply, clamp and measured overshoot |
| Current | Continuous and pulse current with package and thermal limitations |
| Conduction | Maximum R_DS(on) at available V_GS and expected temperature |
| Switching | Q_G, Q_GD, capacitances, driver impedance and switching frequency |
| Transient operation | SOA, avalanche policy, short-circuit behavior and repetitive stress |
| Reverse current | Body-diode voltage, recovery and whether synchronous channel conduction is intended |
| Thermal | Loss waveform, junction-to-case/board path, interface and ambient |
| Layout | Power loop, gate loop, source inductance, creepage and measurement points |
Choose a drive rail from guaranteed specifications
| Step | Question |
|---|---|
| 1 | What V_GS can the driver guarantee high and low at its actual source/sink current? |
| 2 | Does the exact MOSFET specify maximum R_DS(on) at or below that high level? |
| 3 | What is hot R_DS(on), including tolerance and junction-temperature multiplier? |
| 4 | Does gate charge permit the required switching time and frequency? |
| 5 | Are V_GS transients inside both positive and negative absolute limits? |
| 6 | Do measured V_DS, V_GS, current and junction-temperature estimates pass worst-case tests? |
The difference between a single operating-point ratio and a predictive constant follows the model discipline in Resistance, Nonlinear Loads and Heat. Gate pull-down behavior uses the same defined-idle principle as Pull-Ups, Current Shunts and Failed Components.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for How a MOSFET Gate Controls Current?
Measure drive relative to the source. V_GS = V_G − V_S. A gate at 5 V is not necessarily driven by 5 V: if the source rises to 4 V, V_GS is only 1 V. This is why high-side N-channel stages normally need a driver that moves the gate above the switching source node.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
“Logic-level” is not a complete specification. Confirm that maximum R_DS(on) is actually specified at the logic rail your driver can guarantee. A device with a 1–2 V threshold may still have R_DS(on) guaranteed only at 4.5 V, 6 V or 10 V. Typical transfer curves do not guarantee production extremes.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
