Capacitors, Inductors and Conversion
Real Capacitors and Rectifier Smoothing
Understand how reservoir capacitors reduce ripple and why real parts have losses.
You are applying “Real Capacitors and Rectifier Smoothing” to a real system and need the concept, assumptions and verification boundary to stay clear.
Follow a reservoir capacitor through each rectifier cycle, distinguish smooth output voltage from pulsed diode current, and account for ESR, ESL, ripple heating and self-resonance.
- Select or check first
- Smooth voltage does not mean smooth current. The load may receive a slowly varying voltage while the conducting diodes, transformer winding and capacitor carry short, high-current pulses. Voltage ripple and component-current stress must therefore be checked separately.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- The familiar ripple equation does not rate the bridge. Increasing capacitance can reduce voltage droop while increasing stored energy and changing the charging-pulse crest factor. Rectifier average current, surge current, repetitive peak current, reverse voltage and thermal conditions still need their own data-sheet checks.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Real Capacitors and Rectifier Smoothing”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A reservoir capacitor placed after a rectifier does not turn alternating current into perfectly steady DC. The rectifier establishes one output polarity; the capacitor then stores charge near waveform peaks and supplies the load while the rectified source falls below the capacitor voltage. The output voltage becomes smoother, but the current through the rectifier and capacitor becomes concentrated into charging pulses.

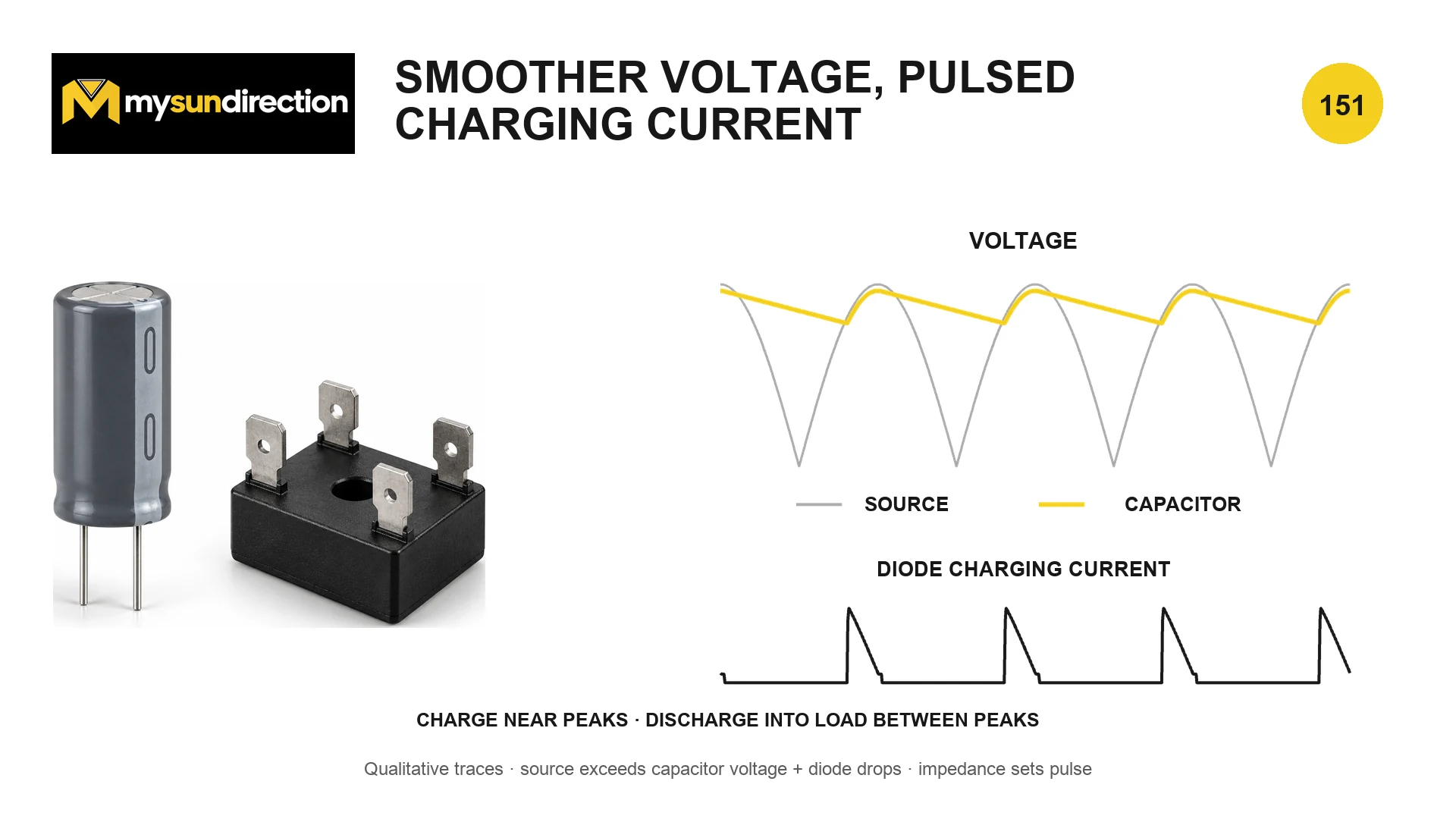

The capacitor alternates between charging and supporting the load
Diagram description
A qualitative full-wave rectifier example contrasts a gently falling capacitor voltage with narrow charging-current intervals. Pulse height and width are not to scale and depend on circuit impedance.
Immediately after a source peak, the source voltage falls. The charged capacitor can then be higher than the instantaneous rectified source, so the diodes stop conducting. Load current comes from the capacitor, whose voltage falls. Near the next peak, the source again exceeds the capacitor voltage plus the forward drops in the active diode path; conduction resumes and replaces the lost charge. Source resistance, transformer impedance, wiring, diode behavior, capacitance, load and starting conditions set the actual pulse.
First-order ripple estimate
ΔV ≈ I_load Δt / C ≈ I_load /(f_ripple C)
This useful screen assumes nearly constant load current, a small voltage change and a short recharge interval. For a single-phase full-wave rectifier, f_ripple is approximately twice the AC source frequency. It does not predict diode peak current, transformer heating or ESR steps.
- ΔV
- approximate peak-to-peak capacitor-voltage droop, V
- I_load
- approximately constant DC load current, A
- Δt
- time during which the capacitor mainly supplies the load, s
- C
- effective capacitance at the operating conditions, F
- f_ripple
- repetition frequency of rectified peaks, Hz
At 50 Hz input, a full-wave circuit has about 100 Hz ripple. A 0.20 A load and 2200 μF capacitor give the screen ΔV ≈ 0.20/(100 × 0.0022) ≈ 0.91 V peak-to-peak. Diode drops, conduction angle and source impedance require a fuller calculation or simulation.
| Change | Likely voltage effect | Other consequence |
|---|---|---|
| Larger effective capacitance | Less discharge droop | Often higher inrush and narrower recharge pulses |
| Higher load current | More droop | More RMS ripple current and heating |
| Higher ripple frequency | Less time between peaks | Switching and diode-recovery behavior may become important |
| More source impedance | Slower, broader recharge | Lower peak current but more source voltage loss |
| Higher ESR | Extra ripple step and loss | More internal heating |
| Lower temperature or ageing | Technology-dependent capacitance and ESR changes | Cold-start and life limits may dominate |

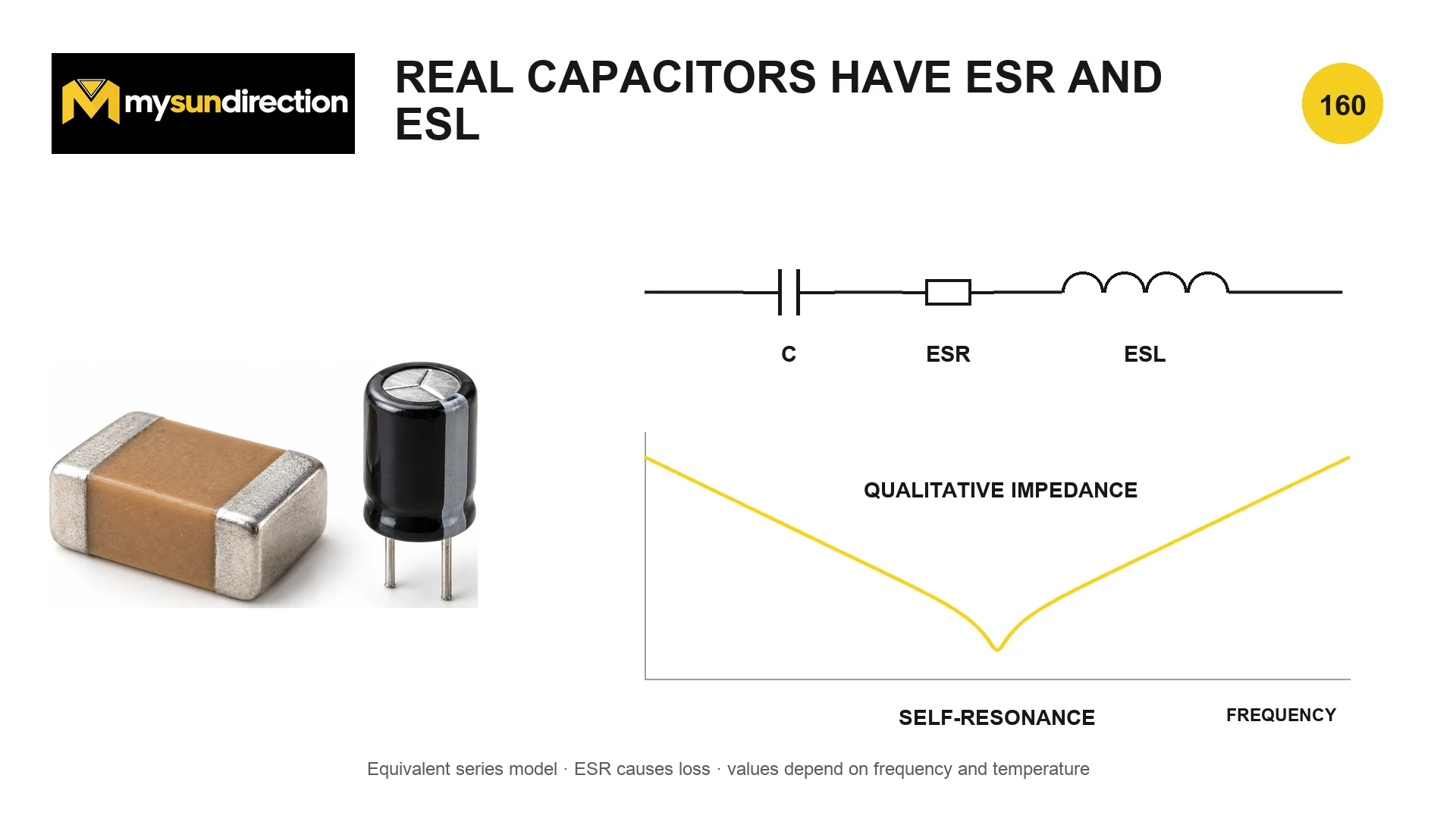

A real capacitor has loss and inductance
Diagram description
The simplified C–ESR–ESL model is a frequency-domain aid. Real parameter values vary with technology, frequency, temperature, bias, ageing and mounting.
Simplified series impedance
Z(jω) = ESR + j(ω·ESL − 1/(ωC)); f_SRF ≈ 1/(2π√(ESL·C))
This lumped model explains the V-shaped magnitude trend, but capacitor data sheets or measured impedance should govern design. ESR and effective capacitance are not necessarily constants, and additional dielectric and distributed effects may matter.
- Z
- complex terminal impedance, Ω
- ω
- angular frequency, rad/s
- ESR
- equivalent series resistance, Ω
- ESL
- equivalent series inductance, H
- C
- effective capacitance, F
- f_SRF
- approximate series-resonant frequency, Hz
A bulk electrolytic can store energy at low frequency while a nearby ceramic provides lower high-frequency impedance. Parallel parts do not automatically share ripple equally; their impedance and layout decide the current division.
ESR heating screen
P_ESR ≈ I_ripple,rms² · ESR
Use the RMS value of the current through that capacitor and ESR at the relevant frequency and temperature. The resulting temperature rise also depends on thermal resistance, airflow, board copper and neighbouring heat sources.
- P_ESR
- estimated internal resistive loss, W
- I_ripple,rms
- RMS AC component of capacitor current, A
If a capacitor carries 0.80 A RMS ripple and has 0.12 Ω ESR at the operating condition, the first-order loss is 0.80² × 0.12 ≈ 0.077 W. That arithmetic alone does not establish an acceptable core temperature or life.
Select the part from waveforms and conditions, not capacitance alone
| Check | Question to answer |
|---|---|
| Capacitance | What is the minimum effective value after tolerance, temperature, bias and ageing? |
| Voltage | What steady, ripple and transient voltage can appear, including line-high and light-load conditions? |
| Ripple current | What RMS current flows at each significant frequency, and how does the manufacturer rate it? |
| ESR and temperature | What internal loss and hot-spot temperature result at the worst ambient? |
| ESL and layout | Can the part respond at the needed frequency, and are high-di/dt loops short? |
| Inrush | Can the bridge, switch, fuse, transformer and capacitor withstand energisation? |
| Lifetime | Does the specified life at voltage and temperature meet the service target? |
| Fault behavior | What happens for open, short, reversed polarity or venting failure? |
Why a scope trace and a meter may report different things
A DC meter may show the average output while an oscilloscope reveals ripple and brief conduction events. Probe grounding, bandwidth, attenuation, common-mode rating and isolation determine whether a measurement is both accurate and safe. Never connect an earth-referenced oscilloscope ground to a non-isolated mains-referenced rectifier node without an approved measurement method.
The charge law and time-domain intuition are developed in Why Capacitors Charge and Discharge Gradually. For bank connections, voltage sharing and stored energy, continue with Capacitors in Series and Parallel.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Real Capacitors and Rectifier Smoothing?
Smooth voltage does not mean smooth current. The load may receive a slowly varying voltage while the conducting diodes, transformer winding and capacitor carry short, high-current pulses. Voltage ripple and component-current stress must therefore be checked separately.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
The familiar ripple equation does not rate the bridge. Increasing capacitance can reduce voltage droop while increasing stored energy and changing the charging-pulse crest factor. Rectifier average current, surge current, repetitive peak current, reverse voltage and thermal conditions still need their own data-sheet checks.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
