What Happens When a VFD Slows a Motor?
Understand braking energy and where to measure the drive's waveforms.
A real system shows a symptom related to “What Happens When a VFD Slows a Motor?”, and you need to find the cause before replacing parts or changing settings.
Trace kinetic energy during a VFD stop, distinguish coasting, controlled braking and regeneration, understand DC-link protective behavior, and match each drive measurement point to a suitable instrument and interpretation.
- Select or check first
- A speed command can fall instantly; stored energy cannot disappear. The drive must limit, store, dissipate or export the energy coming from the rotating system. If it cannot, it may lengthen the deceleration, reduce generating torque, trip on DC-link overvoltage or coast according to its configured protective behavior.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- A low-pass reading and a peak measurement answer different questions. A VFD-filtered meter can estimate the fundamental voltage or frequency the motor uses. It intentionally rejects much of the switching content, so it cannot prove peak insulation stress.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “What Happens When a VFD Slows a Motor?”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
Slowing a rotating motor-load system removes kinetic energy. A VFD can let friction consume it during a coast, command the motor to generate electrical power into the DC link, dissipate that energy through a braking resistor, or—when specifically designed—return it to the supply. The requested stop time is possible only when the complete energy path can accept the required braking power.
Start with the rotating system’s kinetic energy
Rotational kinetic energy
E_k = ½·J_total·ω²
Because energy rises with speed squared, a high-speed stop can require much more energy handling than intuition based only on speed difference suggests. J_total must include motor, load and transmission inertia referred to the motor shaft.
- E_k
- rotational kinetic energy, J
- J_total
- combined inertia referred to the motor shaft, kg·m²
- ω
- shaft angular speed, rad/s
Average energy-removal rate
P_brake,avg ≈ ΔE_k/Δt + P_load,overhaul − P_mechanical,loss
This is an energy estimate, not a resistor-sizing formula. Peak power, repetition, thermal time constants, duty cycle, drive losses, torque-speed limits and the manufacturer’s chopper/resistor rules must also be evaluated.
- P_brake,avg
- average power the controlled braking path must handle, W
- ΔE_k
- kinetic energy removed during the interval, J
- Δt
- deceleration interval, s
- P_load,overhaul
- power added by a descending or otherwise overhauling load, W
- P_mechanical,loss
- power naturally dissipated by friction, windage and the process, W
The energy path depends on drive topology and stop mode

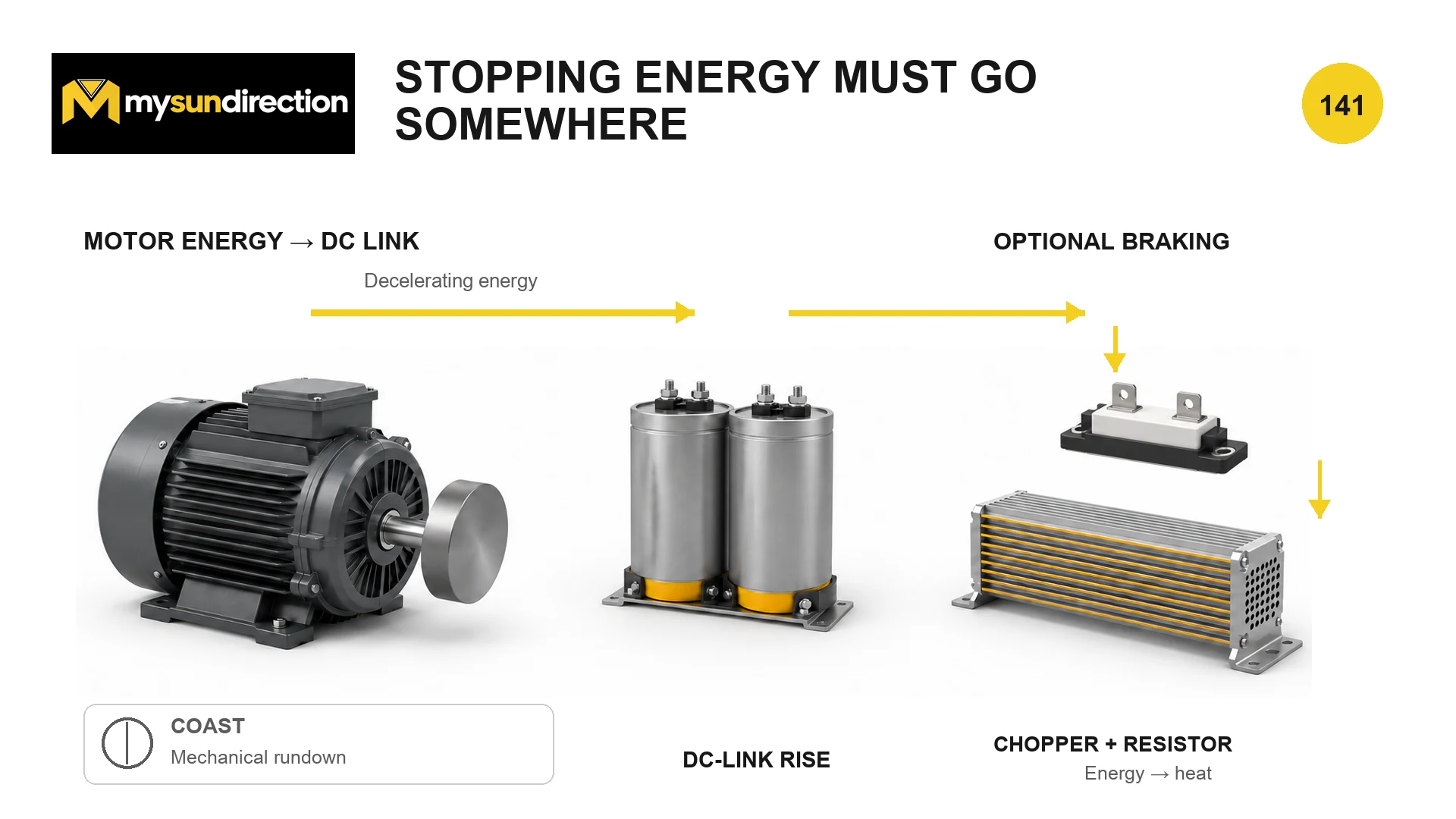

Diagram description
The image is not a complete braking circuit. It omits active-front-end regeneration, shared DC buses, flux braking, product-specific thresholds, resistor protection and the fact that some drives lack an internal chopper.
| Method | Where energy goes | Important boundary |
|---|---|---|
| Coast stop | Friction, windage and process losses | Stopping time and distance depend on the machine; no commanded braking torque is assumed |
| Controlled deceleration without external resistor | DC-link storage plus motor/drive losses; the drive may limit generation | A diode front end usually cannot return sustained power to the supply |
| Flux or DC-injection braking where supported | Additional motor loss and heat | Capability, speed range, duty and motor heating are product-specific |
| Chopper and braking resistor | DC-link energy is switched into a resistor and becomes heat | Chopper availability, resistance, pulse energy, duty and thermal protection must match drive data |
| Regenerative front end | Power can flow back to the AC system | Requires a designed regenerative topology and installation; it is not a default VFD feature |
| Common DC bus | Another motoring axis may consume the energy | System coordination and bus protection are engineered together |
The drive protects its DC link before honoring an impossible ramp
A generating motor raises DC-link voltage when incoming energy exceeds what the link and connected sinks can absorb. Depending on model and settings, overvoltage control can reduce generating torque and extend the actual stop. A configured chopper may switch a resistor. If voltage still reaches a protective threshold, the drive can trip; the machine may then coast. Safety functions, emergency stopping and mechanical brakes require a risk assessment beyond an ordinary deceleration parameter.
| Observation | Possible energy explanation | Evidence to seek safely |
|---|---|---|
| Actual stop takes longer than the entered ramp | Overvoltage or torque/current limiting is extending the ramp | Event log, limit status and manufacturer diagnostic data |
| Drive trips during fast deceleration | DC-link energy has no adequate sink or a braking component is unavailable/faulted | Fault code, declared braking hardware and duty calculation |
| Resistor overheats | Pulse energy or repetition exceeds its thermal duty | Resistance, pulse/duty rating, temperature protection and stop cycle |
| Load accelerates the motor | The process is overhauling and supplies energy continuously | Torque direction, load mechanics and regenerative requirement |
| Motor stops but machine does not hold | Dynamic braking is not a holding brake | Risk assessment and a correctly controlled mechanical holding system |
Each point has a different waveform and measurement purpose

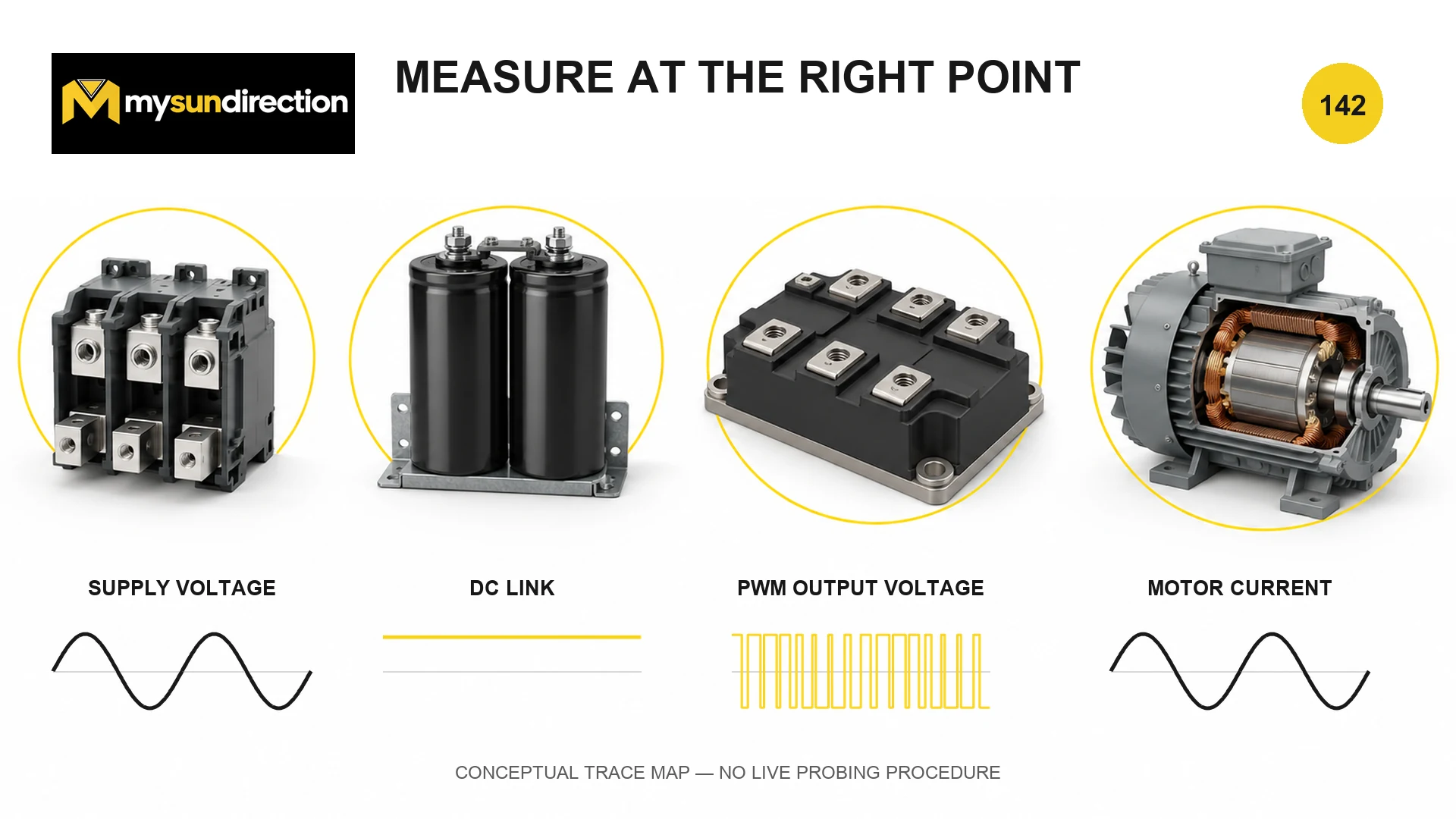

Diagram description
This is a conceptual trace map, explicitly not a live-probing procedure. The displayed traces do not share a scale and cannot define a particular drive’s voltage, ripple, switching frequency or current waveform.
| Point | Useful question | Instrument/interpretation boundary |
|---|---|---|
| AC input | Are input voltage, frequency and phase balance within the drive specification? | Use a suitably rated true-RMS instrument and installation procedure |
| DC link | Is the intermediate voltage stable and within the manufacturer’s expected range? | Hazardous stored energy; use documented terminals, range and discharge rules |
| Drive output voltage | Is the commanded fundamental voltage/frequency reaching all phases? | PWM requires a VFD mode, low-pass method or motor-drive analyzer; an ordinary DMM may misread |
| Output edge/transient | Are reflected peaks or rise times stressing the system? | Requires appropriate high-bandwidth differential/isolation measurement and expert setup |
| Motor phase current | Are magnitude and phase balance consistent with load and drive data? | Clamp one conductor at a time; bandwidth and PWM suitability matter |
| Shaft speed/torque/process | Did electrical command produce the intended mechanical result? | Use independent mechanical or process evidence where needed |
Why a DC-link reading can remain high after the input opens
DC-link capacitors store electric-field energy, and their discharge path takes time. A spinning or overhauling motor can also generate back through the inverter while rotation continues. The label or manual’s waiting time is a minimum process step, not a substitute for the prescribed verification. Never short the bus or improvise a discharge resistor.
Review the rectifier, DC link and switching stage in Inside a Variable-Frequency Drive. The acceleration-side torque and inertia balance is covered in Frequency, Motor Speed and V/f Control.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for What Happens When a VFD Slows a Motor?
A speed command can fall instantly; stored energy cannot disappear. The drive must limit, store, dissipate or export the energy coming from the rotating system. If it cannot, it may lengthen the deceleration, reduce generating torque, trip on DC-link overvoltage or coast according to its configured protective behavior.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
A low-pass reading and a peak measurement answer different questions. A VFD-filtered meter can estimate the fundamental voltage or frequency the motor uses. It intentionally rejects much of the switching content, so it cannot prove peak insulation stress.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
