An electricity meter and a distribution board answer different questions. The meter determines how much electrical energy crosses a defined boundary over time. The distribution board takes the incoming supply and divides it among circuits with switching and protection appropriate to those circuits. Neither the displayed energy value nor the number of breakers is a complete safety assessment of the installation.
Power is a rate; energy is that rate accumulated over time

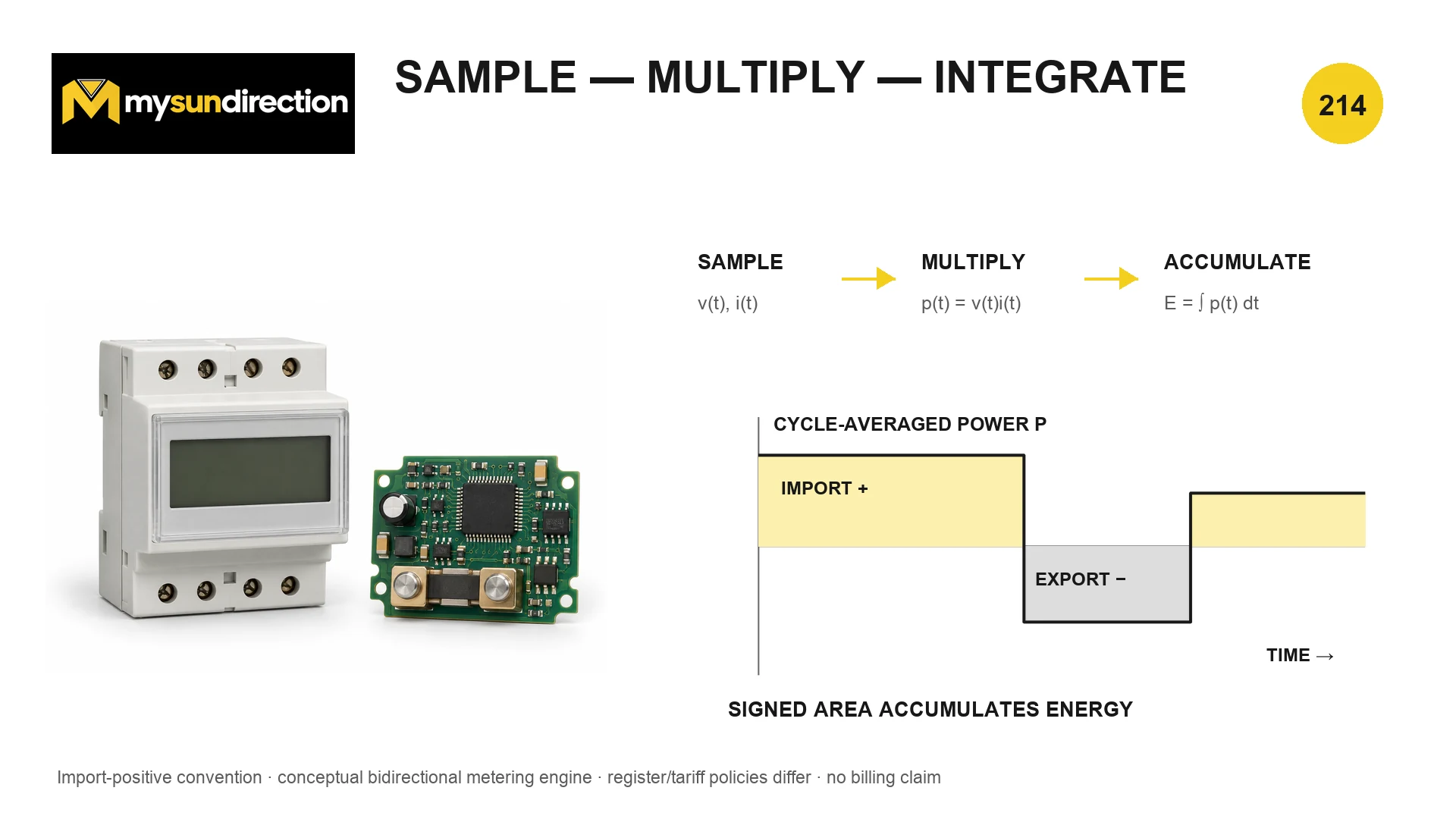

Diagram description
The diagram shows a conceptual bidirectional metering engine, not a billing rule. Cycle averaging, sampling, calibration, register configuration and tariff treatment determine how a real meter records the result.
Energy from time-varying power
p(t) = v(t)·i(t); E = ∫ p(t) dt
For AC, multiplying RMS voltage and RMS current alone gives apparent power unless the waveform relationship is also accounted for. A watt-hour meter samples or otherwise measures real power and accumulates it over time. The sign depends on the declared current direction and meter convention.
- p(t)
- instantaneous real power, W
- v(t)
- instantaneous voltage, V
- i(t)
- instantaneous current in the declared positive direction, A
- E
- accumulated energy, J or Wh
- t
- time, s or h with consistent units
| Quantity | Meaning | Typical unit | Example |
|---|---|---|---|
| Power | Present rate of energy transfer | watt (W) or kilowatt (kW) | A 2 kW heater while energized |
| Energy | Power accumulated over an interval | watt-hour (Wh) or kilowatt-hour (kWh) | 2 kW for 3 h uses 6 kWh |
| Apparent power | RMS voltage times RMS current | volt-ampere (VA) | Used in equipment and supply loading; not generally equal to real power |
| Reactive power | Alternating exchange associated with phase and stored fields | var | May be recorded separately in some installations |
A constant-power estimate
E_kWh = P_kW × Δt_h
This shortcut is valid when average power over the interval is known. Real loads cycle and modulate, so use interval data or integrate power for a varying load. One kilowatt-hour equals 3.6 megajoules; it is energy, not kilowatts per hour.
- E_kWh
- energy, kWh
- P_kW
- average real power over the interval, kW
- Δt_h
- duration, h
The distribution board divides one supply into protected circuits

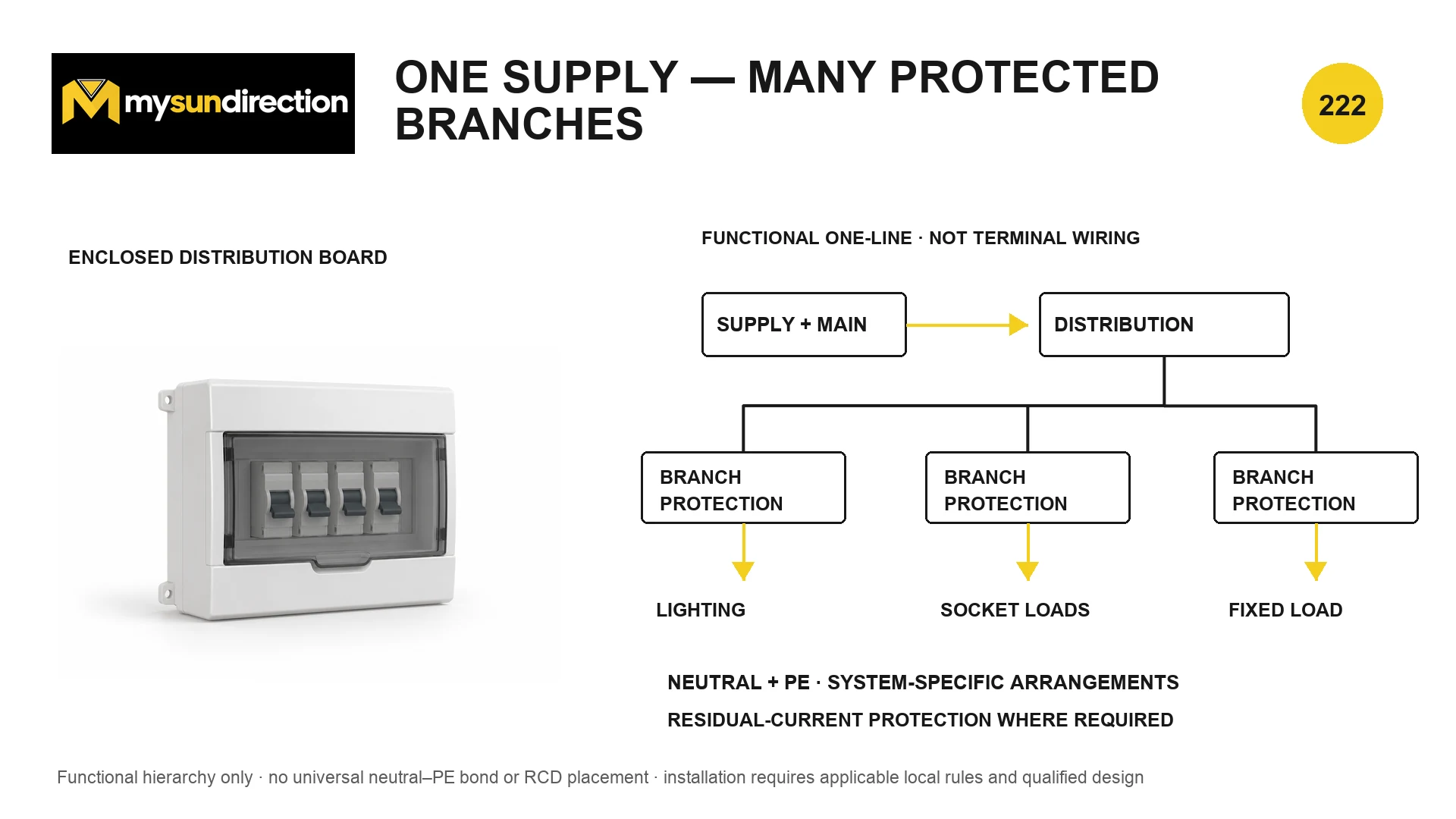

Diagram description
This is a functional hierarchy rather than terminal wiring. Neutral and protective-earth arrangements, residual-current protection, circuit groupings and device placement are system- and jurisdiction-specific.
A main switch or incoming protective device controls the installation boundary defined by the design. Busbars or other distribution conductors feed outgoing protective devices. Each outgoing circuit serves a group of loads or a dedicated load. Dividing the installation limits the affected area when one circuit is isolated or trips and allows conductor size and protective characteristics to suit that circuit’s expected current and fault conditions.
| Layer | Primary function | What it does not prove |
|---|---|---|
| Revenue or sub-meter | Measures energy crossing its metering boundary | That downstream wiring is safe or correctly protected |
| Main switch / incoming device | Provides defined switching and possibly protection | That every outgoing circuit has suitable additional protection |
| Distribution assembly | Encloses and connects incoming and outgoing equipment | That device ratings coordinate automatically |
| Branch protective device | Responds to specified overload or fault conditions on one circuit | That all shock hazards are covered |
| RCD / residual-current function where required | Detects a current imbalance above its characteristic | Overload protection unless that function is combined in the device |
| Protective conductor | Supports the designed fault-protection path | Normal load-current return |
Read a meter value with its interval and register
Interpret an energy reading
- Identify the registerConfirm import, export, total, tariff period or another documented register; do not compare unlike registers.
- Record unitsA display may show kWh, instantaneous kW, voltage, current or status on different screens.
- Use two timestampsEnergy used over an interval is the later cumulative reading minus the earlier reading, subject to register rollover and configuration.
- Compare like periodsWeather, occupancy, appliance cycling and local generation can dominate a short interval.
- Escalate anomalies safelyDo not open sealed or energized metering and distribution equipment. Contact the utility, meter operator or qualified electrician as appropriate.
Why a low energy total can coexist with a high peak current
Energy averages the effect of power over time. A motor or heater can draw high power briefly yet add little to a monthly kWh register. Conversely, a modest continuous load can accumulate substantial energy. Circuit protection, conductor heating and voltage drop depend on current magnitude and duration, while the energy register answers a different question.
For the measurement foundations behind watts and watt-hours, review Voltage, Current, Power and Energy Are Different. To reason from source through conversion and load, use Follow Energy Through an Electrical System.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for How Energy Meters and Home Distribution Work?
Identify the register. Confirm import, export, total, tariff period or another documented register; do not compare unlike registers.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
A distribution board is not a learner workbench. It can contain exposed parts at hazardous voltage, high available fault current and conductors that remain live despite opening one device. Covers, seals and terminations must not be disturbed by an unqualified person.
How do I verify the result in the real system?
Escalate anomalies safely. Do not open sealed or energized metering and distribution equipment. Contact the utility, meter operator or qualified electrician as appropriate.
