What a Circuit Breaker Cannot Protect
Understand protection limits, trip curves and coordination.
A real system shows a symptom related to “What a Circuit Breaker Cannot Protect”, and you need to find the cause before replacing parts or changing settings.
Read breaker time-current bands, distinguish overcurrent protection from other hazards, and verify coordination using the exact device pair and available fault current.
- Select or check first
- Define the required outcome, operating conditions and exact component or system boundary before choosing a part or method.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Breaking capacity is not the same as rated current. The rated current describes the current scale for normal and overload behavior. Breaking capacity addresses the maximum prospective fault current the device can interrupt under declared conditions.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “What a Circuit Breaker Cannot Protect”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A circuit breaker is selected to protect a defined circuit against defined overcurrent conditions. It cannot make every connected appliance safe, detect every leakage or arc pattern, correct undervoltage, prevent all contact hazards, or guarantee that only the nearest device will open. Protection is a coordinated system of conductors, earthing, insulation, enclosures, overcurrent devices, residual-current or ground-fault functions, equipment protection and safe work practices.
Start by drawing the protection boundary
Diagram description
The examples are conceptual and intentionally provide no wiring or sizing values.
| Condition | Ordinary overcurrent breaker alone? | What else may be required |
|---|---|---|
| Sustained conductor overload | Intended role when correctly selected | Correct conductor ampacity, installation method and load assessment |
| High short-circuit current | Intended role only within breaking rating | Available-fault-current study and correctly rated assembly |
| Small current leaking through a person or to earth | May remain below overcurrent pickup | Applicable residual-current/ground-fault protection and earthing |
| Series arcing with modest current | May not cross the trip band | Arc-fault measures where required, sound terminations and maintenance |
| Internal appliance overheating | May not raise branch current enough | Equipment thermal cutout, fuse, controls and manufacturer safeguards |
| Electric shock from an exposed energized part | Opening time is not touch prevention | Insulation, barriers, isolation, bonding and safe work practices |
| Undervoltage or phase loss | Not an ordinary MCB function | Control/protection designed for the equipment and process |
A time-current curve is a tolerance band
Diagram description
The plot has no numerical axes and no B, C or D thresholds; it is not a selection curve.

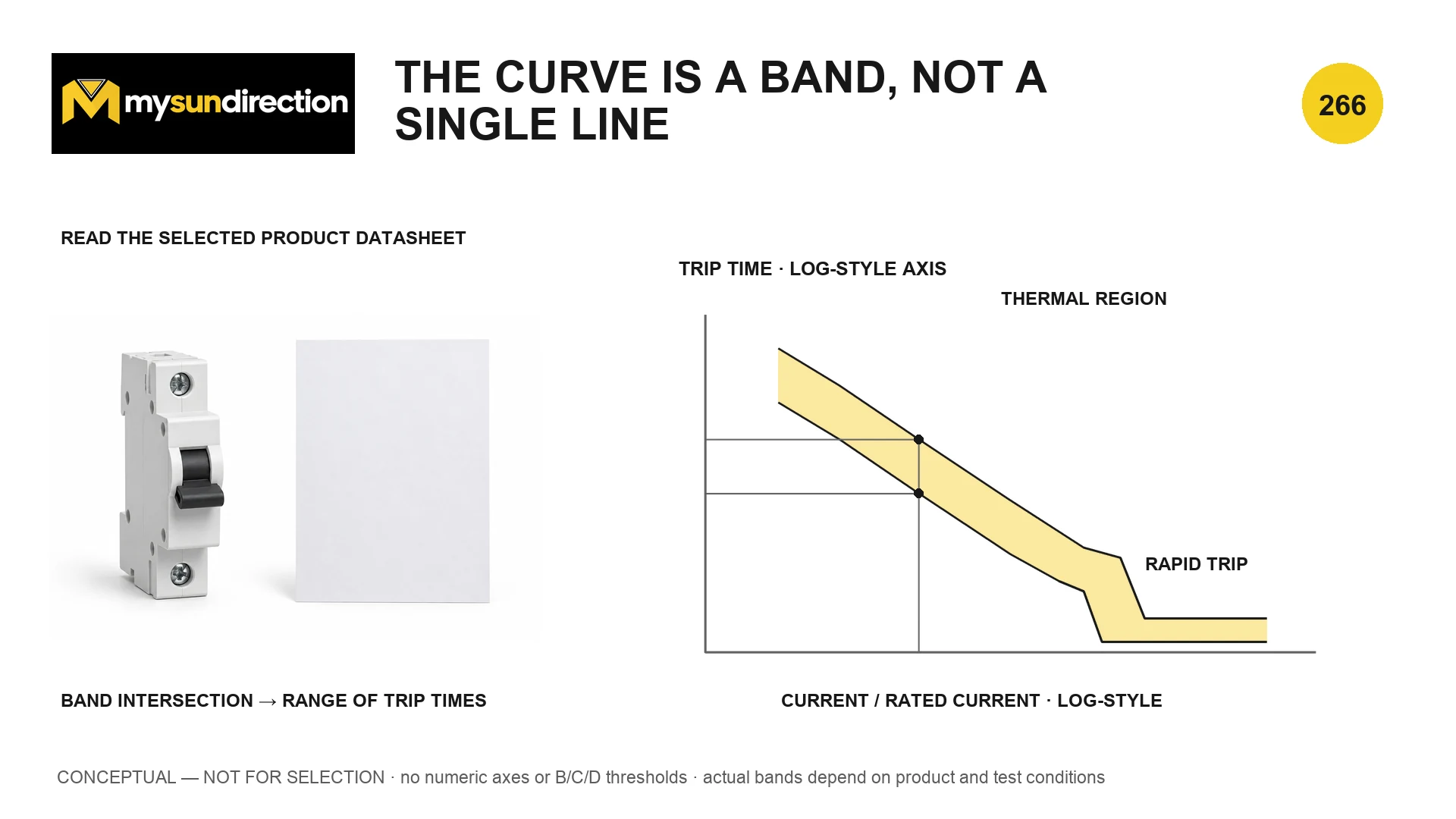

Time is normally plotted vertically and current, often as a multiple of rated current, horizontally on logarithmic axes. At one current the lower and upper band edges bound operation. Ambient temperature, prior loading, pole loading and tolerances influence a thermal-magnetic device. At high fault currents, current limitation and let-through energy may require manufacturer tables or test data beyond simple curve overlay.
Normalize current before reading a multiple-of-rating axis
m = I / Iₙ
This only locates the horizontal coordinate when the published curve uses multiples of rated current. It does not choose Iₙ, prove conductor protection or predict an exact trip time.
- m
- multiple of rated current
- I
- prospective or measured current, A
- Iₙ
- breaker rated current for the stated curve, A
A current of 30 A on a 10 A curve is 3 × Iₙ. The applicable band—not a generic rule—then gives the possible operating-time range.
Coordination belongs to the exact upstream–downstream pair
Diagram description
A downstream breaker clears a branch fault while another branch remains supplied, but selectivity beyond the stated table limit is not guaranteed.

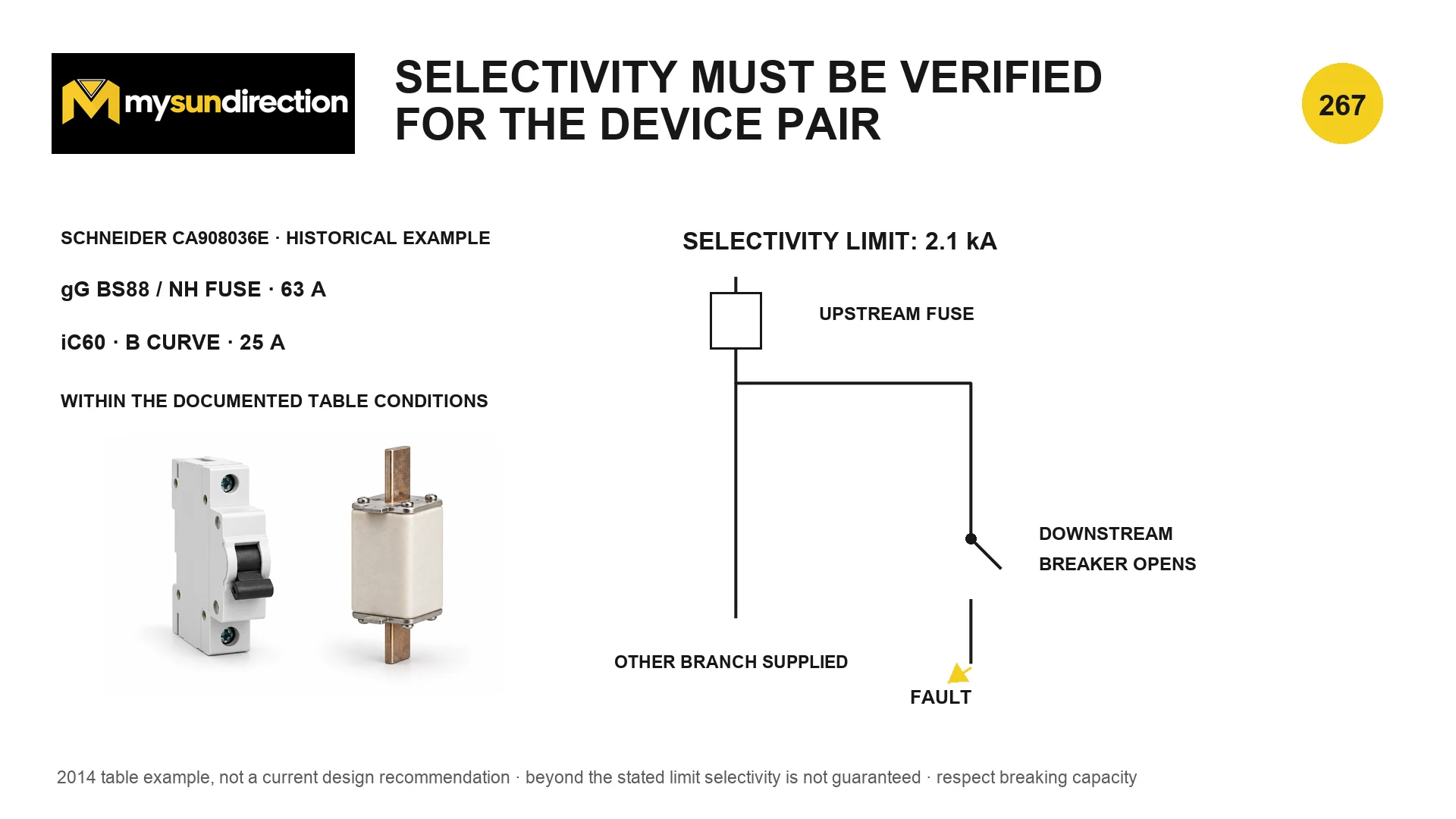

Selectivity means the downstream protective device clears a downstream abnormal condition while the upstream device remains closed, limiting the outage. It may be total over the relevant fault range, partial only up to a stated current, or absent. Curve separation can assess overload regions; high-current interaction can depend on device energy limitation and tested manufacturer combinations. Ratios of ratings alone do not prove it.
| Input | Why it matters |
|---|---|
| Exact product codes and releases | Different mechanisms and revisions have different characteristics |
| Ratings and adjustable settings | Pickup and delay determine overlap |
| System voltage and AC/DC duty | Breaking and tested-combination data are condition-specific |
| Prospective fault current at each point | Partial selectivity may end below the available current |
| Conductor and equipment withstand | A downstream trip must occur before damage limits are exceeded |
| Manufacturer curves/tables and standard basis | High-current selectivity may rely on tested interaction, not visual spacing alone |
| Backup/cascading conditions | An upstream device may raise downstream breaking performance only in a documented combination |

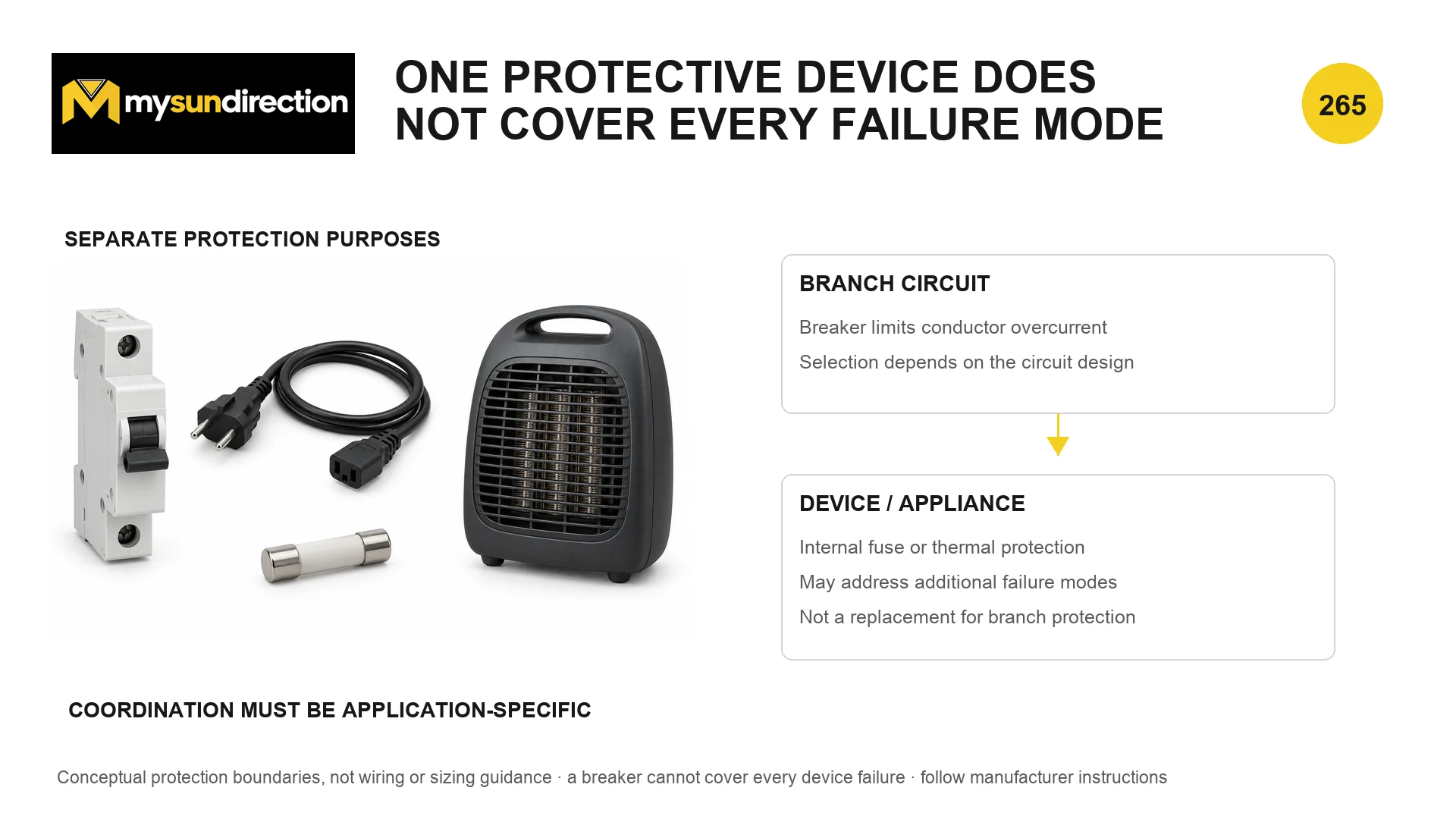

Why a downstream equipment fuse can coexist with a branch breaker
The branch breaker can protect fixed wiring against the circuit's design overcurrent. A smaller equipment fuse may protect internal conductors or components whose safe current or fault energy is lower. Their curves and breaking duties must still coordinate, and the equipment fuse does not authorize a larger branch breaker than the installed circuit permits.
Use Inside a Miniature Circuit Breaker for the thermal, magnetic and arc-interruption sequence. The heat relationship behind overload damage is developed in Resistance, Nonlinear Loads and Heat.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for What a Circuit Breaker Cannot Protect?
Define the required outcome, operating conditions and exact component or system boundary before choosing a part or method.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Breaking capacity is not the same as rated current. The rated current describes the current scale for normal and overload behavior. Breaking capacity addresses the maximum prospective fault current the device can interrupt under declared conditions.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
