What Happens When an Inductor Saturates?
Connect magnetic-core limits to buck-converter current ripple.
A real system shows a symptom related to “What Happens When an Inductor Saturates?”, and you need to find the cause before replacing parts or changing settings.
Relate a magnetic core's nonlinear B–H region to falling incremental inductance, accelerating current and component stress, then trace both switching states of an ideal buck converter.
- Select or check first
- Falling L makes the current slope steeper. For the same applied inductor voltage, di/dt = v/L. If effective incremental inductance falls as current rises, the waveform can bend upward and peak current can climb faster than a constant-L calculation predicts.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- I_sat is not standardized to one percentage. One catalogue may define saturation current at a 10% inductance drop and another at 20%, 30% or more. Temperature and test frequency can also differ. Compare the curve and test definition, not just the headline amperes.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “What Happens When an Inductor Saturates?”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
Magnetic-core saturation is a progressive loss of incremental permeability as the core is driven toward a region where additional magnetizing force produces comparatively little additional flux density. In a power inductor, that usually appears as falling incremental inductance with increasing current. The inductor still has winding resistance, leakage and some inductance; it does not become an ideal short at a single universal threshold.

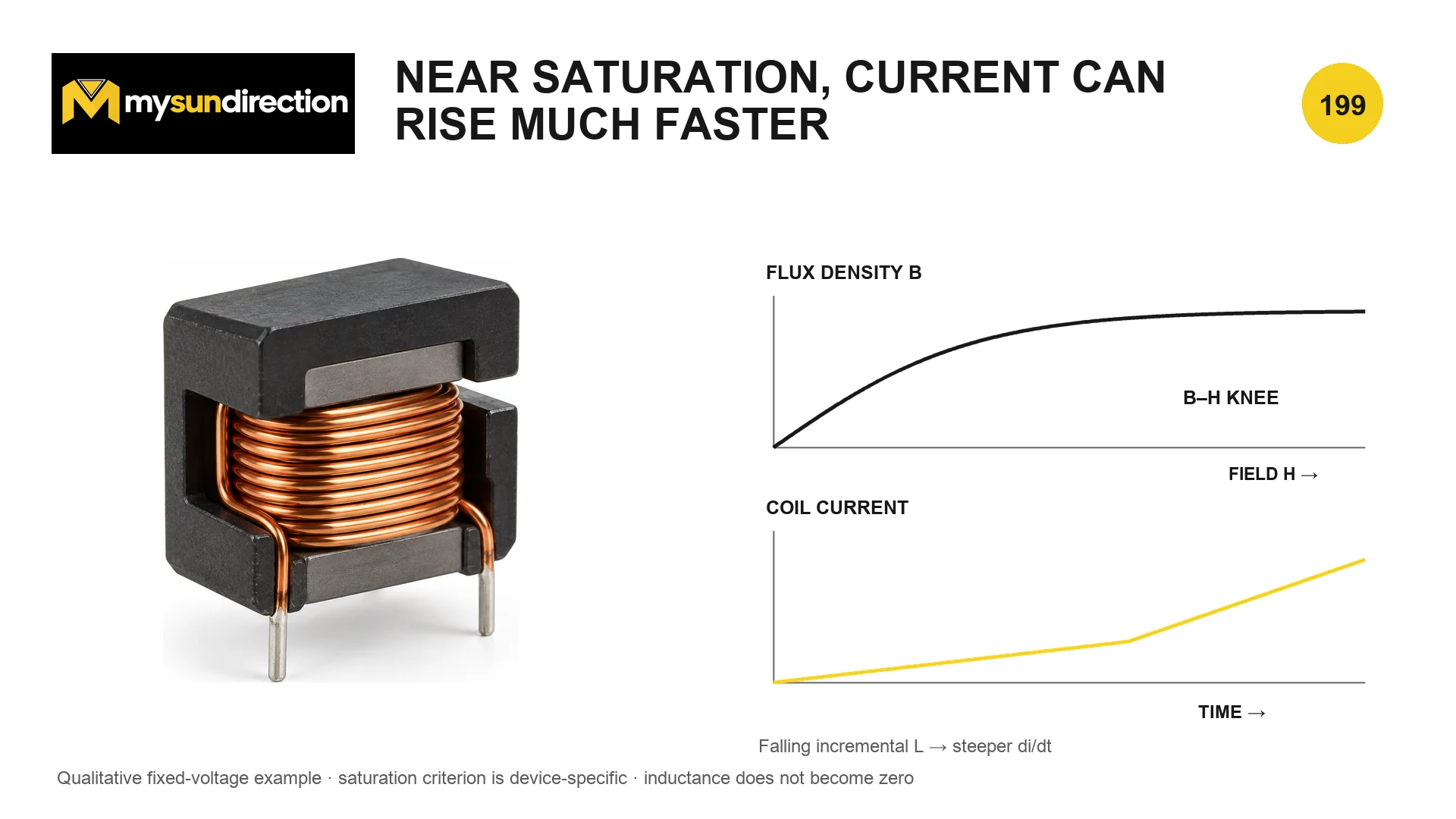

The magnetic curve bends before the current waveform does
Diagram description
The curves are conceptual rather than a universal device characteristic. Actual saturation is temperature-, waveform-, frequency- and construction-dependent and is specified through manufacturer test criteria.
Flux density B and magnetizing field H describe the core material, while the circuit sees flux linkage and inductance. Geometry, number of turns and air gap connect those domains. A gap stores field energy and can make the component tolerate more DC magnetizing force, but it does not remove winding heating, fringing-field loss or a finite saturation limit.
Use incremental inductance for a changing-current slope
L_inc = dλ/di; v = dλ/dt = L_inc(i)·di/dt
When flux linkage λ is nonlinear with current, L_inc varies along the waveform. A nominal small-signal inductance measured at low current may not predict the high-current slope. Manufacturer L-versus-current curves or nonlinear models are therefore important.
- L_inc
- incremental inductance at the operating current, H
- λ
- winding flux linkage, Wb-turn
- i
- instantaneous current, A
- v
- instantaneous winding terminal voltage in the ideal magnetic relation, V
If 5 V is applied while L_inc is 10 μH, the ideal slope is 0.5 A/μs. If L_inc falls to 5 μH at higher current, the same voltage produces 1.0 A/μs.
| Limit | Typical definition | Dominant concern |
|---|---|---|
| Saturation current I_sat | Current causing a stated inductance reduction under stated test conditions | Peak current and loss of ripple control |
| RMS or temperature-rise current I_rms | Current causing a stated temperature rise | Copper and core heating |
| Absolute or peak pulse limit | If specified, a short-duration electrical or mechanical boundary | Winding, termination and core stress |
| Application peak current | Worst calculated or measured operating peak including transient | Must be compared with the correct manufacturer criterion |

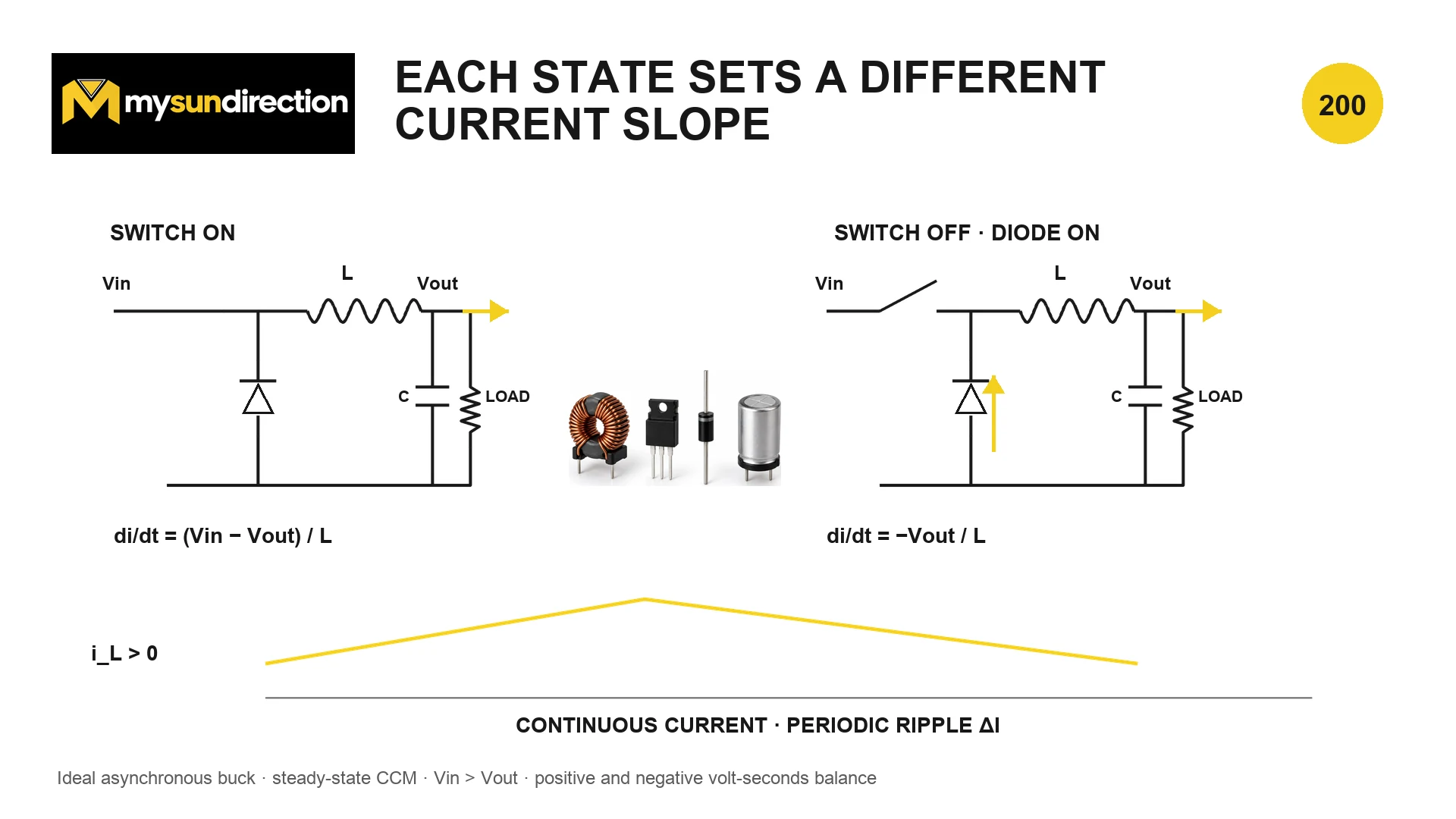

A buck converter gives the inductor two voltage states
Diagram description
The schematic assumes an ideal asynchronous buck converter in steady-state continuous-conduction mode with positive current, Vin greater than Vout and small output ripple.
Ideal continuous-mode buck slopes
ON: di/dt = (V_in − V_out)/L; OFF: di/dt = −V_out/L
The off-state expression treats the diode as ideal. A real diode drop, switch voltage, winding DCR and output ripple modify the slopes. These expressions also assume L is approximately constant over the excursion.
- V_in
- input voltage, V
- V_out
- output voltage, V
- L
- inductance at the operating current, H
For 12 V in, 5 V out and 10 μH, the ideal on-slope is 0.7 A/μs and the off-slope is −0.5 A/μs. A 0.5 μs on-time adds 0.35 A; a 0.7 μs off-time removes 0.35 A.
Volt-second balance in ideal steady state
(V_in − V_out)D·T_s − V_out(1−D)·T_s = 0; therefore D = V_out/V_in
If the net voltage-time area were positive, current would rise cycle after cycle; if negative, it would fall. The ideal duty result is a teaching baseline, not a complete controller model. Losses, minimum on/off times, discontinuous conduction and transient regulation change behavior.
- D
- switch on-time divided by switching period
- T_s
- switching period, s
At 12 V input and 5 V output, the ideal steady duty ratio is about 0.417. Regulation must adjust duty as input, load and losses change.
Saturation can propagate stress through the converter
| Step | Physical effect | Possible consequence |
|---|---|---|
| Incremental L falls | Current slope steepens | Peak current exceeds prediction |
| Peak current rises | Switch and diode carry more current | Conduction loss and electrical overstress |
| RMS current rises | Winding I²R loss increases | Hotter inductor and board |
| Ripple grows | Output capacitor carries more AC current | Extra ESR heating and output ripple |
| Controller reacts late | Cycle-by-cycle limit has delay and tolerance | Overshoot beyond nominal threshold |
| Core and winding overheat | Material properties and resistance shift | Less margin, insulation ageing or failure |
A practical inductor-selection sequence
Calculate worst-case ripple at maximum input, minimum effective inductance and the applicable duty or on-time. Add maximum load current and transient overshoot to obtain peak current. Compare that peak with the manufacturer's L-versus-current curve and I_sat definition. Separately calculate RMS current and losses, then verify temperature in the actual layout. Finally test startup, short circuit, load step, line transient and current-limit delay across tolerances and temperature.
Before assessing saturation, make sure the voltage-time and energy foundations from Voltage, Current, Power and Energy Are Different are secure. The nonlinear operating-point distinction in Resistance, Nonlinear Loads and Heat also applies here: one low-current inductance value is not a constant promise at every current.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for What Happens When an Inductor Saturates?
Falling L makes the current slope steeper. For the same applied inductor voltage, di/dt = v/L. If effective incremental inductance falls as current rises, the waveform can bend upward and peak current can climb faster than a constant-L calculation predicts.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
I_sat is not standardized to one percentage. One catalogue may define saturation current at a 10% inductance drop and another at 20%, 30% or more. Temperature and test frequency can also differ. Compare the curve and test definition, not just the headline amperes.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
