Star–delta starting is a reduced-voltage starting method for a particular three-phase induction motor and load combination. The motor begins with its windings in star, so each winding sees less voltage. After it has accelerated sufficiently, an interlocked starter changes the same windings to delta for normal running. The method reduces supply starting current, but it also reduces starting torque.

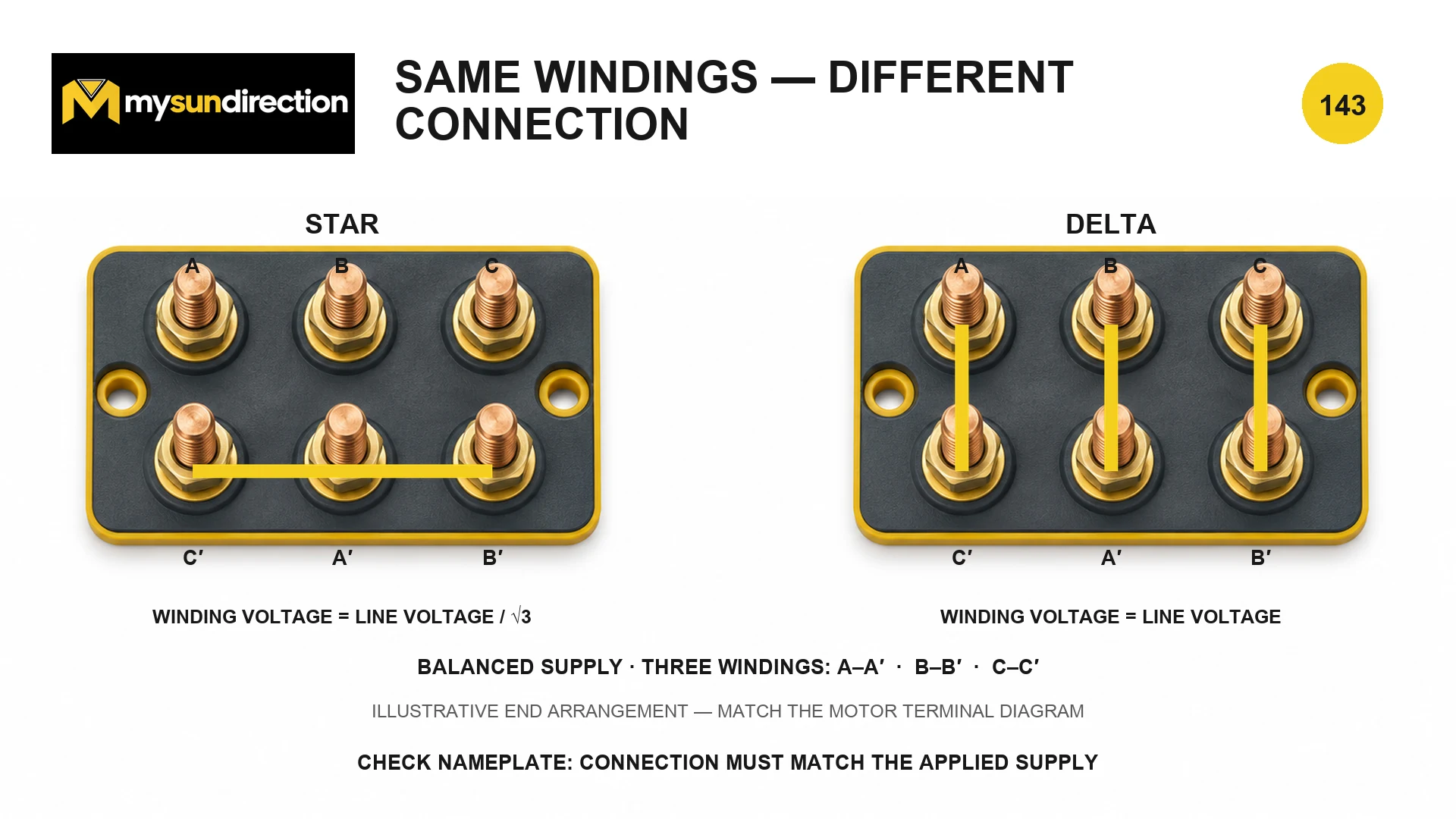

The same winding sees a different voltage in star and delta

With the same balanced line voltage, star reduces the voltage across each winding to 1/√3 of the delta winding voltage.
Diagram description

The lead letters and link positions are illustrative. Actual terminal order, lead identification and permitted connection must come from the specific motor diagram; the figure is not a field-wiring instruction.

Balanced winding-voltage relationship

Star: V_w = V_L/√3; Delta: V_w = V_L

The relationship assumes a balanced three-phase supply and correctly identified identical phase windings. It explains reduced-voltage starting; it does not determine terminal links for a real motor.

V_w
RMS voltage across one motor winding, V
V_L
RMS line-to-line supply voltage, V

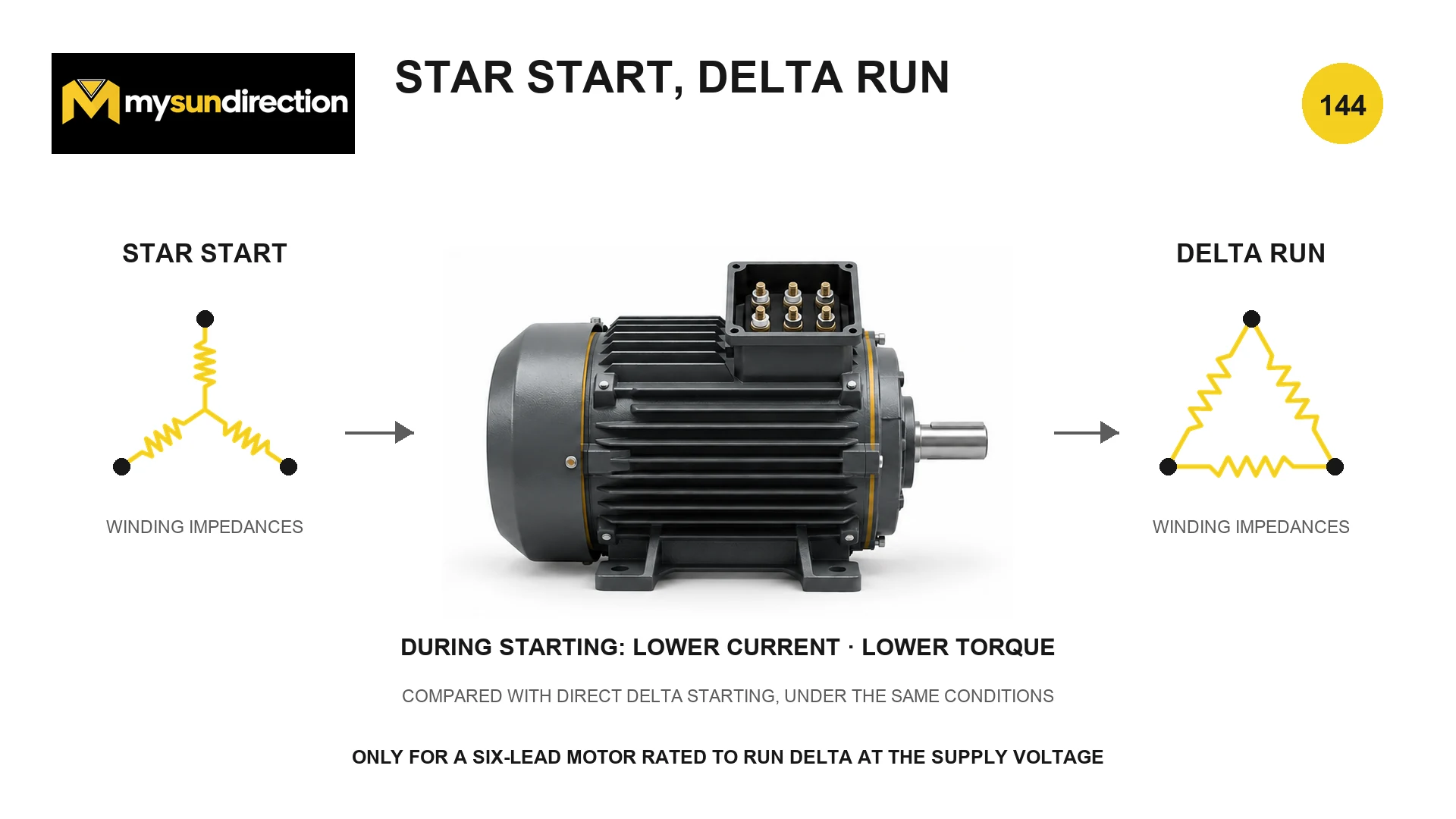

Reduced voltage lowers both supply current and starting torque

Star starting reduces winding voltage. Under simplified locked-rotor conditions, line current and torque are each about one third of direct delta starting at the same line voltage.
Diagram description

The comparison is conditional, not a universal current or torque guarantee. Actual results depend on motor impedance, saturation, supply stiffness, starter impedance, load torque and transition speed.

Idealized comparison with direct delta start

I_L,Y / I_L,Δ ≈ 1/3; τ_start,Y / τ_start,Δ ≈ 1/3

In star, each winding receives 1/√3 of the delta voltage. With approximately fixed starting impedance, winding current falls by 1/√3; the star line current equals winding current while delta line current is √3 times winding current, giving the one-third line-current ratio. Induction-motor torque is approximately proportional to voltage squared near the same slip, giving the one-third torque ratio. Real values are manufacturer- and application-dependent.

I_L,Y
line starting current in star, A
I_L,Δ
line starting current in direct delta, A
τ_start,Y
starting torque in star, N·m
τ_start,Δ
starting torque in direct delta, N·m
A lower-current start helps only when the load still accelerates
CheckSuitable directionReason to reject or redesign
Motor terminalsAll six stator winding ends are accessible and identifiedFixed internal connection, unknown leads or incompatible winding scheme
Running ratingMotor is rated delta at the actual line voltage and frequencyDelta would overvoltage a winding or the plate pairing is unclear
Load torqueLow starting torque or torque that rises with speedHigh breakaway or near-constant high torque prevents acceleration
AccelerationMotor reaches an appropriate transition speed within thermal limitsIt stalls in star or remains at high current too long
Supply objectiveReduced line current and voltage dip are usefulA different soft-start or drive method better fits control and torque needs
DutyStarts per hour and transition duty fit starter/motor dataFrequent starts overheat motor, contactors or protection
SafetyA risk-assessed stop and holding method existsStarter transition is being mistaken for a safety or holding function

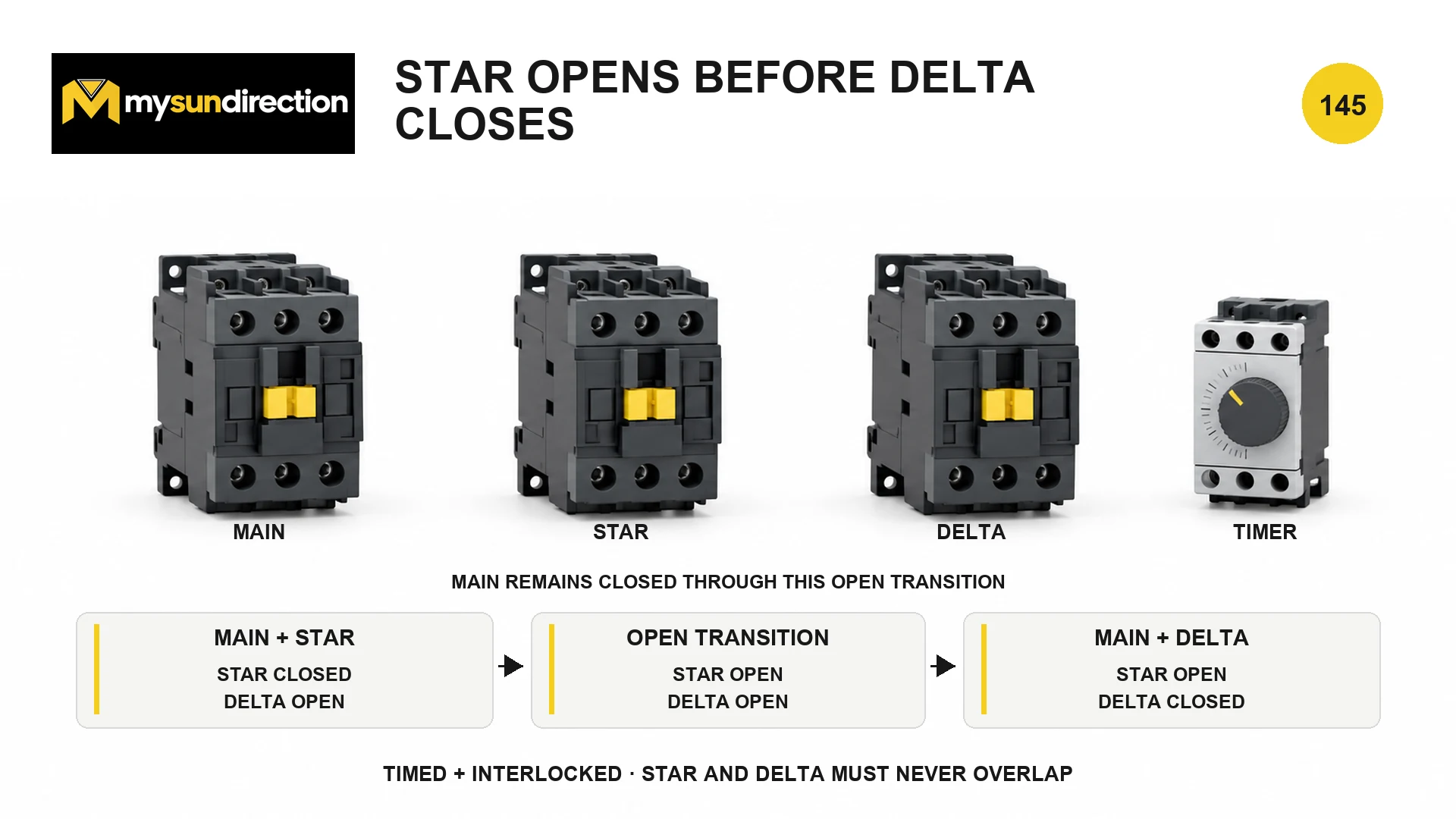

Open transition must be break-before-make and interlocked

In an open transition, the star contactor opens before the delta contactor closes. Mechanical and electrical interlocks prevent star and delta overlap.
Diagram description

The sequence is a state concept, not a control or power wiring diagram. The timing device, sensing method, contactor assignments and protective arrangement are product-specific.

Understand the logic without using it as a wiring plan
StateMain contactorStar contactorDelta contactorPurpose
Start in starClosedClosedOpenApply reduced winding voltage while accelerating
Open transitionUsually remains closed in the illustrated arrangementOpenOpenProvide break-before-make separation
Run in deltaClosedOpenClosedApply rated delta running connection
Stopped / faultedOpen according to the engineered safety functionOpenOpenRemove commanded motor power; residual motion may remain

Transition timing is not chosen merely because a timer reached a familiar number. The motor should have accelerated enough that delta reconnection does not create an unacceptable current or torque transient, but it must not remain in star so long that reduced torque causes overheating or stalled operation. Some controllers use current or speed logic in addition to time. Open transition briefly disconnects the windings, so residual motor voltage and supply phase can produce a reconnection transient.

Why a motor can fail to accelerate in star

If available motor torque is below load torque plus losses, acceleration torque is zero or negative. The motor then remains slow while drawing elevated current, and the planned transition speed is never reached. Lengthening the timer does not create torque; it increases heating. Recheck the load curve, supply drop, motor rating and starting method.

Verify the engineered result without guessing from sound alone
EvidenceWhat it can confirmWhat it cannot prove alone
Motor and starter documentationEligibility, ratings and intended sequenceCorrect installation or actual transition quality
Contactor state/event logCommanded break-before-make sequenceThat power contacts changed without bounce or failure
Qualified current measurementStarting profile and transition transientCorrect winding voltage without a corresponding voltage measurement
Speed or process trendSuccessful acceleration and load responseElectrical protection coordination
Thermal observation over duty cycleRepeated-start heating remains controlledLong-term insulation life outside maker limits

Confirm the paired voltage and connection markings first with How to Read a Three-Phase Motor Nameplate. For a drive-based alternative that coordinates frequency and voltage rather than reconnecting windings, read Frequency, Motor Speed and V/f Control.
