Wiring and Protection
Neutral, Earth and Electrical Fault Protection
Understand the distinct roles of conductors and protective disconnection.
A real system shows a symptom related to “Neutral, Earth and Electrical Fault Protection”, and you need to find the cause before replacing parts or changing settings.
Separate the roles of line, neutral and protective earth, then follow a conceptual TN-S fault loop to see why loop impedance and protective-device time-current behavior must be verified together.
- Select or check first
- PE may carry some current without being a load return. Filters and insulation capacitance can produce small protective-conductor leakage, and a fault can produce much larger current. These are not intended load current.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- This is not a wiring or test procedure. Earthing arrangements, conductor identification, bonding points, permitted disconnection times and protective devices vary by country, utility and installation. Fixed-wiring design, measurement and alteration require qualified personnel applying the current local rules.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Neutral, Earth and Electrical Fault Protection”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
Line, neutral and protective earth can be connected within one power system, but they do not have interchangeable jobs. Line supplies the load. Neutral is an intended current-carrying return in a line-to-neutral circuit. Protective earth connects exposed conductive parts into a designed fault-protection system. Keeping those roles distinct allows a fault to be detected and the supply to be disconnected before a dangerous condition persists.

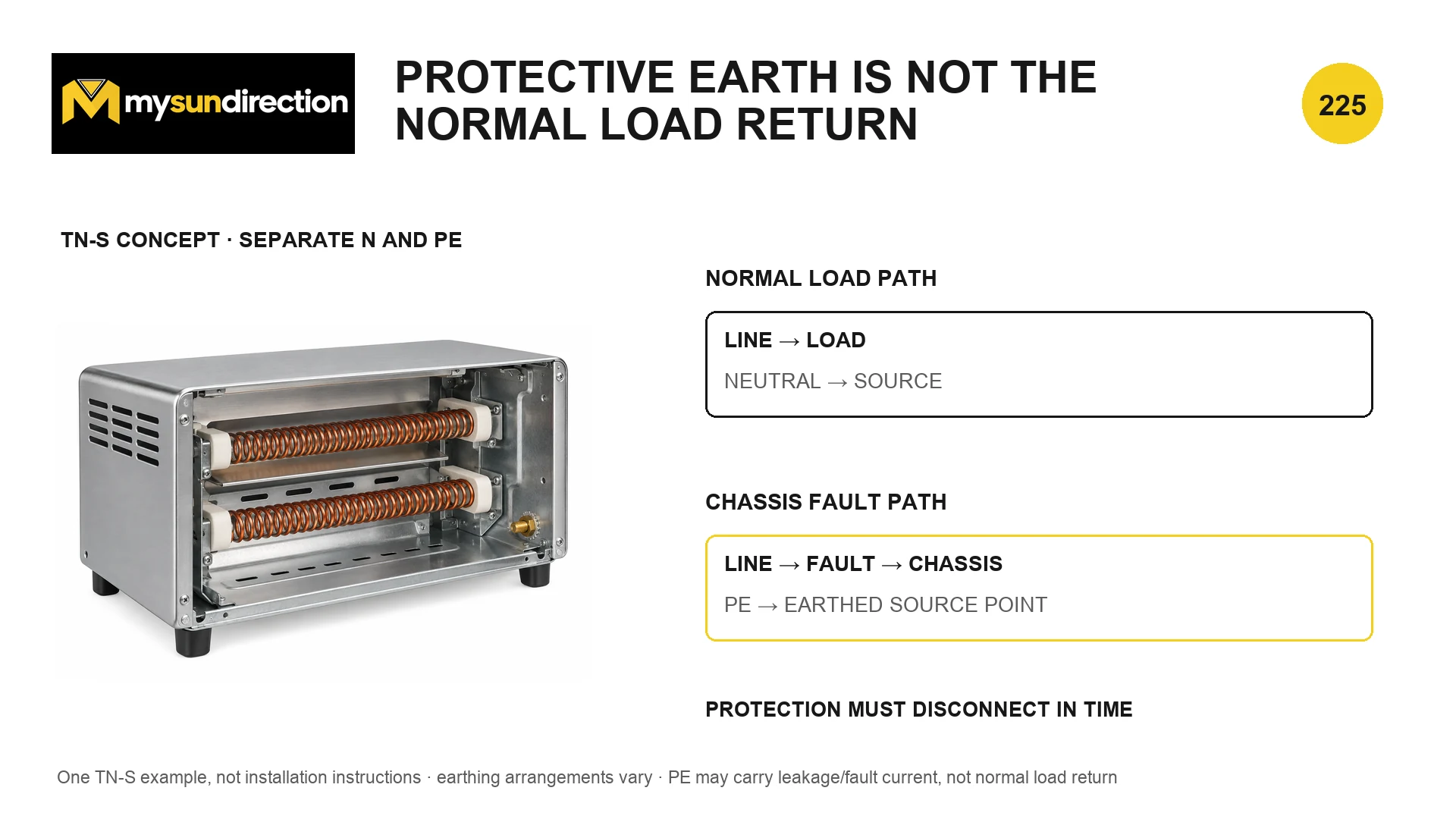

Neutral carries intended load current; protective earth supports fault protection
Diagram description
The drawing is one earthing arrangement, not a universal installation. PE can carry leakage, test or fault current, but it is not the intended normal load-current return. Protection must disconnect within the applicable time.
| Conductor | Normal purpose | Important caution |
|---|---|---|
| Line (L) | Transfers energy from the source to the load | Hazardous relative to neutral, earth or accessible conductive parts in normal low-voltage systems |
| Neutral (N) | Returns intended load current to the source reference point | Can carry substantial current and develop voltage drop; it is not a general-purpose safe conductor |
| Protective earth (PE) | Connects exposed conductive parts to the protective network and fault-current path | Must not carry intended normal load current; continuity and impedance are safety-critical |
| PEN, where permitted | Combines protective and neutral functions in defined parts of some systems | Has special sizing, continuity and separation rules and must never be treated as an ordinary neutral |
Neutral may be intentionally connected to earth at a defined source or service point, depending on the system. That bond does not make downstream neutral and PE interchangeable. Neutral voltage can rise above local earth because load current flows through finite impedance. Additional neutral-to-earth connections can divert normal current onto metalwork, communications shields or protective conductors and can defeat intended residual-current behavior.

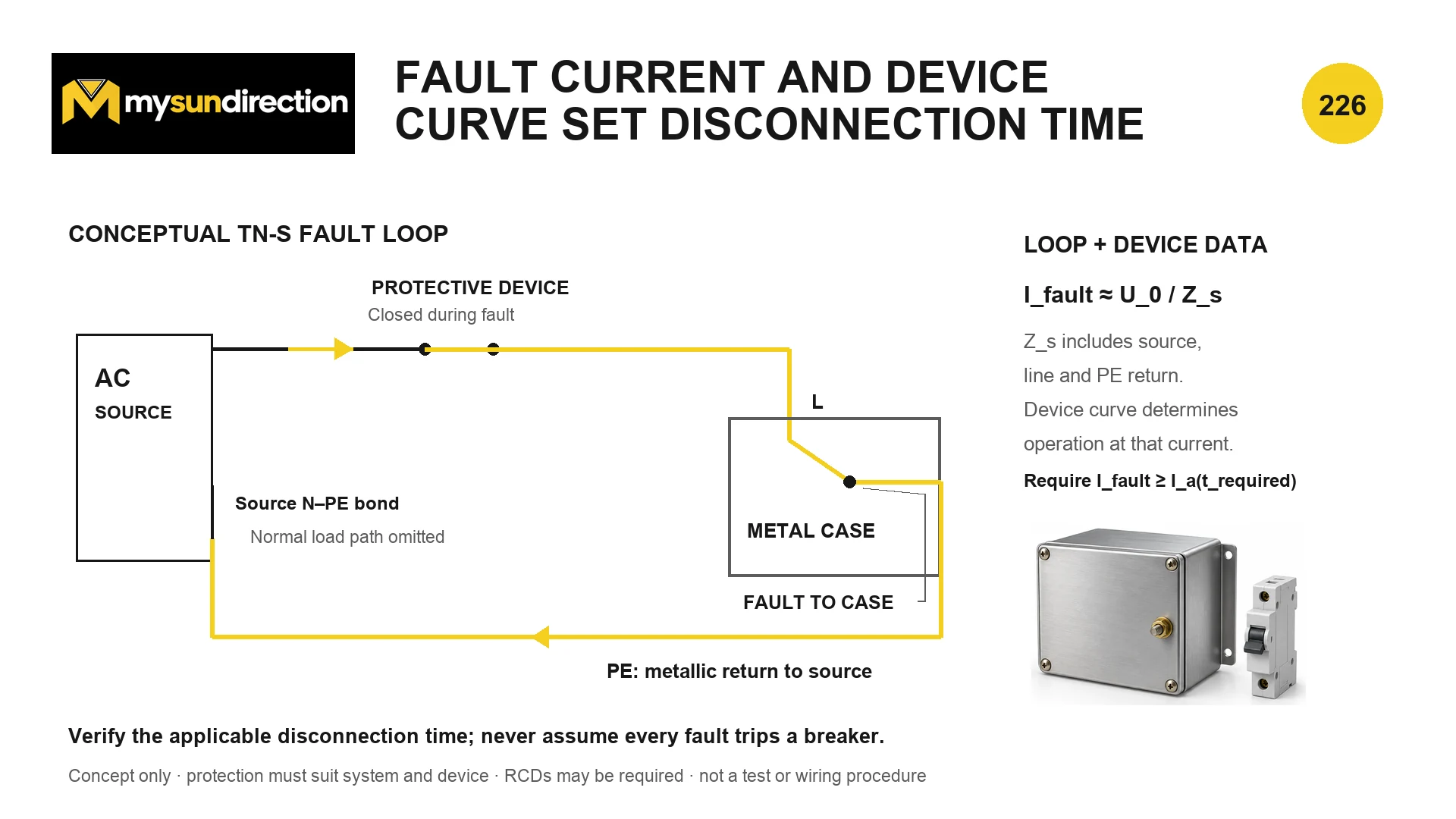

A fault loop must produce the protective response assumed by the design
Diagram description
The loop includes source impedance, line conductor, fault connection, protective conductor and return to the earthed source point. The image omits normal load current and warns that not every fault automatically trips a breaker.
First approximation of earth-fault current in a TN loop
I_fault ≈ U₀ / Zₛ
This is a conceptual steady RMS estimate. Zₛ includes the source, line, fault and protective return path at relevant temperature and frequency. The design must compare the resulting current with the selected protective device’s actual time-current characteristic and the maximum permitted disconnection time; an assumed large fault current is not evidence.
- I_fault
- prospective earth-fault current, A
- U₀
- nominal line-to-earth or line-to-neutral voltage for the system, V RMS
- Zₛ
- total earth-fault-loop impedance, Ω
| Question | Why it matters | Evidence required in real design |
|---|---|---|
| What earthing system is present? | TN, TT and IT systems use different fault paths and protection assumptions | Supply and installation documentation plus verification |
| Is PE continuity intact? | An open or high-resistance path can leave a case energized | Approved continuity and installation tests |
| What is the loop impedance? | It limits prospective fault current | Calculation and permitted verification method |
| How does the device respond? | A breaker or fuse trips according to current and time, not merely the word fault | Manufacturer curve and applicable disconnection limit |
| Is residual-current protection required? | An RCD may detect imbalance where overcurrent alone is insufficient or additional protection is prescribed | Correct type, rating, arrangement and tested operation |
| Can local generation change the path? | PV, storage or island operation can alter fault current and the source reference | Mode-specific protection study |
Overcurrent and residual-current devices observe different conditions
A fuse or circuit breaker responds to current magnitude and duration according to its characteristic. A sufficiently low-impedance line-to-PE fault in a TN system can create high current and prompt automatic disconnection. An RCD compares currents in the conductors passing through its sensing core and responds when their vector sum exceeds its residual-current threshold for the specified time. It does not need all fault current to return through the source neutral, but its suitability depends on system arrangement and current waveform.
| Function | Typical device | Not a substitute for |
|---|---|---|
| Overload and short-circuit protection | Fuse, MCB or circuit breaker | Protective earthing, basic insulation or required residual-current protection |
| Residual-current detection | RCD/RCCB or RCBO function | Overcurrent protection unless the chosen device explicitly combines it |
| Protective equipotential bonding | Designed bonding conductors and connections | Automatic disconnection or correct circuit protection |
| Isolation | Suitable isolating device and verified procedure | Merely switching a load OFF |
Why earth resistance alone is not the same as fault-loop impedance
Fault-loop impedance covers the entire closed path from source through the fault and back to the source, including conductors, connections and source impedance. In a TN-S arrangement much of that return is metallic PE. In a TT arrangement earth electrodes and soil are central to the loop, and residual-current protection is commonly essential. A single earth-electrode number cannot be substituted into every system’s disconnection assessment.
For the upstream functional hierarchy, read How Energy Meters and Home Distribution Work. The conductor roles here also explain why multi-location switching must be treated as path logic rather than improvised terminal wiring.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Neutral, Earth and Electrical Fault Protection?
PE may carry some current without being a load return. Filters and insulation capacitance can produce small protective-conductor leakage, and a fault can produce much larger current. These are not intended load current.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
This is not a wiring or test procedure. Earthing arrangements, conductor identification, bonding points, permitted disconnection times and protective devices vary by country, utility and installation. Fixed-wiring design, measurement and alteration require qualified personnel applying the current local rules.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
