Capacitors, Inductors and Conversion
Zener References and Inductive Clamp Paths
Understand why protective current paths change transient behavior.
You are applying “Zener References and Inductive Clamp Paths” to a real system and need the concept, assumptions and verification boundary to stay clear.
Learn why a Zener shunt needs controlled current, how load current changes its operating point, and why a higher inductive clamp voltage usually releases a coil faster while increasing electrical stress.
- Select or check first
- A clamp controls voltage by accepting current. A Zener or transient suppressor does not make excess energy disappear. Current must have a complete path, and the device that carries it must remain within its current, pulse-energy, power and temperature limits. The protected switch must also tolerate the resulting clamp voltage.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- A diode stripe is not enough to prove the path. Confirm the actual schematic orientation and current direction for the selected high-side or low-side topology. Reversed suppressors can short the supply; an incorrectly placed clamp can protect one device while overstressing another.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Zener References and Inductive Clamp Paths”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
Zener references and coil clamps use a diode in reverse breakdown, but they solve different problems. A shunt reference holds a node near a chosen voltage while a resistor limits and divides current. An inductive clamp provides a temporary path for current that cannot stop instantly. In both cases, the surrounding circuit—not the diode name alone—sets current, power, temperature and stress.
A Zener shunt requires a series impedance

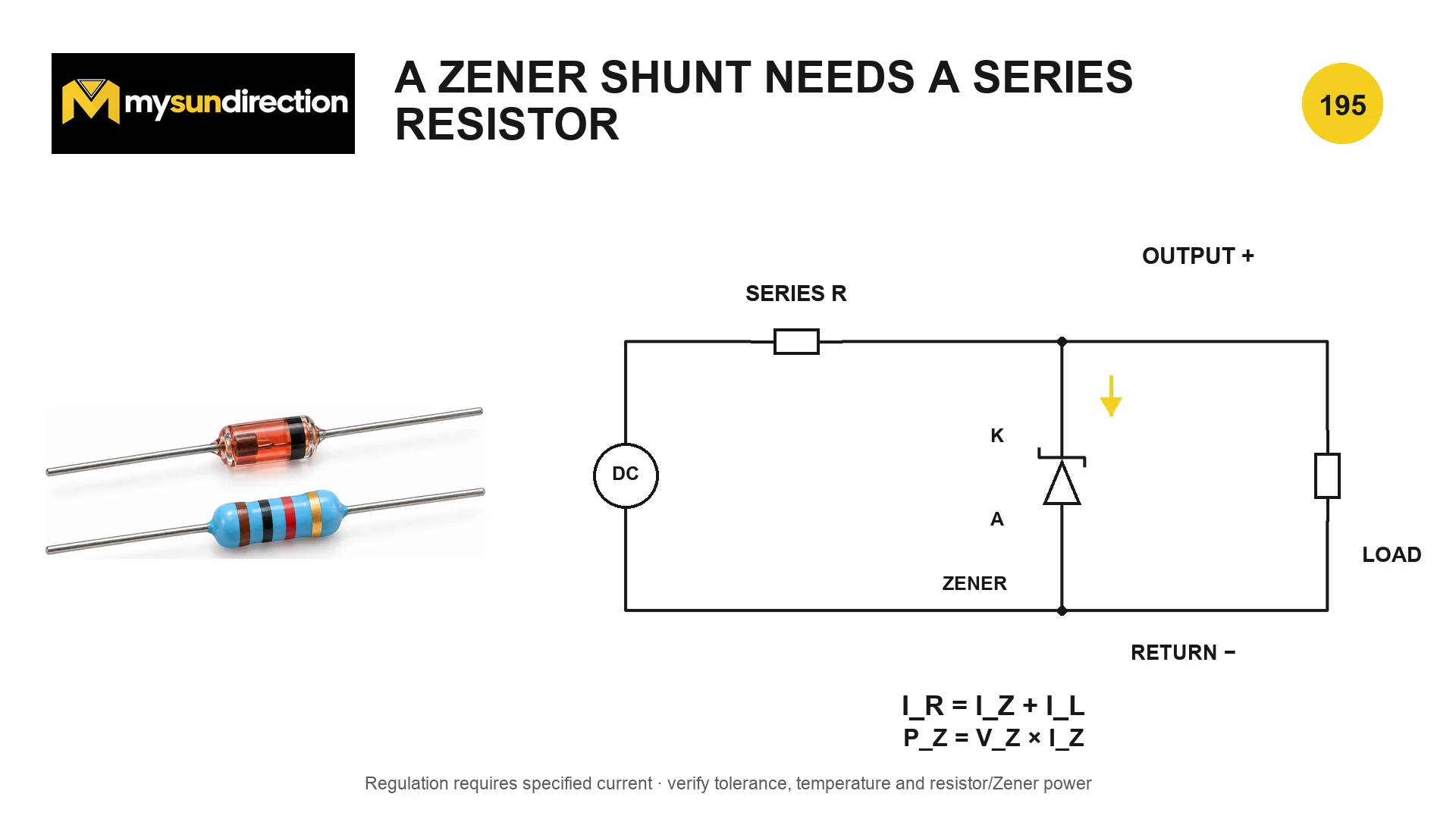

Diagram description
A DC source feeds an output node through a series resistor. A reverse-biased Zener and a load are connected in parallel from that node to return; the current relationship is shown below the circuit.
Shunt-current balance
I_R = (V_IN − V_O)/R_S; I_Z = I_R − I_L; P_Z = V_ZI_Z
These are operating-point equations, not a guarantee that V_O equals the nominal Zener voltage. The selected diode's data sheet gives V_Z at a stated test current and temperature. Dynamic resistance, tolerance and temperature coefficient make the actual voltage current-dependent.
- V_IN
- input voltage, V
- V_O
- output voltage, approximately the operating Zener voltage, V
- R_S
- series resistance, Ω
- I_R
- series-resistor current, A
- I_L
- load current, A
- I_Z
- Zener current, A
- P_Z
- Zener dissipation, W
For V_IN = 12 V, V_O ≈ 5.1 V and R_S = 680 Ω, I_R ≈ 10.1 mA. A 4 mA load leaves about 6.1 mA for the Zener; an 11 mA load would demand more than the available current, so the output would no longer be regulated by this model.
| Condition | Likely effect | Required check |
|---|---|---|
| Minimum input, maximum load | Smallest available Zener current | I_Z remains above the data-sheet current needed for the required voltage accuracy |
| Maximum input, minimum load | Largest Zener current and dissipation | Zener and resistor power stay within derated limits |
| Load disconnected | Nearly all resistor current flows through Zener | Open-load power and output voltage remain safe |
| Supply transient | Short pulse of additional current | Pulse capability, impedance and clamp voltage are acceptable |
| High temperature | Voltage, leakage and power capability change | Use temperature curves and worst-case tolerances |
An energized coil demands a turn-off path
Inductor voltage and stored energy
v_L = L(di/dt); E_L = ½LI²
Signs depend on the chosen voltage and current reference. At switch opening, the coil develops whatever polarity is needed to keep current moving. With no intentional path, parasitic capacitance, arcing or semiconductor avalanche may create a damaging high-voltage path instead.
- v_L
- coil voltage under the selected reference, V
- L
- inductance, H
- di/dt
- rate of coil-current change, A/s
- E_L
- stored magnetic energy just before turn-off, J
- I
- coil current at turn-off, A
A 100 mH coil carrying 0.5 A stores 0.5 × 0.1 × 0.5² = 12.5 mJ. The suppressor and surrounding circuit must safely process that energy on every operation.

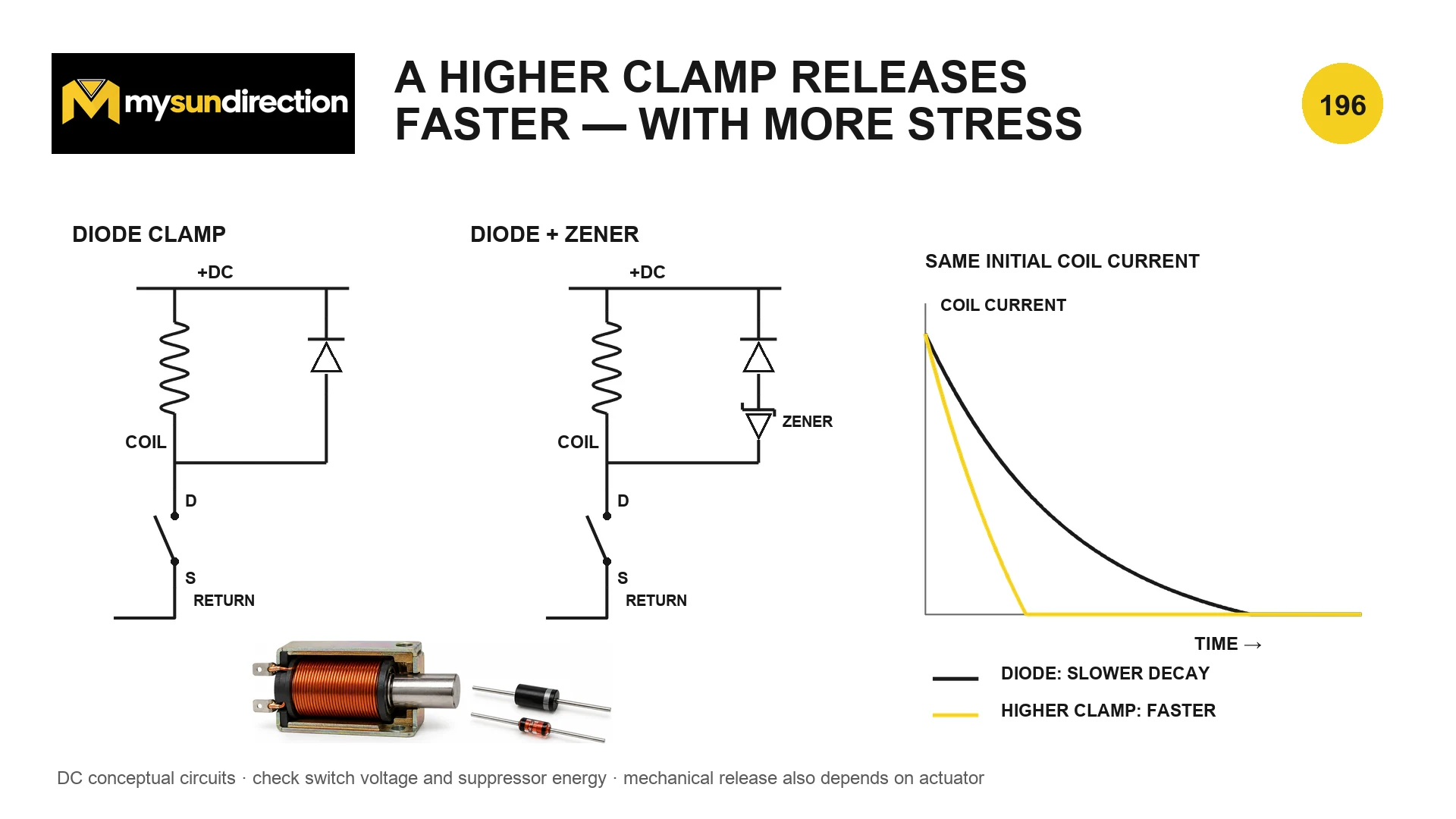

Diagram description
Two conceptual coil circuits compare a low-voltage diode recirculation path with a higher-voltage diode-and-Zener path. A graph starts both at the same current and shows the higher clamp reaching zero sooner.
| Turn-off path | Typical current decay | Important trade-off |
|---|---|---|
| Flyback diode across DC coil | Slow because the reverse coil voltage is low | Low switch stress, but delayed relay or solenoid release can matter |
| Diode plus Zener or TVS | Faster because a higher clamp voltage is allowed | Higher switch voltage and suppressor pulse stress |
| Zener or TVS across switch | Depends on supply and clamp arrangement | Verify polarity, supply interaction and switch avalanche/clamp rating |
| RC snubber | Waveform depends on R and C | Component tuning, capacitor pulse current and residual ringing |
| No designed path | Uncontrolled and potentially very fast | Arcing, EMI, avalanche and insulation damage are possible |
First-order release intuition
|di/dt| ≈ V_reverse/L
This simplified relation explains the direction of the trade-off: permitting more reverse voltage makes current fall faster. Real coil resistance, changing inductance, magnetic material, suppressor voltage and mechanical motion make the waveform non-linear. Mechanical release also includes armature travel, spring force, residual magnetism and contact dynamics.
- V_reverse
- magnitude of voltage opposing the existing current, V
- L
- effective inductance during release, H
If the same effective 100 mH coil is initially subjected to 1 V of reverse winding voltage, the initial fall rate is about 10 A/s; at 20 V it is about 200 A/s. These are illustrative electrical slopes, not promised actuator release times.
Rate the complete current loop
| Item | Evidence to obtain |
|---|---|
| Switch | Maximum V_DS or V_CE including supply, clamp tolerance and overshoot; current; SOA; repetitive avalanche policy |
| Suppressor | Clamp-voltage range at actual pulse current, pulse energy, pulse duration, repetition rate and temperature derating |
| Coil | Hot and cold resistance, current, inductance range, stored energy and required mechanical release time |
| Layout | Short recirculation loop, parasitic inductance, grounding and measured overshoot |
| System | Supply absorption or regeneration behavior, EMI, fault cases and required safety category |
A disciplined selection sequence
| Step | Action |
|---|---|
| 1 | Find maximum steady coil current and worst-case stored energy, including tolerance and temperature |
| 2 | Set the maximum voltage every device and insulation barrier may see |
| 3 | Choose a clamp range that fits inside that voltage budget |
| 4 | Check single-pulse and repetitive thermal limits at the real switching rate |
| 5 | Model or estimate current decay, then verify actual actuator release time |
| 6 | Measure switch voltage, coil current and temperature over supply, load and ambient extremes |
| 7 | Test open, short, reversed and disconnected fault cases allowed by the product requirements |
The power and temperature checks build on Resistance, Nonlinear Loads and Heat. Stored-energy safety and transient measurement should also follow the instrument boundaries in Using a Multimeter and a Diagnostic Sequence.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Zener References and Inductive Clamp Paths?
A clamp controls voltage by accepting current. A Zener or transient suppressor does not make excess energy disappear. Current must have a complete path, and the device that carries it must remain within its current, pulse-energy, power and temperature limits. The protected switch must also tolerate the resulting clamp voltage.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
A diode stripe is not enough to prove the path. Confirm the actual schematic orientation and current direction for the selected high-side or low-side topology. Reversed suppressors can short the supply; an incorrectly placed clamp can protect one device while overstressing another.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
