Why Three-Phase Power Runs Motors Smoothly
Understand phase waveforms and phase order.
You are applying “Why Three-Phase Power Runs Motors Smoothly” to a real system and need the concept, assumptions and verification boundary to stay clear.
See how three equal sinusoidal phases spaced 120 electrical degrees apart produce a steady balanced-power sum and a rotating stator field, then learn why phase sequence determines a directly connected induction motor's rotation direction.
- Select or check first
- Three phase is a coordinated system. It is not simply three unrelated single-phase supplies. Relative angle and phase order create the steady aggregate power and rotating field that make three-phase machines practical.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- A phase swap is de-energized electrical work. Never exchange live conductors. Isolate every source, lock out, account for automatic transfer or regeneration, verify absence of voltage, and wait for rotation and drive DC buses to become safe. A qualified person must follow the motor, starter, drive and site procedures.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Why Three-Phase Power Runs Motors Smoothly”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
A balanced three-phase source provides three sinusoidal voltages of equal magnitude and frequency, displaced by one-third of a cycle: 120 electrical degrees. Connected to a symmetric three-phase load, those waveforms produce three coordinated currents and three power contributions. Their timing is the essential feature: when one contribution is falling, the others fill the gap.
Three changing phase powers can add to a steady total

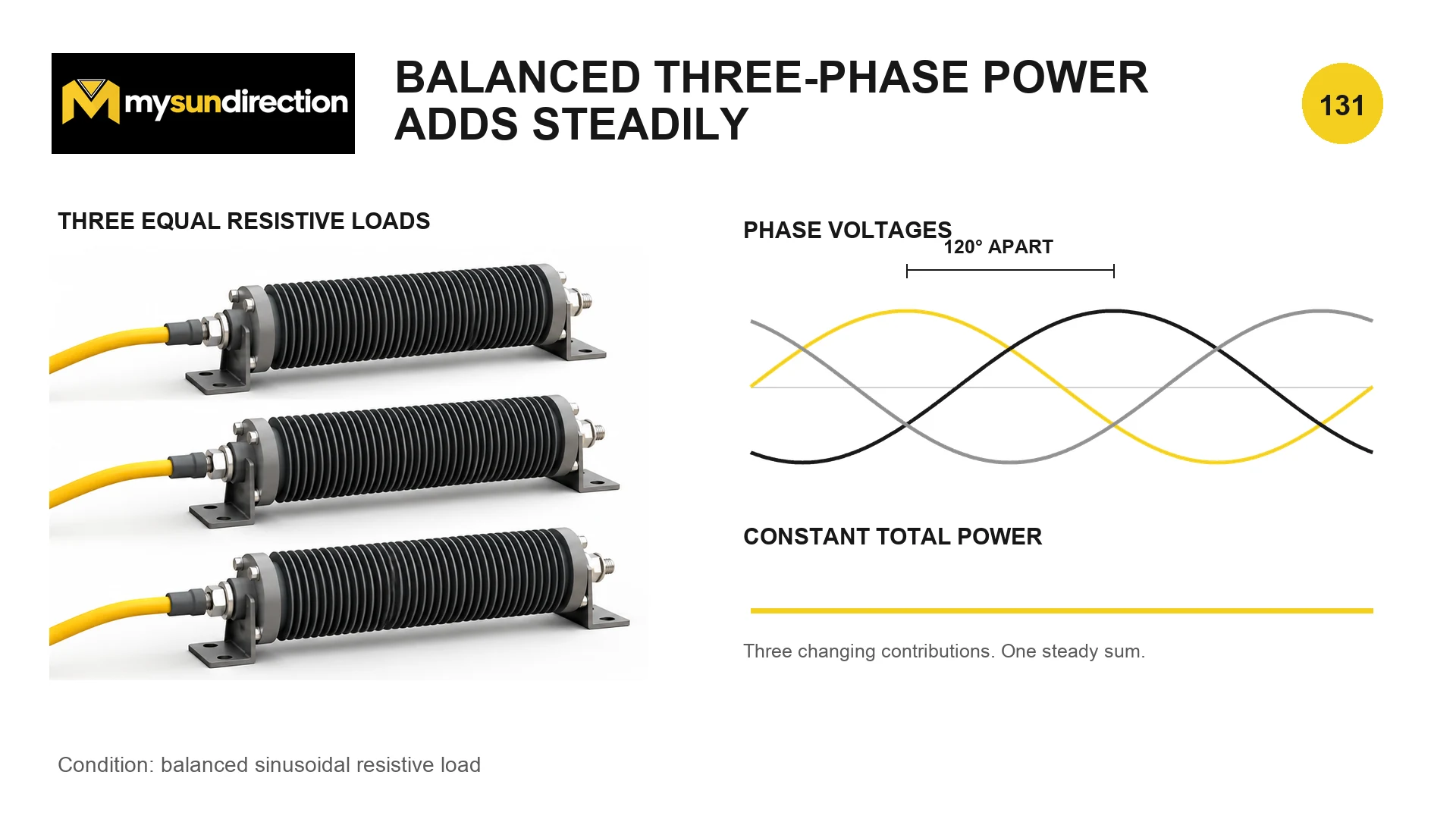

Diagram description
The illustration states its condition: three equal resistive loads supplied by balanced sinusoids. It does not claim constant power for imbalance, distortion or a single phase.
Balanced resistive instantaneous-power sum
p_total(t) = p_a + p_b + p_c = 3V_ph,rms I_ph,rms
For each phase, voltage and current are in phase, so its power contains a constant term plus a component oscillating at twice line frequency. The three double-frequency components are spaced so their sum is zero. This derivation assumes equal sinusoidal phase voltages and equal resistive branches.
- p_total(t)
- instantaneous total power, W
- V_ph,rms
- one phase RMS voltage, V
- I_ph,rms
- one phase RMS current, A
Three equal branches each taking 230 V RMS and 10 A at unity power factor deliver a constant modeled total of 3 × 230 × 10 = 6.9 kW.
| Condition | What changes |
|---|---|
| Unequal phase impedances | Currents and per-phase power no longer match |
| Voltage imbalance | Machine currents can become strongly unbalanced and heating can rise |
| Harmonic distortion | Additional frequency components create pulsating power and loss |
| Missing phase | A running motor may draw damaging current and lose torque |
| Variable-frequency drive output | PWM voltage is not three pure utility sinusoids, though its controlled fundamental can create a rotating field |
Spatial windings turn phase timing into a rotating magnetic field
A motor places phase windings at different positions around the stator. Balanced currents reach their peaks in sequence, so the resultant magnetomotive force advances around the air gap instead of merely growing and shrinking on one axis. An induction-motor rotor responds to that traveling field. The electromagnetic torque can be much smoother than the pulsating behavior of a comparable single-phase arrangement.
Synchronous field speed
n_s = 120f/P
This is the speed of the fundamental rotating field for a P-pole machine. An induction rotor must normally run with slip relative to that field to induce rotor current and develop torque, so its mechanical speed is not exactly n_s under load.
- n_s
- synchronous speed, r/min
- f
- fundamental electrical frequency, Hz
- P
- number of magnetic poles
A four-pole field at 50 Hz has n_s = 1500 r/min. A loaded induction motor will normally run somewhat below that speed in motoring operation.
Phase sequence sets the field's direction

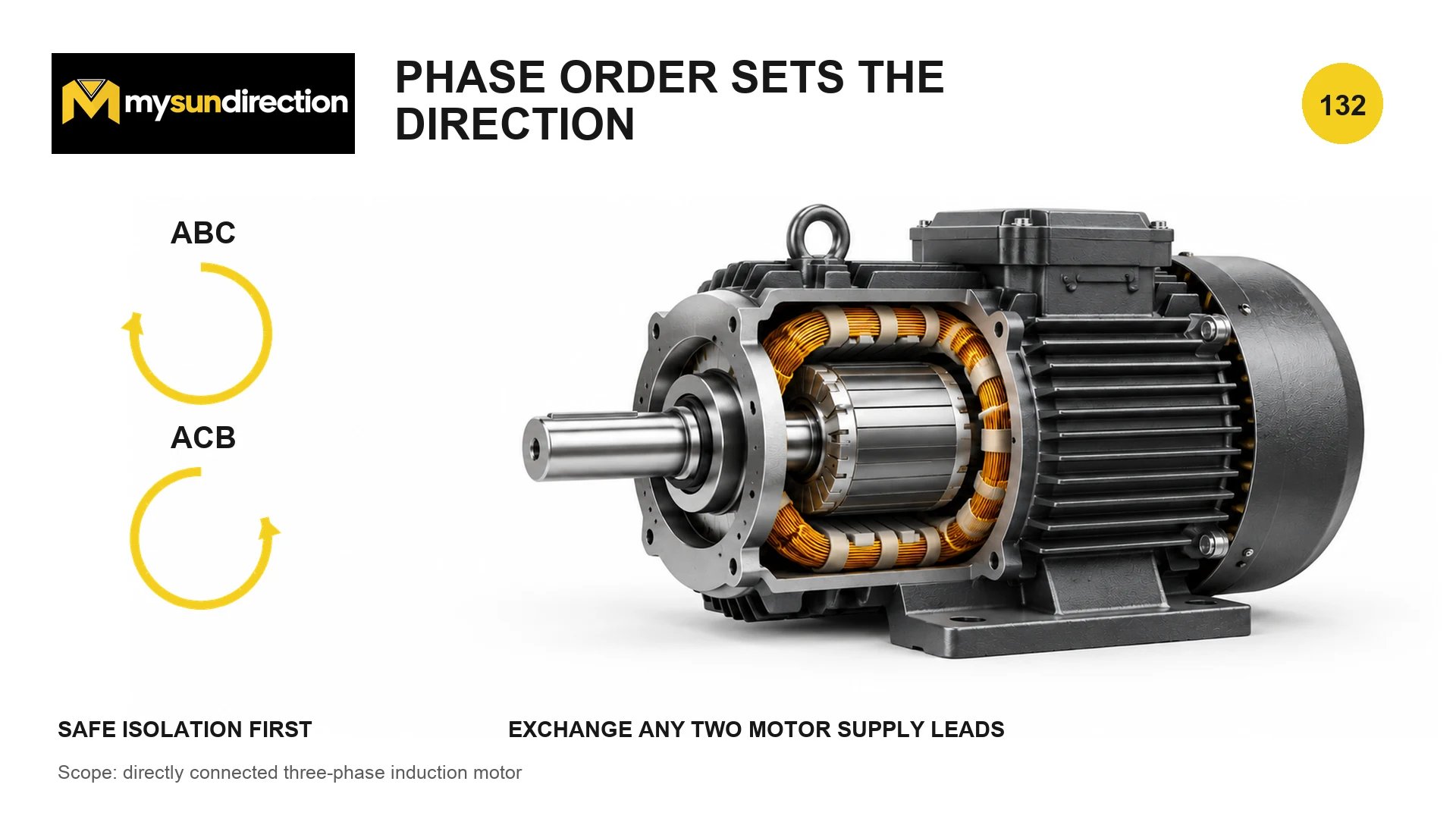

Diagram description
The instruction is scoped to a directly connected induction motor. The actual rotation view and terminal mapping must follow the motor maker's documentation.
ABC and ACB contain the same three conductors but reach corresponding waveform positions in opposite order. Interchanging any two phases reverses the sequence, so the rotating field reverses. For a suitable directly connected induction motor, the shaft direction then reverses after the machine is safely stopped and reconnected. Some driven machines, cooling fans and mechanical loads permit only one direction.
| Check | Why |
|---|---|
| Motor terminal and nameplate diagram | Terminal labels and permitted connections are machine-specific |
| Driven equipment direction arrow | Pumps, fans, compressors and gear trains may be directional |
| Phase-sequence indication at the point of connection | Cable changes and transfer sources can alter sequence |
| Safe uncoupled or controlled bump-test procedure | Wrong rotation can damage the load immediately |
| VFD or servo documentation | Direction may be set in controls; rewiring output may be prohibited or affect feedback |
| Braking and stored motion | A stopped supply does not guarantee stopped machinery |
Why swapping all three phases does not reverse sequence
Moving all three phase labels cyclically—ABC to BCA, for example—keeps the same order viewed around the cycle. Reversing requires an odd interchange such as ABC to ACB. Phase-sequence instruments compare timing, not conductor colors; color alone cannot confirm rotation after unknown wiring.
The generator side of rotating three-phase windings appears in How an Alternator Charges a Battery. To separate real power from RMS equipment loading, read Real, Reactive and Apparent Power.
