How LEDs Make Light and Lose Heat
Learn LED junction behavior, current requirements and thermal paths.
You need to understand how “How LEDs Make Light and Lose Heat” reached its present form so that older terminology and current practice are not confused.
Trace energy through an LED from carrier recombination to emitted photons and heat. Understand the steep current-voltage curve, phosphor-converted white light, junction temperature and the complete thermal path from die through package, board, interface and heatsink.
- Select or check first
- The LED is both an optical and thermal component. A complete design sets current, checks voltage over tolerance and temperature, specifies desired light and color, and carries heat to ambient. A bright bench demonstration at room temperature is not a thermal qualification.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Do not connect a bare LED directly across a stiff voltage source. Once forward conduction rises, the source and wiring may provide far more current than the junction can tolerate. Low-voltage indicators need a calculated current-limiting element; power LEDs need a driver and thermal design matched to the LED data sheet.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “How LEDs Make Light and Lose Heat”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
- Carrier recombination can release photons
- A steep I–V curve makes current control essential
- A common white LED uses a blue pump and phosphor conversion
- Electrical power divides into emitted optical power and heat
- Heat must cross every interface on its way to ambient
- Qualify light, electrical stress and temperature together
A light-emitting diode is a semiconductor junction that converts part of its electrical input into light. The remainder becomes heat in the die, package, phosphor and driver. Its current does not naturally settle at a safe value from a nominal voltage alone, and its light output and life depend on keeping junction temperature within the exact product's limits.
Carrier recombination can release photons

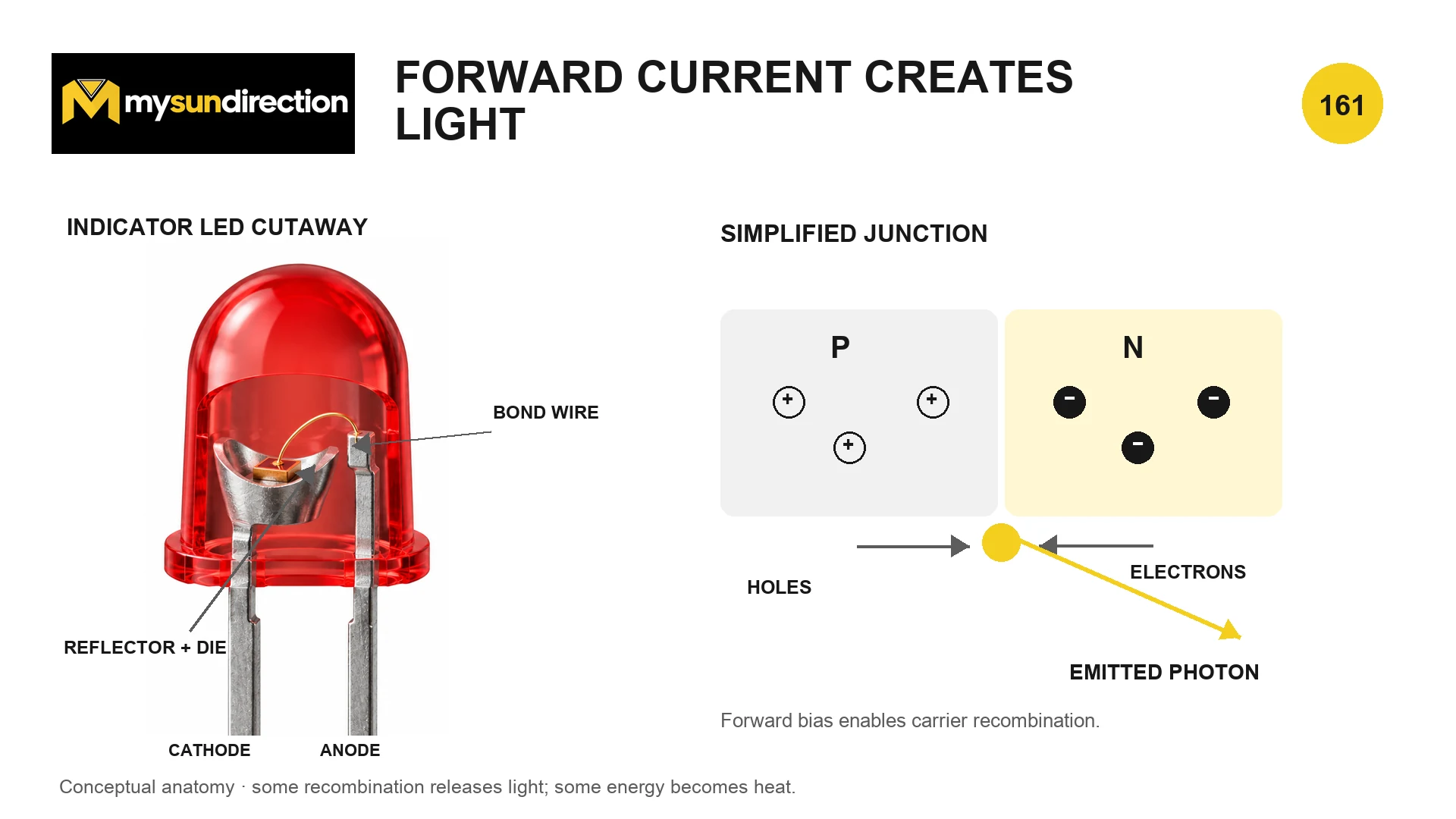

Diagram description
The conceptual cutaway labels the die, reflector, bond wire, anode and cathode. The junction sketch is intentionally simplified and does not describe every layer in a commercial LED.
In a direct-bandgap LED semiconductor, injected electrons and holes can recombine radiatively. The approximate photon energy is related to wavelength: a larger energy transition produces a shorter wavelength. Semiconductor composition and structure therefore determine the primary emission range; the package optics and any phosphor then shape the light leaving the device.
Photon energy and wavelength
E_photon = hν = hc/λ
This relation connects emitted photon energy to wavelength. It does not say that every electron produces an extracted visible photon: non-radiative recombination, optical trapping, phosphor conversion and package losses reduce output.
- E_photon
- energy of one photon, J
- h
- Planck constant, J·s
- ν
- frequency, Hz
- c
- speed of light in vacuum, m/s
- λ
- vacuum wavelength, m
| Part | Function | Design consequence |
|---|---|---|
| Semiconductor die | Generates primary light and heat | Current density and junction temperature affect output |
| Contacts and bond structures | Deliver current | Have current, thermal-cycle and assembly limits |
| Reflector / lens / encapsulant | Extract and shape light | Viewing angle and optical efficiency are package-specific |
| Phosphor, when used | Converts part of shorter-wavelength light | Changes spectrum, color and heat generation |
| Thermal pad or leads | Conduct heat to the board | Land pattern, solder and board construction matter |
A steep I–V curve makes current control essential

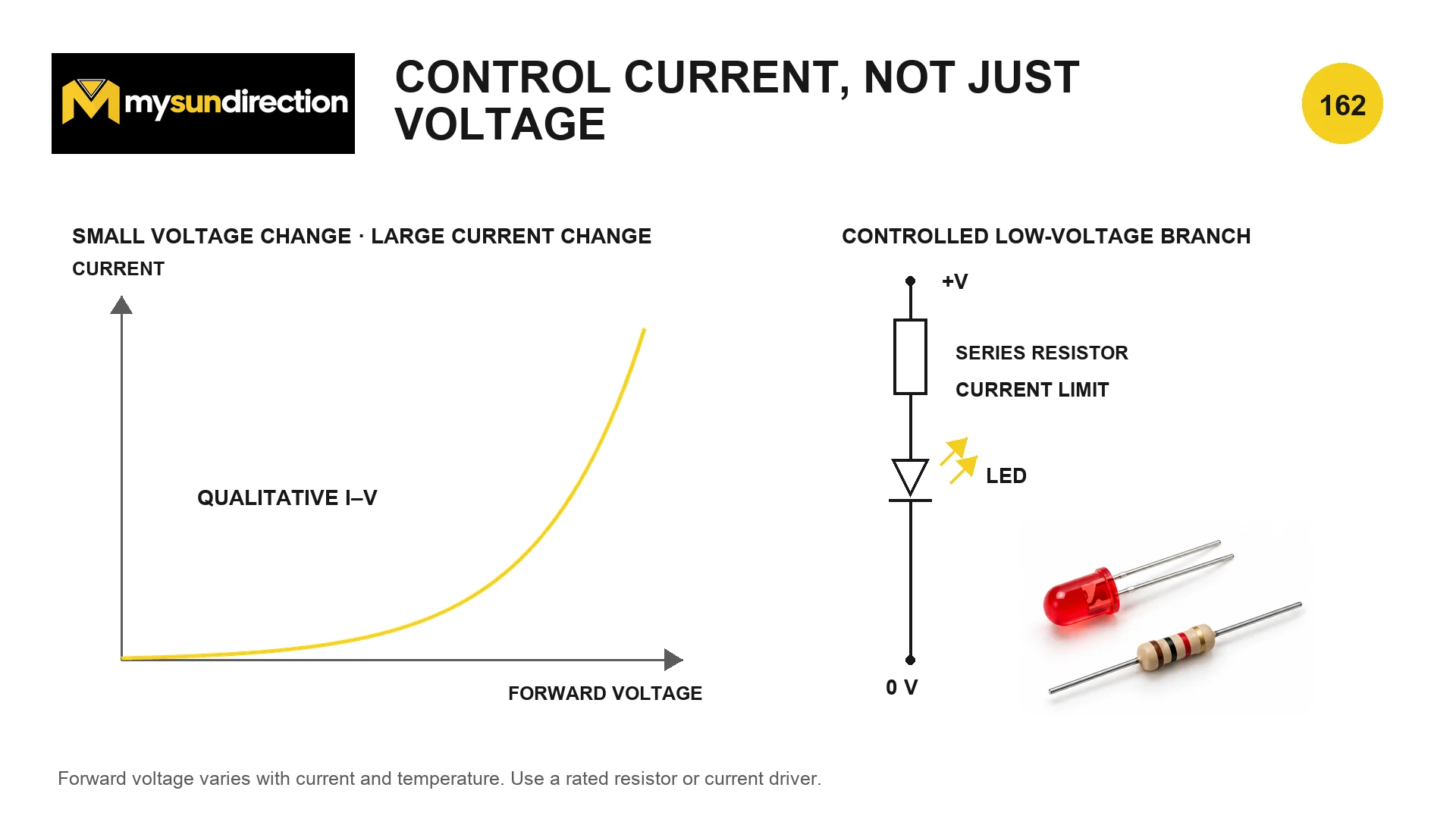

Diagram description
The figure labels the I-V curve qualitative and warns that forward voltage varies with current and temperature. The resistor sketch is a controlled low-voltage branch, not a mains circuit.
Forward voltage is an outcome of current, junction temperature and device variation—not a fixed supply prescription. Two nominally identical LEDs can carry unequal current when placed directly in parallel because a small V_F difference can redirect current. Use the manufacturer's forward-current limit, pulse conditions, current derating and thermal information.
| Variable | Likely design effect |
|---|---|
| Forward current | Changes forward voltage, light output, efficiency and heat |
| Junction temperature | Usually shifts forward voltage and changes flux, color and life |
| Part-to-part variation | Creates current or brightness mismatch without independent control |
| Pulse width and duty cycle | Changes transient heating but does not erase peak-current limits |
| Age and environment | Can change optical output and materials even when electrical operation continues |
A common white LED uses a blue pump and phosphor conversion

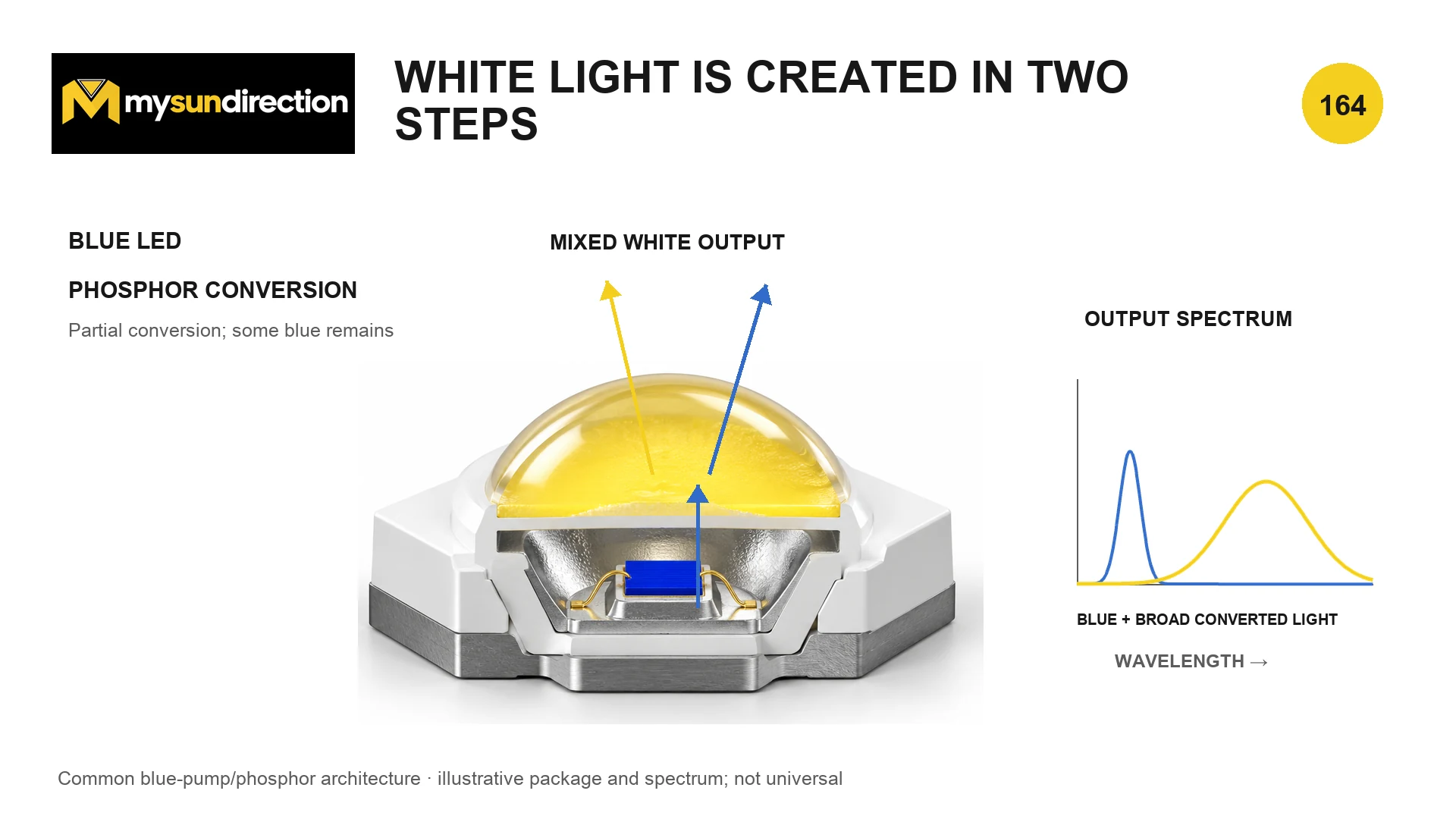

Diagram description
The package and spectrum are illustrative. The image explicitly says that the blue-pump and phosphor architecture is common rather than universal.
White light can also be produced by mixing colored LEDs or by hybrid architectures. For phosphor conversion, absorption and re-emission shift some optical energy to longer wavelengths; the energy difference and imperfect conversion contribute heat. Phosphor recipe, pump wavelength, package optics and operating temperature influence correlated color temperature, color rendering and consistency.
Electrical power divides into emitted optical power and heat
LED energy balance
P_electrical = V_FI_F; P_heat ≈ P_electrical − P_optical,out
This is an energy balance, not a claim that a fixed percentage becomes heat. Optical efficiency changes with device, spectrum, current density and junction temperature, while driver loss is additional and occurs elsewhere.
- P_electrical
- electrical power entering the LED package, W
- V_F
- forward voltage at the operating point, V
- I_F
- forward current, A
- P_optical,out
- radiant power leaving the package, W
- P_heat
- heat generated within the modeled package, W
Heat must cross every interface on its way to ambient

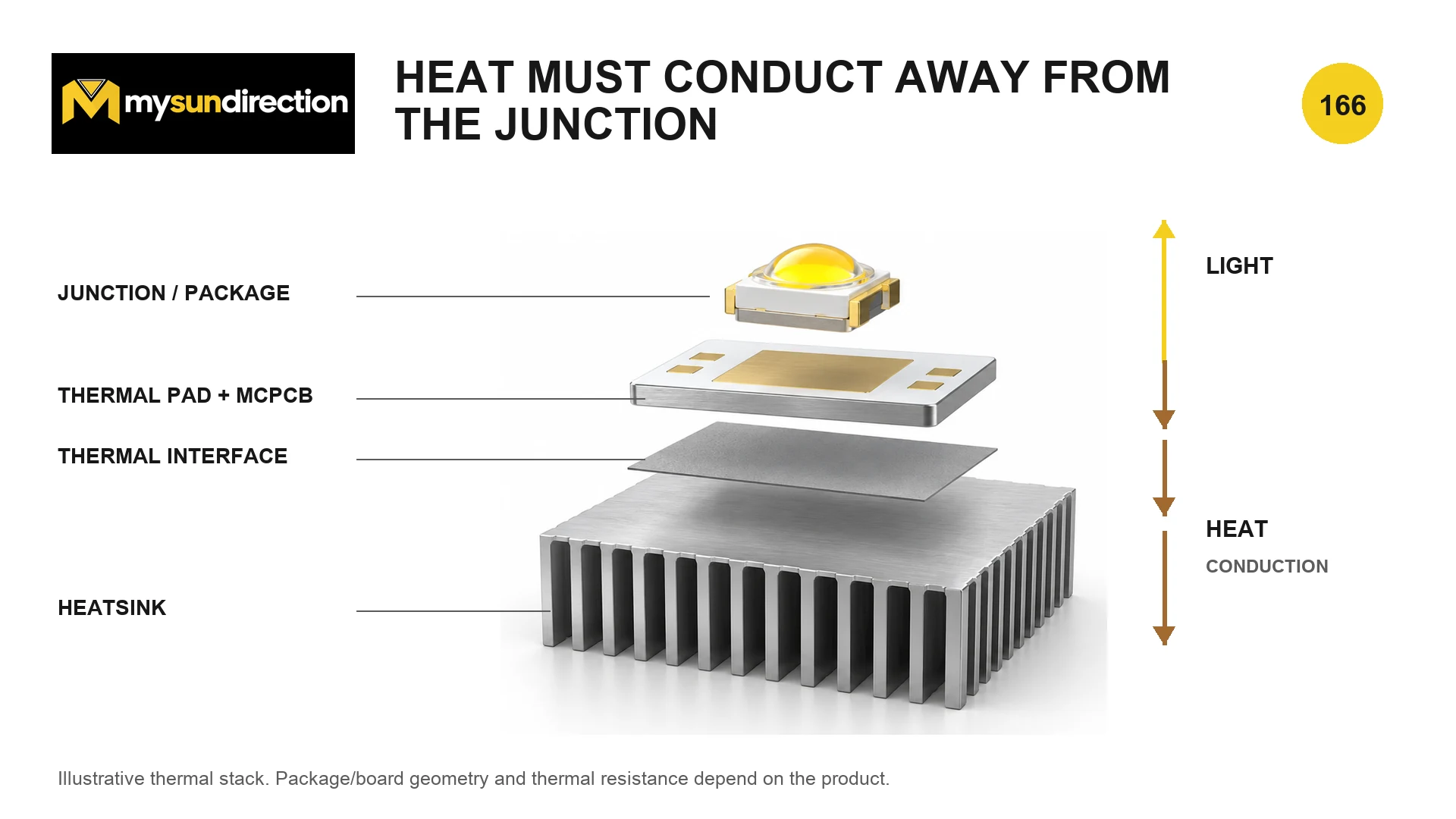

Diagram description
Arrows distinguish emitted light from conducted heat. Labels identify the junction/package, thermal pad and MCPCB, thermal interface and heatsink without assigning universal resistance values.
Steady thermal-resistance screen
T_J ≈ T_reference + P_heat × θ_J-reference
The reference may be solder point, board, case or ambient. Do not add thermal metrics that were measured under incompatible boundary conditions. For pulsed operation, use transient thermal impedance and the manufacturer's prescribed measurement method.
- T_J
- junction temperature, °C
- T_reference
- measured reference temperature, °C
- P_heat
- modeled LED heat, W
- θ_J-reference
- applicable junction-to-reference thermal resistance, °C/W
| Layer | Evidence to verify |
|---|---|
| LED package | Maximum T_J, thermal pad, θ or characterization parameter and solder profile |
| Solder / land pattern | Manufacturer footprint, voiding control and assembly quality |
| Printed circuit board | Copper area, vias, dielectric and metal-core construction if required |
| Thermal interface | Thickness, coverage, pressure, conductivity and electrical isolation |
| Heatsink / housing | Thermal resistance in the installed orientation and airflow |
| Ambient boundary | Maximum local air temperature, enclosure recirculation, dust and nearby heat sources |
Rising junction temperature can reduce light output, shift color and accelerate material degradation. It can also change forward voltage, altering loss or current sharing. Thermal design is therefore iterative: electrical current sets light and heat, heat sets temperature, and temperature changes the electrical and optical operating point.
Why touching the lens does not reveal junction temperature
The optical surface can feel cool while the microscopic junction is much hotter because heat is intended to flow through a dedicated pad into the board. Conversely, a warm heatsink may indicate that heat is being transferred effectively. Use the manufacturer's junction-temperature estimation method, a calibrated case/board measurement and the correct thermal parameter; surface touch is neither quantitative nor safe.
Qualify light, electrical stress and temperature together
| Test | Record |
|---|---|
| Minimum/maximum input | LED current, voltage and driver operating mode |
| Thermal equilibrium at worst ambient | Specified reference temperature and estimated T_J |
| Startup and dimming extremes | Overshoot, flicker, color shift and current regulation |
| Airflow or enclosure fault | Protection response and resulting temperature |
| Unit variation | Flux, color and current across representative components |
| Long-duration operation | Lumen maintenance plan, interface ageing and contamination controls |
The nonlinear curve follows the operating-point reasoning in Resistance, Nonlinear Loads and Heat. Use Voltage, Current, Power and Energy Are Different to keep optical energy, electrical power and accumulated thermal energy conceptually separate.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for How LEDs Make Light and Lose Heat?
The LED is both an optical and thermal component. A complete design sets current, checks voltage over tolerance and temperature, specifies desired light and color, and carries heat to ambient. A bright bench demonstration at room temperature is not a thermal qualification.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Do not connect a bare LED directly across a stiff voltage source. Once forward conduction rises, the source and wiring may provide far more current than the junction can tolerate. Low-voltage indicators need a calculated current-limiting element; power LEDs need a driver and thermal design matched to the LED data sheet.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
