Mechanical Relays and Their Electrical Ratings
Separate coil operation from contact circuits and load categories.
You are applying “Mechanical Relays and Their Electrical Ratings” to a real system and need the concept, assumptions and verification boundary to stay clear.
Read a mechanical relay as two coupled systems: an electromagnetic coil moves isolated contacts, while the contacts must make, carry and break a specific AC or DC load. Apply coil limits, suppression, contact load categories, switching life and safety insulation independently.
- Select or check first
- Treat a relay as two data-sheet problems. First qualify the coil and its driver over supply, temperature and release conditions. Then qualify each contact pole for voltage type, load category, making current, breaking current, carrying current, operating frequency, life and fault energy.
- Controlling assumption
- Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
- Top risk
- Maximum switching voltage, current and power are not interchangeable. A relay data sheet may list maximum voltage, maximum current and a switching-capacity curve. Those are separate boundaries, not a rectangular operating area and not permission to use all maxima simultaneously.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Mechanical Relays and Their Electrical Ratings”
Electrical-engineering basics
Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.
- Voltage
- Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
- Current
- Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
- Resistance and impedance
- Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
- Power and heat
- Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
- Rating versus operating point
- A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.
How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.
On this page
- The coil moves a mechanically separate contact set
- The coil has pickup, hold, release and heating limits
- Opening the coil circuit releases stored magnetic energy
- A contact must make, carry and break the actual load
- Mechanical life and electrical life answer different questions
- Mechanical and semiconductor switches solve different problems
An electromechanical relay uses one electrical circuit to create motion and another circuit to switch the load. The coil's voltage, current and suppression requirements do not determine what the contacts can switch. Conversely, a contact marking such as 10 A does not say that the coil can be driven directly from logic or that every 10 A load is acceptable.
The coil moves a mechanically separate contact set

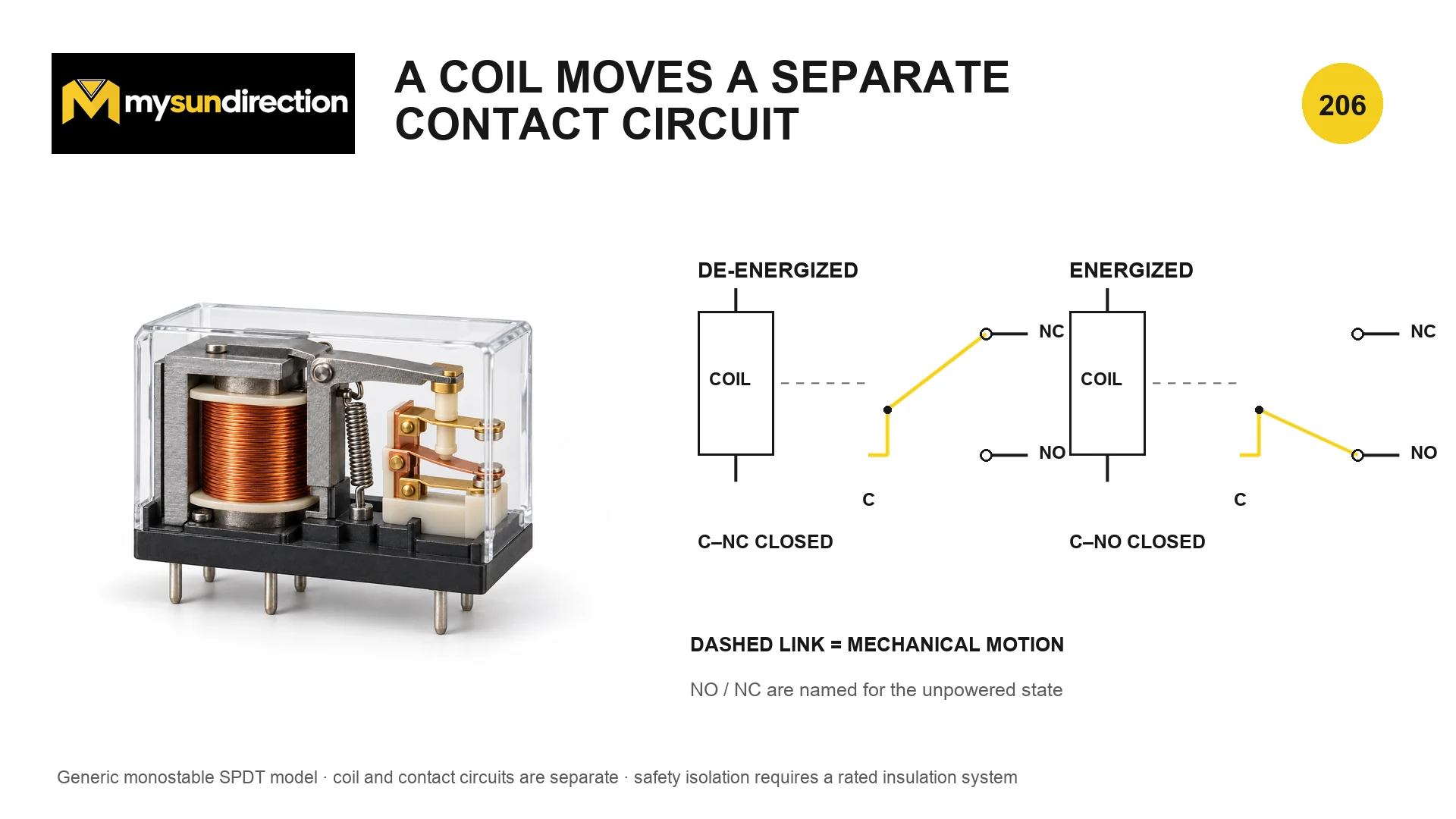

Diagram description
A dashed line indicates mechanical motion rather than an electrical connection. The figure warns that a separate coil/contact drawing does not itself establish safety-rated isolation.
| Terminal or part | Role | Common mistake |
|---|---|---|
| Coil | Produces magnetic force when energized | Treating it as a logic input without checking current and voltage |
| Common (C or COM) | Moving-contact electrical terminal | Assuming it is internally connected to coil common |
| Normally closed (NC) | Connected to common in the defined de-energized state | Assuming it is always the fail-safe choice |
| Normally open (NO) | Connected to common after guaranteed operation | Ignoring contact bounce and pickup time |
| Mechanical link | Transfers armature motion | Reading the schematic's dashed line as a conductor |
Monostable relays return when coil energy is removed. Latching relays retain state and may use one or two coils; their set/reset drive is different. Contact forms can contain multiple poles, but timing between poles is not perfectly simultaneous. Always use the terminal diagram and state definitions for the exact part number.
The coil has pickup, hold, release and heating limits
| Data-sheet item | Design question |
|---|---|
| Rated coil voltage and resistance/power | What steady current and driver loss occur? |
| Must-operate or pickup voltage | Will the hot coil pull in at minimum supply? |
| Must-release voltage | Will suppression and leakage let the relay drop out? |
| Maximum continuous voltage / allowable rise | Will maximum supply and ambient overheat the winding? |
| Operate and release time | Does sequencing include bounce and suppression effects? |
| Coil polarity or built-in diode/LED | Can the driver reverse it, and is an external clamp compatible? |
DC coil screens
I_coil ≈ V_coil/R_coil; P_coil ≈ V_coil²/R_coil
Use manufacturer coil data at the relevant temperature. Copper resistance rises as the winding heats, so a voltage-driven DC coil's current usually falls. Pickup must be checked under the combination that produces the weakest magnetic actuation, while cold-coil current can create the largest driver current.
Opening the coil circuit releases stored magnetic energy

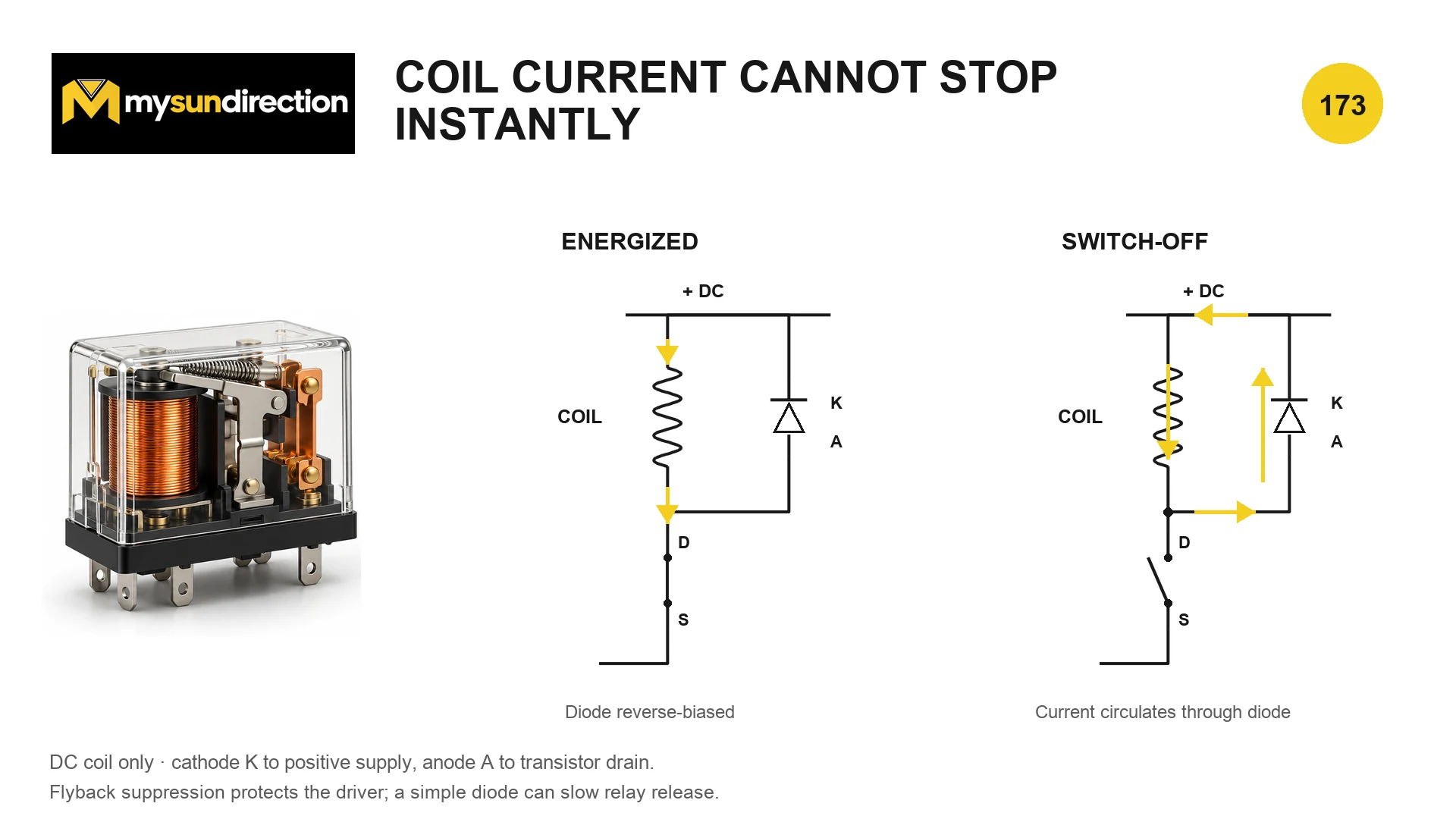

Diagram description
The image shows coil current during energization and the recirculating path after the transistor opens. It explicitly limits the simple diode polarity to a DC coil.
Energy initially stored in the coil
E_L = ½LI²
At switch-off this energy must be transferred or dissipated. The clamp voltage controls how quickly current can decay: a higher allowed voltage generally speeds release but increases switch, insulation and electromagnetic stress.
- E_L
- magnetic energy before switch-off, J
- L
- effective coil inductance at the operating condition, H
- I
- coil current immediately before switch-off, A
| Method | Typical benefit | Important limitation |
|---|---|---|
| Diode across a DC coil | Low switch voltage and simple path | Can lengthen release; wrong for AC or reversed-polarity drive |
| Diode plus Zener / TVS strategy | Faster current decay at a controlled higher voltage | Driver must withstand clamp plus supply and transients |
| RC network | Can control edge and energy for suitable AC or DC cases | Values, capacitor class and dissipation are application-specific |
| Varistor | Bidirectional voltage limiting | Clamping spread, ageing and energy rating require verification |
| Built-in suppression | Specified by relay manufacturer | Creates polarity, leakage or release behavior that external circuitry must respect |
A contact must make, carry and break the actual load

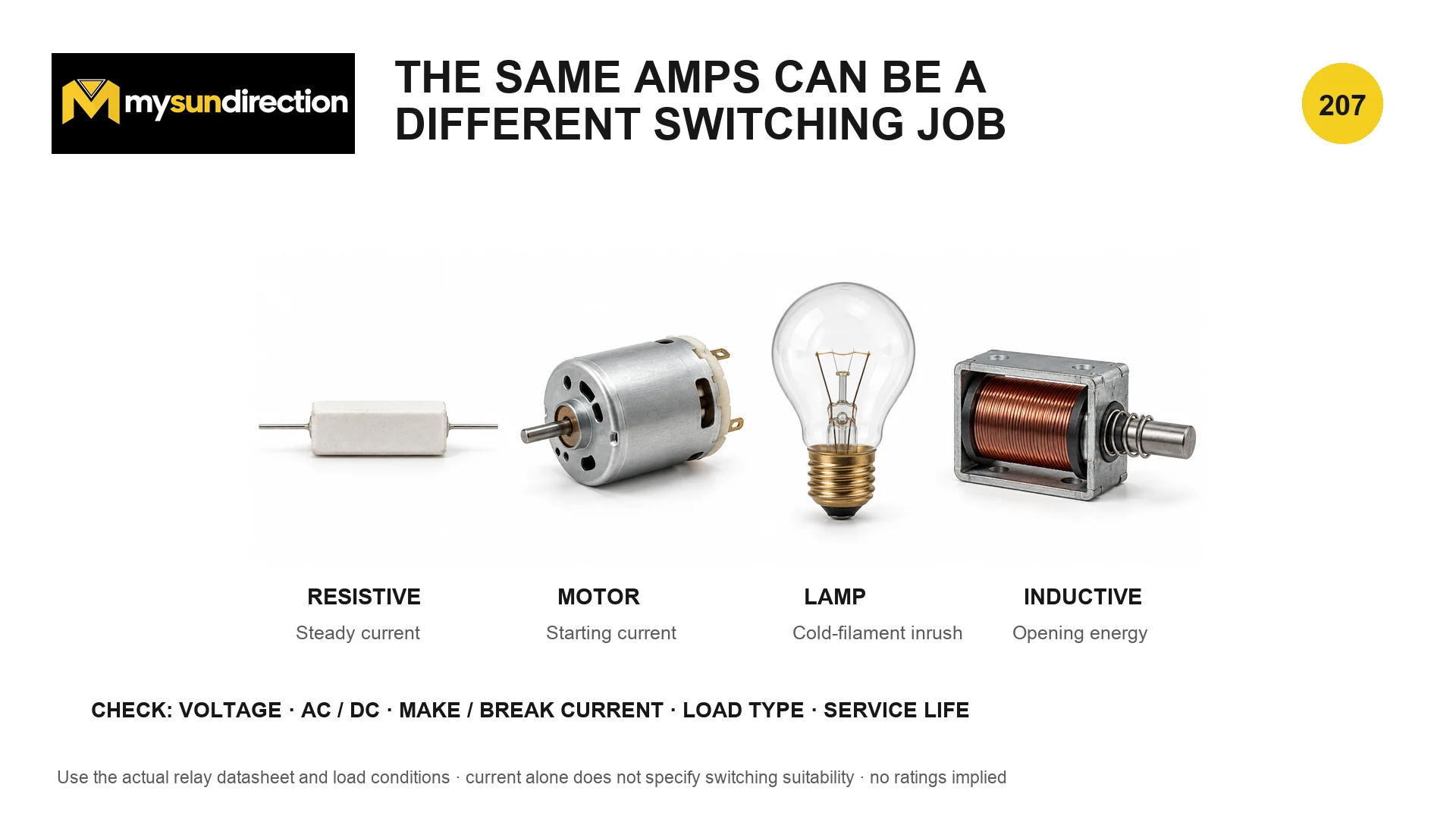

Diagram description
The figure lists voltage, AC or DC, make and break current, load type and service life as separate checks and intentionally implies no ratings.
| Load | At closing | At opening |
|---|---|---|
| Resistive heater | Current approaches the steady value | Current falls without large stored magnetic energy |
| Incandescent lamp | Cold filament can draw a large inrush | Current is lower after heating, but repeated inrush can weld or erode contacts |
| Motor | Starting or stalled current can far exceed running current | Inductance and back EMF influence the opening arc |
| Solenoid / contactor coil | Magnetizing transient depends on coil and supply | Stored magnetic energy drives an arc unless controlled |
| Capacitive input / power supply | Charging current can be high and brief | Steady current may look modest despite severe make stress |
DC is often harder to interrupt than AC because an AC current crosses zero naturally. Contact spacing, material, arc duration and external suppression determine the actual result. Never substitute an AC resistive rating for a DC inductive load—or a certified load category for an untested one—because the numeric current appears equal.
Mechanical life and electrical life answer different questions
| Quantity | What it includes |
|---|---|
| Mechanical endurance | Operations without specified electrical contact load |
| Electrical endurance | Operations at a stated voltage, current, load type and switching rate |
| Contact resistance | Initial and end-of-life limits or typical behavior under stated measurement conditions |
| Operate/release time | Coil-to-contact timing; bounce may be specified separately |
| Maximum operating frequency | Thermal and mechanical recovery constraints |
| Minimum applicable load | Whether low-level signals can reliably break films/contamination on the chosen contact material |
Mechanical and semiconductor switches solve different problems

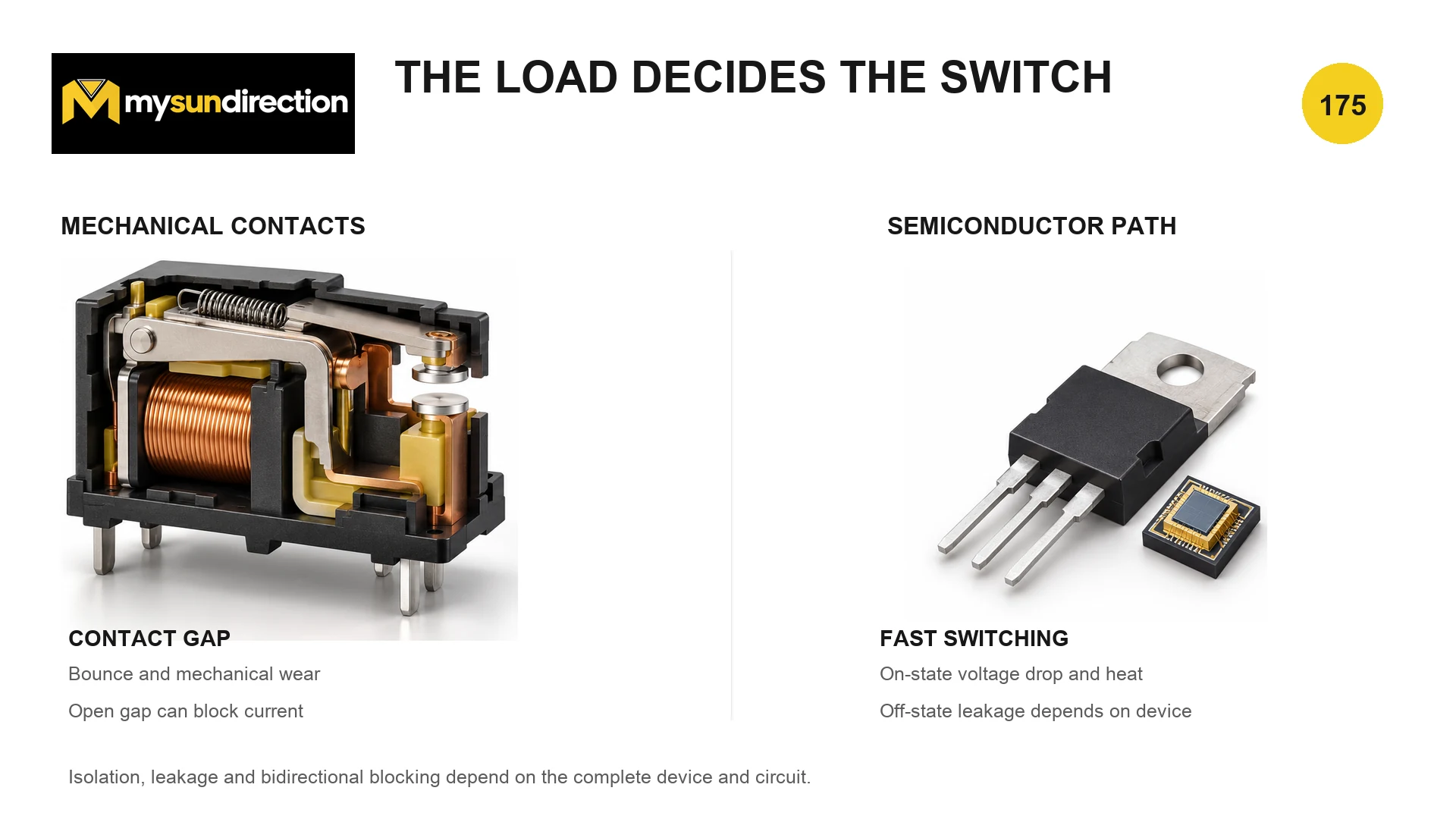

Diagram description
The comparison avoids claiming that every relay provides safety isolation or that every semiconductor blocks both polarities.
| Property | Mechanical relay | Semiconductor switch |
|---|---|---|
| Control/load separation | Possible with a suitably rated insulation system | Requires isolator or isolated driver when separation is needed |
| Off state | Physical gap; contact capacitance and insulation still exist | Leakage and body-diode/current paths depend on topology |
| On state | Low contact resistance when healthy | Voltage drop or R_DS(on) creates continuous heat |
| Speed | Milliseconds plus bounce | Often microseconds or faster |
| Wear | Arc erosion, bounce and mechanical fatigue | No moving contacts, but thermal/electrical overstress accumulates |
| Audible operation | Usually clicks | Usually silent; magnetics may still make noise |
| Failure tendency | Can weld, fail to make, or wear open | Can fail short or open; system protection must assume credible modes |
Why a contact-protection network cannot be copied blindly
An RC snubber, diode, varistor or TVS changes voltage, current-decay rate, EMI and release timing. Placement across the contact or load changes what is protected and what leakage remains. Component values depend on the actual supply, wiring, load inductance, contact material and operating rate. Use manufacturer guidance, verify with representative hardware and use safety-rated capacitors where the circuit category requires them.
Model open, closed and faulted paths using Series, Parallel, Open and Short Circuits. For commissioning, follow the source-to-load measurement sequence in Using a Multimeter and a Diagnostic Sequence without probing live hazardous circuits beyond the instrument, procedure and worker's rating.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Mechanical Relays and Their Electrical Ratings?
Treat a relay as two data-sheet problems. First qualify the coil and its driver over supply, temperature and release conditions. Then qualify each contact pole for voltage type, load category, making current, breaking current, carrying current, operating frequency, life and fault energy.
Which assumption can change the conclusion?
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
What can go wrong if I copy the example directly?
Maximum switching voltage, current and power are not interchangeable. A relay data sheet may list maximum voltage, maximum current and a switching-capacity curve. Those are separate boundaries, not a rectangular operating area and not permission to use all maxima simultaneously.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
