Why a Starter Struggles Even With a Battery

See connection voltage losses and the starter engagement sequence.

  • By MySunDirection
  • 15 min read
Share this explanation
One-minute answer

You are applying “Why a Starter Struggles Even With a Battery” to a real system and need the concept, assumptions and verification boundary to stay clear.

Use loaded voltage-drop reasoning to separate battery sag, positive-side loss, return-side loss, contact loss, starter or mechanical load while respecting the engagement and overrun sequence.

Select or check first
Measure the missing voltage across the path. A loaded voltage-drop measurement places the meter across a cable or connection segment while current flows. It asks how much voltage that segment consumes. It is not an ammeter connection and does not put a voltage meter in series.
Controlling assumption
Circuit state, waveform, source impedance, ratings, temperature and protection topology match the equipment being analysed.
Top risk
Do not improvise a cranking test. Secure the vehicle, follow the manufacturer's cranking-duration and cool-down limits, keep people and tools clear of belts, fans and gears, use instruments and connections intended for the environment, and never bypass neutral/clutch, immobilizer or start-control interlocks.
Proof
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Why a Starter Struggles Even With a Battery”

Electrical-engineering basics

Electrical behaviour becomes easier to reason about when every voltage has a reference and every current has a complete return path.

Voltage
Voltage is potential difference between two points. A voltage statement is incomplete unless both points or its reference are known.
Current
Current is charge flow through a path. It does not disappear after a component; in a complete circuit it returns to the source.
Resistance and impedance
Resistance opposes steady current. Impedance extends that idea to changing signals and can depend on frequency through capacitance and inductance.
Power and heat
Electrical power is the rate of energy transfer. Some becomes useful output and some becomes heat that must stay within component and enclosure limits.
Rating versus operating point
A rating is a limit or qualified condition, not a target. The operating point must remain inside all relevant voltage, current, power, temperature and timing limits.

How to use this article: Draw the source, load, reference and return path before calculating. Treat exposed or stored electrical energy as hazardous until isolation is proved.

A battery can show plausible open-circuit voltage and still fail to deliver useful cranking power. The battery may sag under load, or current may lose voltage across a corroded terminal, cable, solenoid contact or return connection. The starter itself may be worn, and the engine may require abnormal torque. Good diagnosis separates these possibilities while the real load is present instead of treating “has a battery” as proof of an adequate supply.

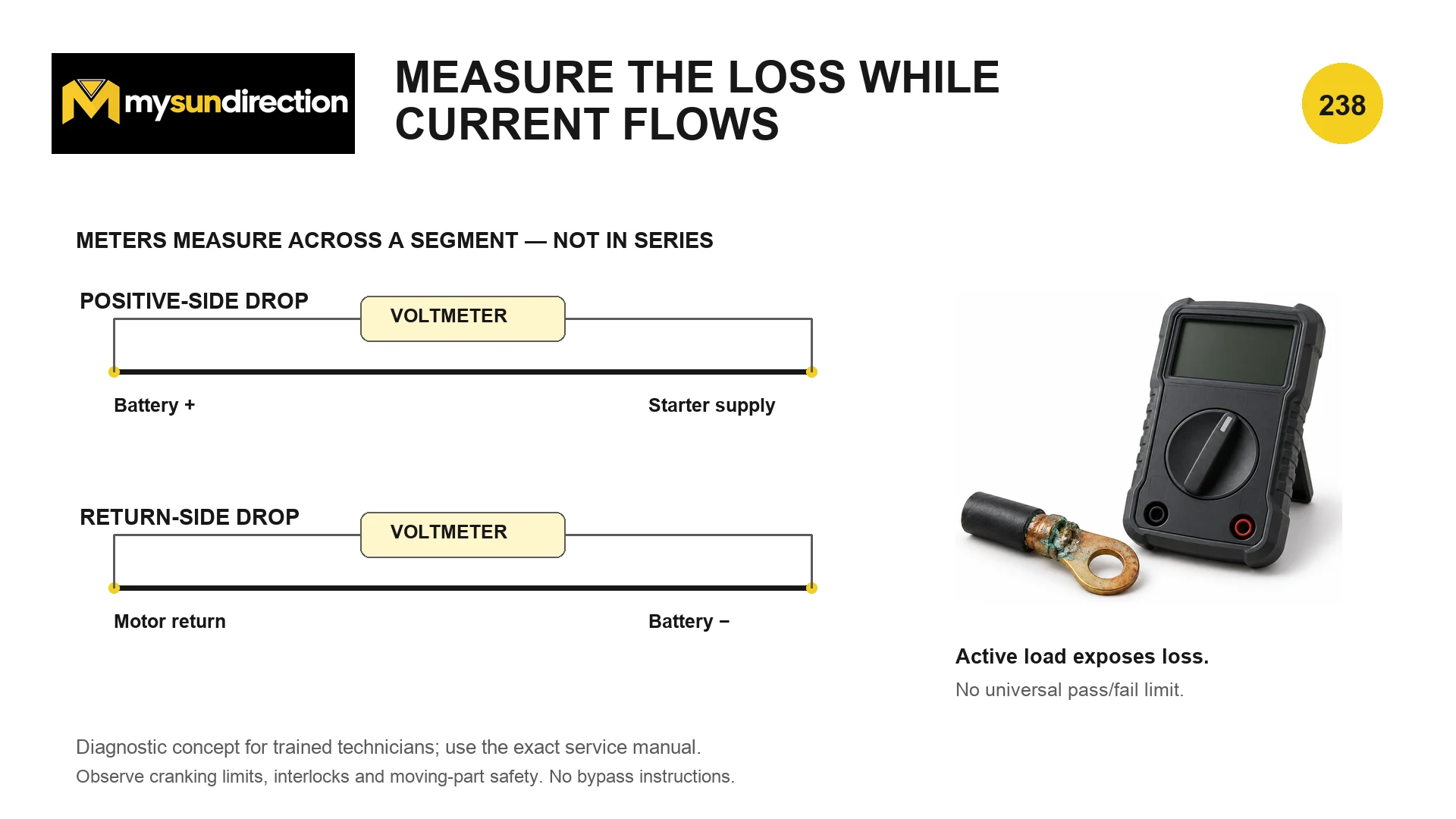

Active load exposes losses hidden by continuity checks

Measure across one loaded segment, then compare with the exact service information. There is no universal pass/fail voltage in this plate.
Diagram description

The diagnostic concept is for trained technicians and includes cranking limits, interlocks, moving-part safety and no bypass instructions.

Account for source, path and load

V_battery_loaded = V_positive_path + V_starter + V_return_path

The relation is Kirchhoff's voltage law applied to a chosen cranking loop. Solenoid-contact drop can be isolated as a subsegment. The reference points and permitted values must match the exact vehicle and test state.

V_battery_loaded
battery terminal voltage during the event, V
V_positive_path
sum of positive-side loaded drops, V
V_starter
voltage actually across the starter motor path, V
V_return_path
sum of loaded return-side drops, V
Patterns narrow the cause but do not replace service data
Observation during a valid start requestWhat it suggestsWhat it does not prove
Battery voltage collapses at its postsWeak state, inadequate capacity, internal loss or excessive loadWhich battery defect or mechanical load is responsible
Battery holds but large positive-side drop appearsCable, terminal, fuse link or main contact has significant loaded lossWhich joint without segmenting further
Large return-side dropReturn cable, bond or connection has significant lossThat battery positive path is healthy
Good voltage at starter but little/no rotationStarter or mechanical load becomes more likelySafe removal or component diagnosis
Solenoid command absentControl/interlock path needs diagnosisThat the high-current path is sound
Intermittent click with changing dropContact or connection behavior may be unstablePermission to bridge or bypass it

A resistance measurement on an unpowered heavy cable can be inconclusive because ordinary meters do not reproduce hundreds of amperes, and probe/contact resistance can be comparable to the value of interest. A loaded drop measures the operating consequence directly. Temperature, cranking speed, oil viscosity, battery state and manufacturer time limits must remain controlled or recorded.

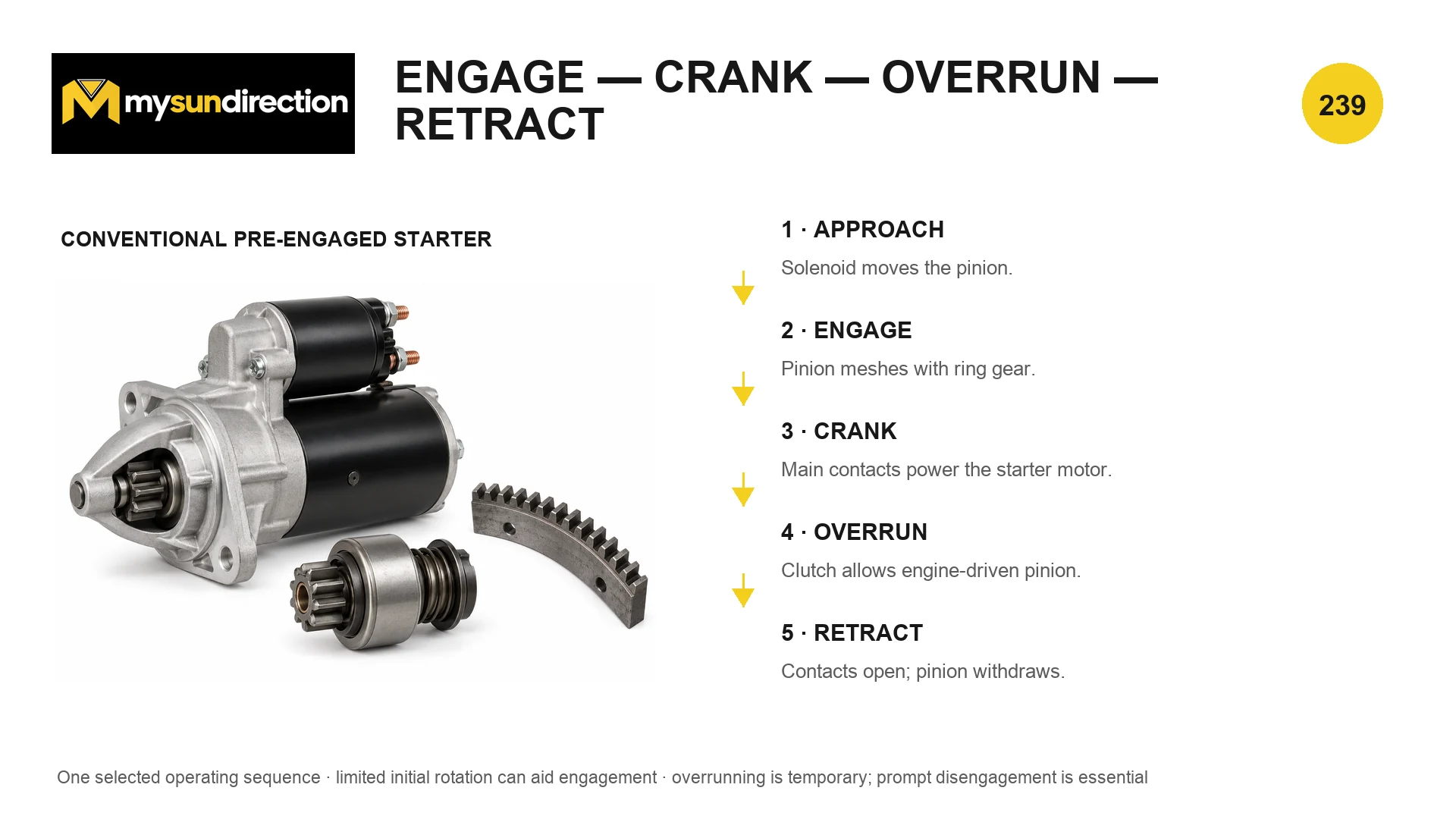

Diagnosis must respect the engagement sequence

The solenoid advances the pinion, the gear meshes, main contacts power cranking, the clutch allows temporary engine-driven overrun, and release retracts the drive.
Diagram description

This is one selected conventional sequence. Limited initial rotation can assist engagement; overrun must be temporary and disengagement prompt.

Listen and measure without turning sound into certainty
Stage not completedPossible symptomRelevant boundary
ApproachNo movement or clickControl permission, solenoid energization and plunger movement
EngageClash, repeated attempt or free-spinning soundPinion, ring gear, drive spring and alignment
CrankSingle click, slow turn or voltage collapseMain contacts, battery, both cable sides, motor and mechanical load
OverrunAbnormal noise after engine firesOverrunning clutch and release timing
RetractStarter remains engagedControl release, return mechanism and mechanical freedom
A conceptual diagnostic record

Record battery voltage at the posts before and during the allowed cranking interval, starter terminal voltage during the same event, and drops across defined positive and return segments. Record temperature and observed sequence. Compare every value with the exact service manual. This evidence separates source sag from path loss; it does not authorize exposed moving measurements where the specified procedure, instrument category or access is unsafe.
