Rooftop Performance and Electricity
From Electricity Units to a Real Solar Bill
Connect meter readings, units and tariffs to an understandable electricity bill.
You are connecting the subsystems described in “From Electricity Units to a Real Solar Bill” and need their mechanical, electrical and control interfaces to work together.
Read meter units, tariff slabs, fixed and variable charges, then trace how self-used and exported solar energy can change—not erase—a real bill.
- Select or check first
- 1. Identify the connection. Read the consumer category, sanctioned load or contract demand, supply voltage, DISCOM and billing period from the bill.
- Controlling assumption
- Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
- Top risk
- A lower bill is not automatically an energy-performance test. Bill amounts can change because the tariff, subsidy, billing days, fixed charge, arrears or demand changed. Verify solar performance in kWh at a defined boundary, then reconcile that energy to the bill. Do not judge equipment health from rupees alone.
- Proof
- 5. Model solar by interval. Separate self-use, grid import and grid export before valuing any proposed generation change.
Start with the basics Optional foundation before “From Electricity Units to a Real Solar Bill”
Solar-energy basics
These terms separate what sunlight supplies, what a photovoltaic system converts and what a meter finally records.
- Power and energy
- Power is the instantaneous rate of using or producing energy, measured in watts. Energy accumulates over time and is commonly measured in watt-hours or kilowatt-hours.
- Irradiance
- Irradiance is solar power arriving per unit area, usually expressed in watts per square metre. It is an input condition, not the same thing as electrical output.
- Voltage and current
- Voltage is electrical potential difference; current is the rate of electric charge flow. Their product gives electrical power for a DC operating point.
- Cell, module and string
- A cell is one photovoltaic device, a module connects many cells, and a string connects modules in series. A limitation at one level can affect the others through the wiring.
- Rated versus real output
- Nameplate values come from defined test conditions. Real output changes with sunlight, temperature, angle, shading, wiring, conversion losses and ageing.
How to use this article: Before using a number, identify whether it describes sunlight, DC module output, inverter output or billed energy, and record the time and weather boundary.
On this page
An electricity bill does not put one universal price on every kilowatt-hour generated by a rooftop system. It starts with meter data, applies the tariff for a particular connection and billing period, adds fixed and other regulated components, and then accounts for solar electricity according to when it is used or exported. Reading those stages separately prevents a common mistake: multiplying all solar generation by one advertised “rate per unit” and calling the result guaranteed savings.
From meter registers to billed units
Many energy meters show cumulative readings. For a simple import register, the difference between the current and previous readings gives energy recorded during the billing interval. The bill should also identify the meter number, reading dates, whether the reading is actual or provisional, and any multiplication factor used with instrument transformers. A bidirectional solar meter may have separate import and export registers, so subtracting one display from another without its register label can produce the wrong result.
Basic interval energy
Billed energy = (current reading − previous reading) × meter multiplier
For a direct-connected residential meter the multiplier is commonly one. Larger supplies may use current or voltage transformers and a stated factor. Import and export registers must be calculated separately unless the applicable metering arrangement explicitly defines another method.
- current reading
- cumulative kWh at the end of the billing interval
- previous reading
- cumulative kWh at the start of the interval
- meter multiplier
- approved conversion factor printed in the meter or bill record
With a multiplier of 1, a current import reading of 12,450 kWh minus a previous reading of 12,000 kWh gives 450 kWh for the interval.

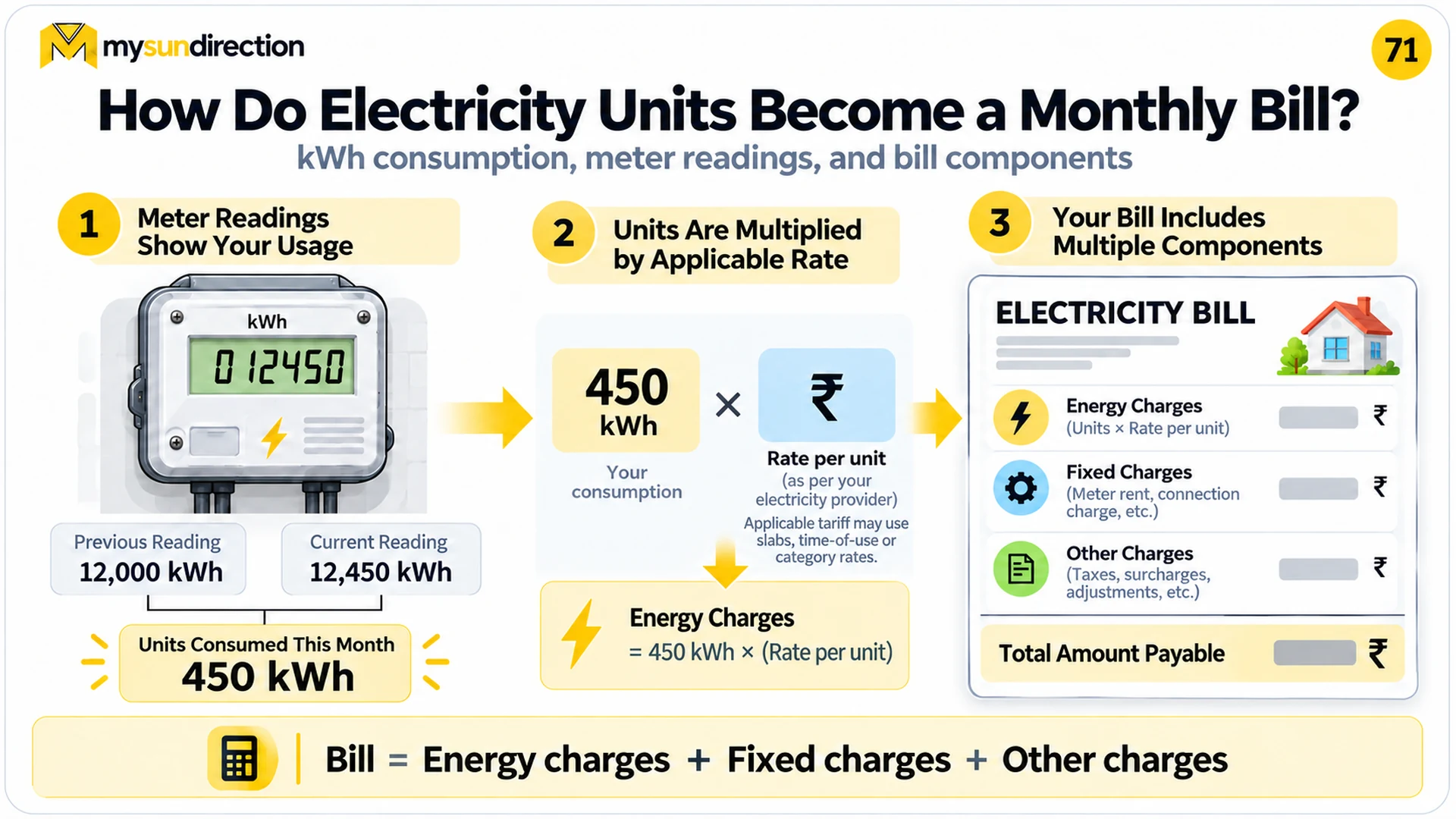

Diagram description
Three numbered stages show a cumulative electricity meter, an energy-charge calculation and a final bill. The meter advances from 12,000 to 12,450 kWh. The 450 kWh difference is multiplied by an unspecified applicable rate, while the bill separately lists energy, fixed and other charges.
Power and energy in one everyday example
A 2 kW appliance operating steadily for 30 minutes uses 1 kWh because 2 kW multiplied by 0.5 h equals 1 kWh. If its thermostat cycles or its power changes, add the energy used during each interval. The same distinction applies to solar: a 10 kW array rating does not mean it produces 10 kWh every hour.
Energy from changing power
E = Σ(Pᵢ × Δtᵢ)
Meters perform this accumulation continuously. Solar output and building demand both change through the day, so interval data reveal more than a monthly total.
- E
- energy in kilowatt-hours
- Pᵢ
- average power in interval i, in kilowatts
- Δtᵢ
- duration of interval i, in hours
One hour at 0.5 kW plus two hours at 0.25 kW equals 1.0 kWh.
Why units multiplied by one rate are not the whole bill
A tariff order can divide the bill into energy charges and fixed or demand charges, then add adjustments, duties, taxes, surcharges, arrears or credits. Energy rates may use consumption slabs, time-of-day periods or consumer-category rules. Fixed or demand charges may depend on sanctioned load, contract demand or measured demand and can remain even when imported kWh falls. A subsidy can change the amount payable without changing the meter's physical energy reading.
| Component | Typical basis | Does rooftop solar necessarily remove it? |
|---|---|---|
| Energy charge | Imported kWh or kVAh allocated to slabs or time periods | It may reduce when eligible solar offsets import, but the rate avoided depends on the tariff |
| Fixed or demand charge | Connection, sanctioned load, contract demand or maximum demand | Usually not removed merely because monthly imported energy falls |
| Power-purchase or fuel adjustment | A regulated adjustment applied to specified bill components | Treatment follows the applicable order and may change over time |
| Duty, tax or surcharge | A percentage or prescribed calculation | Only if the governing rule changes its calculation base |
| Export credit | Eligible exported kWh under the approved metering arrangement | This is a credit, not necessarily the same value as avoided import |
| Arrear, late fee or adjustment | Earlier balance, payment timing or correction | Unrelated to current solar generation unless a rule expressly connects it |
There is no single Indian value for one unit

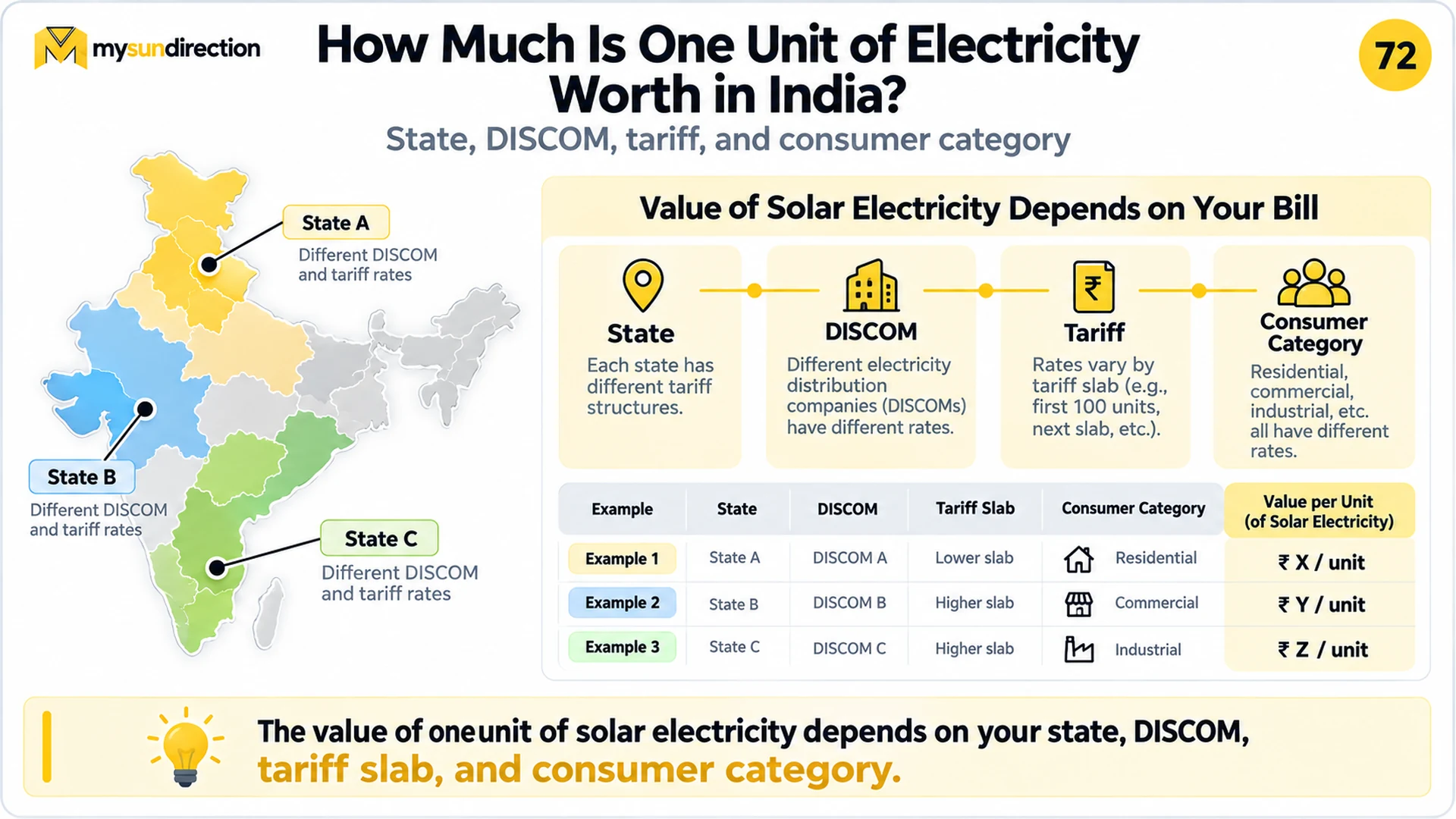

Diagram description
A stylised India map marks three unnamed example states. A chain on the right connects State, DISCOM, Tariff and Consumer Category. A comparison table assigns placeholder values per unit to residential, commercial and industrial examples, without presenting any real tariff amount.
State electricity regulatory commissions issue tariff orders, and distribution licensees apply them to defined consumer categories. Residential, commercial, industrial and other categories can have different energy and fixed charges. Slabs, sanctioned load, voltage level, demand, time-of-day registers, subsidies and periodic adjustments can all change the marginal value of one additional kWh. Tariffs are revised, so a rate copied from an old article or another DISCOM is not decision evidence.
Find the applicable rate without guessing
- 1. Identify the connection.Read the consumer category, sanctioned load or contract demand, supply voltage, DISCOM and billing period from the bill.
- 2. Obtain the current order.Use the state regulator or distribution licensee's current tariff schedule, not a general web calculator or an old social-media post.
- 3. Map every component.Reproduce slabs, time bands, fixed charges, adjustments, taxes, subsidies and export treatment exactly as applicable.
- 4. Reconcile one bill.Check that your calculation follows the recorded readings and reaches the issued amount, allowing for rounding.
- 5. Model solar by interval.Separate self-use, grid import and grid export before valuing any proposed generation change.
Solar generation has more than one destination
At an instant, rooftop generation can serve loads behind the same meter, charge compatible storage, be exported, or be limited by equipment or grid controls. Self-used solar can avoid importing energy during that interval. Exported solar is measured and credited according to the approved net-metering, net-billing, gross-metering or other arrangement. The applicable accounting period and settlement rule matter: physical export does not prove a retail-rate credit.
A transparent first-pass bill impact
Bill benefit = avoided import charge + export credit − added charges
Calculate each term with the relevant interval, slab, time band and rule. This is a billing model, not a promise that the total bill will fall by the same proportion as imported kWh.
- avoided import charge
- the energy-related charge that would otherwise apply to eligible imported units
- export credit
- credit for eligible exported units under the current arrangement
- added charges
- new metering, demand, service or other applicable bill components
If 400 kWh is self-used and 290 kWh is exported, value the two quantities separately. Do not price all 690 kWh at one retail rate unless the governing tariff explicitly does so.

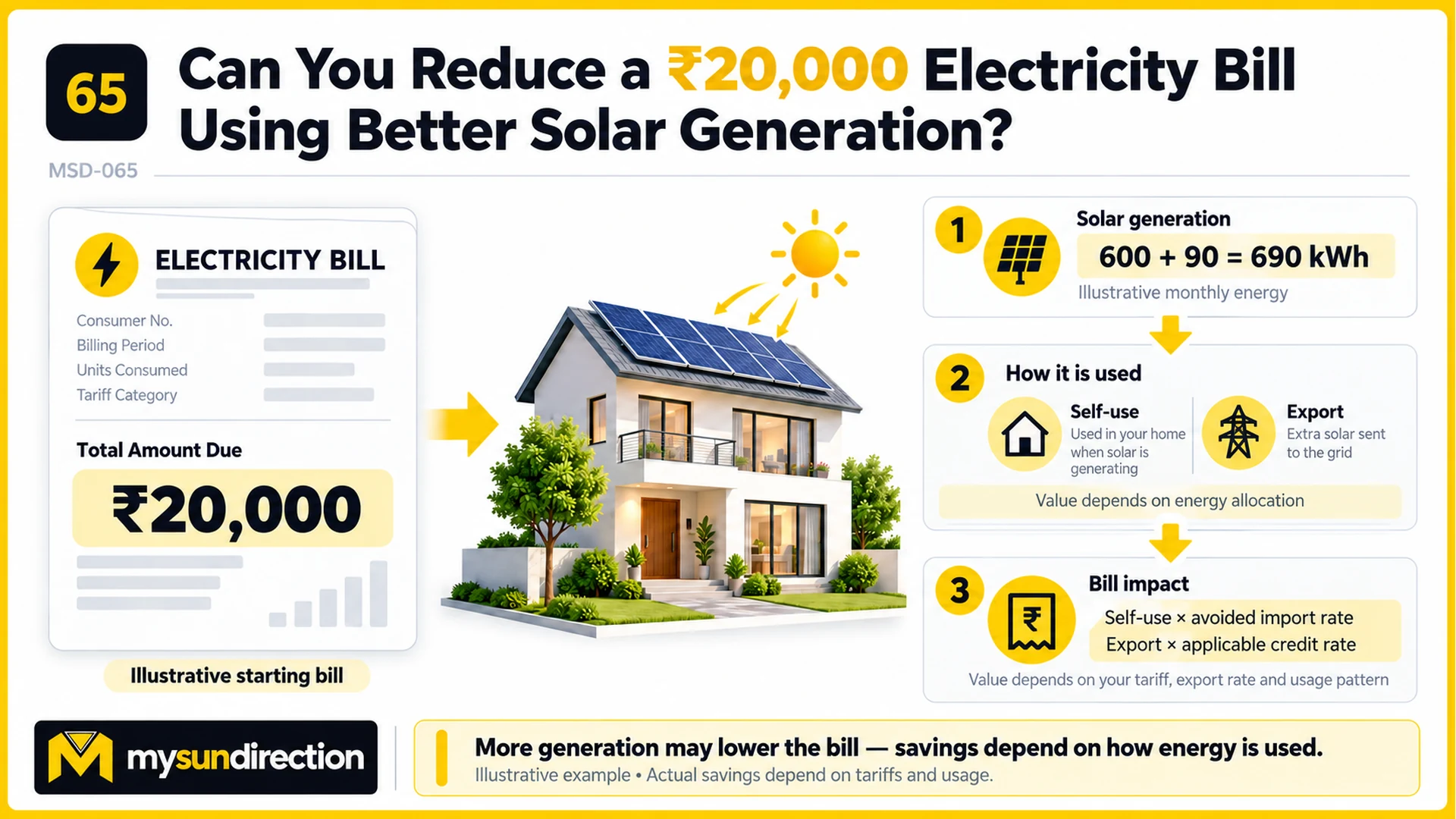

Diagram description
A sample ₹20,000 bill points to a solar home. Three steps on the right add 600 and 90 kWh to make 690 kWh, divide generation into self-use and export, and value self-use at the avoided import rate and export at the applicable credit rate. No final saving is stated.
The 690 kWh in the image is an illustrative monthly total. The expression 600 + 90 = 690 is arithmetically correct, but it does not define what the two addends represent or when that energy occurred. A real assessment needs synchronized load, generation, import and export data. It must also separate a lower current bill from a subsidy change, seasonal demand change, corrected meter reading or previous-balance adjustment.
A bill-reading checklist
- Confirm dates and status.Check the billing interval and whether each reading is actual, estimated or adjusted.
- Name every register.Keep import, export, reactive-energy and time-of-day registers separate.
- Recalculate the energy blocks.Apply the meter factor and allocate eligible units to the correct tariff slabs or time bands.
- Account for non-energy lines.Identify fixed or demand charges, adjustments, duty, taxes, surcharge, arrears, subsidy and credits.
- Reconcile solar flows.Compare generation monitoring with self-use, meter import and meter export over matching timestamps.
- Preserve the source documents.Save the bill, tariff order, metering agreement and interval-data export used in the calculation.
For the electrical operating point behind the energy total, read How MPPT Finds Useful Solar Power. For a worked comparison between extra capacity and changed orientation, continue to More Panels or Better Panel Orientation?.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for From Electricity Units to a Real Solar Bill?
1. Identify the connection. Read the consumer category, sanctioned load or contract demand, supply voltage, DISCOM and billing period from the bill.
Which assumption can change the conclusion?
Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
What can go wrong if I copy the example directly?
A lower bill is not automatically an energy-performance test. Bill amounts can change because the tariff, subsidy, billing days, fixed charge, arrears or demand changed. Verify solar performance in kWh at a defined boundary, then reconcile that energy to the bill. Do not judge equipment health from rupees alone.
How do I verify the result in the real system?
5. Model solar by interval. Separate self-use, grid import and grid export before valuing any proposed generation change.
