Rooftop Performance and Electricity
Solar Generation During Day, Night and Bad Weather
Understand home loads, optional batteries, grid imports and changing sunlight.
You are moving a project through the decision covered by “Solar Generation During Day, Night and Bad Weather” and need evidence before the next commitment.
Follow rooftop solar from changing daylight through household loads, the grid and optional storage, without confusing cloudy-day production with guaranteed backup power.
- Select or check first
- 1. Define the question. Separate annual-energy planning, one-day backup runtime, equipment diagnosis and electricity-bill analysis; each needs different evidence.
- Controlling assumption
- Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
- Top risk
- Backup is an engineered operating mode. Do not improvise backfeed, bypass anti-islanding protection or connect a portable source to building wiring without an approved transfer arrangement. A qualified designer and installer must coordinate inverter, battery, earthing, protection, isolation and utility requirements.
- Proof
- 6. Test uncertainty. Show a central estimate and reasonable low/high cases. Weather variability means a single annual number should not be presented as a guarantee.
Start with the basics Optional foundation before “Solar Generation During Day, Night and Bad Weather”
Solar-energy basics
These terms separate what sunlight supplies, what a photovoltaic system converts and what a meter finally records.
- Power and energy
- Power is the instantaneous rate of using or producing energy, measured in watts. Energy accumulates over time and is commonly measured in watt-hours or kilowatt-hours.
- Irradiance
- Irradiance is solar power arriving per unit area, usually expressed in watts per square metre. It is an input condition, not the same thing as electrical output.
- Voltage and current
- Voltage is electrical potential difference; current is the rate of electric charge flow. Their product gives electrical power for a DC operating point.
- Cell, module and string
- A cell is one photovoltaic device, a module connects many cells, and a string connects modules in series. A limitation at one level can affect the others through the wiring.
- Rated versus real output
- Nameplate values come from defined test conditions. Real output changes with sunlight, temperature, angle, shading, wiring, conversion losses and ageing.
How to use this article: Before using a number, identify whether it describes sunlight, DC module output, inverter output or billed energy, and record the time and weather boundary.
On this page
A rooftop solar system responds to the light reaching its modules now—not to the clock, the weather icon or yesterday's production. Output usually rises after sunrise, changes with the sun and clouds, and falls toward zero after sunset. The building may still have electricity at night, but that energy must come from another source such as the utility grid, a charged battery or a separately designed generator system.
Why solar output changes through the day
Solar irradiance is the radiant power arriving on an area. The amount on the module plane changes with solar position, season, location, module orientation, nearby shade and weather. Plane-of-array irradiance includes direct beam light, diffuse light scattered by the sky and light reflected from the ground. An inverter then converts the array's DC power to usable AC power within its voltage, current, temperature and rated-power limits.
A clear day's graph may look like a broad hill, but it is not a promise of a smooth curve. A passing cloud can cause a fast dip; broken cloud can create repeated ramps; morning or evening obstruction can cut one side of the curve. Module temperature, soiling, mismatch, cable loss and inverter behavior also affect the delivered result. Compare synchronized irradiance and system data before assigning every dip to weather.
Energy is accumulated power
Eday ≈ Σ(PAC,t × Δt)
A monitoring system samples power over time. Short cloudy periods may lower some intervals without eliminating the whole day's energy. Use consistent units: kilowatts multiplied by hours gives kilowatt-hours.
- Eday
- AC electrical energy delivered during the day, in kilowatt-hours
- PAC,t
- average inverter AC power during interval t, in kilowatts
- Δt
- length of each interval, in hours
If average AC power is 3 kW for one 15-minute interval, that interval contributes about 3 × 0.25 = 0.75 kWh. A full-day total adds every interval, including cloudy dips.
Clouds and rain usually reduce output, not erase it
Clouds can block much of the direct beam while diffuse sky light still reaches the modules. PV can therefore produce on an overcast day, although output is commonly lower and more variable than under strong clear-sky irradiance. Cloud type, thickness, sun position and local conditions matter, so a single percentage cannot describe every cloudy hour.

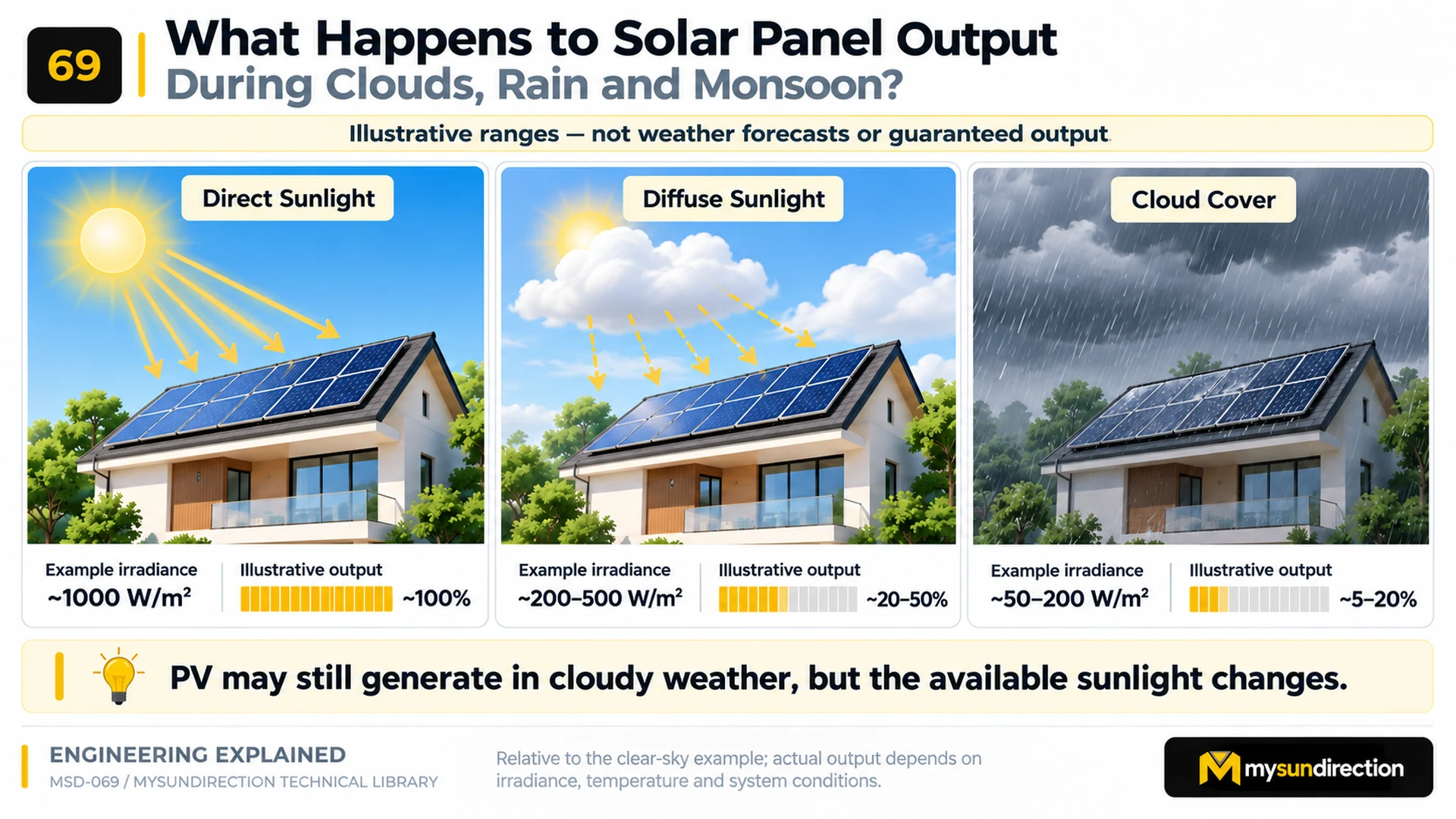

Diagram description
The first panel shows direct sunlight at roughly 1000 watts per square metre and labels output near 100 percent. The second shows diffuse cloudy light at an illustrative 200 to 500 watts per square metre and 20 to 50 percent. The third shows cloud and rain at an illustrative 50 to 200 watts per square metre and 5 to 20 percent. A footer says actual output depends on irradiance, temperature and the system.
Rain often arrives with dense cloud, so the reduced solar resource is usually the dominant short-term effect. Cooler modules may operate more efficiently than hotter modules at the same irradiance, and rainfall may remove some loose dirt, but neither effect guarantees a production gain. Persistent deposits, standing water, unsafe access or damaged seals need appropriate inspection rather than assumptions about rain cleaning the array.
Where electricity comes from by day and by night

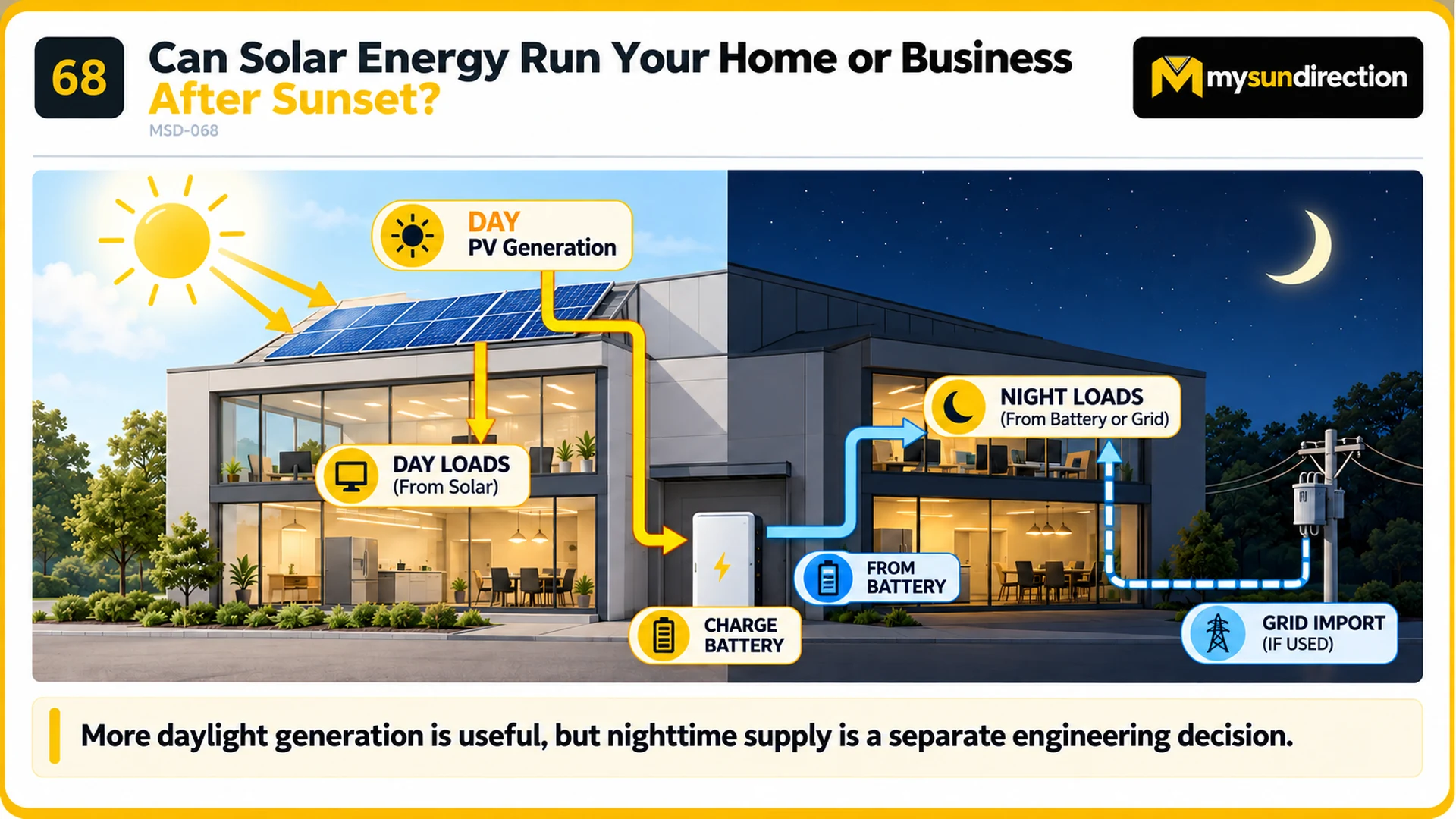

Diagram description
On the daylight side, rooftop modules send power to building loads and a battery. On the night side, the modules are dark while arrows from a battery and utility connection point toward the building. Labels distinguish daytime solar use and charging from nighttime battery discharge or grid import.
| Condition | PV contribution | Possible source for the balance |
|---|---|---|
| Bright daytime, load below PV output | PV can serve the coincident load | Surplus may charge compatible storage, export or be curtailed |
| Daytime, load above PV output | Available PV can serve part of the load | Grid, battery or another coordinated source supplies the shortfall |
| Cloudy or rainy daylight | PV may continue at reduced and variable output | Grid or storage changes contribution as the shortfall changes |
| Night | No useful PV generation from sunlight | Grid, charged battery or a purpose-designed alternative source |
| Grid outage | Ordinary grid-following PV normally disconnects | Only an approved island-capable system can energize protected loads |
Without a battery, a grid-connected building normally imports whenever demand exceeds current PV production. With a battery, controls may charge it from surplus solar and discharge it later, but the usable result is bounded by power rating, usable energy capacity, state of charge, reserve settings, temperature and conversion losses. The word hybrid describes coordinated equipment; it does not guarantee that every circuit will run for any duration.
A simplified battery energy balance
Eremaining = Eavailable − (Pbackup × t) / η
This is a screening relationship, not a battery design method. A real design also checks inverter surge capability, depth-of-discharge limits, battery management constraints, temperature, degradation, critical-load diversity and minimum reserve.
- Eremaining
- estimated usable energy remaining in the battery
- Eavailable
- usable energy available when the interval starts
- Pbackup
- average power of the protected loads
- t
- time those loads operate
- η
- combined discharge and conversion efficiency as a decimal
A nominal battery label alone cannot answer runtime. If 8 kWh is actually usable and protected loads average 2 kW, the ideal four-hour quotient must still be reduced for conversion loss, reserve and changing load.
Why sunlight does not guarantee power during an outage
A conventional grid-following inverter uses the utility waveform as its operating reference and must stop energizing the circuit when grid conditions are absent or outside allowed limits. This anti-islanding behavior protects workers and equipment. Even at noon, ordinary rooftop PV may therefore shut down during a utility outage.
Supplying loads while the grid is down requires equipment intended to form and control a local electrical island, a verified isolation method, suitable protection and a defined set of backup circuits. Storage is commonly part of that design because clouds and load steps must be balanced continuously. Commissioning must prove safe transfer, protective operation and the loads the system can actually support.
How to assess a cloudy season or monsoon
- 1. Define the question.Separate annual-energy planning, one-day backup runtime, equipment diagnosis and electricity-bill analysis; each needs different evidence.
- 2. Use a weather time series.Model multiple years of location-appropriate irradiance and temperature data rather than multiplying one sunny-day reading by 365.
- 3. Model the actual plane.Include orientation, tilt, horizon, row spacing, nearby shade and ground reflection when translating weather data to the module surface.
- 4. Apply system losses and limits.Account for temperature response, soiling assumptions, mismatch, wiring, inverter efficiency, clipping, downtime and any export or battery constraint.
- 5. Compare measured evidence fairly.Align time stamps and compare irradiance, module temperature, DC data, inverter output, load, grid exchange and alarms over equivalent periods.
- 6. Test uncertainty.Show a central estimate and reasonable low/high cases. Weather variability means a single annual number should not be presented as a guarantee.
What should monitoring show on a variable-weather day?
A useful dashboard keeps power and energy separate. The power plot may show second-to-minute cloud ramps, while the daily-energy total accumulates the area under that curve. Weather-derived expected power should use the same time zone, sampling interval and system boundary as the measured data.
Investigate a repeated gap only after checking irradiance. If nearby systems or an on-site sensor indicate strong sunlight while inverter output collapses, review alarms, grid voltage, temperature, shutdown events, shade and data quality. If irradiance fell at the same time, the weather may explain much of the change.
For a closer look at environmental losses, continue with Why Shade and Heat Reduce Solar Output. To follow excess daytime energy into self-use, storage, export or curtailment, read What Happens to Solar Electricity You Do Not Use?.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Solar Generation During Day, Night and Bad Weather?
1. Define the question. Separate annual-energy planning, one-day backup runtime, equipment diagnosis and electricity-bill analysis; each needs different evidence.
Which assumption can change the conclusion?
Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
What can go wrong if I copy the example directly?
Backup is an engineered operating mode. Do not improvise backfeed, bypass anti-islanding protection or connect a portable source to building wiring without an approved transfer arrangement. A qualified designer and installer must coordinate inverter, battery, earthing, protection, isolation and utility requirements.
How do I verify the result in the real system?
6. Test uncertainty. Show a central estimate and reasonable low/high cases. Weather variability means a single annual number should not be presented as a guarantee.
