A PV system and a movement system do different jobs. The PV modules, DC wiring and inverter convert sunlight into usable electrical energy. A tracker controller senses or calculates a desired position, checks limits and safety conditions, and commands motors or actuators. Treating those as separate functional systems makes the design easier to understand, protect, test and service. It does not mean the two systems can never exchange a signal or share an upstream building supply; it means their power paths and responsibilities must not be casually mixed.
Diagram description

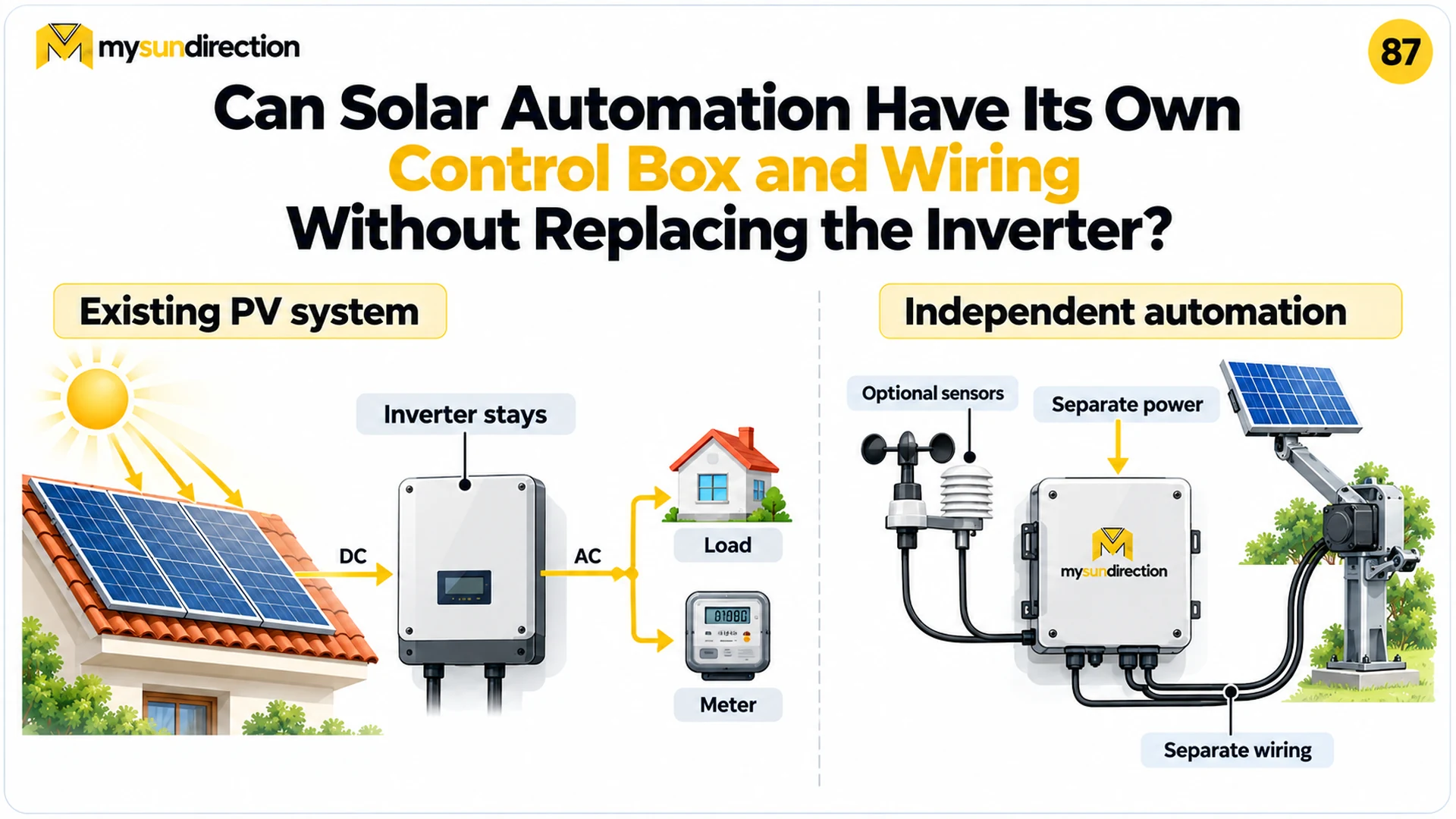

On the left, rooftop modules feed DC into an inverter whose AC output serves a house load and meter. On the right, optional weather sensors enter an independent automation enclosure with a separate power indication, and separate cables run to a motorized panel support. A dashed divider separates the two systems.
Draw the energy paths before choosing hardware
| Path | Typical purpose | Questions that must be answered |
|---|---|---|
| PV source and output circuits | Carry DC energy from modules toward conversion equipment | What are maximum voltage/current, connector, conductor, routing, arc, ground-fault and disconnect requirements? |
| Inverter and AC path | Convert and deliver energy to loads, storage or grid connection | Will movement change input operating range, clipping, protection, commissioning or utility approval? |
| Tracker control supply | Power logic, sensors, communications and low-power control functions | What voltage, source, backup behavior, overcurrent protection and isolation are required? |
| Motor or actuator circuit | Deliver starting and running current to the drive | What are stall current, duty cycle, reversing method, conductor size, protection, braking and safe-state behavior? |
| Signals and communications | Carry position, limit, weather, alarm and command information | How are noise, surge, reference potential, galvanic isolation, cable segregation and loss of communication handled? |
| Protective bonding and earthing | Limit touch-voltage risk and provide intended fault paths | How do moving joints, flexible conductors and added metalwork maintain the required protective continuity? |
The word “separate” is sometimes misunderstood as “unrelated.” A controller may read inverter telemetry, receive a site curtailment command, or use an approved auxiliary AC or DC source. Those are engineered interfaces, not shortcuts. A control relay is not automatically an adequate isolator; an ordinary software stop is not automatically an emergency stop; and a circuit breaker selected for one current type is not automatically suitable for another. Component ratings, fault levels and local rules decide.
A PV string is not a convenient general-purpose control supply
PV source voltage changes with temperature, irradiance, module count and operating point. The circuit can remain energized whenever modules receive light, even if the inverter or building supply is switched off. A motor creates starting current, switching transients and possible regenerative or inductive effects that belong in its own designed drive circuit. Improvised taps can defeat connector compatibility, conductor protection, insulation coordination, ground-fault or arc-fault behavior and the documented limits of the inverter input.
What “separate power” can mean in practice
Depending on the approved design, the tracker may use a dedicated protected branch circuit, a listed power supply, a dedicated small PV-and-storage subsystem, or another source suited to the load and environment. The correct choice depends on required movement during grid loss, stow strategy, motor peak current, standby demand, battery temperature, maintenance and what local rules permit.
The supply should have an identified isolation point and a predictable loss-of-power state. If safe stow requires energy after an outage, the stored-energy source and its health monitoring become safety-critical. If motion simply stops safely, the controller still needs to report or retain enough state to recover without an unexpected command.
Protection must cover both electricity and unexpected motion
| Hazard or fault | Design response to verify | Evidence to retain |
|---|---|---|
| Short circuit, overload or motor stall | Appropriate conductors, switching, overcurrent protection and thermal/stall handling | Load data, protective-device coordination and test results |
| Earth fault or exposed conductive part | Protective bonding/earthing and fault disconnection suited to moving metalwork | Continuity and protective-device verification |
| Surge, lightning environment or induced voltage | Risk-based surge protection, routing and bonding strategy | Site assessment and installed-device specifications |
| Limit sensor or position feedback failure | Independent bounds, plausibility checks, timeout or torque/current limit and safe stop | Fault-injection and end-of-travel test record |
| Wind, fire alarm or emergency condition | Defined priority, stow/stop decision and behavior if power or communications disappear | Cause-and-effect matrix and commissioning result |
| Maintenance or rescue | Identifiable isolation for PV, control, drive and stored mechanical energy with prevention of restart | Single-line/control drawings, labels and energy-control procedure |
Protect the existing installation's documented state
Before retrofit, record module, inverter, optimizer, rapid-shutdown, mounting and protective-device models; string layout; conductor routes; commissioning values; permits; warranties; and utility agreements. Movement can change where cables flex, where connectors sit, how shadows cross modules and what maximum irradiance the plane receives. Even when the controller is electrically independent, the mechanical retrofit can still alter the PV installation's operating and safety conditions.
A clean control-integration workflow
- 1. Freeze the as-built record.Survey and document the existing PV system before disconnecting, relocating or adding anything. Resolve undocumented changes first.
- 2. Define the tracker safety functions.List normal movement, limits, wind response, stop, stow, recovery, local/manual control and loss-of-power or loss-of-signal behavior.
- 3. Create separate power and control drawings.Show circuit boundaries, sources, protective devices, isolation points, bonding, terminals, cable types and every deliberate interface with the PV system.
- 4. Review compatibility and approvals.Check equipment instructions, environmental ratings, applicable building/electrical/fire rules, roof engineering, warranties and utility or authority requirements.
- 5. Test faults as well as normal commands.Commission limits, sensor failures, obstructed movement, stalled drive, communication loss, power loss, restart and required stow behavior.
- 6. Hand over service information.Provide labels, drawings, settings, fault meanings, inspection intervals, safe isolation steps, spares and change-control ownership.
For the physical retrofit sequence, continue to Retrofitting Movement Under Existing Panels. For the energy boundary that includes the drive and controller, return to Fixed Panels Versus Solar Tracking. The practical principle is simple: preserve a clear, reviewable PV power path and build the movement system as an intentionally protected machine.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Why Tracker Controls Should Stay Separate From PV Wiring?
1. Freeze the as-built record. Survey and document the existing PV system before disconnecting, relocating or adding anything. Resolve undocumented changes first.
Which assumption can change the conclusion?
Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
What can go wrong if I copy the example directly?
The picture is not permission to leave the inverter untouched. An existing inverter may remain suitable only if the retrofit does not violate its ratings, installation instructions, protection scheme, operating window, warranty or local approval.
How do I verify the result in the real system?
6. Hand over service information. Provide labels, drawings, settings, fault meanings, inspection intervals, safe isolation steps, spares and change-control ownership.
