Is Your Roof Ready for a Solar Retrofit?

Evaluate load paths, space, shading, wind and service access before making changes.

  • By MySunDirection
  • 14 min read
Share this explanation
One-minute answer

You are connecting the subsystems described in “Is Your Roof Ready for a Solar Retrofit?” and need their mechanical, electrical and control interfaces to work together.

Use a decision checklist to screen roof condition, structural load paths, wind, movement clearance, shading, drainage, fire and maintenance access before a solar-motion retrofit proceeds to engineering.

Select or check first
1. Stop for active defects. Resolve leaks, deterioration, damaged PV wiring, loose supports, corrosion and unexplained movement or production faults before designing additions.
Controlling assumption
Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
Top risk
Coordinate roof life with solar life. If the roof will need replacement soon, adding equipment now can create avoidable removal, storage and reinstallation work. Evaluate the roof membrane or covering and its warranty before the retrofit—not after a leak or planned reroof forces the array off.
Proof
7. Issue a go, redesign or no-go decision. Record assumptions and evidence. A no-go roof can lead to a fixed-array improvement, a different roof zone, carport or ground-mounted option instead of an unsafe compromise.
Start with the basics Optional foundation before “Is Your Roof Ready for a Solar Retrofit?”

Solar-energy basics

These terms separate what sunlight supplies, what a photovoltaic system converts and what a meter finally records.

Power and energy
Power is the instantaneous rate of using or producing energy, measured in watts. Energy accumulates over time and is commonly measured in watt-hours or kilowatt-hours.
Irradiance
Irradiance is solar power arriving per unit area, usually expressed in watts per square metre. It is an input condition, not the same thing as electrical output.
Voltage and current
Voltage is electrical potential difference; current is the rate of electric charge flow. Their product gives electrical power for a DC operating point.
Cell, module and string
A cell is one photovoltaic device, a module connects many cells, and a string connects modules in series. A limitation at one level can affect the others through the wiring.
Rated versus real output
Nameplate values come from defined test conditions. Real output changes with sunlight, temperature, angle, shading, wiring, conversion losses and ageing.

How to use this article: Before using a number, identify whether it describes sunlight, DC module output, inverter output or billed energy, and record the time and weather boundary.

On this page
  1. Begin with the roof and array that actually exist
  2. Trace every load from the moving panel into the building
  3. Survey the entire swept envelope, not only the parked footprint
  4. Map shade and horizon changes before promising more energy
  5. A successful retrofit leaves room to inspect, clean, repair and replace

A roof that already carries fixed solar panels is not automatically ready for moving hardware. A retrofit can add mass, change where forces enter the building, increase the array's height and wind exposure, create a swept movement envelope and make cables flex repeatedly. It can also reduce the space available for roof drainage, fire response and maintenance. The first task is therefore a suitability decision—not buying an actuator or choosing a tracking algorithm.

Clearance, structure, shading and safe access are connected decisions. The sketches do not prove that any pictured layout is acceptable or provide construction dimensions.

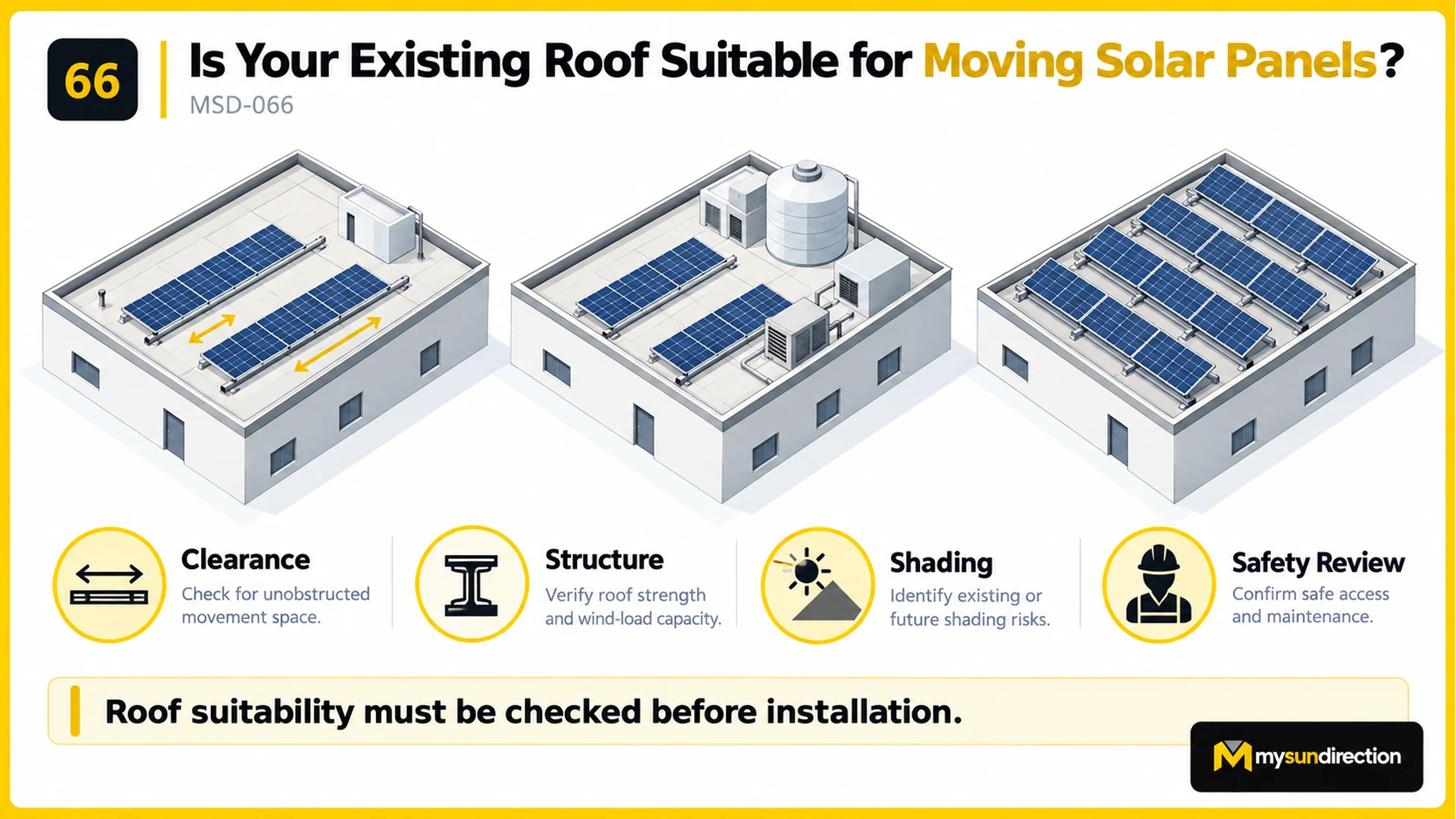

Diagram description

The first roof has two widely spaced movable rows with yellow travel arrows. The second has rows among tanks, ducts and mechanical equipment. The third is densely filled with panel rows. Below, four review themes are labeled clearance, structure, shading and safety review.

Begin with the roof and array that actually exist

Collect as-built drawings, permits, structural calculations, roof warranty information, waterproofing details, module and rack data, electrical single lines, commissioning records and maintenance history. Then compare those records with the site. Undocumented additions, corrosion, cracked or displaced roofing, ponding water, loose supports, sagging, recurring leakage or damaged cabling are reasons to stop and investigate before adding motion.

Missing information is itself a project risk
EvidenceWhat it helps establishRed flag
Roof age, system type and repair historyRemaining service life and compatibility with penetrations or attachmentsRoof replacement likely before the proposed retrofit's service period
Structural drawings and previous calculationsFraming direction, spans, materials and original design assumptionsUnknown framing, unrecorded alterations, visible deflection or deterioration
PV rack and attachment documentationExisting load path, tested system limits and waterproofing methodUnknown fasteners, improvised ballast, corrosion or attachments not tied to intended structure
Electrical drawings and equipment recordsCable routes, disconnects, protection, string layout and warrantiesUnlabeled circuits, unsupported cables, damaged connectors or incompatible parts
Inspection and maintenance recordsKnown leaks, storm damage, faults, production changes and prior repairsRepeated unresolved defects or no credible history

Trace every load from the moving panel into the building

A meaningful structural review follows the load path through module frames, moving supports, pivots, drives, rails or pedestals, attachments, roof deck, joists or trusses, beams, columns and foundations as applicable. Dead weight is only one action. Wind uplift, pressure and torsion change with height, edge location and panel pose. Movement can introduce starting, stopping, imbalance, impact, vibration and fatigue cycles. Snow, rainwater, temperature movement, corrosion and seismic demands may also apply at the site.

Values and combinations must come from applicable engineering standards
QuestionWhy fixed-array evidence may be insufficientRequired outcome
Where do new forces enter?A pivot or actuator can concentrate load differently from the original rackContinuous, verified load path to adequate building structure
What poses occur in wind?Projected area and aerodynamic coefficients vary with angle and roof zoneDefined operating and stow envelope with credible wind sensing/fault assumptions
Can attachments resist repeated cycles?Motion and gusts can introduce fatigue, loosening and wearSuitable connection design plus inspection and maintenance criteria
Does movement affect waterproofing?New supports or changing forces can stress penetrations and membranesCompatible, maintainable flashing/sealing and roof-warranty resolution
What happens at a mechanical stop or fault?Jamming, runaway or impact can create abnormal loadsLimits, stops and structure assessed for credible fault cases

Survey the entire swept envelope, not only the parked footprint

Draw every permitted pose plus tolerances, deflection and a safe separation from people and objects. Check parapets, roof edges, adjacent rows, vents, tanks, antennas, lightning-protection components, drains, skylights, hatches, ductwork and doors. Include flexible cable loops and their minimum bend behavior. A panel that clears a pipe in calm conditions may strike it after structural deflection, wear, installation tolerance or control error.

Clearance survey questions
  • Can all rows reach normal and stow positions without collision or mutual shading beyond the modeled assumption?
  • Are roof drains, overflow paths and gutters visible and serviceable in every relevant pose?
  • Can roofers, electricians, firefighters and mechanical-equipment technicians reach their equipment without entering a crush zone?
  • Do emergency paths, hatches, smoke vents, fall-protection anchors and required setbacks remain usable?
  • Are cables supported and protected throughout travel, including at limits and after repeated cycles?
  • Can a failed row be secured in a serviceable position without blocking the roof?
  • Could loose objects, vegetation or ice enter the mechanism or movement envelope?

Map shade and horizon changes before promising more energy

Trackers change the height and angle of modules, so they can change both external shading and one row's shadow on another. Survey nearby buildings, trees, parapets and rooftop equipment across representative seasons. Include future tree growth or planned construction where known. Compare time-series output using the real travel range and backtracking or collision rules. More movement is not useful when much of the available orientation is blocked, shaded or forced into stow.

A successful retrofit leaves room to inspect, clean, repair and replace

Dense panel coverage may look efficient but can make roof leaks, drains, connectors, bearings, actuators and other rooftop equipment difficult to reach. Plan how modules or moving frames will be secured, how components will be lifted and removed, and where technicians can work without standing on fragile surfaces. Preserve roof drainage and the access/setback provisions required by the local authority and fire service. Maintenance access is part of design, not leftover space.

Roof-retrofit decision gate

  1. 1. Stop for active defects.Resolve leaks, deterioration, damaged PV wiring, loose supports, corrosion and unexplained movement or production faults before designing additions.
  2. 2. Confirm remaining roof life.Coordinate the retrofit period with planned roof repair or replacement and the roof manufacturer's or contractor's warranty conditions.
  3. 3. Commission structural assessment.Provide the actual moving geometry, weights, centers of gravity, actuator forces, stops, operating/stow logic and site hazards—not only a product brochure.
  4. 4. Prove the spatial envelope.Model every pose, row interaction, tolerance, cable path, drain, rooftop obstruction, access route and required setback.
  5. 5. Recalculate solar and electrical behavior.Evaluate shading, irradiance, temperature, string limits, clipping, protection, flexible wiring and the expected net-energy benefit.
  6. 6. Resolve approvals and responsibility.Identify design authority, permits, utility and fire requirements, warranties, inspection ownership and who maintains the mechanism after handover.
  7. 7. Issue a go, redesign or no-go decision.Record assumptions and evidence. A no-go roof can lead to a fixed-array improvement, a different roof zone, carport or ground-mounted option instead of an unsafe compromise.
Mark unknowns as unknown—never silently pass them
Decision areaReady meansEscalate or stop when
Roof condition and lifeCondition, repair plan, waterproofing and service period are compatibleLeaks, deterioration, uncertain deck or near-term replacement
Structure and windSite-specific load path and credible poses/faults are verifiedOnly generic product ratings or static weight have been checked
Clearance and accessSwept envelope, drainage, fire and maintenance routes remain workableAny required access depends on moving a failed or unpowered mechanism
Solar caseTime-series model shows useful net benefit with real constraintsDecision relies on a universal gain percentage or a noon illustration
Electrical and controlsFlexible wiring, protection, isolation and safe fault behavior are documentedExisting string wiring or inverter is assumed suitable without review
Lifecycle ownershipInspection, maintenance, spares, monitoring and change control have ownersNo one is responsible after installation

If the roof passes this screening, Retrofitting Movement Under Existing Panels explains the staged engineering process. Why Tracker Controls Should Stay Separate From PV Wiring then defines the electrical and control boundary. Readiness is not one yes-or-no visual impression; it is a documented chain from roof condition to load path, space, energy, protection and maintainability.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Is Your Roof Ready for a Solar Retrofit?

1. Stop for active defects. Resolve leaks, deterioration, damaged PV wiring, loose supports, corrosion and unexplained movement or production faults before designing additions.

Which assumption can change the conclusion?

Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.

What can go wrong if I copy the example directly?

Coordinate roof life with solar life. If the roof will need replacement soon, adding equipment now can create avoidable removal, storage and reinstallation work. Evaluate the roof membrane or covering and its warranty before the retrofit—not after a leak or planned reroof forces the array off.

How do I verify the result in the real system?

7. Issue a go, redesign or no-go decision. Record assumptions and evidence. A no-go roof can lead to a fixed-array improvement, a different roof zone, carport or ground-mounted option instead of an unsafe compromise.
