Retrofitting Movement Under Existing Panels

Adding movement below an installed solar array sounds simpler than replacing the array, but it changes the job of nearly every supporting part. A fixed rack holds modules at one geometry. A moving rack must carry the same modules through a safe range of angles, transfer changing forces into the roof, protect moving cables and stop predictably when a sensor, motor or power supply fails. The first question is therefore not ‘Which actuator fits?’ but ‘Can this particular roof, array and electrical system accept a new moving load path?’

What the add-on concept is trying to do

A retrofit might place pivots, bearings, linkages or extendable supports between an existing module rail and the roof attachment below it. One or more driven points create motion; other supports guide or follow that motion. A controller requests a target angle, while position feedback and end limits keep travel inside the verified envelope. The objective could be occasional seasonal adjustment, a maintenance position or automatic tracking. Those are different duty cycles and should not be treated as the same machine.

Open full image

Diagram description

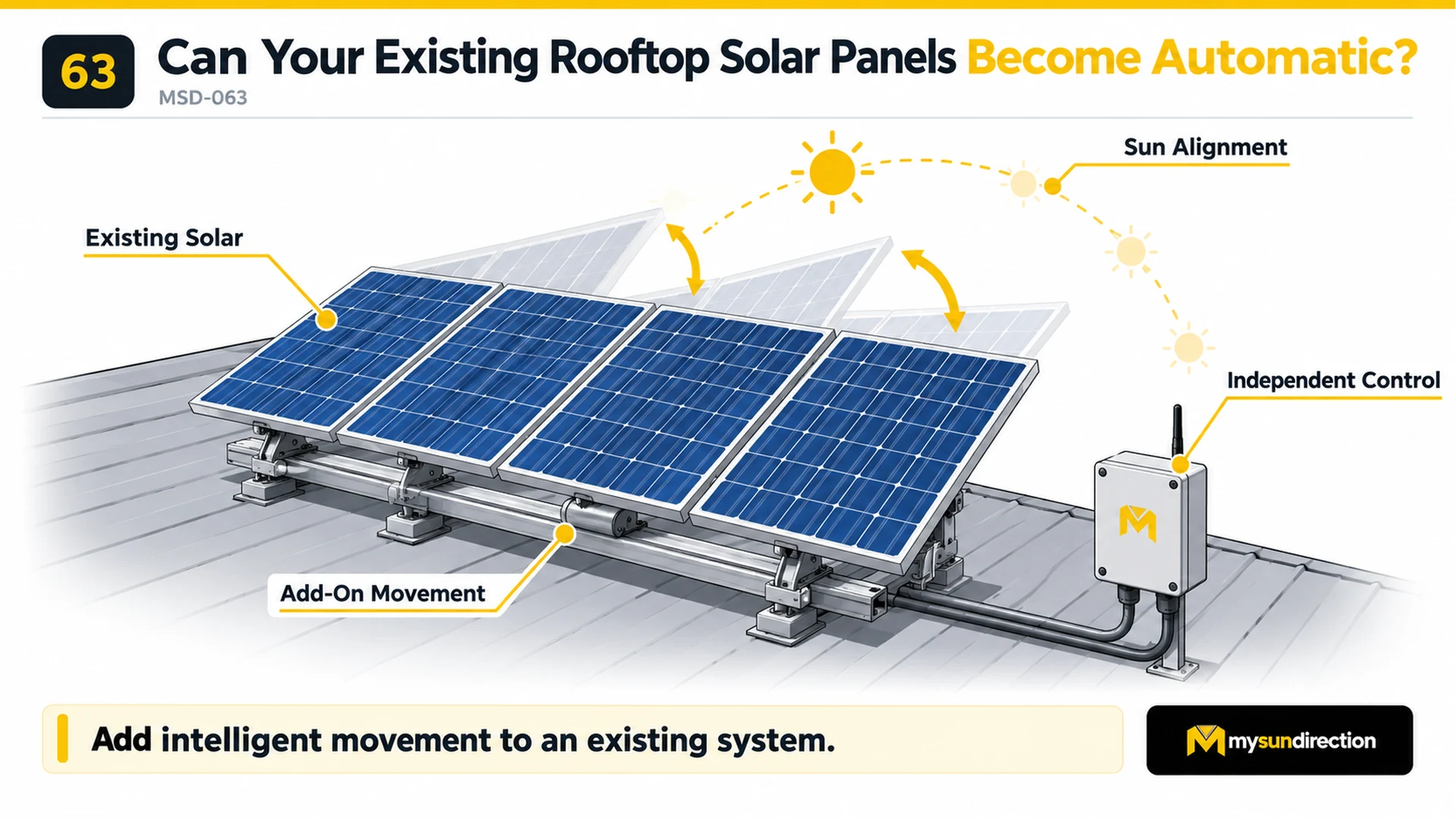

Four blue modules sit above a roof on a long support rail. Translucent module positions and curved arrows suggest rotation toward changing sun positions. Callouts identify the existing solar array, add-on movement, sun alignment and an independent control box connected by conduit.

Keeping the movement controller separate from the inverter can clarify responsibilities, but ‘independent’ must not mean uncoordinated. The controller still needs defined electrical isolation, earthing and bonding, weather protection, safe access, alarm behavior and an agreed response to high wind, fire service activity, maintenance and loss of communications. Any interface with the PV inverter or site monitoring must be documented rather than inferred from a drawing.

Begin with evidence about the existing installation

1. 1. Reconstruct the installed baseline.Collect as-built drawings, module and racking data sheets, roof plans, attachment details, warranties, permits, inspection records and past repair history. Field-measure what cannot be verified from documents.
2. 2. Inspect condition before adding motion.Look for corrosion, loose or substituted fasteners, cracked members, damaged module frames, roof leakage, aged sealants, cable abrasion, blocked drainage and signs that the rack has shifted. A retrofit must not hide an existing defect.
3. 3. Define the moving boundary.State exactly which modules, rails and supports will move; where fixed structure ends; and how force crosses each pivot, bearing, fastener, base plate, roof attachment and building member.
4. 4. Confirm operating constraints.Map parapets, neighbouring rows, tanks, walkways, drains, lightning protection, roof hatches, firefighting access, shade and maintenance reach across every proposed angle—not only the parked position.
5. 5. Obtain written compatibility decisions.Ask module, rack, roof and waterproofing suppliers whether the proposed interfaces and moving duty affect their listed installation method or warranty. Silence is not approval.

Movement changes geometry and therefore loading

At a new angle, the array presents a different projected area to the wind and moves its centre of mass relative to the supports. Reactions can change direction and magnitude as the mechanism travels. Design review must consider dead load, maintenance load, wind pressure and suction, local turbulence near roof edges and obstructions, applicable earthquake effects, thermal movement and the dynamic effects of starting, stopping, backlash or an abrupt jam. The governing position may be an intermediate angle rather than the normal operating or stow position.

Follow the load continuously: module frame to clamp, clamp to moving rail, rail to joint or linkage, linkage to driven and passive supports, base plate to roof attachment, attachment to the building structure. Every interface needs strength and stiffness as well as suitable fatigue, corrosion and loosening controls. Added bracing can strengthen one direction while unintentionally restraining the movement needed elsewhere, so each modification must be checked as part of the whole assembly.

Driven and passive supports must share one motion

Open full image

Diagram description

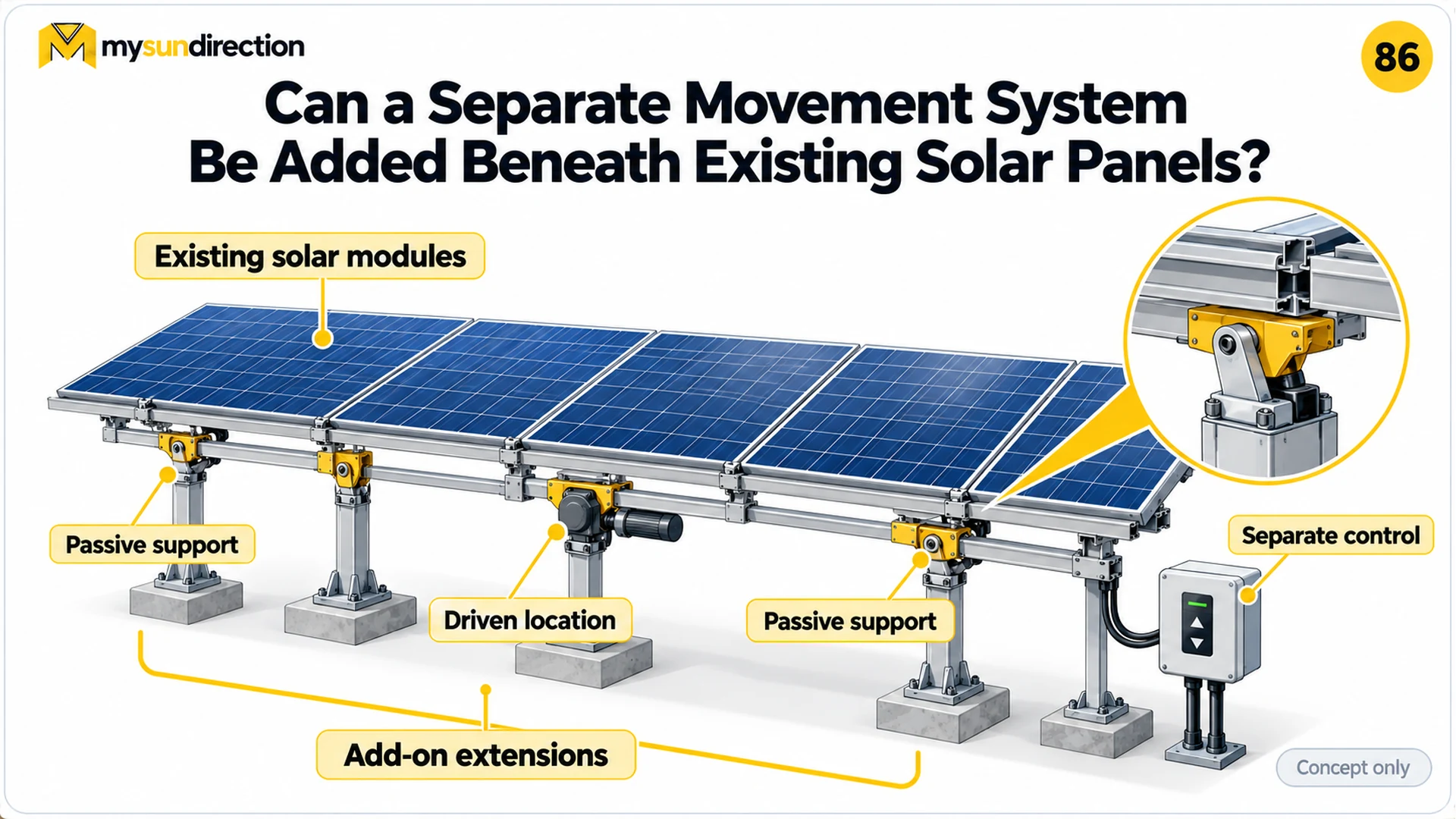

A long module row rests on multiple vertical supports. Yellow callouts identify passive supports at several positions, a central motor-driven location, add-on extensions and a separate control enclosure. A circular inset enlarges a pivot connection below a rail, and a label marks the image as concept only.

A driven support supplies motion; a passive support follows while carrying its assigned load. For the row to move without binding, their pivot axes, lengths and attachment points must describe compatible paths. Roof unevenness, rail deflection, installation tolerance and joint play can make nominally identical supports reach different positions. If the structure is too rigidly constrained, the actuator may fight the frame instead of moving it. If it is too loose, wind-induced movement, impact and alignment error may increase.

Actuator sizing begins only after load cases and geometry are known. The required force changes with the lever arm and array angle; starting friction, imbalance, gust load and efficiency add to the static value. A motor label should not be selected from array weight alone. The designer must also check holding capacity with power removed, backlash, stroke, speed, duty cycle, environmental rating, temperature, corrosion, expected cycles, accessible replacement and the consequence of a stalled or disconnected support.

Open full image

Diagram description

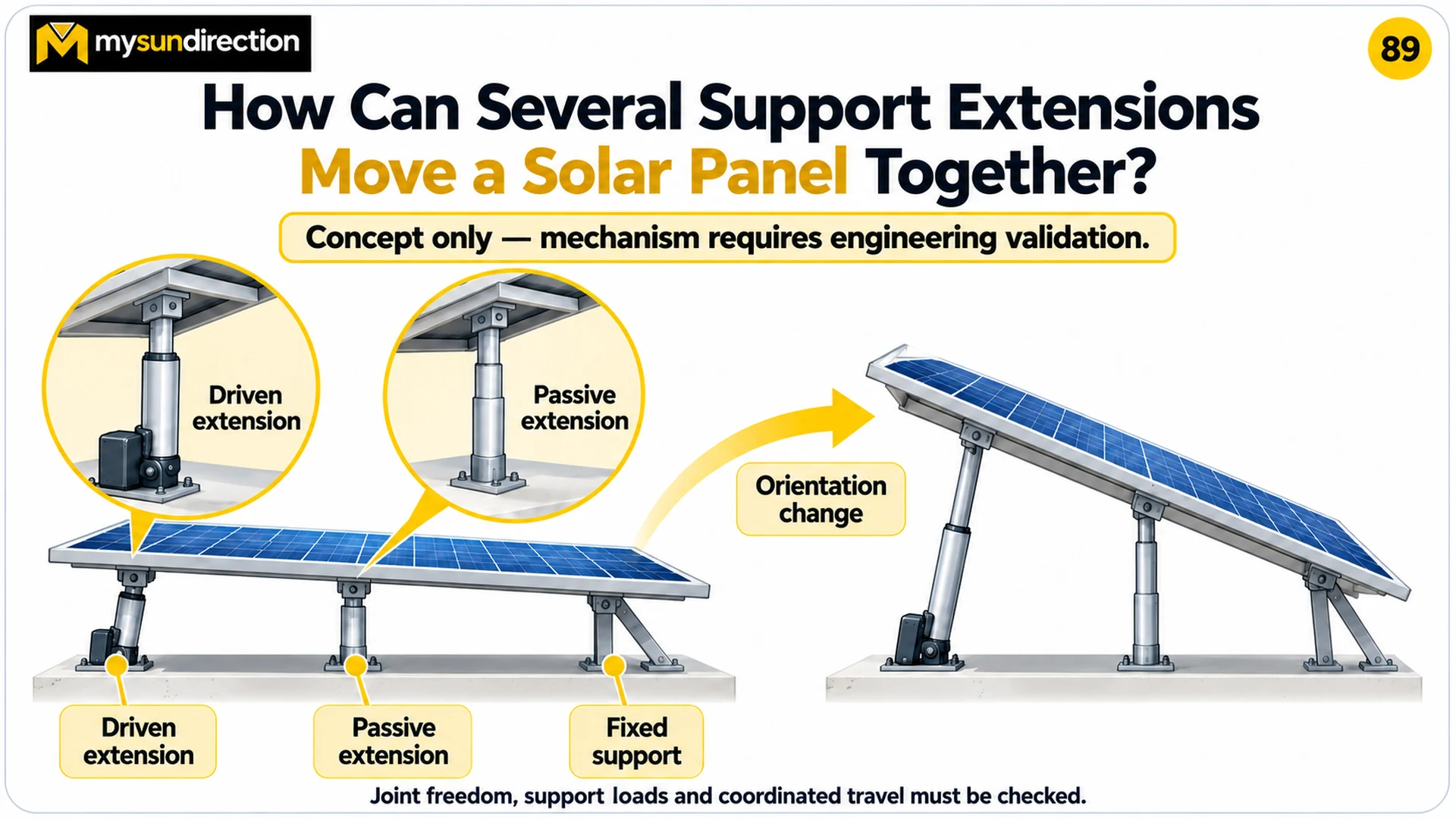

The left view shows a horizontal module supported at three points labelled driven extension, passive extension and fixed support. Insets distinguish driven and passive telescoping posts. An arrow leads to a tilted right-hand view labelled orientation change, while text warns that the mechanism requires engineering validation.

The safe envelope includes cables, people and the roof

PV conductors that were secure on a fixed rack may become too short, rub a sharp edge or form a water-trapping loop after rotation. Cable routing needs sufficient controlled travel at both extremes, the permitted bend radius, UV- and weather-suitable supports, protection from pinch and abrasion, and separation from hot or moving parts. Equipment bonding must remain effective across joints; a bearing or painted hinge is not automatically a reliable protective bonding path. Electrical work must be isolated and tested by qualified personnel.

Clearance should be checked with a swept-volume model: the entire space occupied by modules, rails, actuators, cables and maintenance tools from one limit to the other. Include deflection and reasonable tolerances rather than drawing a zero-clearance line. Verify roof drainage, membrane protection, penetrations, edge distances, walkways and safe access in normal, stowed and failed positions. A mechanism that blocks a drain or traps a technician is not acceptable even if it tracks accurately.

Control must favour a safe state, not maximum movement

A controller should know commanded position and independently detect whether the mechanism actually arrived. Depending on the design, evidence can include position sensors, end-limit switches, motor current, travel time and disagreement between supports. Limits must prevent ordinary software commands from driving beyond verified geometry. An accessible isolation method, emergency stop where required, controlled manual recovery and clear local status reduce the chance that maintenance begins while automatic movement is still possible.

Faults that need a defined response

• Loss of grid or control power while the array is between positions.
• One support stops while another continues to move.
• Position feedback disagrees with a limit switch or expected travel time.
• A wind, rain or other environmental sensor fails or sends implausible data.
• Communications fail between a central command and a local drive.
• An obstruction, jam or high motor current appears during travel.
• The planned safe position cannot be reached before severe weather arrives.

High-wind stow deserves site-specific engineering. The least-loaded position is not universally horizontal, and a controller cannot compensate for an under-designed structure. Wind thresholds, sensor locations, response time, backup energy, latching or self-locking behavior and recovery after the event all belong in the design. The owner also needs a fallback plan for a mechanism that cannot stow, including who receives the alarm and what can be done safely before conditions worsen.

Prove coordinated travel before relying on it

1. 1. Review the design independently.Check calculations, drawings, interfaces, failure cases, applicable approvals and the manufacturer's permitted module attachment before roof work begins.
2. 2. Test representative hardware safely.Use a controlled prototype or test assembly to measure travel, force, deflection, alignment, repeatability, backlash, limit operation and cable behavior without exposing people or property to an unverified mechanism.
3. 3. Inspect installation hold points.Record concealed attachments, specified fasteners and torque, corrosion protection, waterproofing, cable supports, bonding and sensor locations before access is covered.
4. 4. Commission normal movement.Move in controlled increments through the approved range. Compare each support's actual position, listen for binding, measure relevant current or force and inspect clearance at every critical angle.
5. 5. Challenge faults and protective actions.Demonstrate end limits, obstruction detection, loss of feedback, loss of communications, power interruption, emergency isolation, manual recovery and weather-stow behavior under a written test plan.
6. 6. Establish a new baseline.Hando over as-built drawings, settings, accepted test results, safe operating limits, training, spares and inspection intervals. Recheck fasteners, alignment, cables, joints and roof interfaces after an agreed bedding-in period.

When should the idea stop at the feasibility stage?

A no-go decision can be the best engineering outcome. Warning signs include missing structural information that cannot be recovered, a roof near the end of its service life, active leakage or corrosion, incompatible module clamps, inadequate attachment capacity, no maintainable cable route, unsafe access, insufficient clearance, an untestable stow strategy or a benefit too small to justify added failure modes and maintenance.

Alternatives may include keeping the array fixed, correcting shade or soiling, replacing selected support hardware, using manual seasonal adjustment on an engineered rack, relocating modules during roof renewal or applying a tracking concept only to a new structure designed for it. Feasibility is a comparison of complete options, not a commitment to force movement beneath every existing panel.

After technical feasibility is established, compare measured energy, maintenance and risk rather than assuming movement pays for itself. The method in Calculating Solar Tracking Cost and Payback provides that decision structure. For assessment, installation, monitoring and maintenance as one controlled process, continue with A Practical Solar Automation Service Lifecycle.
