Solar Heat, Concentrated Sunlight and Wind Positioning

Moving a renewable-energy device can mean three very different jobs. A heliostat turns a mirror so reflected sunlight continues to hit a distant receiver. A trough collector rotates so its focal line remains on a receiver tube that carries heat. A wind turbine yaws its nacelle toward the wind and pitches its blades to manage aerodynamic force. The words tracking and positioning do not make these systems interchangeable.

Moving mirrors can concentrate direct sunlight

In a power-tower concentrating solar-thermal system, many independently positioned mirrors—heliostats—reflect sunlight toward one receiver. Each mirror occupies a different place in the field, so each needs a different orientation at the same instant. As the apparent solar position changes, the controller updates both axes so the reflected beam remains near its assigned receiver aim point.

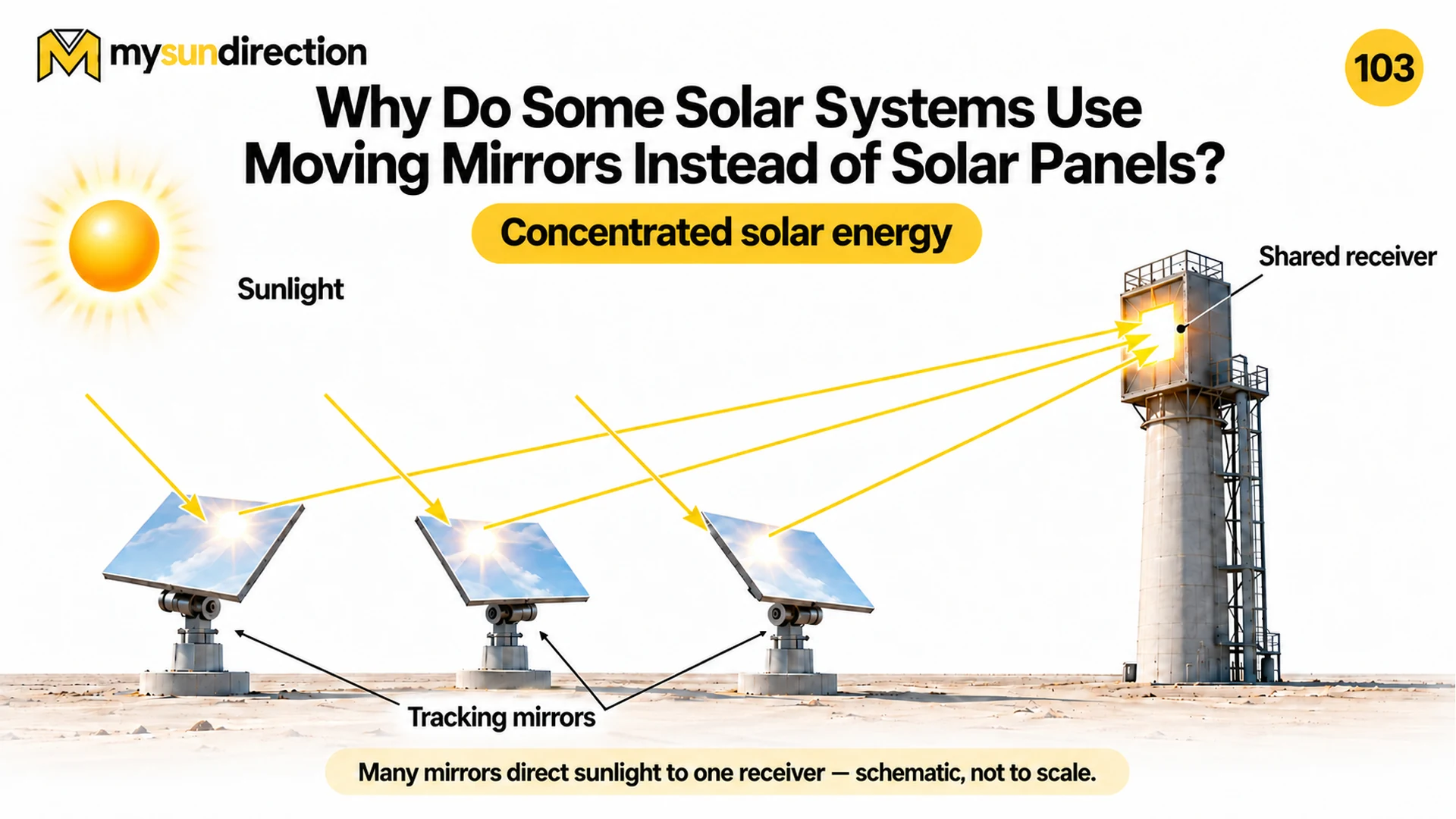

Open full image

Diagram description

Sunlight arrows reach three mirrors mounted on two-axis bases. Yellow reflected rays from the separated mirrors converge on a glowing receiver at the top of a tower. The footer identifies the diagram as schematic and not to scale.

The optical rule is reflection: the surface normal bisects the angle between the incoming ray and the desired outgoing ray. A tracker therefore needs solar position, mirror location, receiver geometry and calibrated knowledge of its own axes. Small angular errors can become large miss distances across a long optical path, so foundation alignment, encoder zero, mirror shape and wind deflection matter.

At the receiver, concentrated radiation becomes heat in a fluid, gas or solid medium. That heat can supply a power cycle, an industrial process or thermal storage. A power-tower CSP plant is therefore not a field of photovoltaic panels: the primary conversion is sunlight to thermal energy, followed—when electricity is wanted—by a heat engine and generator.

Solar thermal can deliver heat instead of electricity

Many industrial operations need thermal energy for washing, drying, pasteurizing, cooking, evaporation, steam or chemical transformation. A solar-thermal plant can heat a circulating fluid and transfer that energy through a heat exchanger into the plant's process loop. The useful product at that boundary is heat at a required temperature and rate—not electrical kilowatt-hours from a PV inverter.

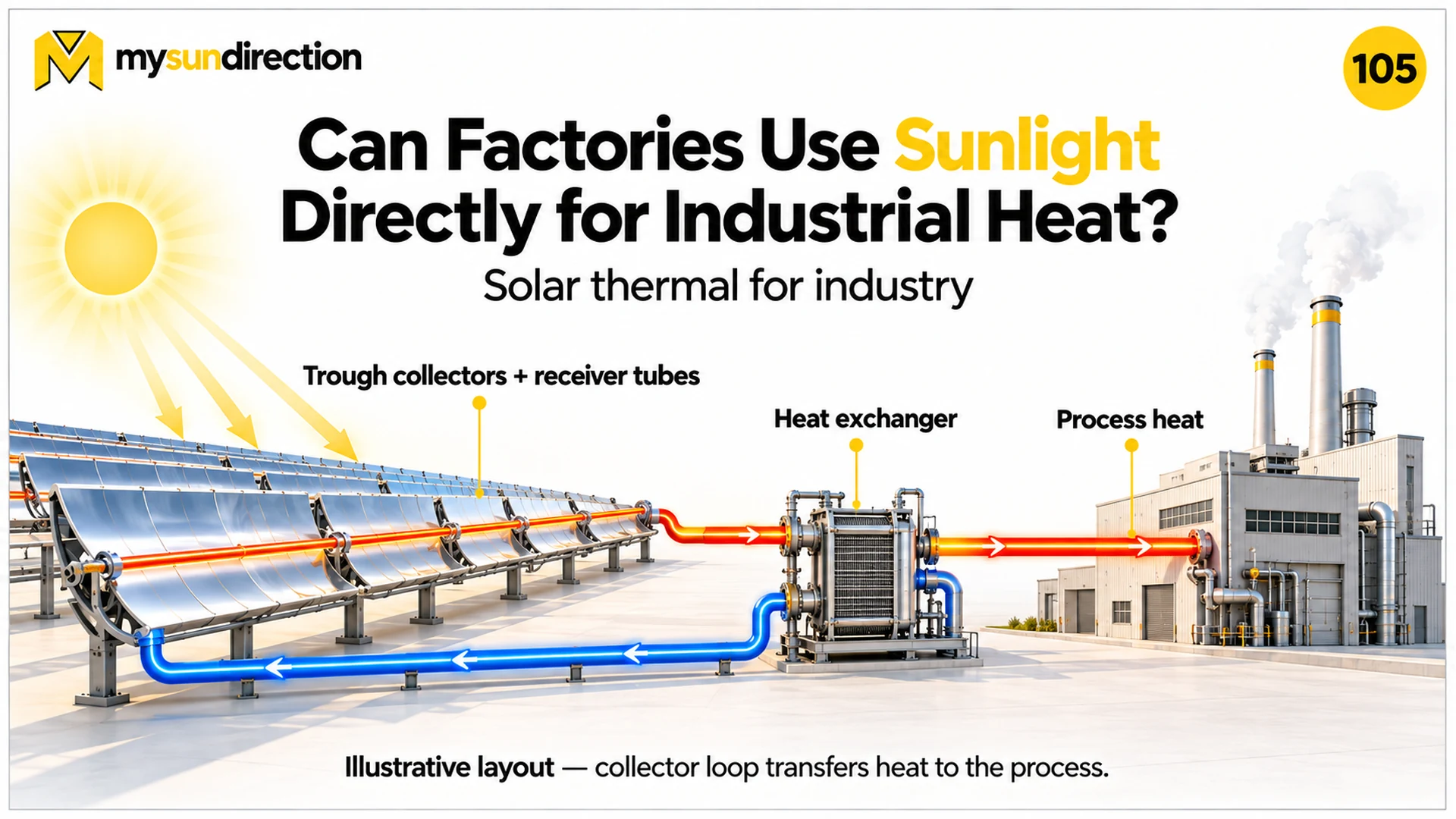

Open full image

Diagram description

Sunlight reaches rows of curved trough collectors with receiver tubes. A hot red line carries fluid toward a heat exchanger, another hot line continues toward a factory process, and a cool blue return line flows back to the solar field.

Sensible heat carried by a fluid

Q̇ = ṁ × cp × (Tout − Tin)

This steady-state relationship helps connect measured flow and temperature to useful thermal power. Real systems also account for changing fluid properties, heat loss, pump energy, storage, heat-exchanger effectiveness and transients.

Q̇

rate of thermal energy transfer, such as kilowatts thermal

ṁ

mass flow rate of the heat-transfer fluid

cp

specific heat capacity at the relevant conditions

Tin/Tout

fluid temperature before and after the measured boundary

Example

If flow or temperature rise falls, delivered thermal power falls even when mirrors appear correctly positioned. Instrument uncertainty and the exact measurement boundary must be included before diagnosing the cause.

A process-heat design starts with the load profile: temperature level, pressure, heat-transfer medium, daily and seasonal schedule, minimum controllable rate and consequences of interruption. The solar field can be coupled directly or indirectly, and storage or a conventional heat source may cover timing gaps. The control system must coordinate solar availability with process demand without exceeding material, fluid or equipment limits.

Wind yaw and blade pitch control different motions

A common upwind horizontal-axis wind turbine has a nacelle on top of the tower and blades attached to a hub. Yaw rotates the nacelle and entire rotor about the tower's vertical axis so the rotor is oriented appropriately to the wind direction. Pitch rotates a blade about its own long axis, changing the angle at which the air meets that blade.

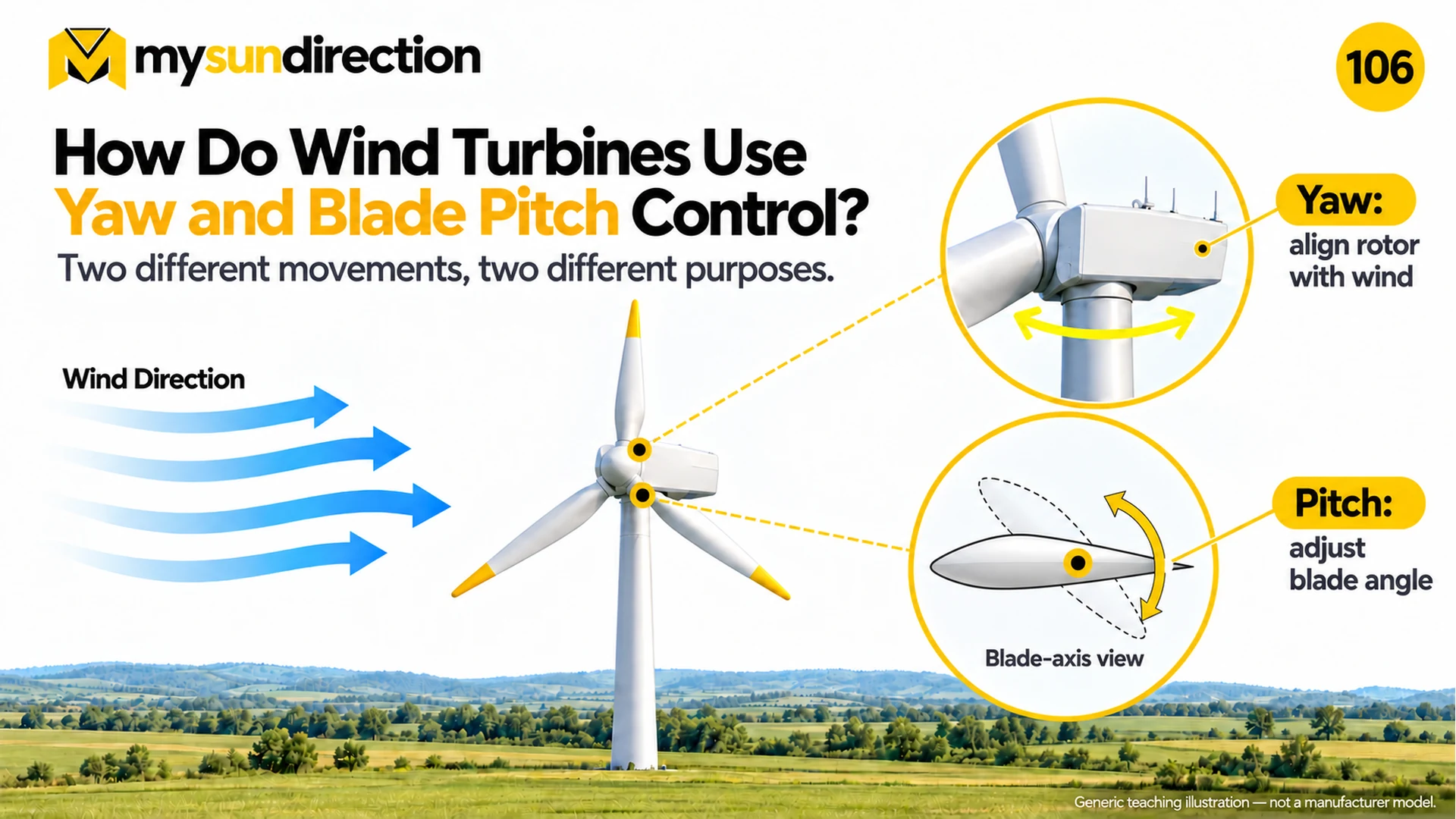

Open full image

Diagram description

Wind-direction arrows approach a three-bladed turbine. The upper inset shows the nacelle rotating left or right around the tower for yaw. The lower blade-axis inset shows one blade rotating about its length for pitch. A footer identifies it as a generic teaching illustration.

Available wind power changes rapidly with speed

Pwind = ½ × ρ × A × v³; captured power = Pwind × Cp

Pitch, yaw error, blade aerodynamics and operating state influence the power coefficient and loads. This relationship is not a permission to extrapolate a turbine's output without its certified power curve and site-specific wind distribution.

ρ

air density

A

rotor swept area

v

wind speed at the relevant rotor condition

Cp

dimensionless aerodynamic power coefficient for the operating point

Example

Because speed is cubed, gusts can change available aerodynamic power and structural loading quickly. Controllers use pitch and other actions to keep the machine within its operating envelope rather than always maximizing instantaneous capture.

A yaw controller usually avoids chasing every small directional fluctuation. Excessive movement consumes energy, wears drives and can twist cables; insufficient correction creates yaw error and asymmetric loading. The manufacturer's controller therefore uses filtered measurements, limits and operating-state logic. Pitch control likewise balances energy capture with rotor-speed, power, load, noise and shutdown requirements.

One comparison framework for all three systems

1. 1. Define the target.Name the receiver point, focal line, wind alignment or aerodynamic state and its permissible error.
2. 2. Define the resource measurement.Establish solar position and direct irradiance, or wind direction and speed, with sensor location and data-quality limits.
3. 3. Model geometry and dynamics.Include axes, clearances, backlash, structural deflection, rate limits, loads and interaction with adjacent equipment.
4. 4. Design normal and abnormal states.Specify startup, tracking, hold, defocus or feather, stow, shutdown, manual recovery and loss-of-sensor, power or communication behavior.
5. 5. Verify the energy boundary.Measure receiver heat, process heat or turbine electrical/mechanical performance—not only a position command.
6. 6. Validate protection independently.Test limits and safe responses with controlled conditions and qualified oversight before relying on automatic operation.

Where thermal storage fits—and where it does not

CSP and solar process-heat systems can store thermal energy in an appropriate medium and release it later through a heat exchanger or power cycle. Storage temperature, capacity, heat loss, pumps, freeze protection and compatible materials are part of the design. The receiver still needs sunlight to charge that store.

Yaw and pitch do not store wind energy. They manage how a turbine interacts with the current wind and its operating limits. Electrical storage may be connected elsewhere in a wind plant, but it is a separate subsystem with its own conversion and controls.

All three systems need a disciplined operating lifecycle. See A Practical Solar Automation Service Lifecycle for assessment, validation, commissioning and maintenance gates. For the difference between changing resource and stored or grid-supplied energy, read Solar Generation During Day, Night and Bad Weather.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Solar Heat, Concentrated Sunlight and Wind Positioning?

1. Define the target. Name the receiver point, focal line, wind alignment or aerodynamic state and its permissible error.

Which assumption can change the conclusion?

Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.

What can go wrong if I copy the example directly?

Concentrated light and hot fluids create serious hazards. Receiver flux, glare, hot surfaces, pressure, fire, fluid chemistry, pumps, valves and stored thermal energy need engineered protection. Safe aiming, defocus, shutdown, drainage and maintenance isolation are part of the plant—not optional software features.

How do I verify the result in the real system?

6. Validate protection independently. Test limits and safe responses with controlled conditions and qualified oversight before relying on automatic operation.
