Uniform low light and partial shade are different
What a bypass diode can do
Why partial shade can create several power peaks
Heat changes voltage more than current
A practical shade-and-temperature review

Shade and heat both reduce useful photovoltaic output, but they act in different ways. Less light mainly reduces the generated current. Higher cell temperature usually causes a small current increase but a larger voltage decrease, so maximum power falls. Uneven shade adds a third problem: cells wired together no longer have matching electrical conditions.

Uniform low light and partial shade are different

Why the shape of the shadow matters
Condition	What the cells experience	Typical electrical consequence
Uniformly lower irradiance	Most cells receive a similar reduction in light	Available current and power fall; the curve generally keeps one dominant knee
Partial shade	Some cells or substrings receive much less light than others	Series-current mismatch can create steps in the I–V curve and more than one peak in the P–V curve
Moving or patterned shade	The mismatch changes with sun position, clouds, vegetation or nearby structures	Bypass states and the best operating voltage can change over time

Current through series-connected cells has to be common to the whole path. A shaded cell can generate less photocurrent than its brighter neighbours. If the connected system tries to push the brighter cells' current through that weak region, the shaded region can be driven into reverse bias and dissipate power as heat. This is one route to a hot spot, although cell construction, shadow geometry and operating conditions decide the actual temperature.

What a bypass diode can do

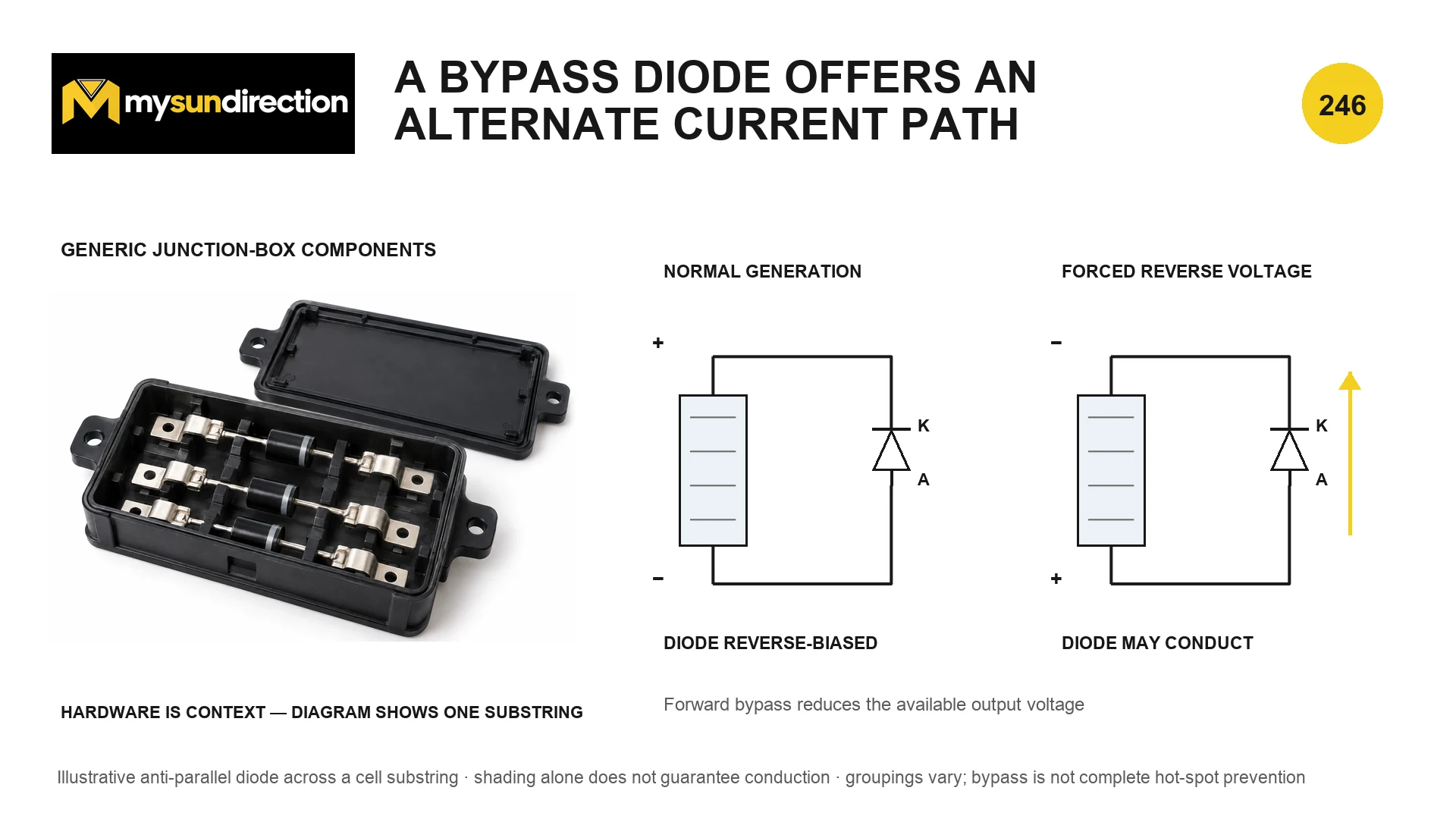

Open photovoltaic junction box beside two circuit sketches showing a bypass diode reverse-biased during normal generation and able to conduct when a cell substring is forced into reverse voltage. — A bypass diode is connected across a cell substring. It is normally off; under sufficient reverse voltage it may carry string current around that substring.

Manufacturers commonly divide a module into cell substrings and place a bypass diode across each substring. During normal generation the diode is reverse-biased, so current flows through the cells. If mismatch forces enough reverse voltage across a substring, its diode can become forward-biased and provide an alternate path. The string can continue operating without forcing all current through that weak substring.

Three limits of the word bypass

It bypasses a group, not necessarily one cell.The protected grouping varies with module architecture; the junction-box drawing is only an example.
It does not preserve full module power.When a substring is bypassed, that substring no longer contributes its normal operating voltage, and the diode also has loss.
Shade does not guarantee conduction.Whether the diode turns on depends on the complete circuit and operating point, not on the visual presence of a shadow alone.

Why partial shade can create several power peaks

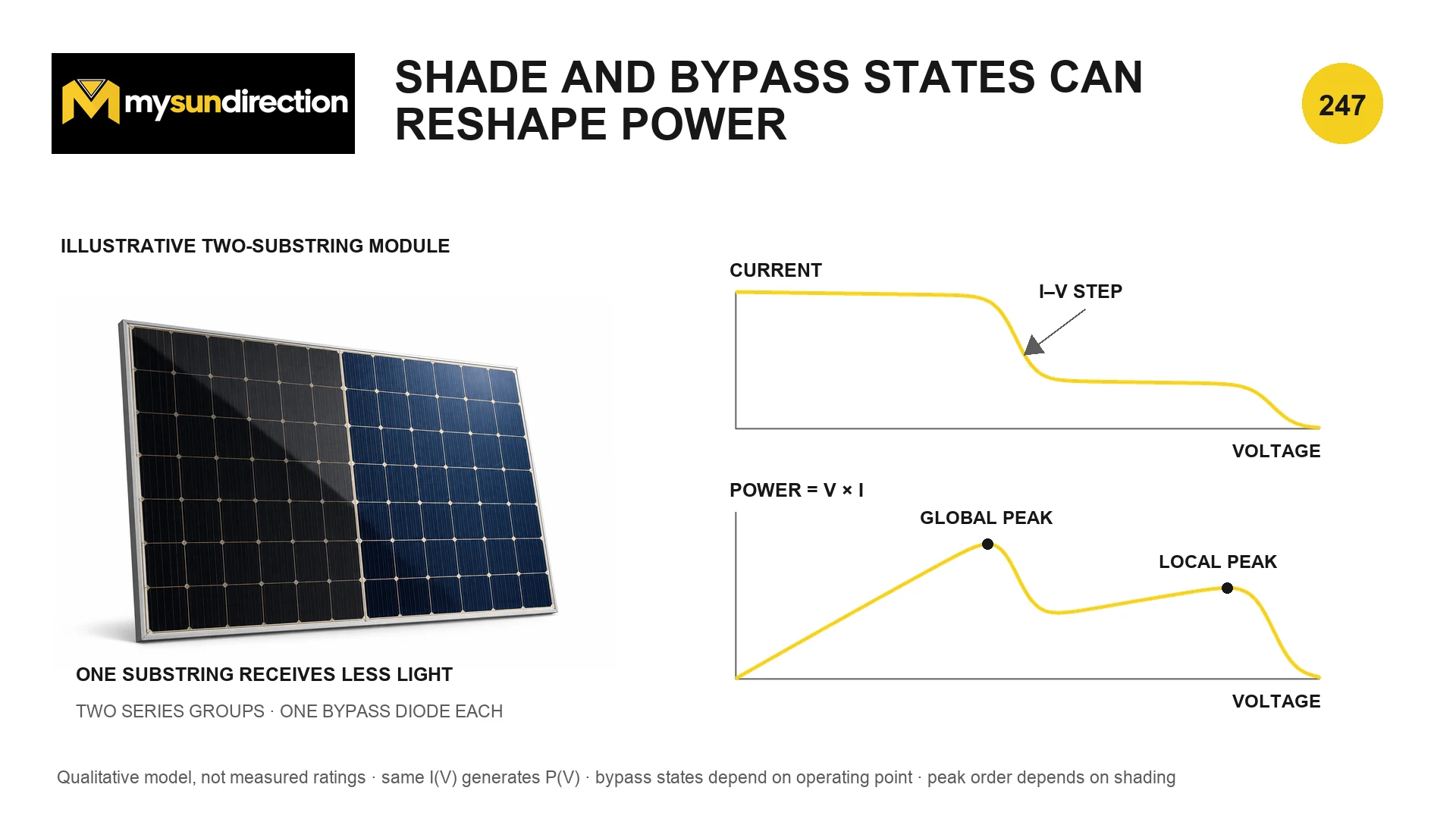

Partly shaded two-substring photovoltaic module with a stepped current-voltage curve and a power-voltage curve containing a larger global peak and a smaller local peak. — A qualitative example: mismatch and bypass transitions can reshape the I–V curve, so the P–V curve can contain multiple maxima.

The current-voltage curve records the current available at each terminal voltage. When a bypass state changes, that curve can develop a step. Because power equals voltage multiplied by current, a stepped I–V curve can produce several hills in the power-voltage curve. The highest hill is the global maximum; any smaller hill is a local maximum.

This matters to maximum-power-point tracking. A controller that searches only near its present voltage can settle on a local peak while a larger peak exists elsewhere. A controller with a global-search strategy may find the larger peak, but its success still depends on input range, algorithm, changing conditions and the connected array. Power electronics cannot recover light that never reached the cells, and their own conversion losses must be included in a fair comparison.

Why module orientation can change the result of one shadow

A narrow shadow can cross cells within one substring or touch cells belonging to several substrings, depending on cell interconnection and module orientation. Those two cases can activate different electrical paths even when the visible shaded area is similar. Half-cut cells, split junction boxes and other modern layouts add more possible groupings.

For that reason, a shade study should use the exact module circuit and its installed orientation. A generic rectangle with one percentage shaded is not enough for a defensible energy estimate.

Heat changes voltage more than current

Cell temperature is not the same as air temperature. In strong sun, the cells inside a module can run well above ambient air temperature; wind, mounting clearance, roof temperature and module construction all affect that difference. Temperature coefficients on the datasheet describe how an electrical quantity changes relative to a reference cell temperature.

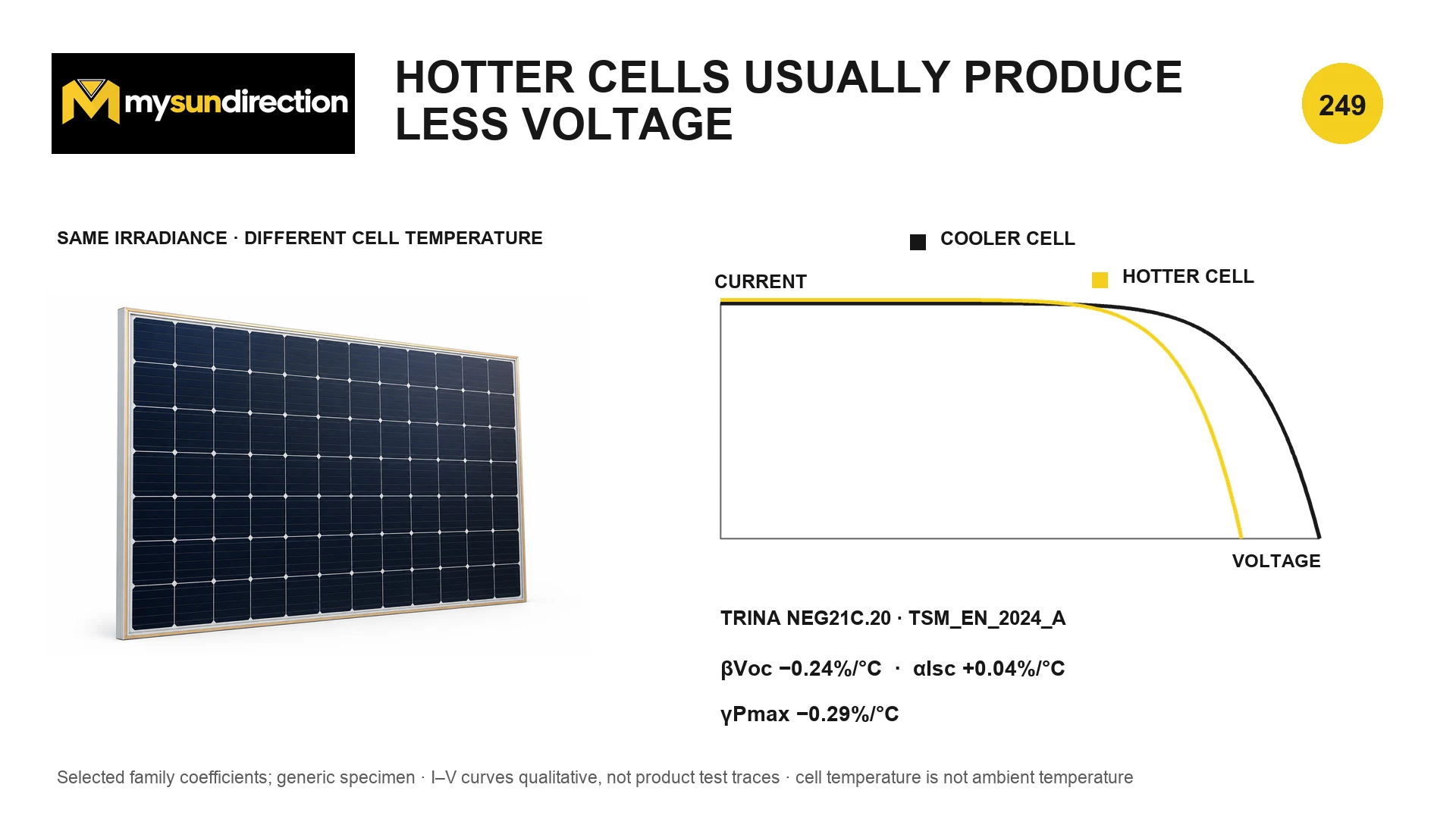

Solar module beside qualitative current-voltage curves showing a hotter cell with lower voltage, plus example Trina TSM-NEG21C.20 temperature coefficients for voltage, current and maximum power. — At the same irradiance, a hotter cell usually has slightly more short-circuit current but appreciably less voltage; maximum power generally falls. The printed coefficients apply only to the named module family and datasheet version.

First-order temperature estimate

ΔX% ≈ γX × (Tcell − Tref)

Use the coefficient for the exact quantity and module. This linear estimate is useful near the datasheet reference condition; it does not replace the manufacturer’s full limits or a validated energy model.

ΔX%: approximate relative change in voltage, current or power
γX: the relevant datasheet temperature coefficient in percent per degree Celsius
Tcell: cell temperature in degrees Celsius
Tref: datasheet reference cell temperature, commonly 25 °C at standard test conditions

Example

For the illustrated module’s γPmax of −0.29%/°C, a cell-temperature rise from 25 °C to 45 °C gives about −0.29 × 20 = −5.8% in maximum power, with irradiance and other conditions held fixed. This is a component-level estimate, not an annual-energy prediction.

What the signs usually mean for a silicon module as cells get hotter
Coefficient	Quantity	Typical direction with rising cell temperature
γPmax	Maximum power	Falls; normally negative
βVoc	Open-circuit voltage	Falls; normally negative
αIsc	Short-circuit current	Rises slightly; commonly positive

A practical shade-and-temperature review

Map shadows over time.Include parapets, tanks, antennas, trees, neighbouring buildings and row-to-row shade across relevant seasons.
Identify the exact module circuit.Use the manufacturer’s cell layout, substring and bypass-diode documentation—not a generic panel sketch.
Check electrical grouping.Record which modules share a series string and MPPT input, plus their tilt and orientation.
Model temperature realistically.Use local weather, mounting configuration and the correct module coefficients; do not substitute ambient temperature for cell temperature.
Compare complete systems.If optimisers, microinverters or a different string layout are considered, include their limits, conversion losses, reliability, maintenance and cost.
Verify after installation.Commission strings and monitor performance. Investigate repeated underperformance, alarms, damaged modules or unusual heating with qualified test methods.
