How MPPT Finds Useful Solar Power

A lit photovoltaic array does not offer one fixed combination of voltage and current. Its connected load helps determine where it operates on its current–voltage curve. Maximum-power-point tracking, usually shortened to MPPT, is the electronic control process that moves that operating point and looks for a combination that delivers high DC power under the conditions present now.

One array can have many operating points

An I–V curve plots terminal current against terminal voltage for a particular irradiance, cell temperature and electrical configuration. Near short circuit, voltage is almost zero and current is high. Near open circuit, current is almost zero and voltage is high. Both endpoints deliver almost no useful power because one factor in voltage multiplied by current is close to zero. Somewhere between them, the product reaches a maximum.

Power at one operating point

P = V × I

Voltage and current must be measured at the same instant and at the same operating point. Calculating the product at many voltages produces the power–voltage, or P–V, curve.

P

DC power in watts (W)

V

PV terminal voltage in volts (V)

I

PV terminal current in amperes (A)

Example

At 36 V and 8 A, the array delivers 288 W. At 30 V and 9 A, it delivers 270 W. The larger current alone is not the better point; the simultaneous product is what matters.

The controller closes a measurement-and-adjustment loop

Open full image

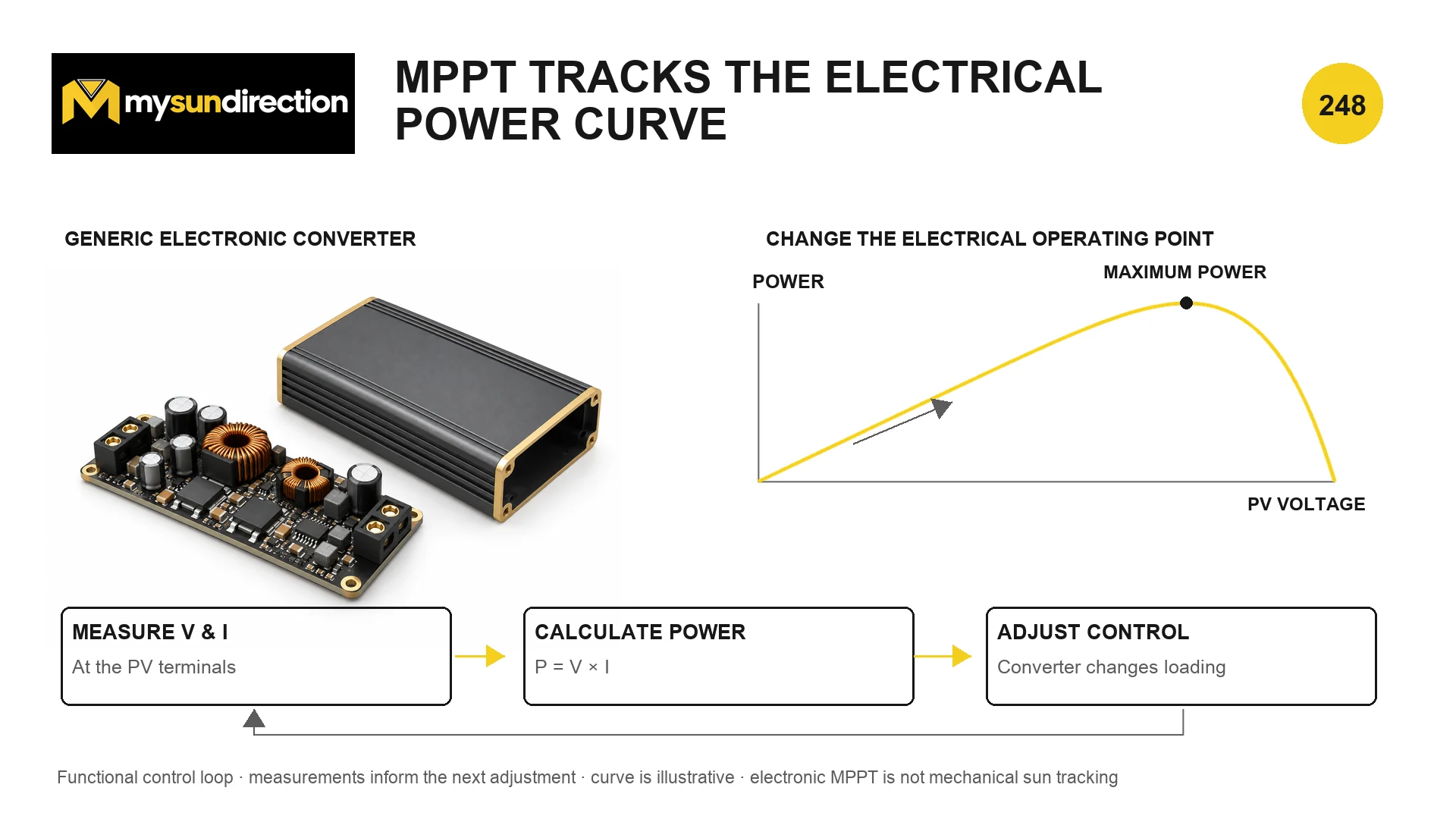

Diagram description

The left side shows representative converter electronics rather than a named product. On the right, an arrow moves along a single-hump P–V curve toward a marked maximum. Along the bottom, three boxes—measure voltage and current, calculate power, and adjust control—form a feedback loop.

An inverter or DC–DC converter can change how the downstream circuit is reflected back to the PV input. By changing its switching control, the converter asks the array to operate at a different terminal voltage. The array current then follows from its I–V characteristic. The controller observes the new voltage and current, calculates power, and decides what change to try next.

A simplified tracking cycle

1. Measure.Sample the PV voltage and current at the converter input with suitable sensors.
2. Calculate.Multiply the simultaneous readings to estimate the present input power.
3. Adjust.Make a controlled change that shifts the PV operating voltage.
4. Compare.Determine whether the measured power rose or fell after the change.
5. Continue tracking.Choose the next adjustment and repeat because irradiance, temperature, shade and load can change.

Do all MPPT controllers use the same algorithm?

No. A common teaching example is perturb and observe: nudge the operating voltage, observe the power change, and continue or reverse direction. Incremental-conductance methods use how current and voltage change to judge which side of the peak the operating point is on. Commercial products may combine methods, filters, adaptive step sizes, scheduled scans and proprietary logic.

There is a trade-off. Large or frequent changes can locate a moving peak quickly but disturb the operating point. Small changes can be calmer but slower. Measurements also contain noise, and rapidly changing sunlight can make a power change look as though it came from the controller's previous adjustment. The product datasheet rarely reveals enough to predict every transient.

The maximum moves with real conditions

What moves or reshapes the curve

• Irradiance.Changing light changes the photocurrent available from the cells, so clouds and the sun's position move the maximum.
• Cell temperature.Warmer silicon cells usually produce less voltage, shifting Vmp and reducing available maximum power even if irradiance is unchanged.
• Mismatch and partial shade.Different conditions within a series or parallel array create compromise operating points; bypass-diode transitions can introduce several P–V peaks.
• Array configuration.Modules per string, parallel strings and which strings share one MPPT input determine the combined curve presented to that tracker.
• Equipment commands.A battery charge limit, inverter power limit or grid-support command can deliberately request operation away from the available maximum.

A smooth, uniformly illuminated array often has one dominant P–V peak. Partial shading can create several local peaks. A controller searching only near its current position may remain on a smaller local peak; a global-search function can scan a wider voltage region for a larger peak. That scan still has practical limits, takes time and cannot recover the optical energy blocked by the shadow.

The controller can search only inside its limits

MPPT is software acting through real hardware. The inverter or charge controller has allowed input voltages, currents, power and temperatures. String design must keep the array compatible through expected cold, heat and irradiance—not merely at the standard test condition printed on a module label.

Useful tracking is not perfect energy recovery

Tracking quality can be described by how closely the controller operates to the available maximum over time, but the tracker is only one part of system yield. Converter losses, wiring resistance, mismatch, temperature, shade, downtime, soiling, clipping and deliberate curtailment remain. A claim that one MPPT feature will add a fixed percentage of annual energy is not transferable without the site, array layout, competing equipment, weather data and a defined baseline.

A disciplined way to review an MPPT design

1. Start with the exact datasheets.Record module Voc, Vmp, Isc, Imp and temperature coefficients, then record every converter input limit and the number of independent MPPT inputs.
2. Check the full operating envelope.Evaluate string voltage in expected cold and heat, current under applicable design conditions, and compatibility with the MPPT window.
3. Group modules intentionally.Avoid placing persistently different orientations or shade patterns on one shared tracker unless the equipment instructions and analysis support it.
4. Model losses honestly.Include converter efficiency, clipping, mismatch and standby consumption; compare annual energy rather than one ideal peak-power snapshot.
5. Commission and monitor.Confirm string polarity and voltage with approved procedures, record baseline operation, and investigate repeated off-window or low-power behaviour using qualified diagnostics.

To understand why the curve may split into several peaks, revisit Why Shade and Heat Reduce Solar Output. The next lesson, Installed Solar Capacity Is Not Daily Energy, separates instantaneous power from installed capacity and daily energy once that manuscript completes review.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for How MPPT Finds Useful Solar Power?

Measure. Sample the PV voltage and current at the converter input with suitable sensors.

Which assumption can change the conclusion?

Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.

What can go wrong if I copy the example directly?

A tracker may intentionally leave the maximum. Maximum available PV power is not always the system's requested power. Export limits, grid-voltage support, reactive-power duties, battery state of charge, thermal derating and inverter AC rating can all require curtailment.

How do I verify the result in the real system?

Continue tracking. Choose the next adjustment and repeat because irradiance, temperature, shade and load can change.
