More Panels or Better Panel Orientation?

A rooftop owner who wants more solar energy may have two very different options: install more photovoltaic capacity, or help the existing modules receive sunlight at more useful angles. Neither option wins automatically. The right comparison is the additional usable energy each option can deliver over its life, divided by its full installed and operating cost, after checking that the roof, inverter, wiring, controls and approvals can accept the change.

Two routes to additional energy

Adding modules can be conceptually simple: more collecting area can produce more DC energy. In practice, the extension needs suitable unshaded roof area, compatible modules or power electronics, adequate structural capacity, safe access, an acceptable string design, inverter input capacity, protection changes and permission for the revised installation. The new array may also increase inverter clipping or export that has little financial value.

Changing orientation keeps the nominal module capacity broadly unchanged but alters plane-of-array irradiance: the sunlight arriving on the module surface. A fixed reorientation can improve a poor tilt or azimuth. A moving system can change orientation through the day. Movement also introduces mechanisms, controls, stow and fault behavior, wind actions, clearances, energy consumption and maintenance. A gain in collected sunlight is therefore not the same as a guaranteed gain at the electricity meter.

Open full image

Diagram description

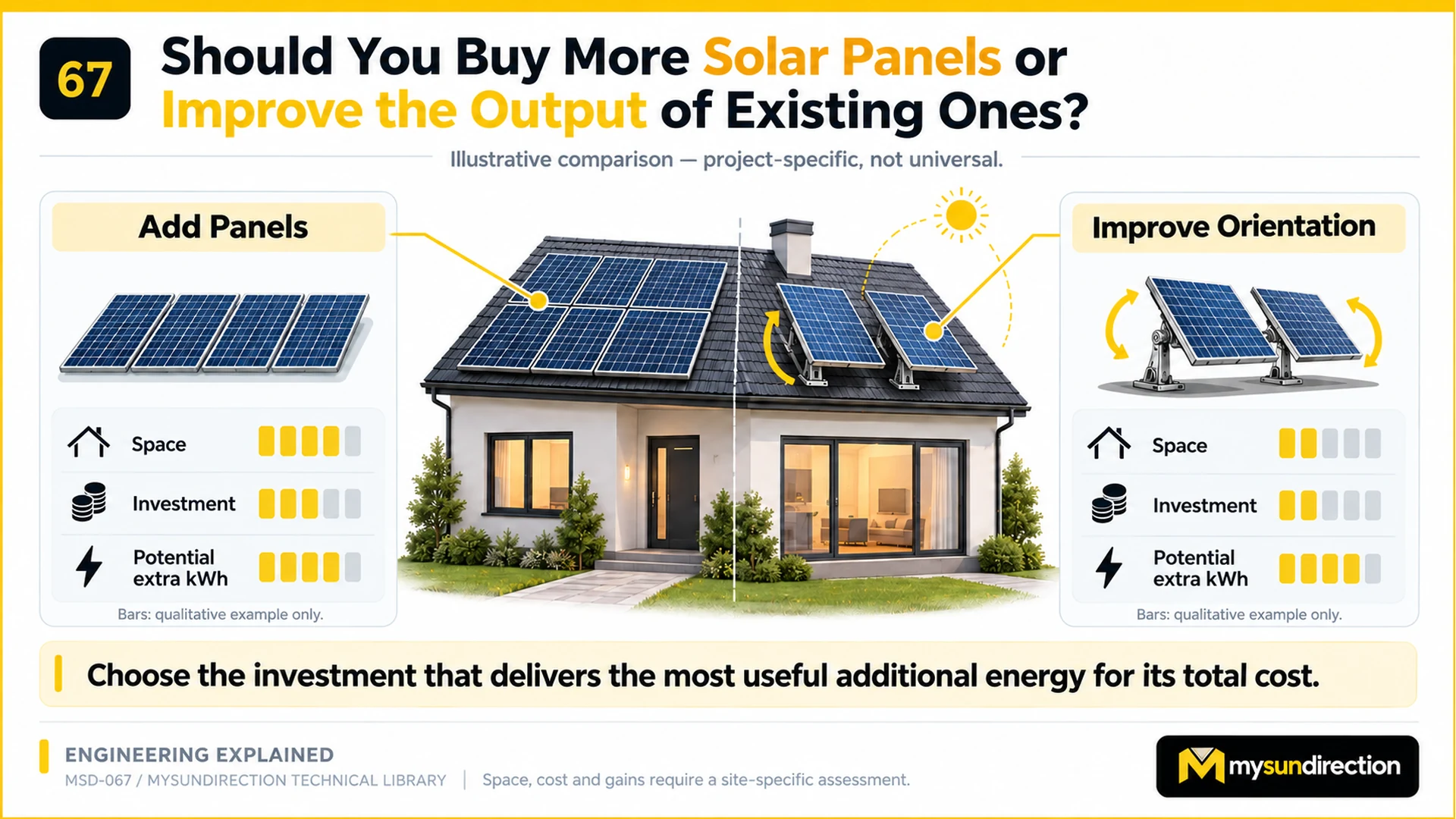

A split rooftop illustration compares adding a bank of fixed modules with mounting existing modules on moving supports. Each side has five-position example bars for space, investment and potential extra kilowatt-hours. A note states that the comparison is project-specific and that the useful choice depends on total cost.

Establish the existing system baseline first

Start with interval energy data from the existing meter, inverter or monitoring system. Inspect it for missing data, outages, curtailment and known faults. Compare like seasons rather than treating one bright week as a year. Cleanliness, shade growth, module temperature, equipment availability and degradation can all affect the baseline. If an underperforming system has a repairable fault, restoring expected operation may be better than either expansion or movement.

A decision-quality baseline records

• Energy, not only peak power.Use monthly and preferably hourly AC kilowatt-hours, while keeping DC and AC ratings clearly identified.
• Operating context.Mark outages, inverter clipping, grid export limits, abnormal alarms, cleaning and major weather events.
• Geometry and obstructions.Survey module tilt, azimuth, row spacing, horizon obstructions and near-object shading instead of guessing from a map image.
• Electrical boundaries.Record inverter model, MPPT arrangement, string voltages and currents, protection ratings, cable routes and connection capacity.
• Useful destination.Identify when the building consumes energy, how export is credited and whether any generation is curtailed.

Model both options on a like-for-like basis

Use a recognized PV performance model with location-appropriate weather data. Run a calibrated base case, then change only the design variables that belong to each option. For additional panels, update array capacity, geometry, mismatch, shading, DC wiring and inverter loading. For improved orientation, update tilt and azimuth through time, new shading or backtracking effects, movement availability and parasitic energy. Keep the same weather year and output boundary so the resulting difference is meaningful.

Incremental annual energy

ΔE = E_option − E_baseline

Use AC energy at the same measurement boundary for both terms. If auxiliary motors and controls consume energy, subtract that consumption before calling the result a net gain.

ΔE

net additional annual energy in kilowatt-hours per year

E_option

annual AC energy for the proposed option

E_baseline

annual AC energy for the calibrated existing design

Example

If a calibrated baseline is 12,000 kWh/year and an option models 13,800 kWh/year after its auxiliary consumption, the modeled increment is 1,800 kWh/year, or 15% of that baseline.

Orientation changes affect when energy appears as well as how much appears. A morning or afternoon gain may be more useful than the same noon gain if it coincides with building demand or avoids clipping. Hourly output is therefore more informative than a single annual percentage. NREL's PVWatts can provide an initial estimate, but its own cautions describe assumptions and uncertainties; a retrofit decision still needs measured site inputs and engineering review.

Why more DC capacity can meet an AC ceiling

An inverter has input-voltage and current limits as well as a maximum AC output. When available DC power exceeds what the inverter can convert, the inverter can move away from the array maximum-power point and cap output. This is called clipping. Some DC oversizing may be intentional, but the manufacturer's voltage, current, thermal and warranty limits still apply.

Adding modules can increase energy during lower-light hours even when some bright-hour energy clips. Whether that trade is attractive depends on the complete hourly simulation, not on a rule that every instance of clipping is bad or that any DC-to-AC ratio is universally safe.

How to read a 35% illustration

Open full image

Diagram description

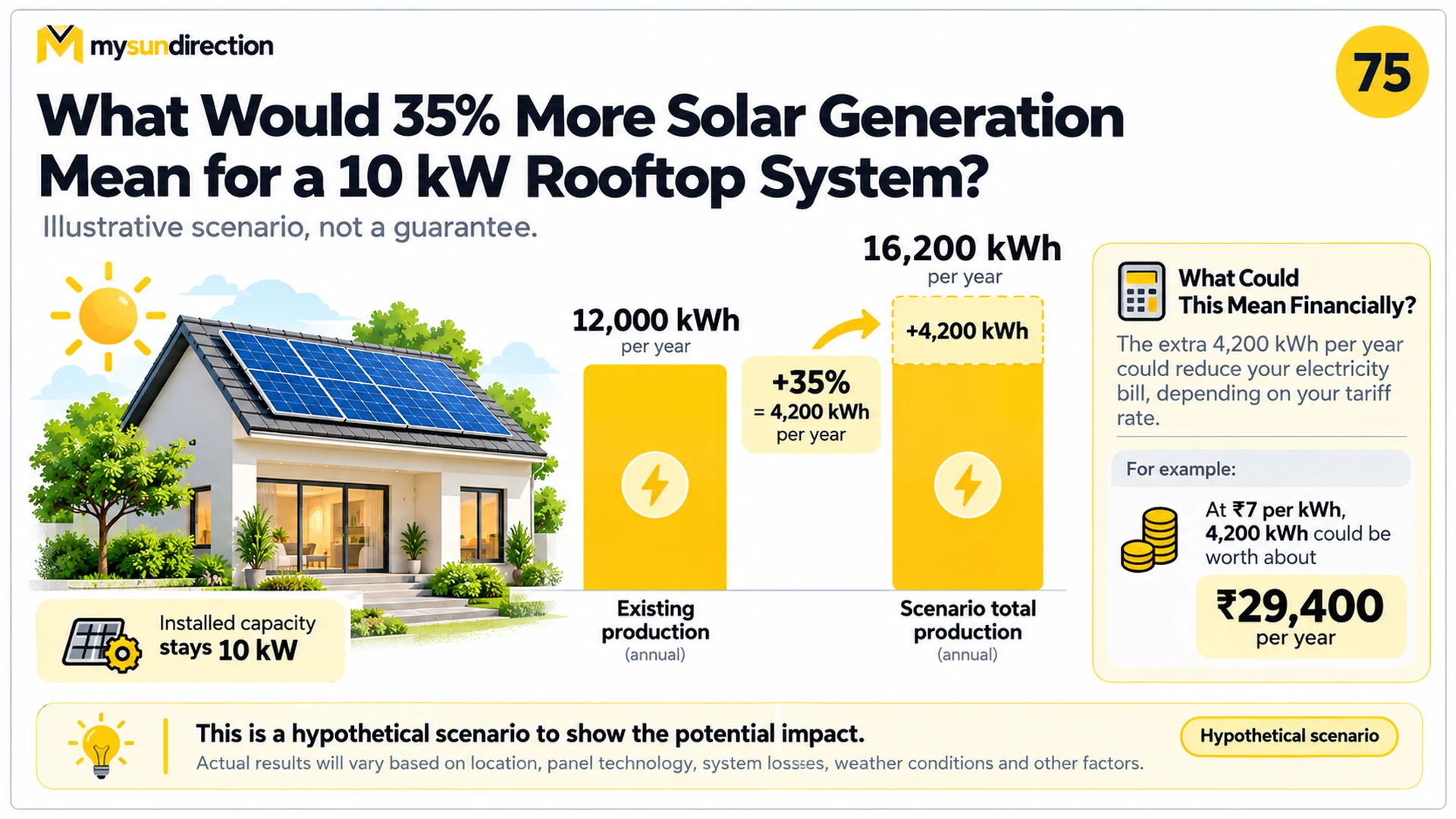

A ten-kilowatt rooftop system is shown beside two annual-energy bars. The first is 12,000 kWh and the scenario bar is 16,200 kWh. A label identifies the 4,200 kWh difference as 35%. A separate example multiplies 4,200 kWh by ₹7 per kWh to obtain ₹29,400 per year, with repeated notices that the scenario is hypothetical.

The illustration holds installed capacity at 10 kW and assumes annual energy rises from 12,000 to 16,200 kWh. The difference is 4,200 kWh, and 4,200 divided by 12,000 equals 35%. Multiplying that energy by ₹7/kWh gives ₹29,400. Those calculations explain a scenario; they do not establish that movement will produce 35%, that every extra kilowatt-hour offsets a ₹7 purchase, or that the gain remains unchanged each year.

Open full image

Diagram description

Five rooftop module groups are shown at different angles across a sunrise-to-sunset scene. The centre states “up to 25–35% more energy potential with sun tracking”. Side text mentions tracking, automation, utilisation and lower bills. The graphic contains no location, baseline geometry, weather series, loss model or measured test result.

Use engineering gates before financial ranking

A practical comparison sequence

1. 1. Restore and measure.Resolve known faults and establish a trustworthy energy baseline.
2. 2. Screen feasibility.Reject options that cannot meet structural, wind, access, clearance, electrical, fire-safety, warranty or approval requirements.
3. 3. Simulate equally.Use the same weather and output boundary, with option-specific geometry, losses, availability and clipping.
4. 4. Value useful energy.Apply the correct time-dependent value to self-consumed, exported, curtailed and clipped energy instead of one optimistic rate.
5. 5. Compare life-cycle outcomes.Include design, hardware, installation, inspection, operation, maintenance, replacement and end-of-life effects, then test conservative scenarios.
6. 6. Define acceptance evidence.State how post-installation safety, function, availability and energy performance will be verified without promising weather-dependent output.

Use Why Shade and Heat Reduce Solar Output to identify two losses that can distort a comparison, and How MPPT Finds Useful Solar Power to understand why the array and inverter must be evaluated as one operating system.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for More Panels or Better Panel Orientation?

Energy, not only peak power. Use monthly and preferably hourly AC kilowatt-hours, while keeping DC and AC ratings clearly identified.

Which assumption can change the conclusion?

Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.

What can go wrong if I copy the example directly?

A percentage without a baseline is incomplete. Ask: more than what fixed orientation, at which location, during which period, measured at which electrical boundary, with what shading, downtime and auxiliary consumption? Until those inputs are stated, 25–35% is a hypothesis to test—not a bankable yield claim.

How do I verify the result in the real system?

Useful destination. Identify when the building consumes energy, how export is credited and whether any generation is curtailed.
