How the Sun Moves Across Your Solar Roof

Read the daily and seasonal Sun path and understand the angles that matter.

  • By MySunDirection
  • 15 min read
Share this explanation
One-minute answer

You are applying “How the Sun Moves Across Your Solar Roof” to a real system and need the concept, assumptions and verification boundary to stay clear.

Read solar elevation, zenith, azimuth and incidence angle; see how latitude, date and solar time change the Sun path; and understand what panel orientation can and cannot control.

Select or check first
1. Fix the coordinate system. Record latitude, longitude, elevation if relevant, true-north reference, time zone and the azimuth convention used by every tool.
Controlling assumption
Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
Top risk
Do not survey a roof or move an array casually. Roof edges, fragile surfaces, electrical circuits, wind and moving structures create serious hazards. Use competent site assessment, fall protection, isolation, structural verification and suitable weather limits.
Proof
7. Compare annual outcomes. Evaluate energy timing and quantity, movement energy, downtime, reliability and cost across representative years rather than judging a noon image.
Start with the basics Optional foundation before “How the Sun Moves Across Your Solar Roof”

Solar-energy basics

These terms separate what sunlight supplies, what a photovoltaic system converts and what a meter finally records.

Power and energy
Power is the instantaneous rate of using or producing energy, measured in watts. Energy accumulates over time and is commonly measured in watt-hours or kilowatt-hours.
Irradiance
Irradiance is solar power arriving per unit area, usually expressed in watts per square metre. It is an input condition, not the same thing as electrical output.
Voltage and current
Voltage is electrical potential difference; current is the rate of electric charge flow. Their product gives electrical power for a DC operating point.
Cell, module and string
A cell is one photovoltaic device, a module connects many cells, and a string connects modules in series. A limitation at one level can affect the others through the wiring.
Rated versus real output
Nameplate values come from defined test conditions. Real output changes with sunlight, temperature, angle, shading, wiring, conversion losses and ageing.

How to use this article: Before using a number, identify whether it describes sunlight, DC module output, inverter output or billed energy, and record the time and weather boundary.

On this page
  1. Elevation and azimuth locate the Sun in the local sky
  2. Earth's rotation creates the apparent daily sweep
  3. Earth's axial tilt changes path height and day length through the year
  4. Incidence angle connects Sun direction to the panel plane
  5. Panel orientation needs two angles—and a fixed roof may not provide both
  6. Read a roof's Sun path before deciding what to move

From a roof, the Sun appears to rise, climb, cross the sky and set because Earth rotates. Its apparent path is not identical every day: Earth's axial tilt and orbit change solar declination through the year, while the observer's latitude determines how that geometry appears locally. To describe the position unambiguously, use date, time, location, solar elevation or zenith, and solar azimuth—not only “morning” or “facing the Sun.”

Elevation and azimuth locate the Sun in the local sky

Always state the azimuth convention used by a tool or dataset
QuantityMeaningReference
Solar elevationAngle of the Sun above the local horizon0° at the ideal horizon and 90° at the zenith
Solar zenith angleAngle between the direction to the Sun and the upward verticalComplement of elevation: zenith = 90° − elevation
Solar azimuthHorizontal compass direction of the Sun's projectionA common convention is clockwise from true north, but conventions differ
Solar noonMoment when the Sun crosses the local meridian and reaches its daily maximum elevationNot necessarily 12:00 on the civil clock
Solar declinationSeasonally changing angle describing the Sun's apparent position north or south of Earth's equatorial planeVaries through the year because of Earth–Sun geometry
Hour angleAngular measure of time before or after local solar noonZero at solar noon in the stated convention

Earth's rotation creates the apparent daily sweep

Over one day, the Sun's hour angle changes as Earth rotates. To an observer, the Sun generally moves from the eastern half of the sky, reaches its greatest elevation near local solar noon, and moves into the western half before setting. “East to west” is a useful first picture, but sunrise is due east and sunset due west only near the equinoxes for an ideal level horizon. On other dates the rise and set directions shift north or south, with the amount depending on latitude.

The arc teaches the daily sequence. Its height, compass bearings, timing and symmetry are not a calculation for the pictured roof.

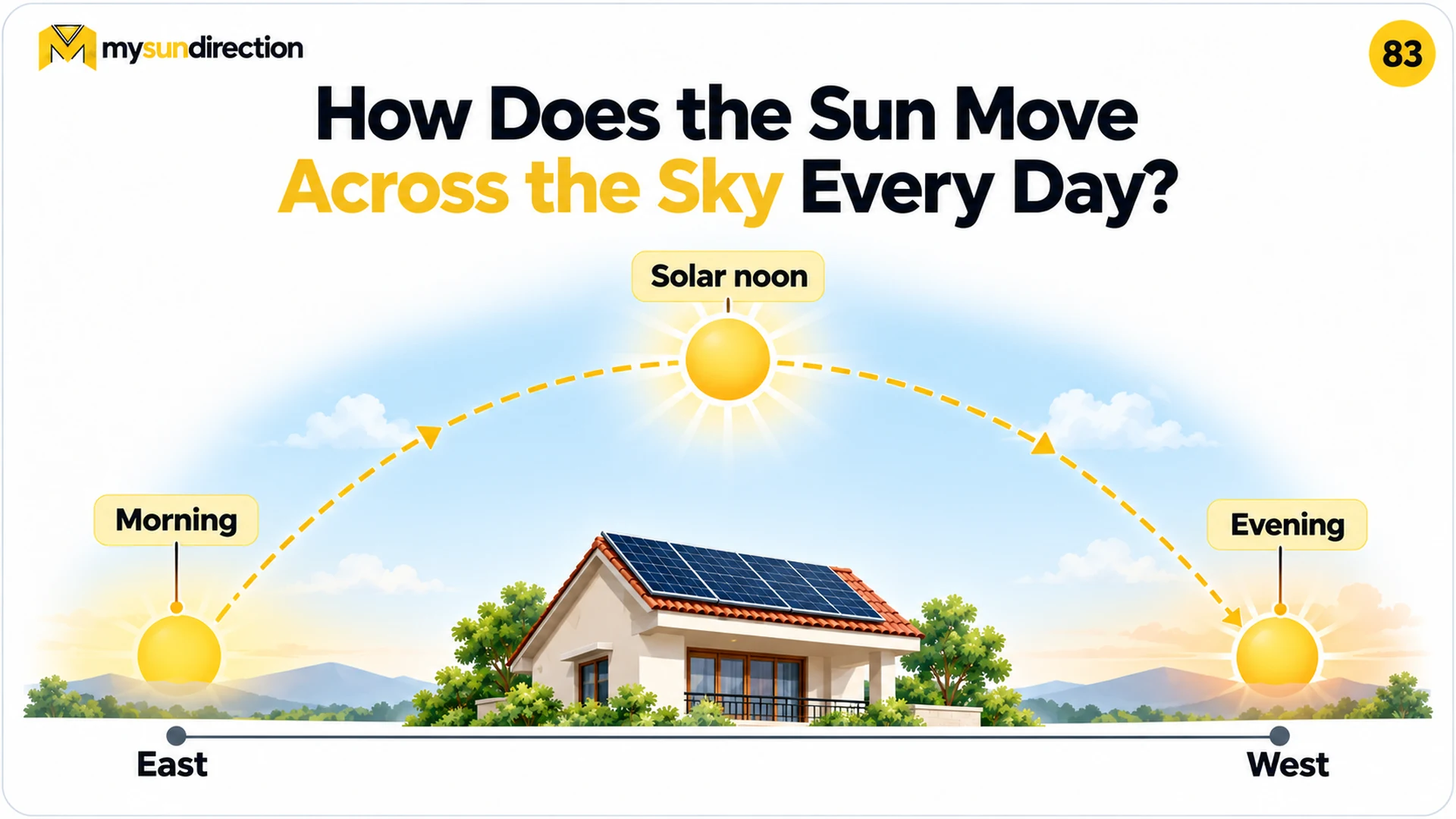

Diagram description

A dotted yellow arc runs from a low morning Sun at the left, through a higher Sun labeled solar noon above a house, to a low evening Sun on the right. A baseline labels east at left and west at right. Rooftop modules appear below the arc.

At solar noon the Sun is highest for that date, not necessarily overhead. Whether it is north or south of the observer at meridian passage depends on latitude and solar declination. Near tropical latitudes, the noon Sun can pass to different sides during the year and can be close to the zenith on particular dates. This is why a universal “face south” or “face north” statement is incomplete without hemisphere, latitude and objective.

Earth's axial tilt changes path height and day length through the year

Earth's rotation axis is tilted relative to its orbital plane. As Earth travels around the Sun, each hemisphere alternately tilts more toward or away from the Sun. In a hemisphere's summer, the local Sun path is generally higher and daylight lasts longer; in winter, the path is lower and daylight shorter. The opposite hemisphere experiences the opposite season. Near the equator, seasonal path changes differ from those at high latitudes and should not be inferred from a temperate-roof sketch.

A seasonal path changes with latitude and hemisphere. The illustration explains higher-versus-lower paths; it does not predict a site's angles or annual energy.

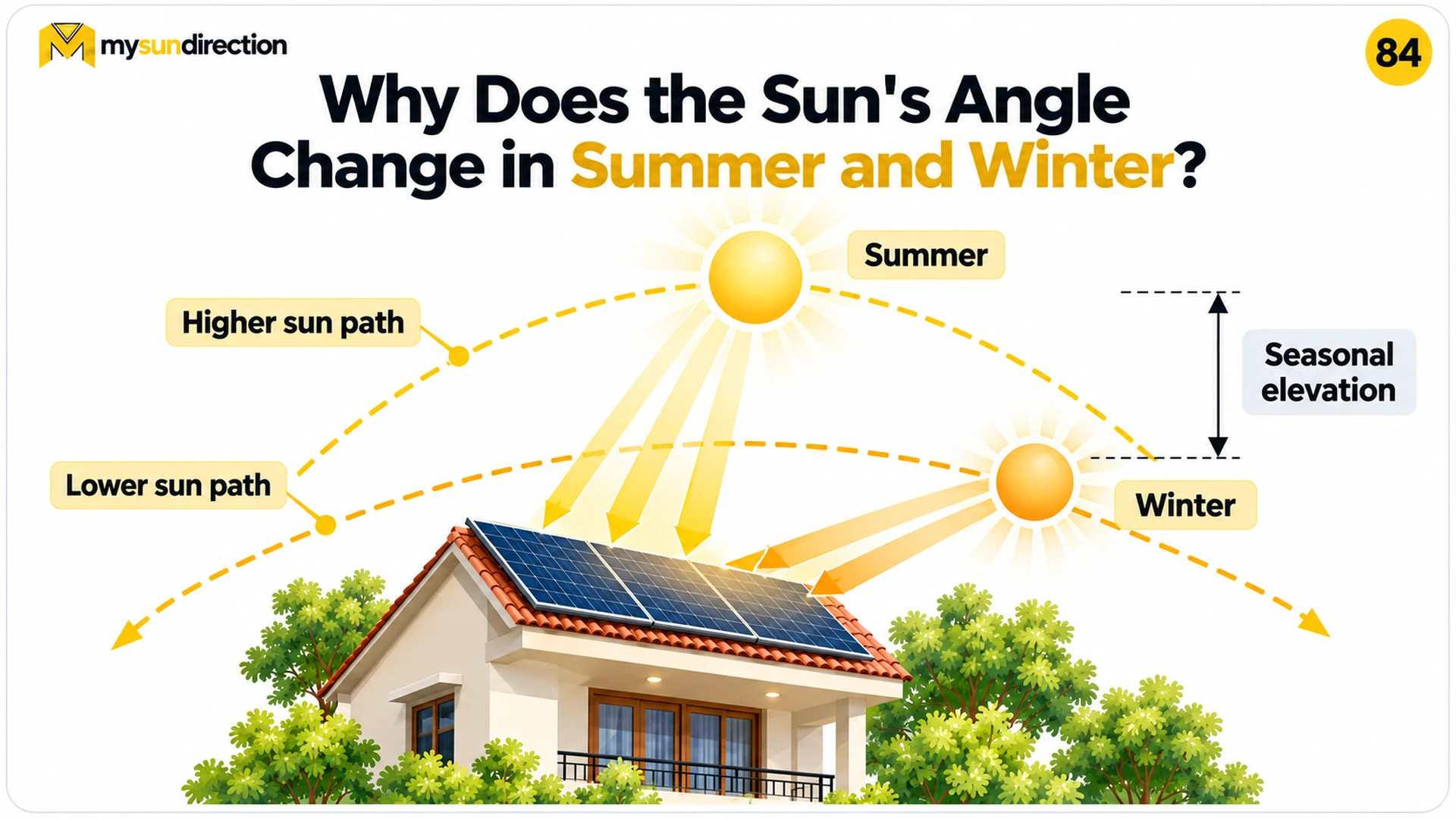

Diagram description

Two dashed arcs pass over a house with rooftop modules. A bright Sun on the upper arc is labeled summer and a lower Sun on the other arc is labeled winter. A vertical bracket marks seasonal elevation, and broad rays show different arrival angles on the roof.

Why seasons are not caused by being nearer to the Sun

The main cause of Earth's seasons is axial tilt, which changes solar elevation and daylight duration in each hemisphere. Earth's orbital distance does vary, but it does not explain opposite seasons in the Northern and Southern Hemispheres.

For a PV site, season also changes weather, temperature, clouds, horizon shading and sometimes soiling. Sun geometry is one input to yield, not a complete seasonal forecast.

Incidence angle connects Sun direction to the panel plane

A panel's normal is an imaginary line perpendicular to its front surface. The direct-beam angle of incidence is the angle between that normal and the direction toward the Sun. When the normal points directly toward the Sun, incidence angle is zero. As the angle grows, the same direct beam is projected over a larger panel-plane area, so its plane-of-array beam component falls according to cosine geometry.

For the direct beam alone, plane-of-array irradiance is DNI times cosine of incidence angle. Diffuse sky and ground-reflected light are additional components.

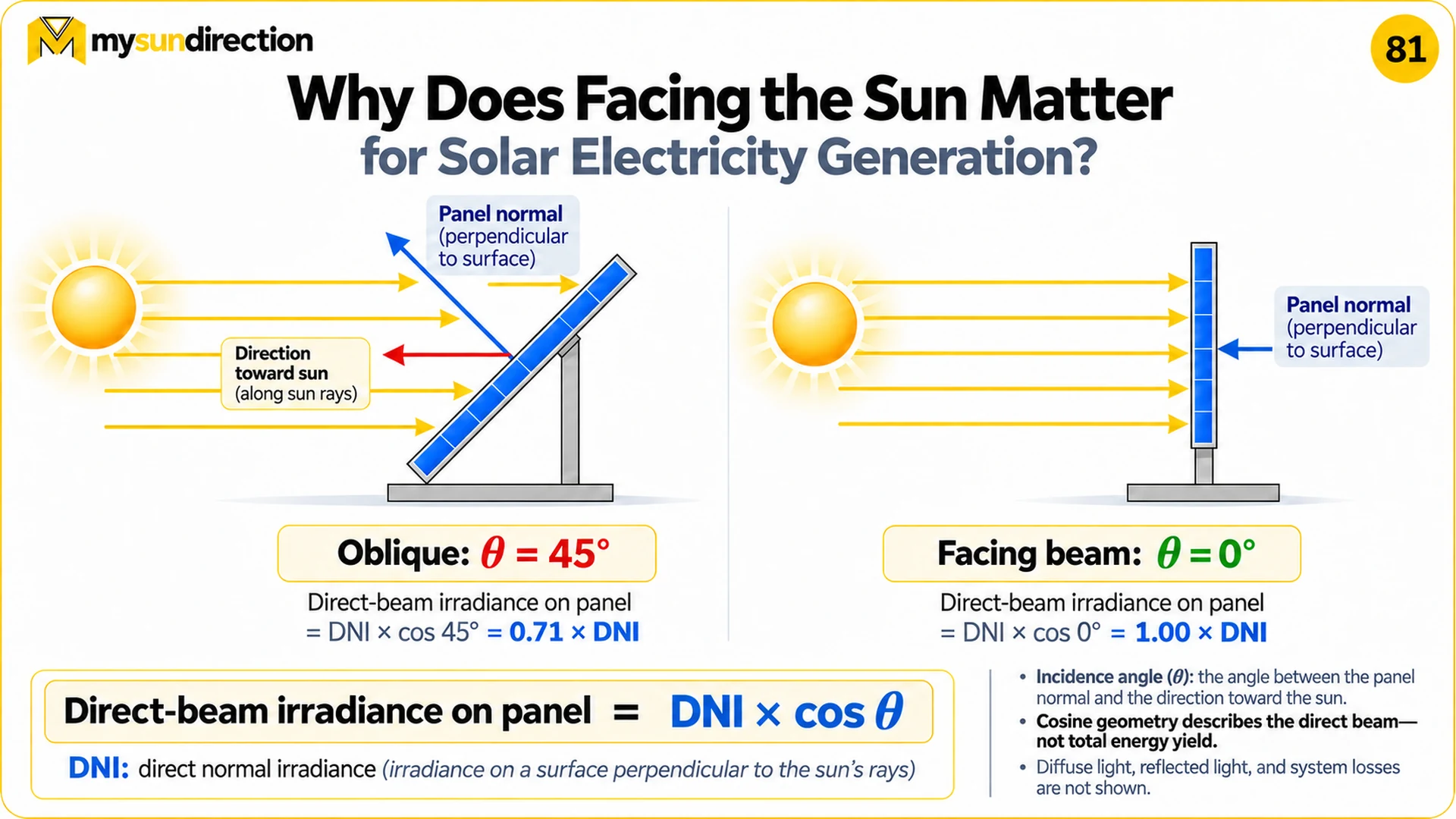

Diagram description

The left half shows parallel solar rays striking a tilted panel at 45 degrees from its blue normal, with a calculated direct component of approximately 0.71 times DNI. The right half shows a vertical panel whose normal points toward the rays at zero degrees, giving 1.00 times DNI. Notes define the panel normal and warn that total yield and system losses are not shown.

Direct-beam irradiance on the panel plane

Eb = DNI × cos(θ)

This geometric projection applies to the direct beam when the Sun is in front of the panel. It is not total plane-of-array irradiance or electrical output: sky diffuse irradiance, ground-reflected irradiance, optical response, temperature and system losses remain.

Eb
direct-beam component on the plane of the array, typically W/m²
DNI
direct normal irradiance on a surface perpendicular to the Sun's rays, W/m²
θ
angle of incidence between panel normal and direction toward the Sun
Example

If DNI is 800 W/m² and θ is 45°, the ideal projected beam component is about 800 × 0.707 = 566 W/m². That is not a prediction of module output power.

Panel orientation needs two angles—and a fixed roof may not provide both

A fixed plane is commonly described by tilt and surface azimuth. Tilt says how far the plane is inclined from horizontal; surface azimuth says the compass direction its outward normal faces. A one-axis tracker changes only one permitted rotational coordinate, so it cannot generally point the normal exactly at every solar position. A two-axis mechanism has more geometric freedom but also more structure, controls, swept volume, maintenance and wind response.

The sequence communicates changing orientation, not a command schedule. Actual pose depends on coordinates, date, time, tracker axes, limits, shading and stow rules.

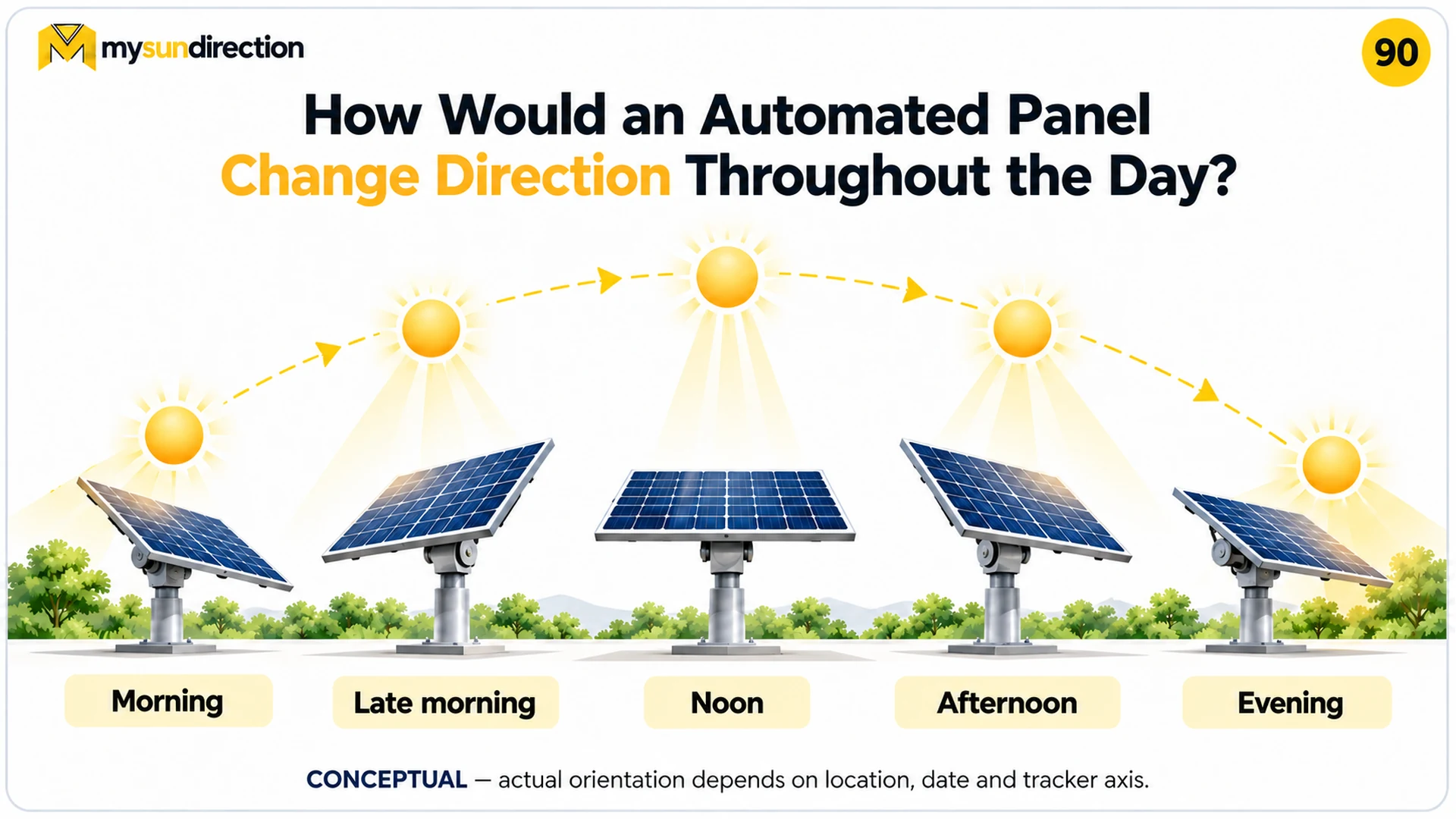

Diagram description

Five pedestal-mounted panels are arranged left to right beneath five Sun positions. Morning and late-morning panels incline one way, the noon panel appears nearly level, and afternoon and evening panels incline the other way. A footer explicitly labels the diagram conceptual and location-, date- and axis-dependent.

Use true coordinate and time conventions consistently
InputWhy it mattersCommon error
Latitude and longitudeDefine the observation point and solar-time relationshipUsing a nearby city without checking longitude, elevation or horizon implications
Date and accurate timeSet declination and hour angleMixing local clock time, UTC, daylight-saving time and solar time
Azimuth conventionMakes compass angles interpretableCombining north-zero and south-zero conventions or magnetic and true north
Panel or tracker axesConvert solar position into achievable mechanical poseAssuming a one-axis tracker can independently set tilt and azimuth
Mechanical and safety envelopeRestrict motion to travel, clearance, cable and wind limitsCommanding an optically ideal angle outside the safe mechanism range
Shading and terrain horizonChange whether direct beam reaches the surface and whether rows shade one anotherUsing a clear mathematical horizon for an obstructed roof
This branded banner expresses the idea of following the Sun. It is visual motivation, not evidence of a particular tracker design, path or energy gain.
Diagram description

A panoramic city rooftop scene transitions from sunrise colours at left through blue midday sky to sunset at right. Multiple bright Sun positions follow a dashed arc. Five panel assemblies below appear at changing inclinations, with curved arrows suggesting movement. Central branding reads Follow the Sun and Unlock More Solar Potential.

Read a roof's Sun path before deciding what to move

From local sky to engineering input

  1. 1. Fix the coordinate system.Record latitude, longitude, elevation if relevant, true-north reference, time zone and the azimuth convention used by every tool.
  2. 2. Calculate representative paths.Use a validated solar-position method for seasonal extremes and intermediate dates at suitable time intervals, not one decorative arc.
  3. 3. Survey the real horizon.Map nearby buildings, parapets, trees, equipment and terrain. Consider future vegetation and the Sun's seasonally shifting rise and set directions.
  4. 4. Describe the existing plane.Measure roof and module tilt and surface azimuth, along with row spacing and any different roof faces. Keep magnetic versus true direction explicit.
  5. 5. Model plane-of-array irradiance.Combine beam, diffuse and ground-reflected components with weather data and shading before translating irradiance into energy.
  6. 6. Apply mechanical constraints.For moving systems, limit the ideal orientation by axis geometry, clearance, wind, cable routing, maintenance and safe stow requirements.
  7. 7. Compare annual outcomes.Evaluate energy timing and quantity, movement energy, downtime, reliability and cost across representative years rather than judging a noon image.

Sun geometry explains one part of the performance story. Why Shade and Heat Reduce Solar Output covers two other major influences, while More Panels or Better Panel Orientation? turns orientation into a system comparison. The central discipline is the same: calculate the actual site and full energy balance rather than treating a compelling Sun arc as an engineering result.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for How the Sun Moves Across Your Solar Roof?

1. Fix the coordinate system. Record latitude, longitude, elevation if relevant, true-north reference, time zone and the azimuth convention used by every tool.

Which assumption can change the conclusion?

Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.

What can go wrong if I copy the example directly?

Do not survey a roof or move an array casually. Roof edges, fragile surfaces, electrical circuits, wind and moving structures create serious hazards. Use competent site assessment, fall protection, isolation, structural verification and suitable weather limits.

How do I verify the result in the real system?

7. Compare annual outcomes. Evaluate energy timing and quantity, movement energy, downtime, reliability and cost across representative years rather than judging a noon image.
