Calculating Solar Tracking Cost and Payback

Compare retrofit costs, energy gains, maintenance and realistic financial return.

By MySunDirection
Published 12 October 2026
Updated 14 October 2026
12 min read

One-minute answer

You need to size or verify a real system using “Calculating Solar Tracking Cost and Payback”, with units, duty and limits that match the application.

Build a transparent solar-tracking business case from measured baseline energy, modeled gain, complete retrofit cost, operating expense and discounted cash flow.

Select or check first: Compare the upgrade with a credible fixed-array baseline. Model the same site, modules, weather period, tariff boundary and availability twice: once without the retrofit and once with it. The difference—not the tracker's total generation—is the energy benefit attributable to tracking.
Controlling assumption: Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.
Top risk: A rooftop tracker is not just a financial add-on. Movement changes geometry and load paths. A competent structural review must address dead load, wind in operating and stow positions, dynamic effects, anchors, waterproofing and the existing roof.
Proof: Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.

Start with the basics Optional foundation before “Calculating Solar Tracking Cost and Payback”

Solar-energy basics

These terms separate what sunlight supplies, what a photovoltaic system converts and what a meter finally records.

Power and energy: Power is the instantaneous rate of using or producing energy, measured in watts. Energy accumulates over time and is commonly measured in watt-hours or kilowatt-hours.
Irradiance: Irradiance is solar power arriving per unit area, usually expressed in watts per square metre. It is an input condition, not the same thing as electrical output.
Voltage and current: Voltage is electrical potential difference; current is the rate of electric charge flow. Their product gives electrical power for a DC operating point.
Cell, module and string: A cell is one photovoltaic device, a module connects many cells, and a string connects modules in series. A limitation at one level can affect the others through the wiring.
Rated versus real output: Nameplate values come from defined test conditions. Real output changes with sunlight, temperature, angle, shading, wiring, conversion losses and ageing.

How to use this article: Before using a number, identify whether it describes sunlight, DC module output, inverter output or billed energy, and record the time and weather boundary.

On this page

Set the complete cost boundary first
Calculate net incremental energy
Move from energy gain to annual net benefit
Use simple payback as a screen, not the final decision
Show which assumptions control the result

A tracking retrofit earns a return only when the value of its additional usable solar energy exceeds every added cost and risk over the chosen study period. The movement itself is not the benefit. The benefit is the incremental energy that reaches a valuable destination after actuator consumption, downtime, shading interactions, export limits and conversion losses.

Set the complete cost boundary first

A component quotation rarely represents an installed tracking system. A retrofit can require structural survey, engineering, movable racks, bearings, actuators or geared motors, sensors, controller hardware, weatherproof enclosures, power and signal wiring, communication, protection, roof work, safe access, lifting, installation, commissioning, documentation and approvals. Existing warranties, drainage, walkways and fire or maintenance clearances may also be affected.

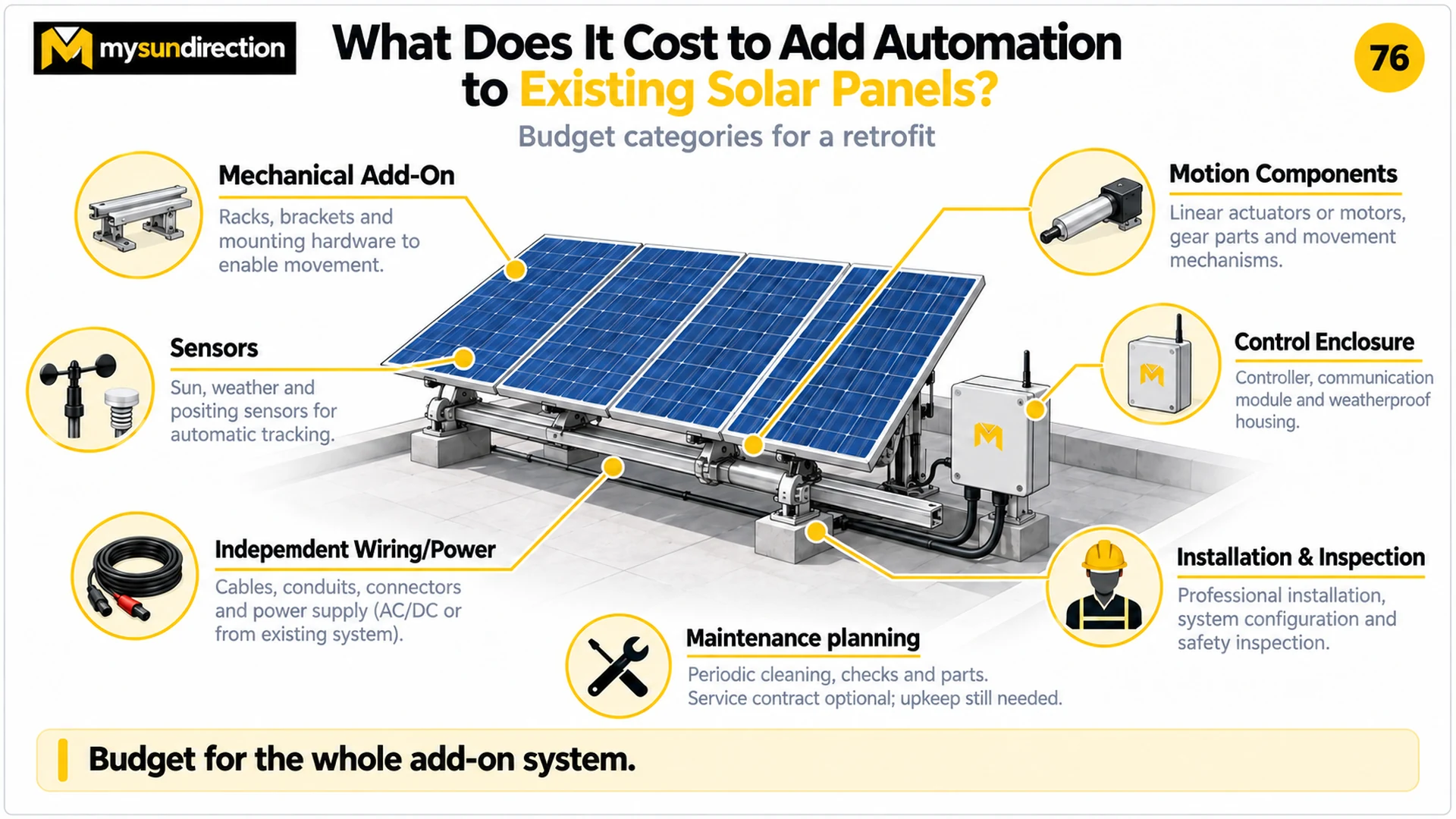

Rooftop solar tracking retrofit surrounded by cost categories for mechanical hardware, motors, sensors, wiring, controls, installation, inspection and maintenance planning. — Budget for the functioning add-on system and its engineering—not only the actuator or controller visible in a quotation.

Record quoted, estimated and contingency values separately so uncertainty stays visible
Cost group	Typical entries	Evidence to request
Development and engineering	Survey, structural and electrical design, permits, coordination	Scope, calculations, drawings, exclusions and approval responsibility
Equipment	Structure, pivots, actuators, gearboxes, sensors, controls, enclosures	Data sheets, ratings, warranties, spares and compatible interfaces
Installation	Removal or modification, lifting, labour, cabling, waterproofing, access	Method statement, programme, roof-restoration detail and acceptance tests
Operations	Tracker electricity, data service, inspections, lubrication, cleaning	Annual task plan, energy measurement point and service pricing
Corrective work	Failed sensors, actuators, bearings, controllers, cables and storm damage	Failure assumptions, parts lead time, labour rate and downtime consequence
End of study	Removal, disposal, residual value and roof reinstatement	Study-period assumption and accountable party

Calculate net incremental energy

Tracking can improve orientation to the sun, but its gain depends on latitude, weather, axis geometry, allowable rotation, row-to-row shading, backtracking strategy, horizon, albedo and equipment availability. A mechanically possible angle may be restricted by wind, roof clearance or safety. Use an hourly or finer model with the same weather file for both cases, then calibrate the fixed-array case against measured production where possible.

Annual net incremental energy

ΔEnet = Etracking − Efixed − Edrive − Elost,downtime

Keep the system boundary consistent. If the tracking simulation already subtracts drive consumption or models downtime, do not subtract it twice. Also apply inverter and export limits to both cases before valuing the difference.

ΔEnet: additional usable electrical energy attributable to the retrofit
Etracking: modeled or measured energy with the tracker operating
Efixed: energy from the credible fixed-array baseline
Edrive: electricity used by motors, controllers, sensors and communications
Elost,downtime: incremental energy lost while tracking equipment is unavailable or in a protective state

Example

If a common-boundary model gives 118 MWh for tracking and 105 MWh for fixed tilt, then 1 MWh of drive energy and 2 MWh of added downtime leave 10 MWh—not 13 MWh—of net incremental energy.

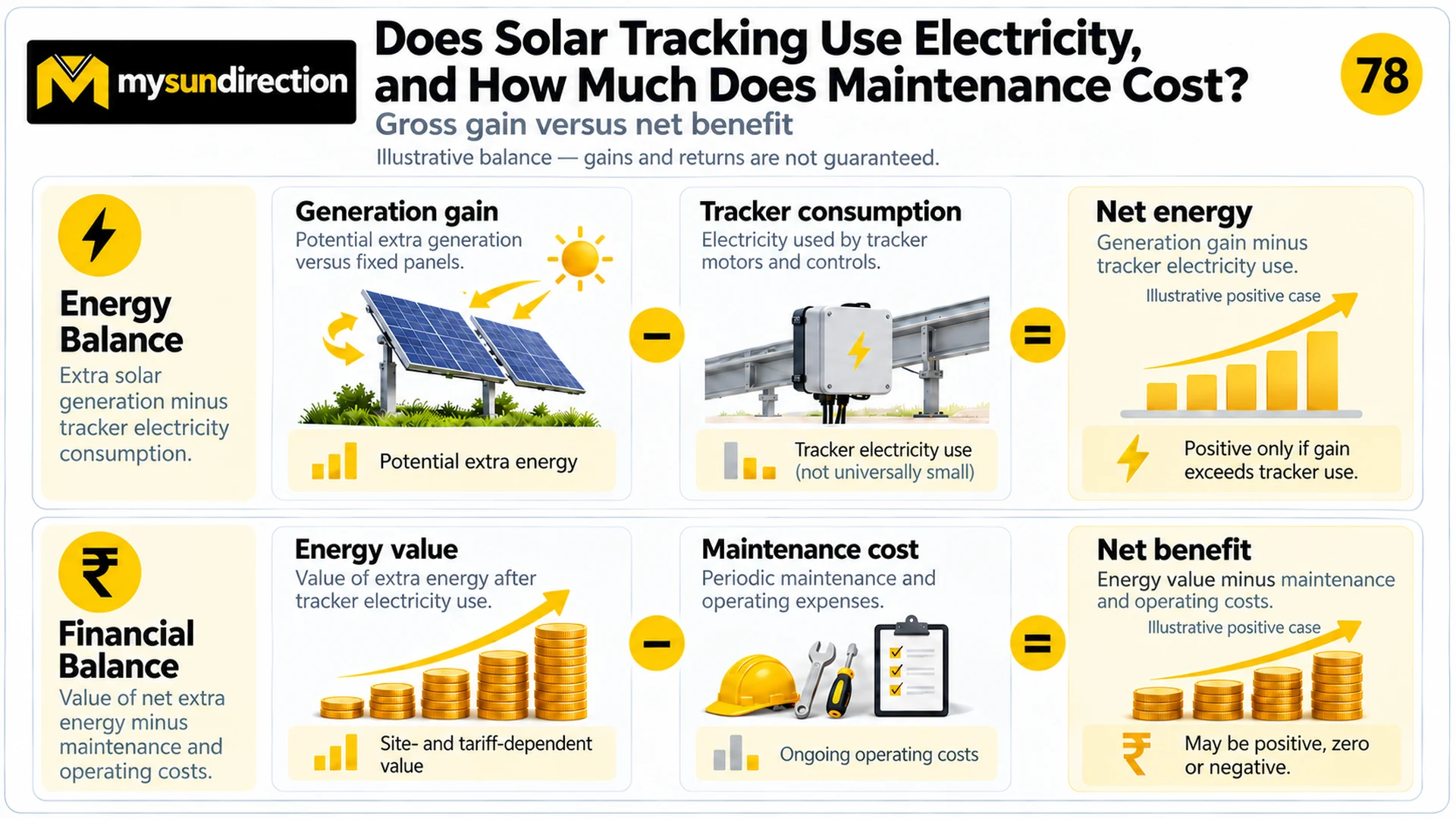

Two-row balance diagram subtracting tracker electricity from generation gain, then subtracting maintenance and operating costs from the value of net extra energy. — Gross generation gain becomes a financial benefit only after auxiliary energy, maintenance, operating costs and the actual value of each extra unit are included.

Do not assume every incremental kWh has the same value. Energy used behind the meter may avoid a marginal import charge; exported energy may receive a different credit; curtailed energy may have no financial value. The hour in which tracking adds energy therefore matters. Use interval load, generation and tariff data when the distinction is material.

Move from energy gain to annual net benefit

First-year net financial benefit

B₁ = Σ(ΔEself,t × Ravoided,t) + Σ(ΔEexport,t × Rexport,t) − O&M₁ − Caux,₁

This is a transparent first-year framework. Include only value caused by the retrofit, use the applicable marginal rates, and state whether taxes, demand charges, incentives or escalation are included. Tracker electricity may already be represented as reduced net energy; avoid double counting it as a separate cost.

ΔEself,t: incremental tracking energy self-consumed in interval t
Ravoided,t: marginal import charge actually avoided in that interval
ΔEexport,t: incremental energy exported in interval t
Rexport,t: applicable export credit in that interval
O&M₁: first-year preventive and expected corrective operating cost
Caux,₁: any separately billed auxiliary-energy or communication cost

Example

If a model predicts ₹72,000 of additional avoided purchases and ₹18,000 of export credit, while incremental O&M and other operating costs total ₹30,000, the first-year net benefit is ₹60,000. These are hypothetical inputs, not a market quote.

Use simple payback as a screen, not the final decision

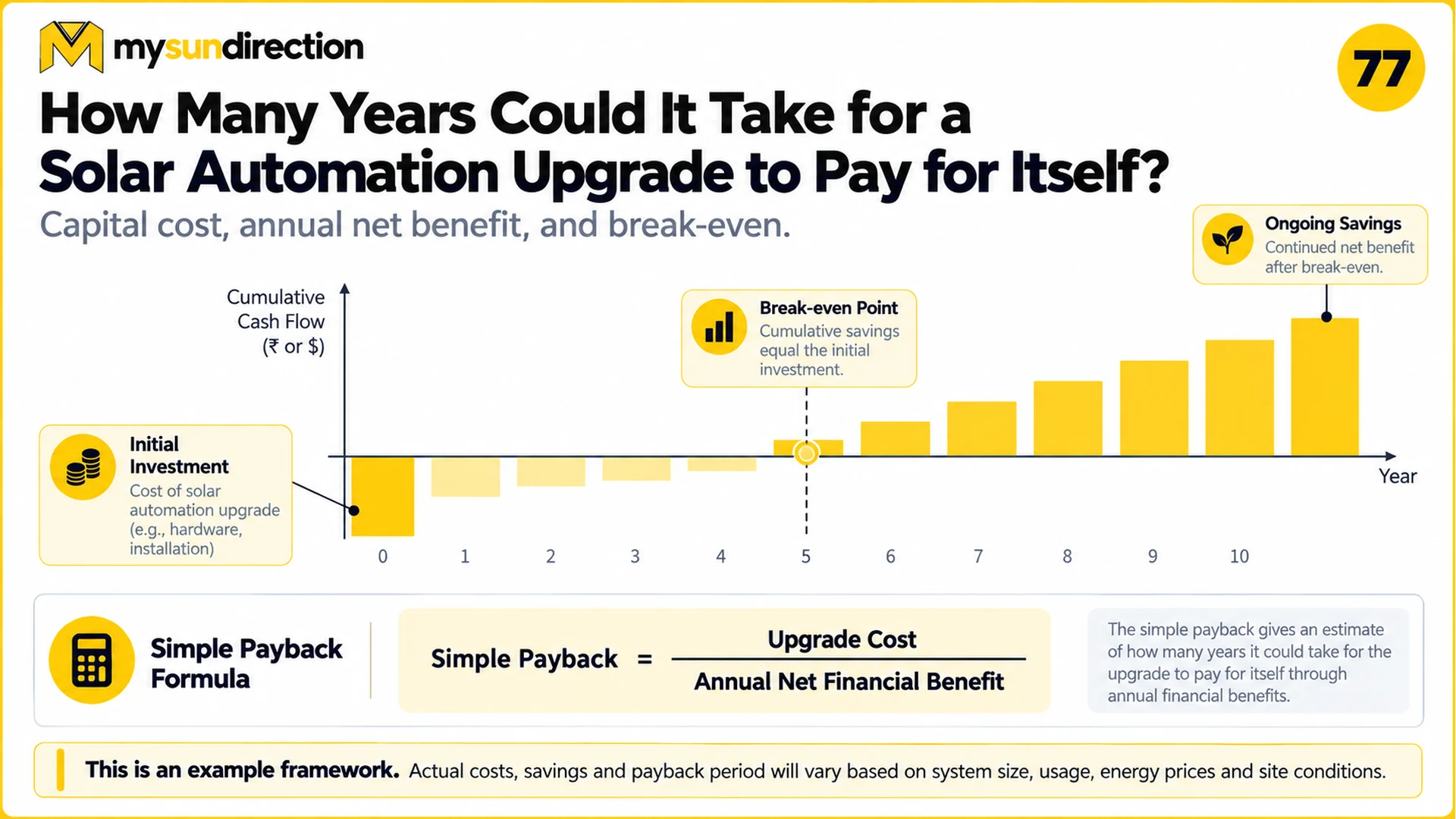

Illustrative cumulative-cash-flow chart beginning below zero, crossing a break-even marker around year five and remaining positive afterward. — The chart demonstrates the idea of break-even. Its five-year crossing is illustrative and is not a promised payback period.

Simple payback period

Simple payback = net installed retrofit cost / first-year net benefit

The shortcut is meaningful only when the annual benefit is positive and reasonably stable. It ignores when cash occurs, financing, discount rate and benefit variation unless those are built into the chosen inputs.

net installed retrofit cost: engineering, equipment, installation and commissioning less only eligible, dependable upfront incentives
first-year net benefit: incremental energy value less incremental operating and maintenance expense

Example

A hypothetical ₹480,000 retrofit with ₹60,000 first-year net benefit has an eight-year simple-payback quotient. That quotient should not be reported as an eight-year guarantee.

A lifecycle decision should also discount future cash flow. Production may degrade; tariffs, export credit and maintenance costs may change; parts may need replacement; and the tracker may have residual or removal value. Financing and taxes depend on the owner and jurisdiction. State every convention, analysis year and currency basis so another reviewer can reproduce the result.

Net present value

NPV = −C₀ + Σₙ₌₁ᴺ(CFn / (1 + d)ⁿ)

A positive modeled NPV means the discounted modeled benefits exceed modeled costs under the selected assumptions. It is not proof that the forecast will occur. Keep nominal or real cash flows consistent with the matching nominal or real discount rate.

C₀: net cash paid at the start
CFn: net incremental cash flow in year n
d: annual discount rate expressed as a decimal
N: analysis period in years

Example

Model replacements as negative cash flows in their expected years rather than hiding them in the initial price. Discount later benefits and costs using the same declared convention.

Show which assumptions control the result

A single payback number conceals uncertainty. At minimum, vary tracking gain, installed cost, downtime, tracker consumption, maintenance, replacement timing, degradation, self-consumption share, import value, export credit and discount rate. Use linked low, central and high cases where variables move together plausibly; a low-energy case should not quietly retain the most optimistic maintenance and tariff assumptions.

Populate these rows with project evidence; the table intentionally gives no universal percentage or price
Driver	Conservative question	Evidence
Energy gain	What if rotation or stow limits reduce the modeled gain?	Time-series simulation, shading model and acceptance-test data
Availability	What if one actuator or control fault leaves part of the array unavailable?	Architecture, failure modes, spare strategy and repair lead time
Energy value	How much extra energy is self-used, exported or curtailed?	Interval load, meter registers and current tariff or agreement
Lifecycle cost	Which parts wear, and who pays for access and recommissioning?	Maintenance schedule, warranty exclusions and priced service plan
Weather resilience	What happens if sensing, communication or power is unavailable before a storm?	Fail-safe position, local design loads, controls test and emergency procedure

Minimum evidence for a retrofit decision

Baseline evidence.At least a representative period of time-aligned generation, load, export and weather data, plus known outages and faults.
Two reproducible models.Fixed and tracking cases using the same weather, electrical boundary, losses and constraints, with every changed input listed.
Engineered design.Structural and electrical calculations, movement envelope, collision and shading check, drainage and access review, and defined safe/stow behavior.
Whole-life quotation.Installed scope, exclusions, warranties, service tasks, spares, expected replacements, data access and removal obligations.
Auditable workbook.Formula cells, units, source dates, tariff treatment, cash-flow timing, scenarios and an independent review trail.

To build the energy comparison before assigning money, use More Panels or Better Panel Orientation?. To value self-use and export separately, continue with What Happens to Solar Electricity You Do Not Use?.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Calculating Solar Tracking Cost and Payback?

Compare the upgrade with a credible fixed-array baseline. Model the same site, modules, weather period, tariff boundary and availability twice: once without the retrofit and once with it. The difference—not the tracker's total generation—is the energy benefit attributable to tracking.

Which assumption can change the conclusion?

Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.

What can go wrong if I copy the example directly?

A rooftop tracker is not just a financial add-on. Movement changes geometry and load paths. A competent structural review must address dead load, wind in operating and stow positions, dynamic effects, anchors, waterproofing and the existing roof.

How do I verify the result in the real system?

Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
