Fixed Panels Versus Solar Tracking

A fixed array holds one chosen orientation while the Sun moves. A tracker changes orientation about one or two mechanical axes. That movement can improve the direct-beam angle of incidence during parts of the day, but it does not create a universal percentage gain. Weather, latitude, horizon, row spacing, electrical limits, tracker geometry, availability and the energy used by the moving system all affect the result. The useful comparison is therefore a site-specific annual energy and lifecycle comparison—not a photograph of a panel pointing at the midday Sun.

Fixed, single-axis and dual-axis describe different freedoms of movement

Open full image

Diagram description

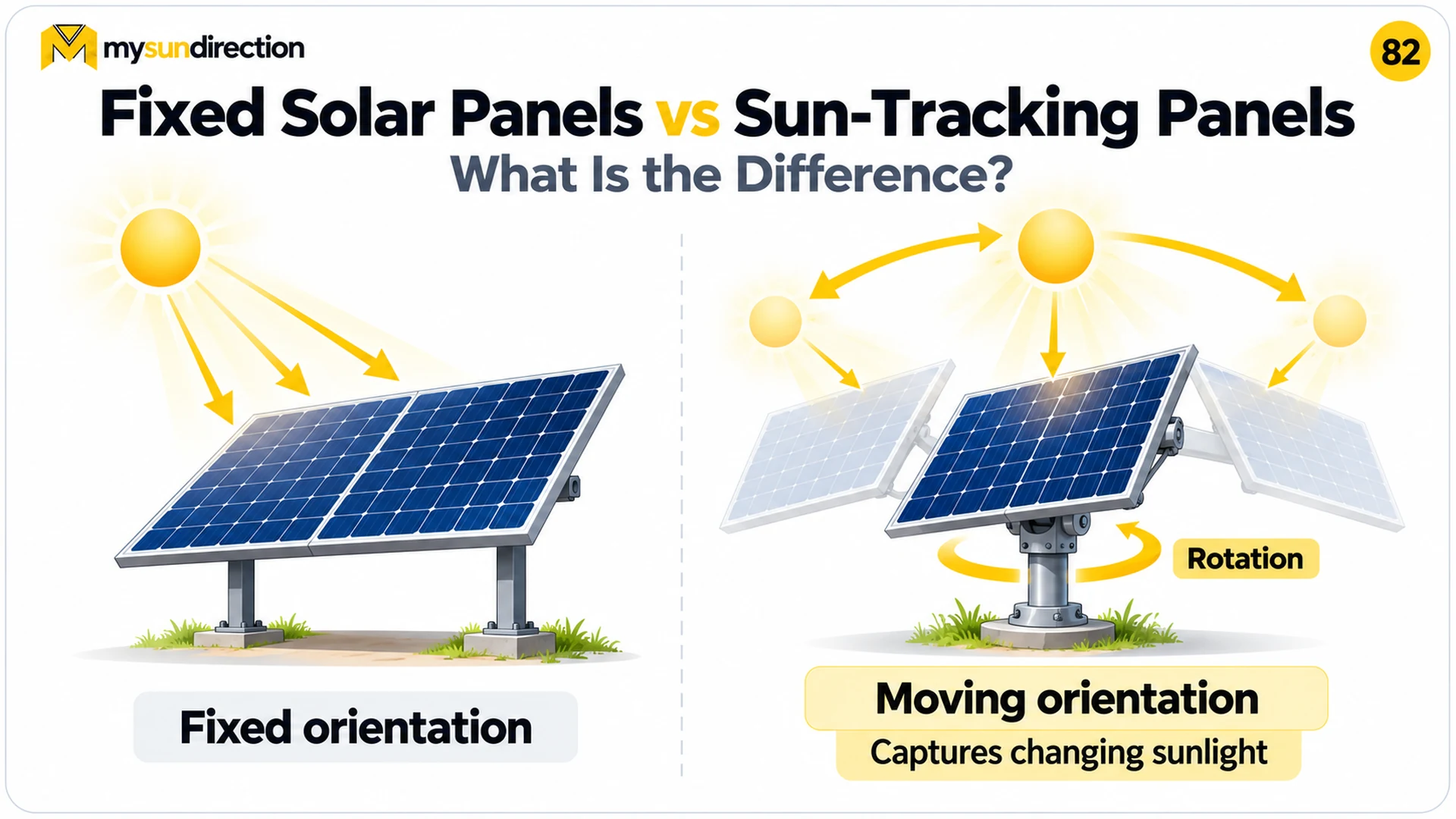

The left side shows a solar panel remaining at one angle beneath a Sun symbol. The right side shows overlapping panel positions around a support with a curved arrow, suggesting movement as the Sun position changes.

A single-axis tracker is not one universal machine. Its axis may be horizontal, tilted or vertical, and its compass direction changes the achievable panel orientations. A common utility-scale arrangement uses a roughly north–south horizontal axis so modules turn toward the eastern sky in the morning and the western sky in the afternoon. That example should not be copied automatically onto a roof: roof edges, wind exposure, support points, access paths, shadows and clearances create a very different design envelope.

Open full image

Diagram description

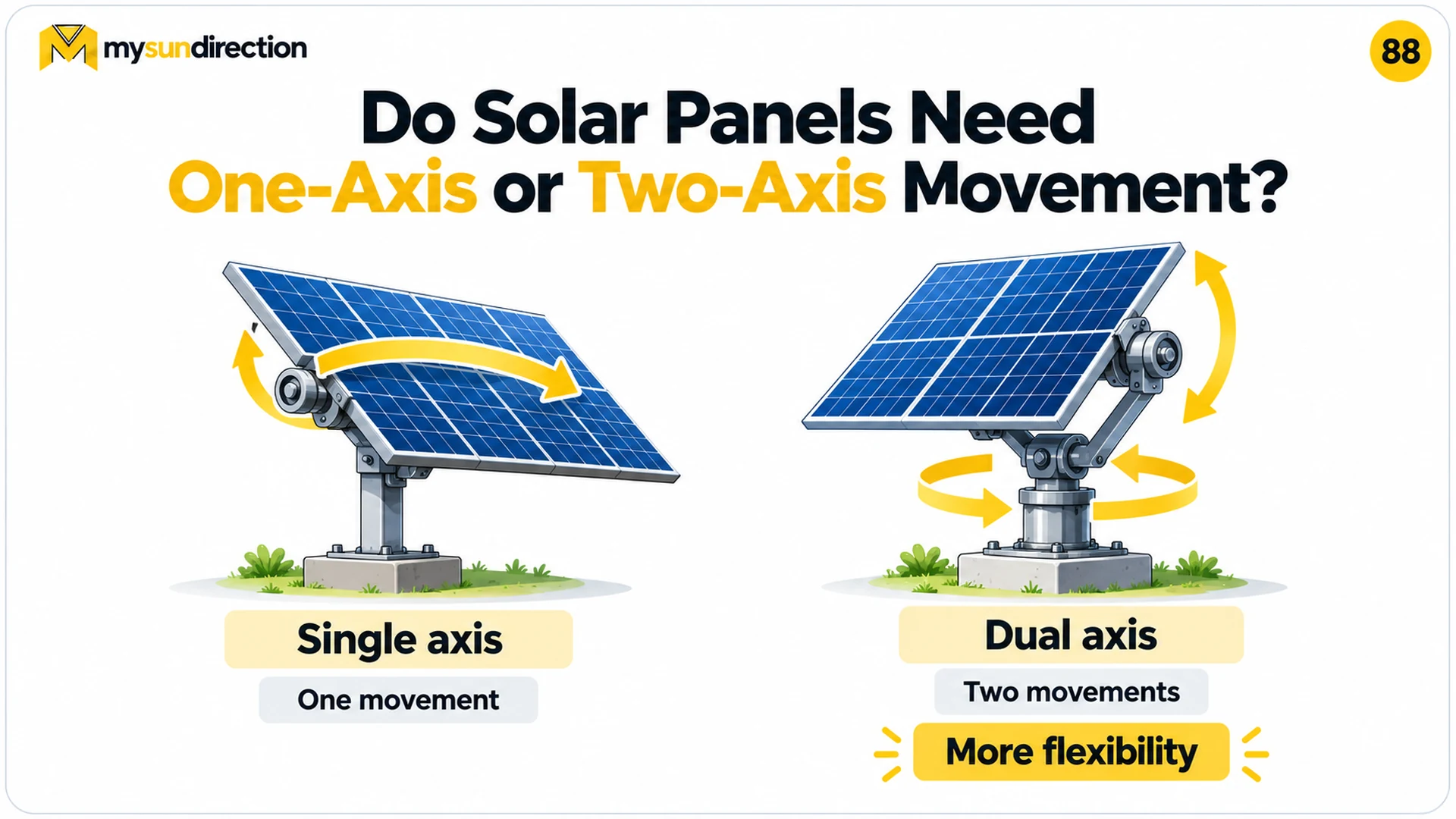

Two simplified panel mechanisms appear side by side. The single-axis example has one curved movement arrow around its support. The dual-axis example has two arrows indicating independent directions of rotation and is labeled as having more flexibility.

A power curve becomes energy only when it is accumulated over time

Open full image

Diagram description

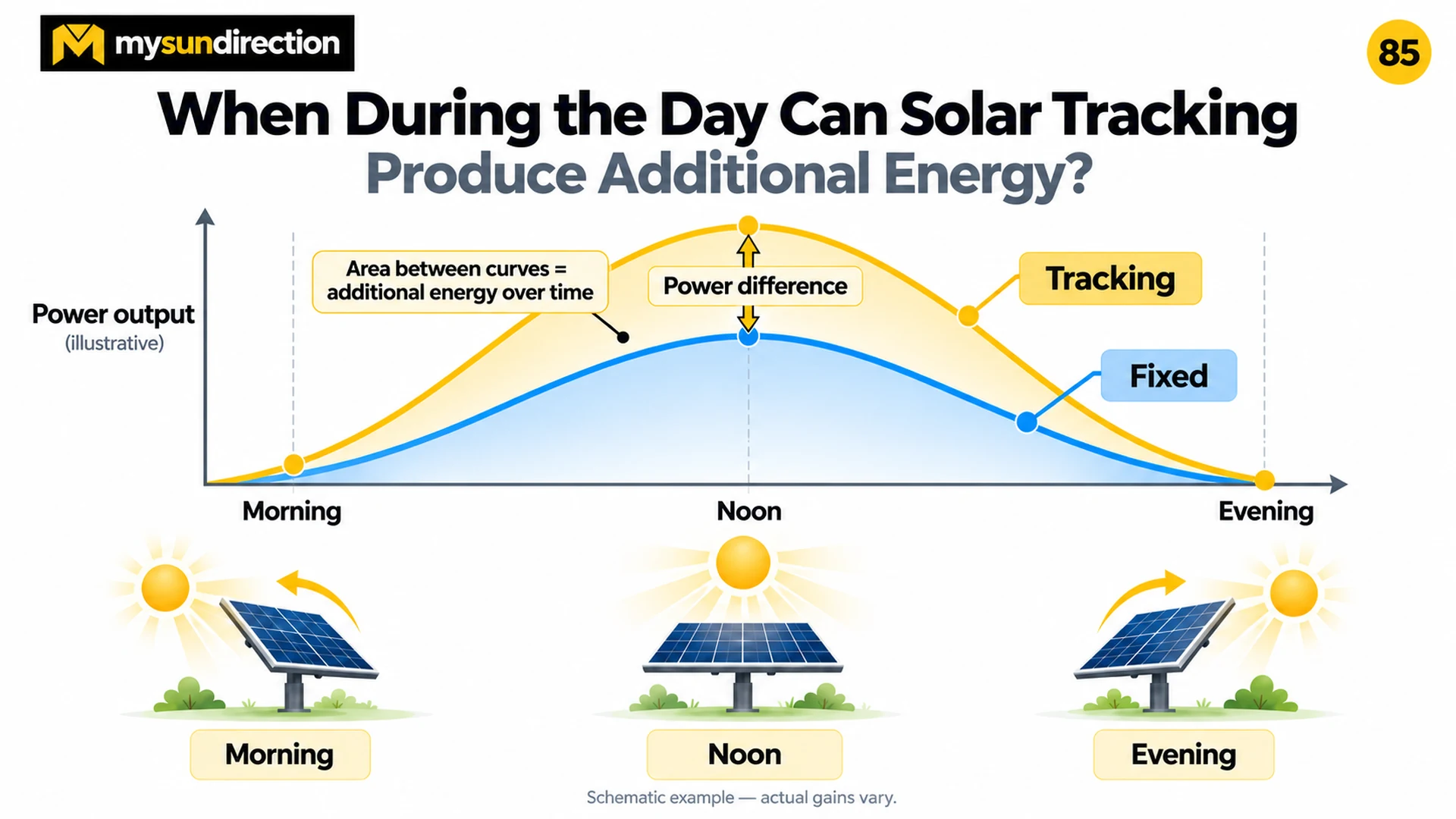

A graph plots power vertically and time of day horizontally. A broader yellow tracking curve and a narrower blue fixed curve rise in the morning and fall in the evening. Shaded space between the curves is labeled additional energy, with small morning, noon and evening panel poses beneath.

Power is an instantaneous rate, commonly expressed in kilowatts. Energy is accumulated power over a duration, commonly expressed in kilowatt-hours. On a valid graph with identical axes and comparable systems, the area under each power curve represents energy for that period; the area between the curves represents their gross energy difference. A higher point at noon alone says little about the full day. Conversely, a tracker can add useful morning and afternoon energy even when an inverter clips both systems to the same AC power near noon.

Energy from a power profile

E = ∫ P(t) dt

For interval data, estimate the integral by summing power multiplied by each interval duration. Keep units consistent: kilowatts multiplied by hours gives kilowatt-hours.

E

electrical energy over the chosen period, for example kWh

P(t)

electrical power at time t, for example kW

dt

a small time interval, for example hours

Example

If measured AC power averages 2.0 kW for one half-hour interval, that interval contributes about 2.0 × 0.5 = 1.0 kWh. Repeat for every interval to compare daily energy.

A fair comparison controls more than panel count

Direct normal irradiance usually gives tracking its strongest geometric opportunity. Under heavily diffuse skies, pointing the panel normal toward the calculated Sun direction does not concentrate diffuse light in the same way. Site weather therefore matters. So do row geometry and backtracking: avoiding a narrow strip of shade can be more valuable than achieving the smallest possible incidence angle, particularly where cell interconnection makes partial shade electrically disproportionate.

Subtract the energy and availability cost of movement

Motors or actuators do not necessarily run continuously; many trackers move in short steps and hold position between commands. Even so, drive energy, controller standby consumption, sensors, communications, heaters or other auxiliaries belong inside the system boundary. A stalled tracker can also lose generation without consuming much movement energy. That makes auxiliary consumption and tracker availability separate quantities, both of which need evidence from the proposed hardware and control strategy.

A simple net-energy boundary

Enet = EPV − Edrive − Econtrol − Eother

Use the same time period and electrical boundary for every term. This equation does not assign a universal tracker-consumption percentage; obtain loads and duty cycles from measurements or verified equipment data.

Enet

net electrical energy remaining at the selected boundary

EPV

PV electrical energy produced at that boundary before tracker auxiliaries

Edrive

energy used by motors, actuators or brakes

Econtrol

energy used by controllers, sensors and communications

Eother

other included auxiliary energy, such as environmental conditioning where applicable

Example

If a day's comparable PV output is 20.0 kWh and documented tracker auxiliaries use 0.15 kWh at the same boundary, the simple net value is 19.85 kWh before any other excluded system losses.

More movement changes the structure, controls and maintenance plan

A moving array needs bearings or pivots, transmitted torque, end stops or limit sensing, cable management and a safe response to abnormal conditions. Wind loading can change with pose, and the required foundation or roof attachment must carry dynamic and fatigue demands as well as static weight. Dual-axis motion adds another kinematic chain and a larger possible swept envelope. These are not arguments against tracking; they are design inputs that a yield-only comparison leaves out.

Questions for a tracker design review

• What are the axis direction, travel limits, stow angles and collision clearances?
• What wind, snow, temperature, corrosion and fatigue conditions define the structure?
• How are position verified, limit faults detected and unsafe commands rejected?
• What happens after sensor, actuator, communication or mains-power failure?
• How are flexible cables protected from repeated bending, pinch points and abrasion?
• Can a technician isolate electrical and stored mechanical energy and prevent unexpected motion?
• How will energy use, position error, stalls, downtime and maintenance be recorded?

A decision workflow that does not begin with a promised gain

1. 1. Define the objective and boundary.Decide whether the priority is annual AC energy, morning or evening production, self-consumption, export value, demonstration, resilience or another measurable outcome.
2. 2. Survey the site and fixed baseline.Measure roof geometry, obstructions, structural capacity, access, horizon and the best feasible fixed orientation before introducing motion.
3. 3. Define each real tracker option.Specify axis geometry, range, spacing, control algorithm, backtracking, stow, electrical design and expected availability—not merely “one-axis” or “two-axis.”
4. 4. Model comparable time-series output.Use the same weather, component and loss assumptions, then inspect power profiles, clipping, shading and annual energy rather than one representative day.
5. 5. Measure or estimate auxiliaries transparently.Account for drive and control energy from traceable inputs and keep fault-related downtime separate.
6. 6. Compare lifecycle outcomes.Include structure, controls, installation, inspection, spares, maintenance, safety and replacement alongside the value of additional usable energy.

Begin with How the Sun Moves Across Your Solar Roof to establish the geometry. Then use More Panels or Better Panel Orientation? for the capacity-versus-orientation system decision and Calculating Solar Tracking Cost and Payback for lifecycle economics. Tracking earns its place only when the additional useful energy and operational value justify the added mechanism at the actual site.

One-minute questions

Questions to answer before you apply this lesson

What should I select or check first for Fixed Panels Versus Solar Tracking?

1. Define the objective and boundary. Decide whether the priority is annual AC energy, morning or evening production, self-consumption, export value, demonstration, resilience or another measurable outcome.

Which assumption can change the conclusion?

Irradiance, weather, module construction, wiring, orientation and measurement boundary match the case being discussed.

What can go wrong if I copy the example directly?

Do not subtract an invented allowance. Auxiliary consumption varies with mechanism, array size, voltage, weather, control interval and standby design. Measure it or derive it from traceable component power and operating time. Availability losses from faults, stow or maintenance require a separate time-based model.

How do I verify the result in the real system?

6. Compare lifecycle outcomes. Include structure, controls, installation, inspection, spares, maintenance, safety and replacement alongside the value of additional usable energy.
