The lifecycle is a loop, not a hand-off cliff
1. Assess the site and define the problem
2. Convert the need into requirements and a controlled design
3. Validate risky ideas before site installation
4. Install, commission and accept in separate steps
5. Monitor performance, then act on it
6. Treat remote access and data as part of the engineered system
Measure service quality without gaming the metric

A solar-automation service is not complete when hardware is bolted down. It begins by defining the customer's problem, passes through feasibility and controlled design, proves the installed system against acceptance criteria, and continues through monitoring, preventive care, fault response and managed change. Each stage should leave evidence that the next person can understand.

The lifecycle is a loop, not a hand-off cliff

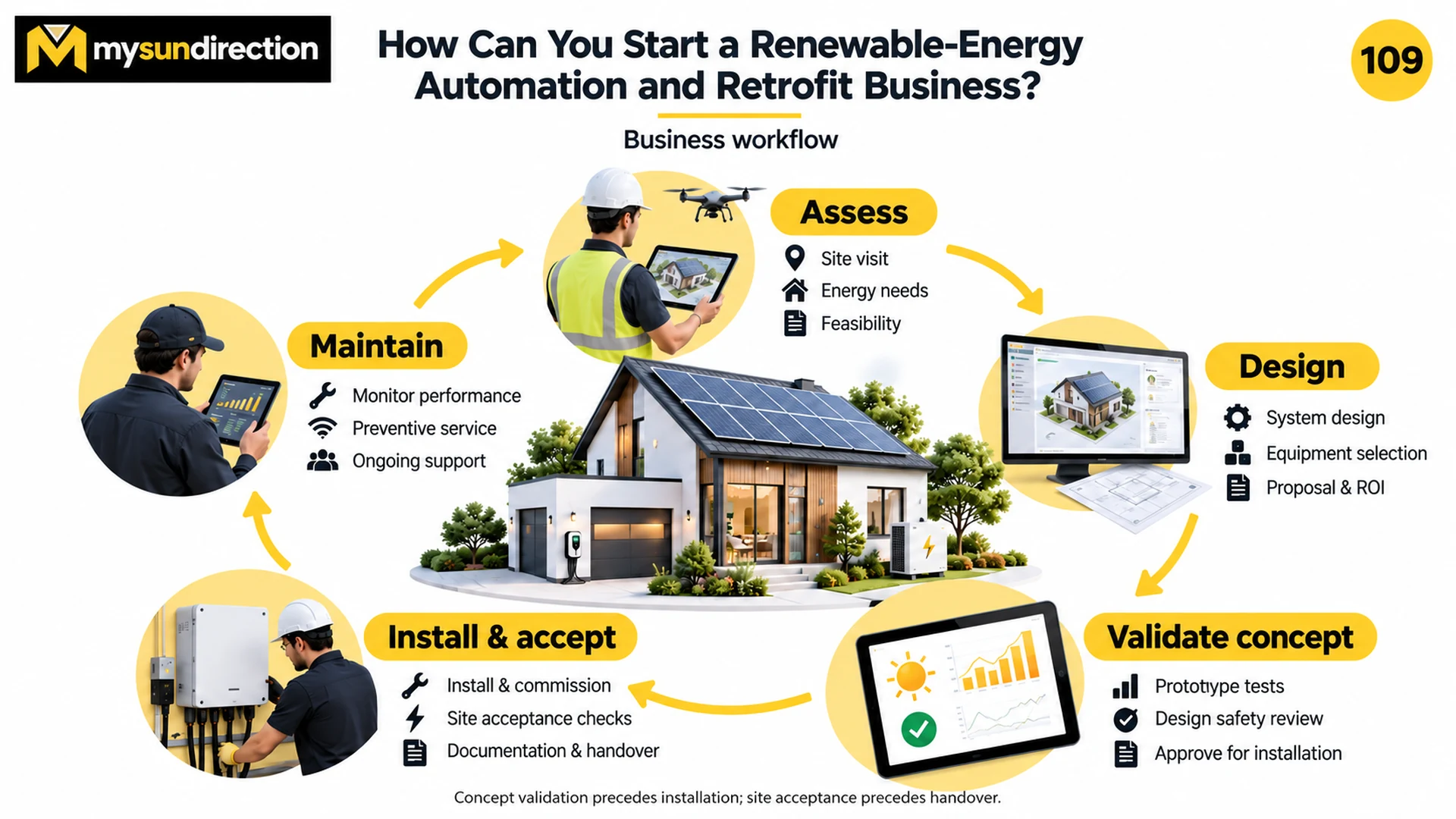

Circular renewable-energy retrofit workflow moving through assess, design, validate concept, install and accept, then maintain around a solar-equipped home. — Concept validation comes before installation; site acceptance comes before handover; maintenance evidence feeds the next assessment and design change.

The loop matters because an operating site changes. Loads grow, shade develops, firmware changes, components age and weather exposes assumptions. Monitoring can reveal a need for service; a service visit can reveal a design weakness; a proposed modification should return to assessment rather than being installed as an undocumented improvisation.

1. Assess the site and define the problem

Begin with the existing asset, not the preferred product. Record module and inverter models, array layout, electrical single-line diagram, structure, protection, meter arrangement, network connection, warranties, known alarms and maintenance history. Reconcile drawings with what is physically installed. For a moving system, survey the full movement envelope, collision points, cable travel, access, drainage, shade and every load path into the building or foundation.

The depth should match the risk and scale of the proposed automation
Question	Useful evidence	Decision it supports
What problem exists?	Time-stamped generation, irradiance, load, export, alarms and outage records	Whether automation addresses a measured loss or only a perceived one
Can the structure move safely?	Survey, drawings, material condition, anchors and applicable design loads	Feasibility, reinforcement or rejection
Can electrical interfaces support it?	Supply capacity, protective devices, cable routes, earthing and isolation	Architecture and safe installation method
Can it be operated and maintained?	Access, skills, spares, communication coverage and response resources	Service scope and lifecycle cost
Is it permitted and insurable?	Owner, utility, regulator, building, warranty and insurer requirements	Approvals, constraints and commercial risk

2. Convert the need into requirements and a controlled design

Requirements describe what the completed system must do and the boundaries within which it must remain safe. State movement range, positioning tolerance, maximum cycle frequency, permitted operating weather, stow triggers, loss-of-power behavior, manual recovery, noise, access, data interval, retention, alarm recipients and response time. Define which requirements are safety-critical and who can authorize a change.

The design should trace every requirement to hardware, software, protection or procedure. That includes structural calculations, motor and transmission sizing, end stops, position feedback, controller states, interlocks, emergency isolation, cable management, surge and overcurrent protection, weather sensing, network design and failure behavior. Interfaces with the existing inverter, roof, meter and warranty need named owners.

Make acceptance coverage visible

coverage = verified requirements / applicable requirements

The ratio is a completeness indicator, not proof of safety. Each requirement still needs an appropriate test, inspection, calculation or document review, and failed or not-tested items must remain visible.

verified requirements: requirements with identified, reviewed and passing objective evidence
applicable requirements: all requirements that apply to the delivered configuration

Example

If 47 of 50 applicable requirements have passing evidence, coverage is 94 percent—but the system is not automatically acceptable. The three open requirements may include a critical stow or isolation test.

3. Validate risky ideas before site installation

A prototype should answer the uncertain questions: Can the drive start under the worst credible load? Does position sensing remain accurate after power loss? Do limits and interlocks stop motion predictably? Does the enclosure control condensation and heat? Can cables tolerate the repeated path? Can a failed sensor or lost network connection place the system in a safe, defined state?

Bench success is not site acceptance. A prototype may omit wind, roof deflection, real cable length, communication interference or interaction with other equipment. Record its configuration, instruments, test conditions, raw results, deviations and design actions. Close safety-review actions before authorizing installation.

4. Install, commission and accept in separate steps

Installation creates the physical system. Commissioning verifies that it has been built, configured and tested as designed. Acceptance is the customer's documented decision that the agreed evidence and deliverables satisfy the contract. Keeping these concepts separate prevents an energized system from being mistaken for a completed system.

1. Control the work.Approve drawings, method statement, isolation plan, permits, lifting, weather limits, hold points and competent personnel before starting.
2. Inspect before energizing.Check structure, fasteners, clearances, cable support, polarity, protective conductors, labels, enclosures and installed equipment against drawings.
3. Test functions safely.Prove local and remote modes, limits, feedback, alarms, communications, emergency stop or isolation, loss-of-power behavior and safe/stow sequences.
4. Establish a performance baseline.Record configuration, firmware, calibration, weather and synchronized electrical data so future monitoring has a defensible reference.
5. Close defects by risk.Do not hide failed tests in a general punch list. Identify safety-critical blockers, responsible owner, correction, retest and acceptance authority.
6. Hand over usable records.Deliver as-built drawings, settings, test sheets, manuals, warranties, spares, credentials, training, emergency procedure and service contacts.

5. Monitor performance, then act on it

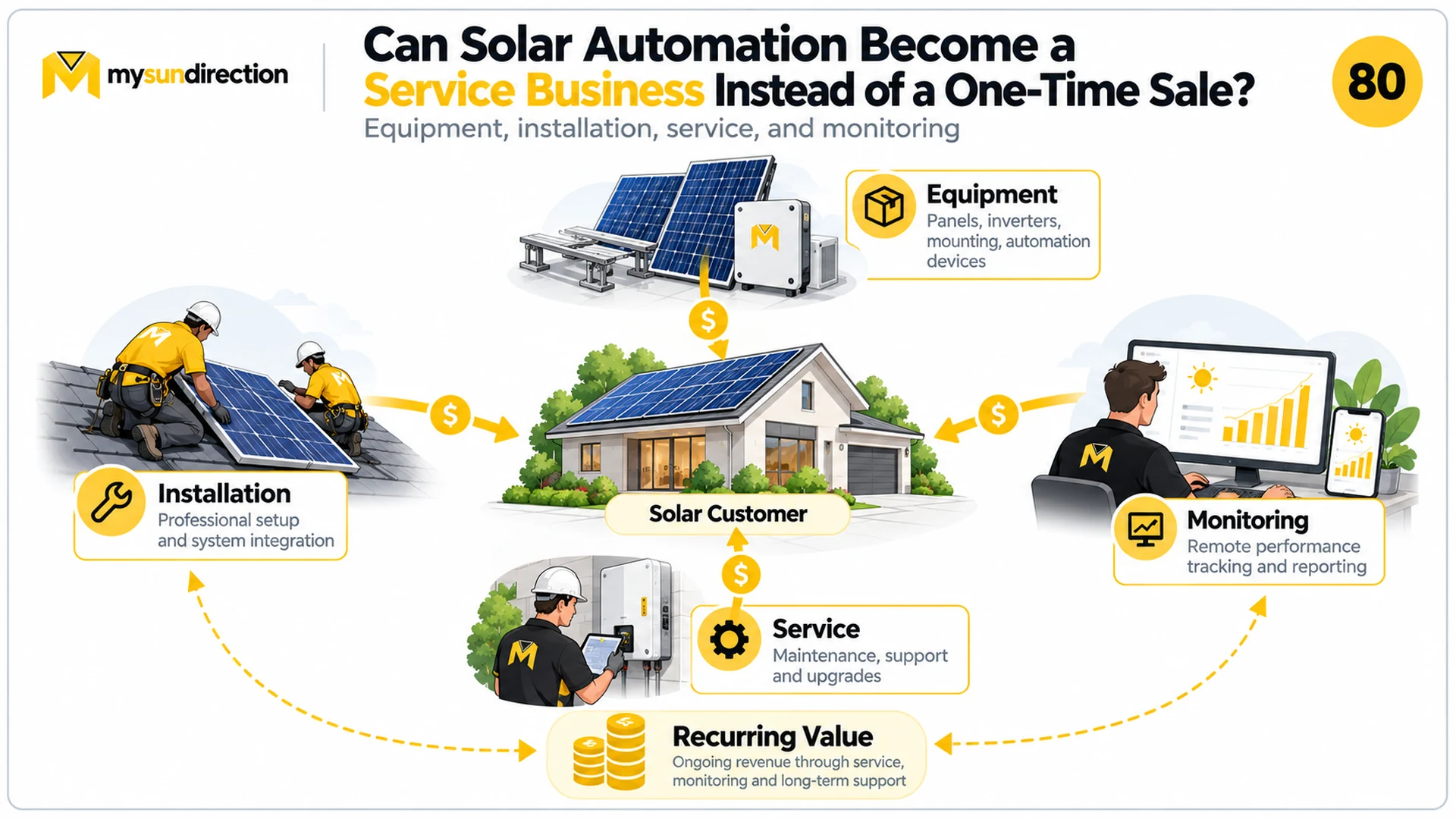

Solar customer at the centre of equipment supply, professional installation, remote monitoring and maintenance services connected to ongoing value. — Recurring revenue is justified only by recurring customer value: useful monitoring, competent response, maintained safety and documented performance.

Monitoring measures and reports; it does not tighten a loose fastener, replace a failed sensor or investigate every alarm. A service design must connect detection to triage, authorization, remote action where safe, site response, repair, retest and closure. Define normal hours, emergency boundaries, escalation, response targets and what happens when communications are unavailable.

Replace vague promises with named data, responsibilities and evidence
Service element	Define in the agreement	Evidence returned to the customer
Monitoring	Signals, interval, uptime, quality flags, alarm thresholds and data retention	Data-completeness report, event log and performance summary
Remote support	Permitted read/write actions, approval, authentication and audit logging	Dated action record with user, reason, before/after state and outcome
Preventive maintenance	Tasks, intervals, weather limits, exclusions and consumables	Checklist, measurements, photographs and open defects
Corrective response	Severity levels, response versus restoration targets, labour and parts coverage	Ticket chronology, root cause, replaced parts and recommissioning results
Performance review	Baseline model, weather normalization, availability and loss categories	Actual-versus-expected analysis with assumptions and uncertainty
Change management	Who approves settings, firmware, equipment, thresholds and drawings	Versioned change record, risk review, backup and rollback evidence

6. Treat remote access and data as part of the engineered system

Internet-connected inverters and controllers create cyber-physical risk because a compromised command can affect electrical or mechanical behavior, not just a dashboard. Inventory every connected device and account. Use unique credentials, least privilege, strong authentication where supported, encrypted communications, controlled vendor access, timely supported updates, configuration backups, audit logs and a tested method to revoke access when staff or suppliers change.

The contract should identify who owns raw and processed data, where it is hosted, who can export it, how long it is retained, what happens when a subscription ends and how the customer regains control if the service provider disappears. Preserve a local safe mode that does not depend on a cloud dashboard being available.

What belongs in the handover pack?

System definition.As-built layout, single-line and control diagrams, equipment list, serial numbers, firmware, settings and network topology.
Safety and operation.Normal, manual, safe/stow, shutdown, isolation, emergency and recovery procedures with responsible contacts.
Verification.Inspection records, calibrated-instrument details, test results, deviations, photographs, baseline data and signed acceptance.
Lifecycle support.Warranty terms, maintenance plan, spares, service levels, escalation, software support period and end-of-service data export.
Training.Named attendees, competencies covered, practical demonstrations and the boundaries between customer actions and qualified service work.

Measure service quality without gaming the metric

Useful measures include data completeness, confirmed alarm-delivery rate, mean time to acknowledge, time to safe state, time to restore, repeat-fault rate, preventive tasks completed on time, availability by subsystem and weather-adjusted performance. Publish definitions and exclusions. A provider should not improve an availability percentage by marking inconvenient outages as excluded without a documented rule.

Service availability with an explicit boundary

availability = eligible operating time / agreed service time

Define both numerator and denominator before the period begins: which subsystem, time zone, sampling interval, planned maintenance, grid outage, weather stow, communication loss and customer-requested shutdown are included or excluded.

eligible operating time: agreed time in which the monitored function was available and within required state
agreed service time: the contract period after only predefined, evidenced exclusions

Example

A 99 percent dashboard-connection figure does not prove 99 percent mechanical availability or energy performance. Report each boundary separately.
