A shaft coupling joins a driving shaft to a driven shaft so torque and rotation can pass between them. In a linear axis, it may connect a motor shaft to a screw. In another machine it may connect a motor to a gearbox, pump, encoder or roller. A coupling is not merely a sleeve: its hubs must grip both shafts, its torque path must survive normal and peak demand, and any flexible section must deform in the intended way without creating unacceptable wind-up, heat, bearing load or fatigue.

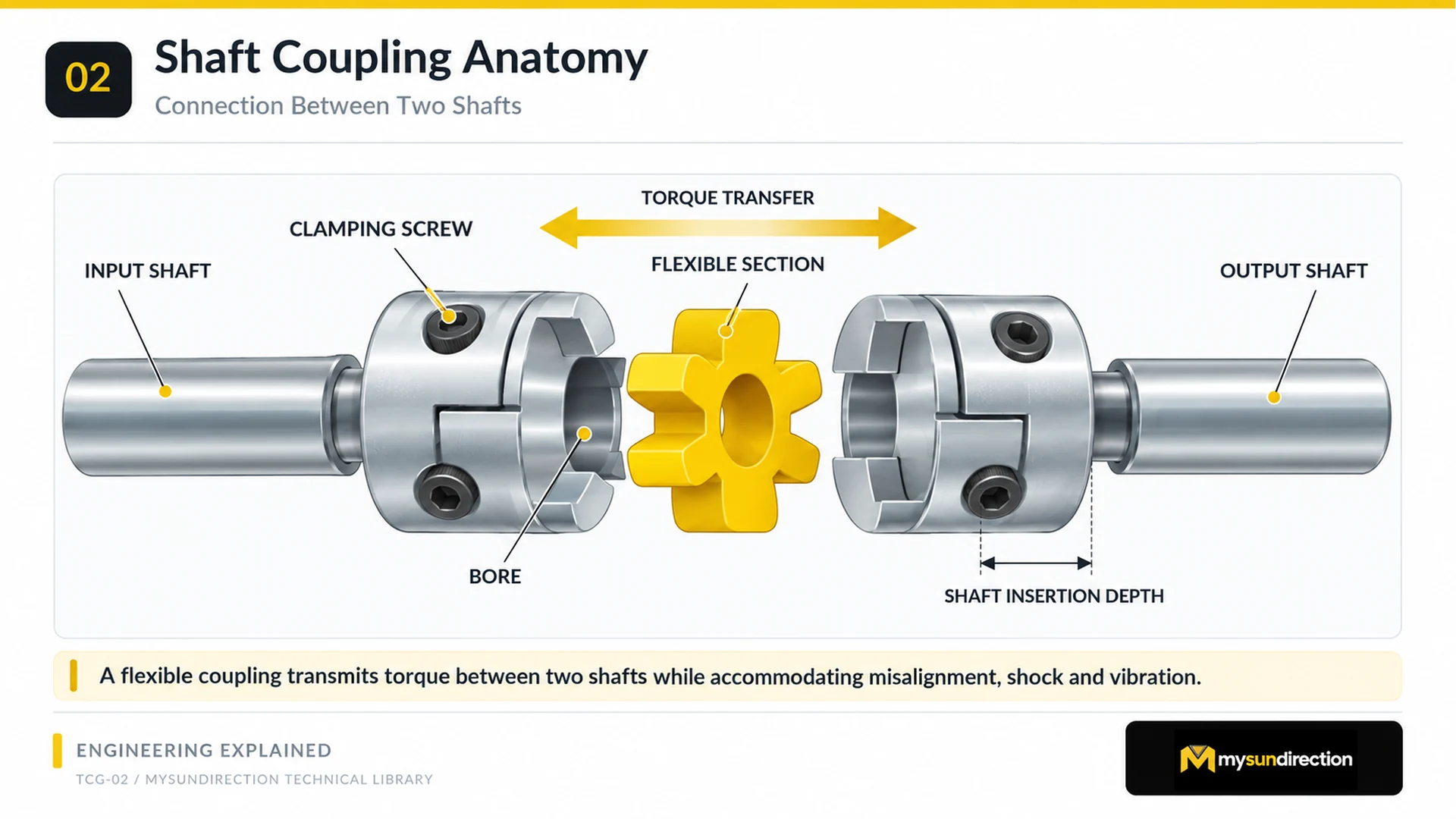

Follow the torque path through the coupling
Diagram description
Two silver split-clamp hubs face one another between two shafts. A yellow star-shaped spider sits between interlocking jaws. Labels identify the clamping screw, bore, flexible section, shaft insertion depth and the bidirectional torque path.
| Feature | Purpose | What must be verified |
|---|---|---|
| Input and output bores | Locate on the two shafts | Actual diameters, tolerances, key/D-flat geometry, surface condition and permitted fit |
| Hubs | Carry torque between each shaft and the flexible or connecting element | Material, maximum bore, wall section, balance, inertia and environmental compatibility |
| Shaft retention | Prevent slip and unintended axial movement | Clamp, set screw, keyway or other method; seating torque and shaft engagement |
| Flexible element | Allows specified elastic displacement and may add damping | Torque, speed, fatigue, temperature, chemical exposure, torsional stiffness and allowed misalignment |
| Hub separation/free length | Places the flexing element in its intended neutral geometry | Installation dimension, axial relaxation and thermal movement |
| Guarding and access | Prevents contact and permits inspection | Safe envelope, fastener access, visibility and energy isolation |
Bore size is not only a diameter lookup. The coupling may need two different bores, and the available hub wall becomes thinner as a bore grows. Shaft tolerances, keys, flats, clamp slots and insertion depth affect centering and torque capacity. Some hubs clamp around a smooth shaft; some use set screws, keys or tapering devices. Use the manufacturer's allowable bore combinations and installation method for the exact part number rather than machining a larger hole into a finished coupling without approval.
Flexibility trades alignment tolerance against motion behavior
A flexible element bends, shears, compresses or slides to accommodate relative shaft movement. That compliance can reduce the reaction forces caused by small angular, parallel or axial displacement, and an elastomer can damp some shock or vibration. The same compliance also permits torsional wind-up: under torque, the output can lag the input by a small angle. Precision positioning may therefore favor higher torsional stiffness, while a shock-prone drive may benefit from more damping. Neither label is enough without numbers at the real torque and temperature.
First estimate of elastic torsional wind-up
θ = T / kt
This linear estimate applies where the manufacturer's torsional-stiffness value and operating range support it. Elastomers may be nonlinear and temperature- or frequency-dependent.
- θ
- relative angular twist, rad
- T
- transmitted torque, N·m
- kt
- torsional stiffness, N·m/rad
A coupling with 1,000 N·m/rad stiffness under 5 N·m would have an idealized twist of 0.005 rad, about 0.29°. Check the actual manufacturer's curve before using this in an error budget.

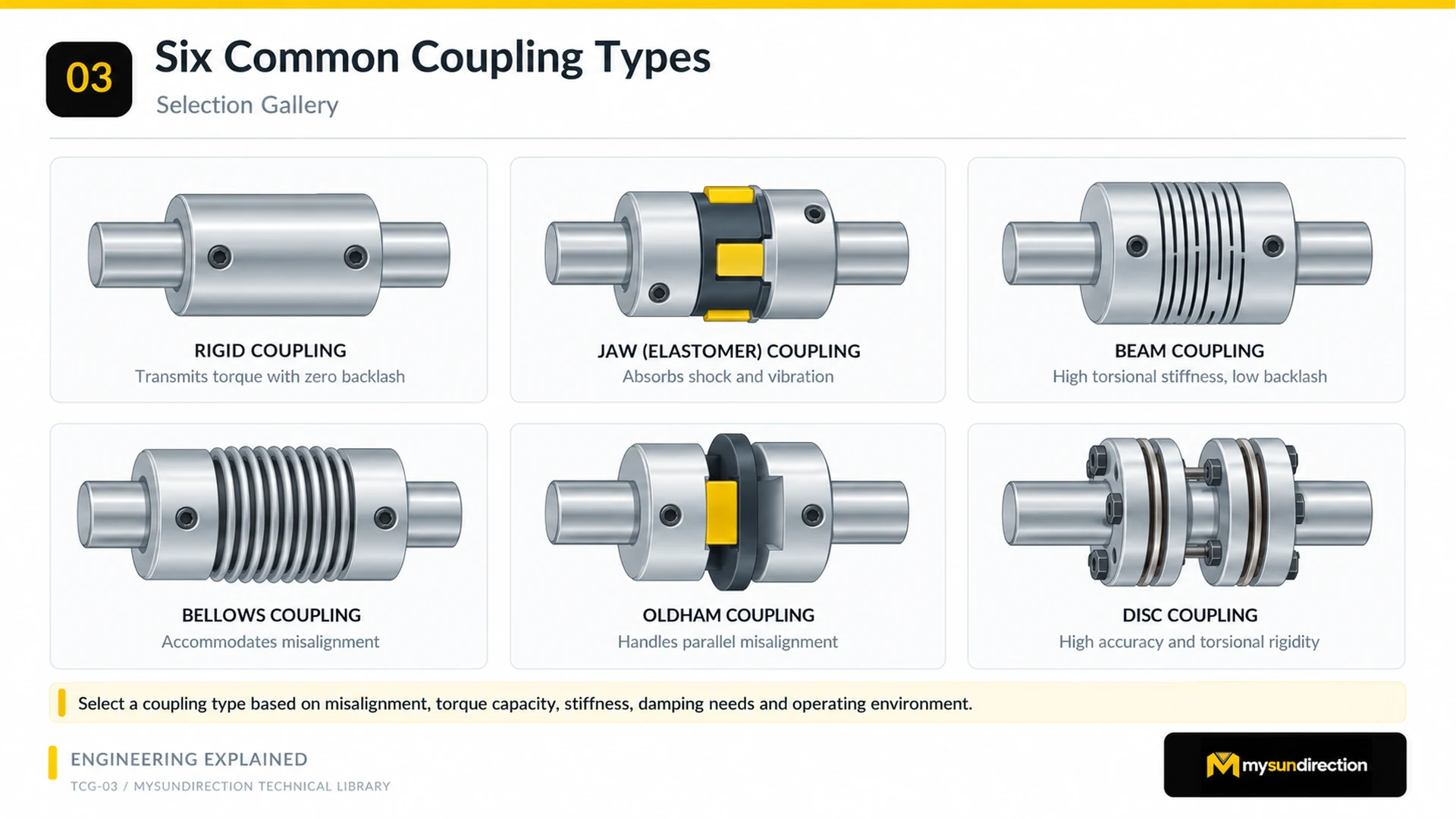

Coupling families achieve flexibility in different ways
Diagram description
Six illustrated couplings are arranged in two rows. Short labels associate a rigid sleeve with direct torque transmission, a jaw coupling with damping, a beam and bellows with flexure, an Oldham with parallel offset and a disc coupling with stiffness and accuracy.
| Family | Torque-transfer idea | Selection implications |
|---|---|---|
| Rigid | One stiff body locks the shafts together | High alignment demand; installation error can load bearings. Actual backlash depends on fit and fastening, not the family name alone |
| Jaw / elastomer | Interlocking hub jaws compress or shear an insert | Damping and fail-safe behavior vary by spider material and geometry; temperature, chemicals and torsional wind-up matter |
| Beam | Helical cuts create one or more flexible beams in a single body | Compact and often low backlash; beam count and geometry change parallel capacity, stiffness, fatigue and speed behavior |
| Bellows | Thin corrugated metal flexes while carrying torque between hubs | Often high torsional stiffness with angular or axial capacity; vulnerable to overextension, damage and excessive offset |
| Oldham | A center disc slides in perpendicular slots between hubs | Useful for parallel displacement; sliding interfaces, wear, speed, axial or angular limits and insert retention need review |
| Disc | Thin metal disc packs flex between hubs or spacers | Torsionally stiff and no elastomer; one versus two flex planes changes parallel capability, while bolt and spacing details are critical |
Why family labels can mislead
A single-disc coupling and a double-disc spacer coupling do not have the same parallel-misalignment capability. A single-beam and multi-beam coupling behave differently. Jaw-spider hardness changes damping and stiffness. Rigid couplings may use set screws, clamps or keys with different centering and torque behavior. Always identify the construction, size, material, bore and retention—not only the family.
Choose by the application envelope
| Input | Record | Why it matters |
|---|---|---|
| Shafts | Both diameters, tolerance, key or flat, engagement, separation and available envelope | Determines bore and hub or fastening feasibility |
| Torque | Normal, accelerating, reversing, peak, stall or jam and duty cycle | Checks fatigue, insert load, clamp or key capacity and overload behavior |
| Speed | Maximum and operating range, starts and stops and rotation direction | Checks balance, centrifugal effects, heat and flex-element cycles |
| Misalignment | Angular, parallel and axial components across tolerance and temperature | Matches the type and combined amount of required flex |
| Motion quality | Backlash, torsional stiffness, damping, inertia, positioning and settling | Connects coupling deformation to system control and performance |
| Environment | Temperature, water, dust, chemicals, vacuum or cleanliness and corrosion | Determines materials, insert, coating, lubrication and protection |
| Maintenance and safety | Inspection access, replaceable element, guard, failure consequence and isolation | Ensures the connection can be kept safe throughout service |
From shafts to a coupling shortlist
- 1. Define both shaft interfaces.Measure the actual shaft geometry and available space, and obtain the equipment makers' limits on axial and radial shaft loads.
- 2. Calculate the torque and speed envelope.Include acceleration, reversal, process peaks and credible fault conditions—not only motor rated torque.
- 3. Estimate real misalignment.Combine manufacturing, assembly, support deflection and thermal movement using defined directions.
- 4. Set motion-quality targets.Allocate acceptable backlash, torsional wind-up, damping, inertia and settling behavior.
- 5. Compare exact catalog configurations.Check bore, retention, torque, speed, combined misalignment, stiffness, environment and dimensions for each part number.
- 6. Plan installation and verification.Specify alignment, shaft engagement, hub spacing, fastener seating torque, guarding, inspection and replacement criteria.
The coupling sits inside the complete chain introduced in From a Motor to a Moving Carriage. Choosing a Coupling That Can Tolerate Misalignment turns angular, parallel and axial displacement into a selection and installation check. The purpose is not to find the most flexible coupling; it is to connect two shafts with controlled torque transfer and only the flexibility the system genuinely needs.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for What Shaft Couplings Actually Do?
1. Define both shaft interfaces. Measure the actual shaft geometry and available space, and obtain the equipment makers' limits on axial and radial shaft loads.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
Guard rotating couplings and isolate the drive. A coupling can catch clothing, hair, tools or fingers, and a failed element can release fragments or allow uncontrolled motion. Use suitable guarding and a machine risk assessment.
How do I verify the result in the real system?
6. Plan installation and verification. Specify alignment, shaft engagement, hub spacing, fastener seating torque, guarding, inspection and replacement criteria.
