A linear guide lets a carriage move along one intended axis while resisting loads in other directions. In a profiled rolling guide, balls or rollers carry load between accurately formed raceways in the block and rail. The rolling elements circulate as the block travels, so the loaded elements are continually replaced by elements returning through internal passages. The guide is therefore both a motion constraint and a structural load path.
Inside the carriage, load-carrying paths and return paths work together
The rail provides hardened running surfaces and a geometric reference. Loaded rolling elements transmit force between the rail and carriage block. At the ends, caps direct the balls or rollers out of the loaded raceway and into return passages before they re-enter the load zone. Seals or wipers help limit contamination, while a grease fitting or lubrication connection provides the approved lubricant. Mounting holes connect the rail to the base and the block to the moving structure.

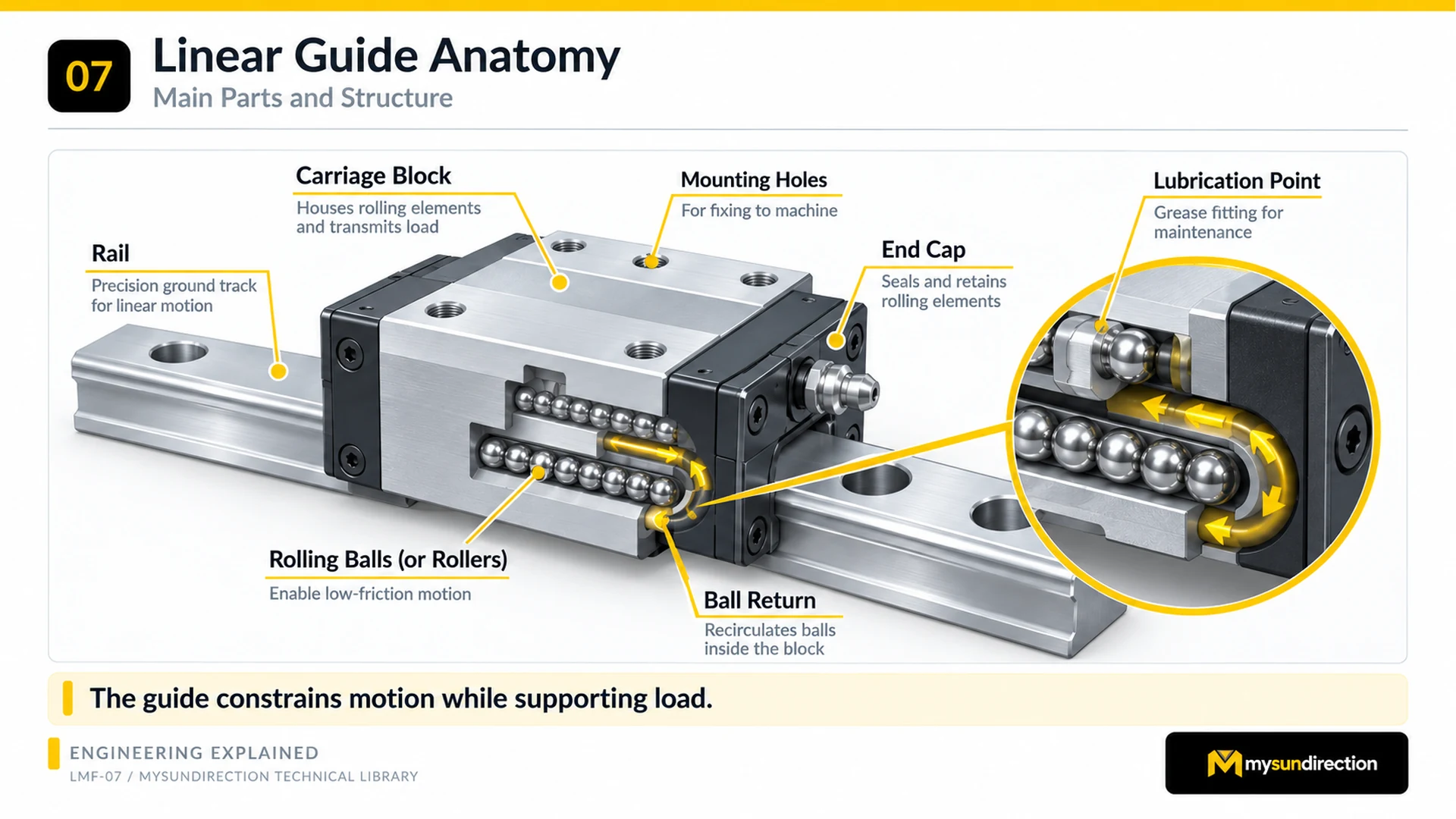

Diagram description
A metallic carriage sits over a profiled rail. A cutaway exposes two rows of balls and yellow arrows that follow the balls around an end return and back through the block. Labels identify the rail, carriage block, rolling balls or rollers, ball return, mounting holes, end cap and grease fitting. An enlarged circular inset shows the recirculation turn inside the end of the carriage.
| Part | Primary function | Selection or integration question |
|---|---|---|
| Rail and raceways | Provide the straight reference and loaded rolling surfaces | Are size, accuracy grade, mounting datum, length and joint arrangement suitable? |
| Carriage block | Connect the moving structure to the rolling contacts | Does its body style, length, mounting pattern and orientation fit the load path? |
| Balls or rollers | Transfer compressive contact loads with rolling motion | Are load capacity, rigidity, friction and speed characteristics appropriate? |
| Return system and end caps | Recirculate rolling elements outside the loaded zone | Will stroke ends, impact, handling or debris threaten these parts? |
| Seals and lubrication | Protect raceways and maintain a lubricant film | Do environment, speed, orientation and interval match the approved service plan? |
| Fasteners and mounting surfaces | Transfer guide reactions into carriage and base | Are flatness, alignment, bolt grade, tightening and shoulder details controlled? |
A force and a moment describe different demands
A force pushes or pulls and is measured in newtons. A moment describes the turning effect of a force about a point or axis and is measured in newton-metres or newton-millimetres. The same payload can create very different guide loads depending on where its centre of gravity and process force act. A force through the supported centre may be shared comparatively evenly; the same force on a long bracket creates an overturning moment and an uneven reaction across blocks or rails.
Moment from an offset force
M = F × d⊥
Use the perpendicular distance from the reference point or axis to the force's line of action. Preserve units: newtons multiplied by metres gives newton-metres; newtons multiplied by millimetres gives newton-millimetres.
- M
- moment about the chosen axis
- F
- applied force
- d⊥
- perpendicular distance from the axis to the force line of action
A downward 400 N force whose line of action is 0.30 m from the supported centre creates a 120 N·m moment about that centre, in addition to the 400 N force.

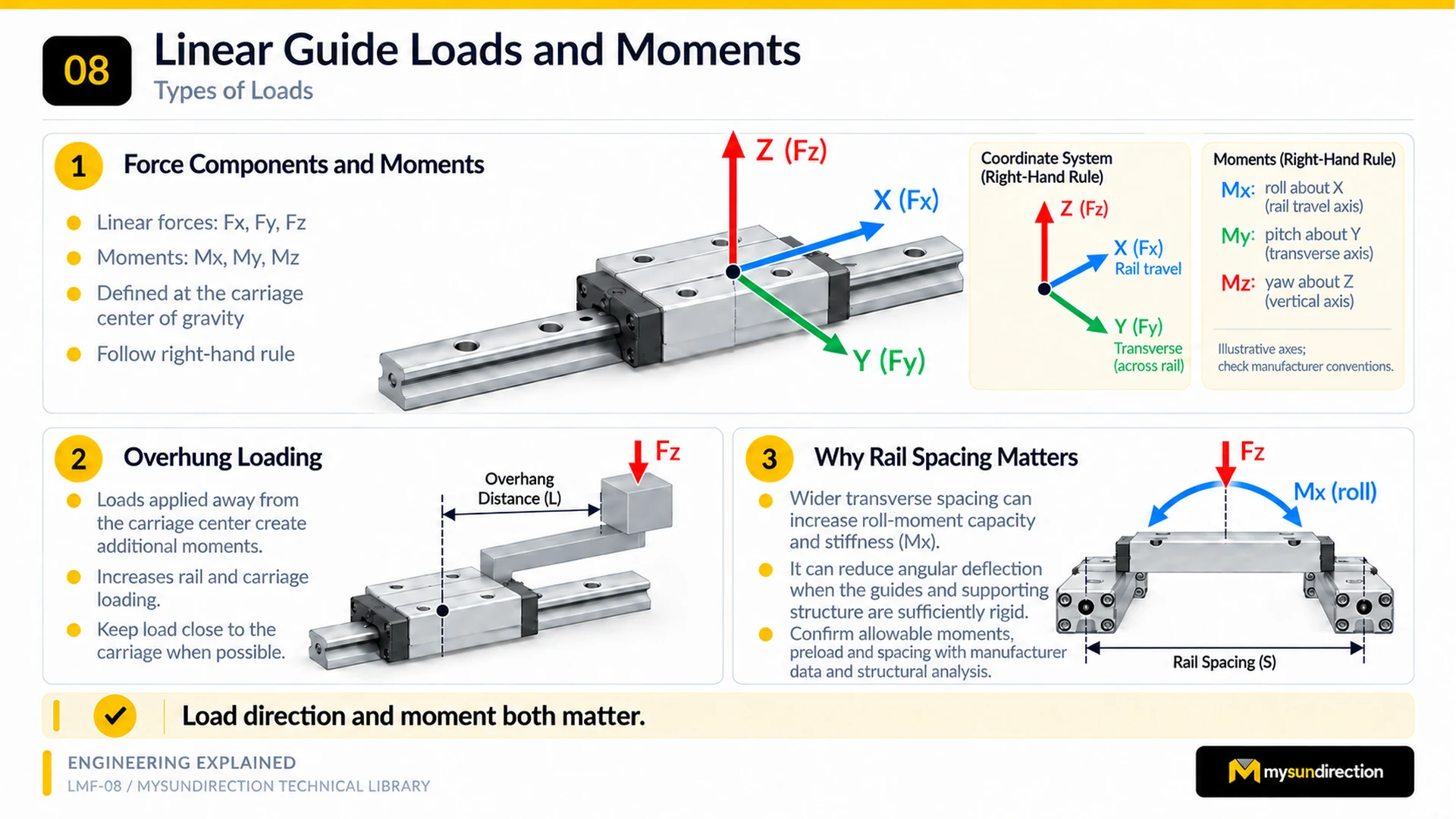

Diagram description
The upper panel places X, Y and Z force arrows at a carriage, with X along rail travel, Y transverse and Z vertical. A side legend associates roll, pitch and yaw with moments about those axes using a right-hand convention. The lower-left panel shows a downward overhung load at distance L from a block centre. The lower-right panel shows two separated rails supporting a platform and opposing a roll moment, with transverse rail spacing S marked.
Wider rail spacing or greater spacing between blocks can reduce the reactions needed to resist a given moment and can reduce angular deflection when the carriage plate, base, fasteners and guides are sufficiently rigid. That does not mean “wider is always better.” The structure may bend, mounting error can increase, the load may shift, and each guide model has defined permissible moments and installation limits. Calculate the reaction at every block for every relevant load case.
A simple load-sharing picture—and why it is not a catalogue calculation
Imagine two ideal support lines separated by distance S resisting a pure roll moment M. An opposing force couple of approximate magnitude M ÷ S illustrates why a wider separation can reduce the required couple force. For 120 N·m and 0.40 m spacing, that ideal couple is 300 N.
A real carriage may have several blocks, finite plate stiffness, preload, multiple force components and offsets in three dimensions. Manufacturing and mounting errors prevent perfect sharing. Use the guide manufacturer's equations or engineering tools rather than dividing the load equally by the number of blocks.
Static rating, dynamic rating and stiffness answer different questions
| Catalogue concept | Question it helps answer | What it does not mean |
|---|---|---|
| Basic static load rating C₀ | What reference load corresponds to the manufacturer's defined permanent contact deformation criterion? | The recommended continuous working load or the load that gives zero damage |
| Basic dynamic load rating C | What reference rating enters the manufacturer's nominal rolling-contact life calculation? | A promise that every guide will travel the calculated distance |
| Static permissible moment | What moment limit or method applies about a specified axis and block arrangement? | A value that can be replaced by a force-only C₀/P calculation |
| Rigidity or stiffness | How much displacement is expected per change in load under stated conditions? | Load capacity, accuracy or static safety factor |
| Preload or internal clearance | How are initial contact, deflection and rolling resistance influenced? | A free increase in stiffness with no heat, life, alignment or drive-force consequence |
| Accuracy class | What dimensional or running tolerances apply to the rail and block set? | Accuracy of the full machine under process load and temperature |
The basic static rating is tied to a defined contact-deformation criterion; it is not a cliff at which the guide changes from safe to failed. The basic dynamic rating is a statistical rolling-life reference used with an equivalent load and the manufacturer's life method. Stiffness describes elastic displacement under load. A guide can have ample static capacity yet deflect more than the machine can tolerate, or be stiff enough for one position but have inadequate life for the duty cycle. Each check remains necessary.
Static verification starts with the worst block load—not the average payload
Static checks consider the maximum equivalent load that reaches the most heavily loaded block under the defined cases. Include gravity, payload, process force, acceleration and braking, cable or hose force, impact, emergency stopping and moments caused by offsets. Direction matters because some guide families have different ratings radially, in reverse radial loading and laterally. A moment must be checked with the relevant permissible-moment method or converted only as the manufacturer directs.

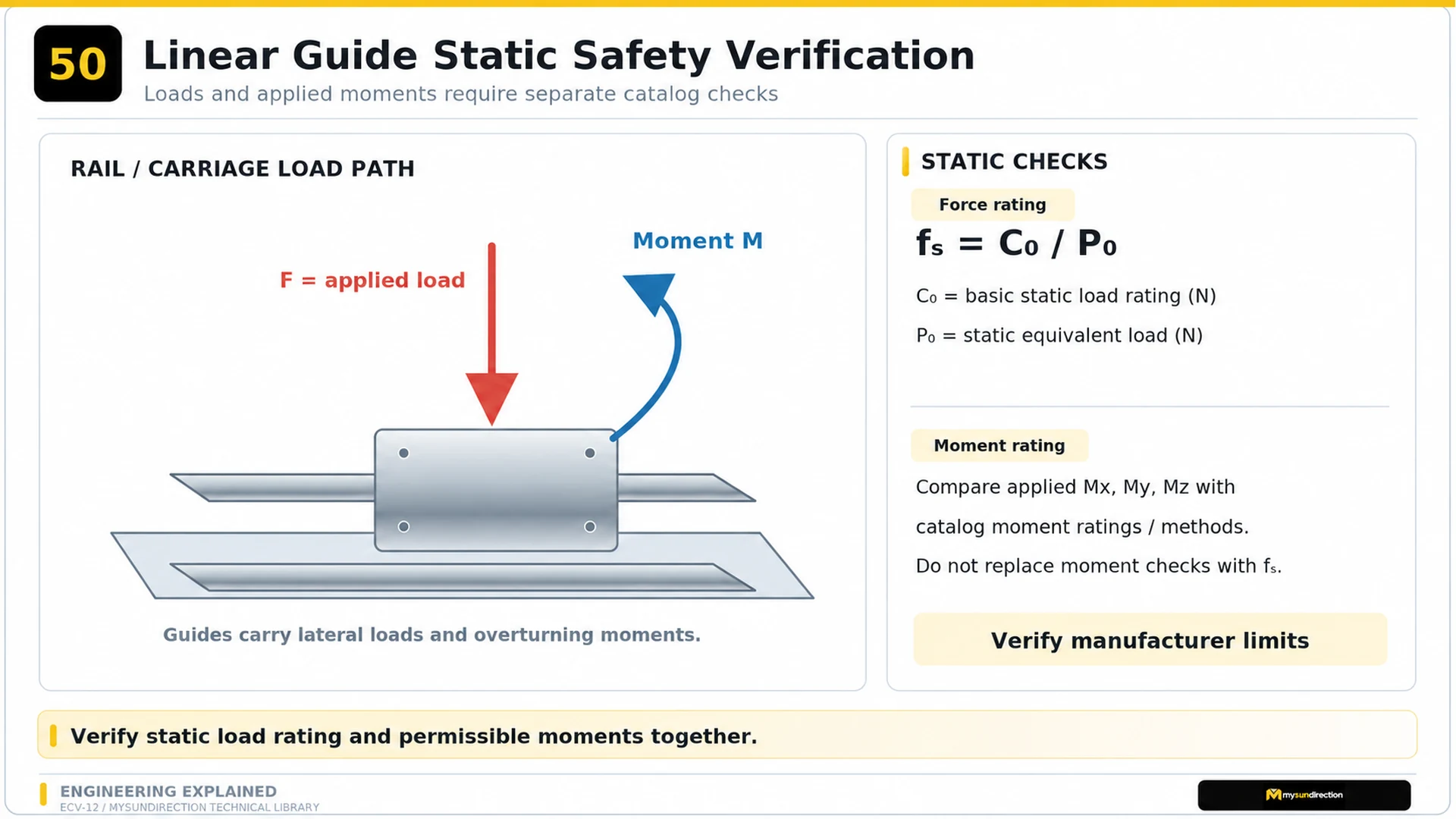

Diagram description
The left panel shows a carriage over parallel guide rails with a red downward force F and a blue curved moment M. The right panel gives the force check f sub s equals C zero divided by P zero, defines C zero as the basic static load rating and P zero as the static equivalent load, then instructs the reader to compare applied moments about all axes with catalogue moment ratings or methods rather than replacing those checks with the force ratio.
Basic static safety-factor form
fₛ = C₀ ÷ P₀
This form is useful only after C₀ and P₀ have been selected or calculated in the same direction and according to the chosen manufacturer's method. Required minimum factors depend on product, vibration, impact, accuracy and consequence of permanent deformation.
- fₛ
- static safety factor
- C₀
- applicable basic static load rating
- P₀
- calculated static equivalent load on the relevant block or direction
If the applicable C₀ is 24 kN and the correctly calculated P₀ is 6 kN, the arithmetic ratio is 4. Whether 4 is acceptable still depends on the selected guide's instructions, load conditions, moments and design requirements.
Rigidity is a displacement question, not a strength label
Stiffness connects a change in load to elastic displacement. Guide-block contact, preload, number and spacing of blocks, carriage plate, fasteners, rail, base and mounting joints all contribute. Preload can reduce internal clearance and initial deflection, but it also adds internal rolling load and can increase resistance and heat. More preload is not automatically better: excessive preload, mounting error or a flexible base can shorten life and make motion less smooth.
Local secant stiffness for a stated load interval
k = ΔF ÷ Δδ
Rolling-contact load–deflection behavior may be nonlinear, so stiffness must be read for the stated direction, preload and operating point. System stiffness can be lower than catalogue block stiffness because the plate, rail, base, fasteners and joints also deform.
- k
- stiffness over the defined interval
- ΔF
- change in applied force
- Δδ
- corresponding change in displacement
A measured 2 kN load increase accompanied by 5 μm additional displacement corresponds to 400 N/μm over that interval. It does not establish static rating, life or accuracy.
A reliable selection keeps geometry, rating and installation connected
A traceable guide-system review
- 1. Define coordinates and orientations.Draw the travel direction, rail mounting orientation and the manufacturer's radial, reverse-radial, lateral and moment directions. Do not assume every catalogue uses the same axis names.
- 2. Locate every force.Record magnitude, direction and line of action for gravity, process loads, inertia, cables, hoses and credible impacts. Include moving-component mass and the centre of gravity.
- 3. Calculate moments and block reactions.Use perpendicular offsets and the actual rail and block spacing. Evaluate acceleration, deceleration, travel-end and process cases rather than only a stationary centred payload.
- 4. Check static capacity and moments.Apply the selected manufacturer's directional equivalent-load, static safety and permissible-moment methods to the worst loaded block.
- 5. Check nominal life separately.Build a representative load spectrum and duty cycle, then use the applicable dynamic rating, life equation, factors and reference distance. Treat calculated life as a statistical engineering estimate.
- 6. Check deflection and accuracy.Combine guide contact deflection with carriage, base, rail, bolts and joints. Confirm that preload, accuracy class and feedback location serve the machine-level requirement.
- 7. Design mounting and maintenance.Control datum surfaces, flatness, parallelism, tightening sequence, cleanliness, seals, lubricant delivery and service access. Confirm lubrication points for the actual mounting orientation.
- 8. Verify the built machine.Measure smoothness, drive force, deflection and motion accuracy under representative load and temperature. Recheck after settling and the initial service period.
The wider system context begins in From a Motor to a Moving Carriage, while Lead Screw Versus Ball Screw explains the drive-side trade-offs. The key distinction here is equally practical: a rating tells you what reference check to perform, while a load-path model tells you which force or moment reaches each guide. A dependable design needs both.
One-minute questions
