Linear Motion Essentials
Rails, Shafts and Small Supporting Parts
Choose between common guiding styles and identify supporting mechanical hardware.
You are applying “Rails, Shafts and Small Supporting Parts” to a real system and need the concept, assumptions and verification boundary to stay clear.
Compare profile-rail and round-shaft guidance without relying on family stereotypes, then see how supports, spacers, collars, brackets, locknuts, dowels and stops complete a reliable axis.
- Select or check first
- Datums and reference edges. Identify which surface establishes height, straightness and lateral position; do not leave the installer to average several unlabelled surfaces.
- Controlling assumption
- Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
- Top risk
- End stops do not replace controlled stopping and guarding. A moving carriage can trap, shear or crush. Limit switches and software can fail; a rigid stop can create impact loads far above normal service.
- Proof
- Assembly and replacement access. Leave room for tightening tools, grease connections, bearing removal, alignment measurement and safe replacement without dismantling unrelated structure.
Start with the basics Optional foundation before “Rails, Shafts and Small Supporting Parts”
Mechanical-design basics
Mechanical parts must carry loads, guide motion and remain aligned; similar-looking components can behave very differently under real force and duty.
- Force and torque
- Force pushes or pulls along a line. Torque is a turning effect equal to force multiplied by its perpendicular lever arm.
- Speed and acceleration
- Speed describes how fast position changes. Acceleration describes how fast speed changes and often creates the highest inertial load.
- Strength and stiffness
- Strength concerns permanent damage or failure. Stiffness concerns elastic deflection under load; a part can be strong enough yet too flexible for accurate motion.
- Load path
- The load path is the complete route by which force travels through shafts, bearings, fasteners, frames and foundations. Every interface on that route must be checked.
- Tolerance, clearance and alignment
- Tolerance permits controlled variation, clearance provides intentional space, and alignment keeps interacting axes or surfaces in the required relationship.
How to use this article: Sketch the load path and motion direction first, then attach units, worst-case loads, duty and acceptance limits to every calculation.
On this page
A motion axis is rarely completed by one dramatic component. The guide may be a profiled rail with a recirculating carriage or a round shaft with a ball bearing or plain bushing. Around it sit supports, housings, spacers, collars, brackets, locknuts, dowels and end stops. These smaller parts establish position, carry reactions, preserve alignment and make assembly possible. If one is selected by appearance instead of function, the entire axis can bind, deflect, loosen or lose its intended travel.
Profile rails and round shafts create guidance in different ways
A profiled guide places shaped raceways in a rail and matching recirculating paths in a carriage. The rail is normally fastened along a prepared mounting surface, which supports it continuously and establishes its line. Close raceway conformity can provide high load capacity and rigidity in a compact envelope, but mounting-surface error can preload or distort the carriage and raise running resistance.
A round-shaft guide uses a hardened cylindrical shaft as the inner running surface and a ball bearing or plain bushing around it. A shaft can be held only at its ends for a bridge-like layout or supported continuously along its length. Some round-bearing arrangements tolerate angular or torsional misalignment better than a closely constrained profile carriage. An end-supported shaft, however, bends under load, and its unsupported span is often central to capacity and deflection.

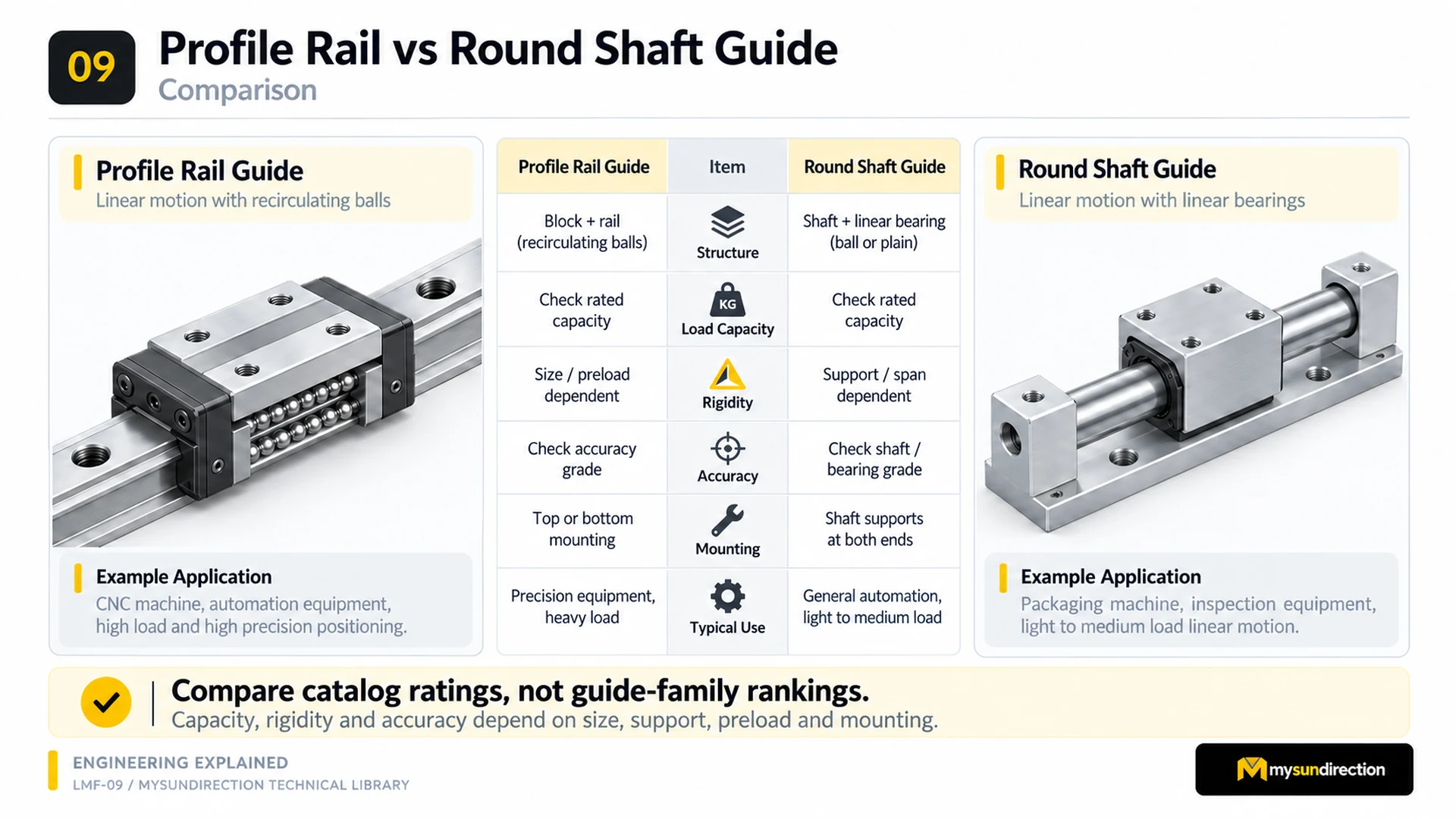

Diagram description
The left panel shows a cutaway profiled rail and recirculating ball carriage. The right panel shows a round shaft, bearing block and two end supports. A central table contrasts their structure and prompts readers to check rated capacity, size, preload, shaft support, accuracy grade and mounting. A footer states that capacity, rigidity and accuracy depend on size, support, preload and mounting.
| Question | Profile-rail system | Round-shaft system |
|---|---|---|
| How is the running surface supported? | Rail commonly bolted along a prepared base | Shaft may be end supported or continuously supported |
| What drives rigidity? | Raceway geometry, carriage size, preload, rail support and base stiffness | Shaft diameter, unsupported span, support style, bearing spacing and base stiffness |
| How does mounting error enter? | Datum quality, rail straightness, parallelism and bolt-down sequence matter strongly | Some bearings accommodate limited misalignment, but support position and shaft parallelism still matter |
| How are moments resisted? | A suitably rated carriage or separated blocks and rails can resist specified moments | Usually requires suitable bearing spacing and commonly two shafts; verify the chosen arrangement |
| What accuracy is available? | Defined rail/carriage accuracy grades are available, subject to installation and structure | Depends on shaft straightness, diameter tolerance, bearing clearance, supports and mounting |
| What is the true cost? | Include base preparation, datum machining, installation and replacement | Include shaft supports, bridge deflection, extra bearings, space and alignment work |
An unsupported round shaft behaves like a beam
When a round shaft is supported only at its ends, transverse load bends it. Deflection depends strongly on span and shaft diameter as well as material, support conditions and load location. Doubling a simply supported span while keeping everything else unchanged can increase ideal mid-span deflection by a factor of eight. Increasing diameter is powerful because a solid circular section's second moment of area varies with the fourth power of diameter. These relations explain why a modest-looking span change can dominate performance.
Teaching model for a centre-loaded, simply supported shaft
δmax = F × L³ ÷ (48 × E × I), I = π × d⁴ ÷ 64
This ideal beam model illustrates sensitivity to span and diameter. It assumes small elastic deflection, a straight uniform solid shaft, simple supports and a centred point load. Bearing length, distributed loads, support compliance, hardened case, hollow sections and real boundary conditions require an appropriate engineering method.
- δmax
- ideal maximum mid-span deflection
- F
- transverse point load at mid-span
- L
- distance between simple supports
- E
- Young's modulus of the shaft material
- I
- second moment of area of the shaft section
- d
- solid shaft diameter
For the same material, load and diameter, increasing span from 0.5 m to 1.0 m multiplies this ideal deflection by (1.0/0.5)³ = 8. The example shows sensitivity; it is not a shaft selection result.
Small parts locate, retain, space and protect the motion chain
A component name is only the beginning. A bearing support may locate a rotating shaft axially, allow axial movement, or merely carry radial load. A spacer may establish a stack dimension without locating a shaft. A collar may position a component yet be unsuitable for thrust. A dowel can repeat alignment but should not silently replace a designed shear joint. Every part needs a stated load path, tolerance, retention method and assembly sequence.
Diagram description
A two-by-three grid shows a dark fixed bearing support with visible ball bearing, a floating bearing support, a round notched locknut with a side locking screw, a light-coloured nut housing, a cylindrical spacer and a compact end-stop bracket with a bolt. Captions associate them with axial location, radial support, component retention, ball-nut mounting, spacing and travel limitation.
| Part | Function to define | Common mistake to avoid |
|---|---|---|
| Locating bearing support | React specified radial and axial loads and establish shaft position | Assuming any pillow block can carry the required thrust or preload |
| Floating support | Carry intended radial load while permitting required thermal axial movement | Accidentally clamping both ends so thermal growth creates internal load |
| Locknut or retaining hardware | Maintain bearing or component position with a verified locking method | Treating every notched, prevailing-torque or insert nut as interchangeable |
| Nut housing or bracket | Transfer load between a nut or bearing and the machine structure | Ignoring wall bending, bolt load, fit, datum and tool access |
| Spacer | Set a controlled axial distance or transmit clamp load through a stack | Using an unverified cut tube where length, squareness or compression matters |
| End stop | Define a physical boundary or absorb a specified low-energy contact | Using a rigid stop as the normal high-speed braking system |
Diagram description
Six vertical cards show a pedestal bearing support, split clamping shaft collar, tubular spacer, right-angle mounting bracket, hexagonal nut with a coloured locking insert, and cylindrical dowel pin. The captions describe shaft support and location, axial positioning, maintained spacing, rigid attachment, resistance to loosening and repeatable alignment.
Locking, locating and fastening are not the same job
A bolt or nut creates clamp force in a joint. A dowel provides repeatable geometric location and may carry shear only when the joint is deliberately designed for that purpose. A shaft collar locates along a shaft or provides a shoulder-like interface within its rating. A bearing locknut sets or retains an axial stack using its specified thread, contact face and locking feature.
Do not infer function from appearance. The notched round nut in one illustration and the insert-style hex nut in another use different retention concepts. Temperature, vibration, direction reversal, service frequency, thread condition and manufacturer instructions determine whether a locking method is suitable and reusable.
The tolerance chain decides whether the assembly moves freely
Nominal CAD alignment is not enough. Rail height, shaft straightness, support-block bore position, bracket squareness, spacer length, fastener clearance, base flatness and dowel location all vary. If two parallel guides are constrained without a defined master and follower strategy, their errors can oppose each other and create binding. More rigid guidance generally makes mounting control more important because the hardware cannot harmlessly absorb the mismatch.
Interfaces worth specifying on the drawing
- Datums and reference edges.Identify which surface establishes height, straightness and lateral position; do not leave the installer to average several unlabelled surfaces.
- Fits and shoulders.State the shaft, bearing, dowel and housing fits from a verified standard or manufacturer recommendation, including surface finish and corner clearance where required.
- Fastener and locking method.Define bolt grade, engagement, tightening procedure and any approved retention feature. A generic instruction to make it tight is not reproducible.
- Spacer stack.Control length, parallelism and material when the spacer establishes alignment or transmits preload; include thermal expansion and compression where significant.
- Assembly and replacement access.Leave room for tightening tools, grease connections, bearing removal, alignment measurement and safe replacement without dismantling unrelated structure.
Select the guide and its supporting hardware as one assembly
A practical selection sequence
- 1. Define the travel and load geometry.Record stroke, orientation, forces, moments, centre-of-gravity offsets, speed, acceleration, duty, environment and required stiffness and accuracy.
- 2. Compare candidate architectures.Test profile rail, end-supported shaft and continuously supported shaft arrangements against the same requirements, including mounting and replacement cost.
- 3. Calculate reactions and deflection.Check the worst bearing or carriage load, permissible moments, shaft or rail support, base deformation and the assembled stiffness—not only payload mass.
- 4. Define locating and floating functions.Decide where axial, radial and angular positions are established and where thermal movement is permitted. Avoid accidental over-constraint.
- 5. Specify every interface.Complete the fits, datums, brackets, spacers, collars, locknuts, dowels, bolts, lubrication and contamination protection around the selected guide.
- 6. Protect the travel envelope.Provide control limits, stopping distance and an end-of-travel strategy whose energy capacity covers the credible event. Preserve guards and service clearances.
- 7. Verify after assembly.Measure running force through the whole stroke before full-speed operation, then check loaded deflection, alignment, fastener retention, temperature and lubrication delivery.
Use Linear Guides and Their Load Ratings to calculate directional forces, moments and rating checks, and From a Motor to a Moving Carriage to place the guide in the full load path. The lesson of the supporting hardware is simple: every location, clearance and reaction in the concept must be created by a physical interface in the finished machine.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Rails, Shafts and Small Supporting Parts?
Datums and reference edges. Identify which surface establishes height, straightness and lateral position; do not leave the installer to average several unlabelled surfaces.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
End stops do not replace controlled stopping and guarding. A moving carriage can trap, shear or crush. Limit switches and software can fail; a rigid stop can create impact loads far above normal service.
How do I verify the result in the real system?
Assembly and replacement access. Leave room for tightening tools, grease connections, bearing removal, alignment measurement and safe replacement without dismantling unrelated structure.
