A motor naturally turns, but a machine table, camera, tool or solar-positioning mechanism may need to move along a straight path. A screw-driven linear axis joins several parts so that rotation becomes controlled travel. The motor supplies torque; a coupling and sometimes a gearbox transmit it; a screw-and-nut pair converts it into axial motion; guides constrain the carriage to the intended path; supports and the base close the forces back into the machine structure.
Follow the transmission path from input to output
A useful way to understand the mechanism is to trace what changes at each interface. Electrical input makes the motor shaft rotate. The coupling transfers shaft torque while accommodating only the small alignment errors for which that particular coupling is rated. An optional gearbox changes the relationship between motor speed and output torque. The rotating screw acts against its nut, and a nut housing transfers the resulting axial force into the carriage. The payload moves with the carriage, while guide blocks react transverse forces and moments into the rails, base and machine frame.
Diagram description
The upper illustration labels a motor, optional gearbox, coupling, ball screw and moving carriage from left to right. Yellow circular arrows show rotating shafts, and a straight arrow shows the final linear output. A lower illustration shows a direct-drive alternative in which the motor couples directly to the screw. A numbered panel summarizes the five transmission stages.
One command, six physical events
- 1. Produce rotation.The motor develops shaft torque and angular speed. A controller determines how the motor starts, stops and changes direction; the motor nameplate alone does not define the finished axis performance.
- 2. Transmit or transform it.A coupling joins shafts. If fitted, a gearbox trades speed for torque according to its ratio and efficiency, while also adding inertia, compliance, friction and possible backlash.
- 3. Turn the screw.Bearings locate and support the screw so that useful torque can reach its helical interface with the nut. The bearing arrangement must react the intended axial and radial loads.
- 4. Translate the nut.If the screw rotates while the nut is restrained from rotating, the nut advances or retreats by a distance related to screw lead. The reverse arrangement—rotating nut and restrained screw—is also possible.
- 5. Move the carriage.A nut housing connects the translating nut to the carriage. The payload, fixtures and moving services accelerate with that carriage and contribute to the required force.
- 6. Return the reactions.Guide blocks, rails, support bearings, motor mount and base carry reaction forces back into the frame. A load path is incomplete until those structural returns are identified.
Give each component a clear job
| Component | Primary job | What it should not be assumed to do |
|---|---|---|
| Motor and drive | Create controlled rotation and torque | Carry carriage side load or define the straight travel path |
| Coupling | Transmit torque between shafts and tolerate specified small misalignment | Correct a badly aligned installation or carry every thrust load |
| Gearbox, if used | Change speed and torque relationship | Create free power or guarantee zero backlash |
| Screw and nut | Convert rotation to axial relative motion and thrust | Replace a guide system for transverse load and moment control |
| Screw support bearings | Locate the screw and react loads according to the selected support arrangement | Automatically tolerate wrong alignment, preload or thermal constraint |
| Carriage and guide blocks | Carry the payload and move along the constrained path | Ignore load offset, overturning moments or block spacing |
| Rails and base | Provide the geometric and structural reference for the axis | Compensate for an uneven mounting surface without installation control |
Diagram description
A motor on the left connects through a flexible-looking coupling to a central screw. A carriage surrounds the screw nut and rides on guide blocks attached to rails on the base. A circular yellow arrow marks shaft rotation, and a double-headed arrow marks travel along the axis. Leader lines identify the motor, coupling, ball screw, carriage, linear guide and base.
Screw lead connects turns to travel
Lead is the nominal axial advance produced by one relative revolution of a screw and nut. It is not always the same as the spacing between adjacent thread forms, called pitch: a multiple-start screw can advance by more than one pitch per revolution. For a first kinematic estimate, multiply revolutions by lead. Real position can differ because of manufacturing error, elastic deformation, temperature, backlash, lost motion and control-system error.
Nominal travel from screw rotation
x = N × L
This relation describes the geometry of a screw with constant lead when screw and nut have no lost relative motion. Keep the units consistent and distinguish commanded revolutions from measured mechanical revolutions.
- x
- nominal axial travel, for example in millimetres
- N
- relative screw-to-nut rotation in revolutions
- L
- screw lead, or nominal travel per revolution
With a 5 mm/revolution lead, 8 revolutions correspond to 40 mm of nominal travel. This does not by itself prove 40 mm positioning accuracy.
Nominal linear speed
v = n × L
Use revolutions per second for n when v is required in length per second. A permitted operating speed must also respect screw critical speed, nut speed, lubrication, support, motor and control limits; the kinematic result is not a safe-speed rating.
- v
- nominal carriage speed
- n
- relative rotational speed in revolutions per unit time
- L
- screw lead in length per revolution
A 10 mm/revolution screw rotating at 20 revolutions per second has a nominal speed of 200 mm/s, subject to every component's approved operating limits.
Why a smaller lead does not automatically make a better axis
For the same screw rotation, a smaller lead produces less travel. That can increase the number of motor revolutions per millimetre and change the torque-to-thrust relationship, but it also changes maximum travel speed and may affect efficiency, back-driving and dynamic behavior. Resolution at the command input is not identical to positioning accuracy at the load.
Selection therefore begins with travel, speed, acceleration, duty, load, mounting orientation, accuracy, repeatability, environment and life—not with lead alone. The motor, coupling, supports, screw, nut, guides and controls must be assessed as one system.
Separate axial thrust from guidance loads
A centered force parallel to the travel direction mainly asks the screw-and-nut pair to create axial thrust. Gravity, cutting forces, cable drag and an offset payload can also act sideways, vertically or as a moment. Guide blocks are arranged and spaced to react those loads while allowing motion along the chosen axis. The mounting base then carries the guide and screw reactions into the wider structure.
Diagram description

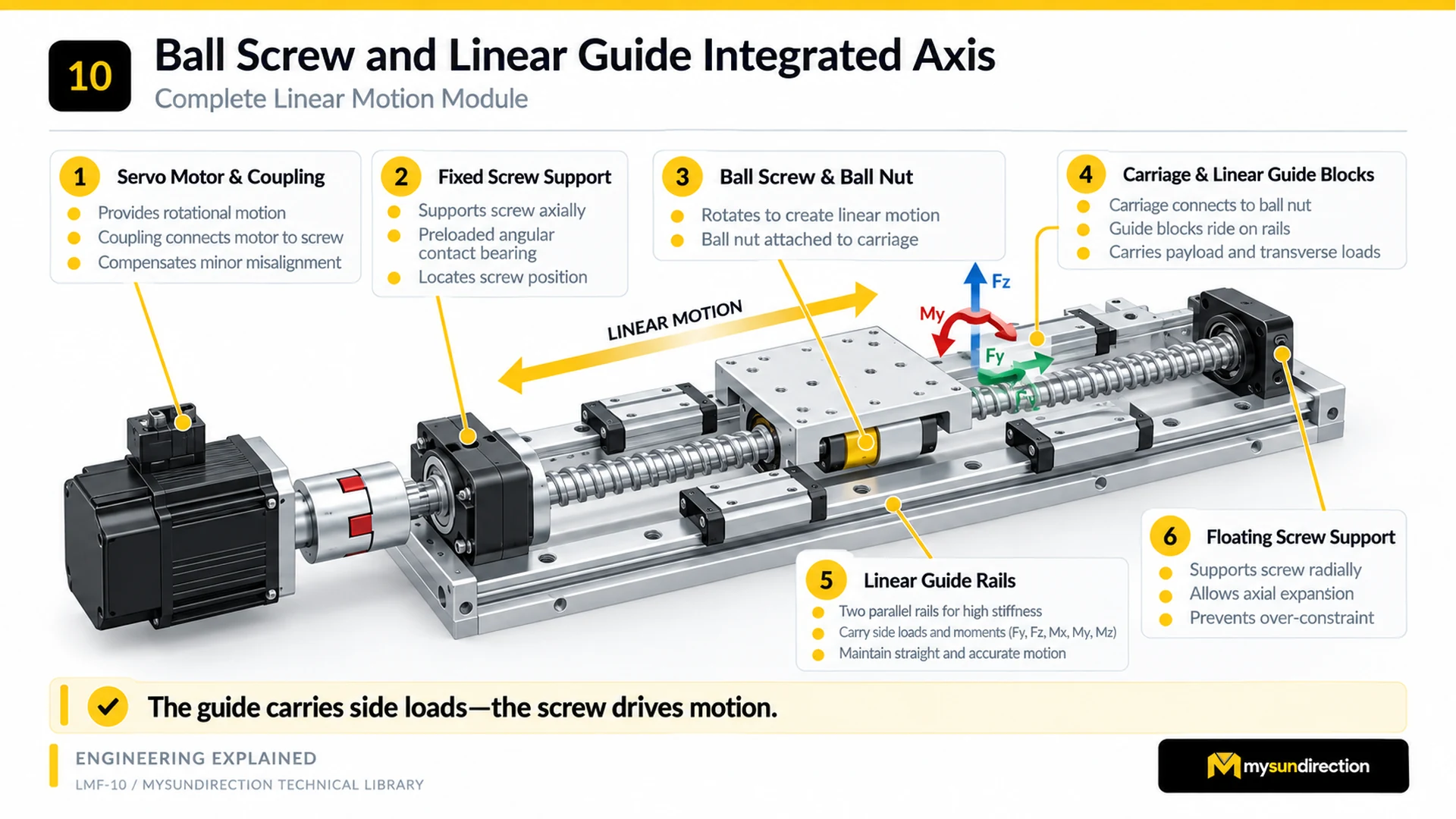

A motor and coupling drive a central ball screw. A labeled fixed support is near the motor, while a floating support is shown at the far end. The ball nut is attached beneath a broad carriage that rides on four guide blocks over two parallel rails. Three force arrows and a curved moment arrow appear near the carriage to show that a real payload can load the axis in more than one direction.
| Load or action | Typical route | Design question |
|---|---|---|
| Motor torque | Motor shaft → coupling or gearbox → screw | Can every shaft, key, clamp and coupling transmit peak and cyclic torque? |
| Axial drive force | Screw/nut interface → nut housing → carriage → payload | Are thrust, acceleration, friction and process forces included? |
| Screw reaction | Screw → support bearings and housings → base | Which end locates axially, and how is thermal growth accommodated? |
| Transverse force | Payload/carriage → guide blocks → rails → base | Are block orientation, spacing and directional ratings suitable? |
| Overturning moment | Offset load → separated guide blocks/rails → base | How far is the load center from the guide system, and what moment results? |
| Acceleration reaction | Moving mass → transmission and guides → base/frame | Have moving fixtures, cables and the payload been included in mass and inertia? |
The interfaces decide whether the parts work together
Integration checks that are easy to miss
- Alignment.The motor shaft, coupling, screw supports, nut housing and guide path need compatible alignment. A flexible coupling has finite allowable offset and angle; it is not a remedy for a distorted base.
- Over-constraint.Parallel rails and multiple bearing blocks can bind if mounted without the required datum and sequence. Follow the component manufacturer's tolerance and installation procedure.
- Usable travel.Stroke must leave room for nut length, end supports, seals, bumpers, limit-switch action and stopping distance. The visible rail or screw length is not automatically usable travel.
- Lubrication and contamination.Screws, nuts, blocks and rails need the specified lubricant and interval. Chips, abrasive dust, moisture and incompatible grease can shorten life, so covers, seals and service access belong in the design.
- Moving services.Motor, sensor and payload cables, hoses and energy chains add drag and bending limits. Route them so that they cannot snag or enter the screw, guide or end-stop zones.
- Feedback and limits.A motion command needs a defined reference, permitted travel envelope and stopping strategy. A motor encoder may measure the motor shaft rather than the final carriage position, so compliance and lost motion can remain unseen.
- Duty and failure behavior.Check repeated starts, thermal rise, vertical-axis descent, loss of power, brake need, end impact and maintenance access instead of sizing only for one steady move.
Review the complete axis before choosing hardware
A practical first-pass review
- Define the task.Record payload, process forces, orientation, travel, speed, acceleration, accuracy, repeatability, duty, environment and expected life in measurable terms.
- Sketch both paths.Draw the motion and power path from motor to load, then draw every reaction path from the load back through guides, supports and base.
- Choose the guidance concept.Place guide blocks and rails so they can support the force directions and moments without forcing the drive screw to act as the sole guide.
- Choose and size the drive train.Select screw type and lead, supports, coupling, optional gearing and motor using manufacturer data, load cases, speed limits, life calculations and appropriate factors.
- Design the interfaces.Specify datums, fits, fasteners, alignment, lubrication, contamination control, cable routing, limits, guards and service access.
- Verify before release.Check motion by hand only under a safe isolated procedure, then commission at controlled speed and load while measuring travel, current, temperature, vibration, repeatability and protective functions.
The most important lesson is not the name of any one component. It is the division of work across a system: the motor provides rotation, transmission parts carry torque, the screw and nut produce axial motion, the guides define the path, and the structure closes the reactions. Once those jobs and interfaces are explicit, later decisions about screw type, supports, couplings, motors and sizing can be made without asking one part to solve every problem.
