How Assembly Errors Damage Motion Systems
Recognize misalignment, inappropriate constraints and poor mechanical integration.
You are applying “How Assembly Errors Damage Motion Systems” to a real system and need the concept, assumptions and verification boundary to stay clear.
Trace binding, heat, vibration and uneven wear back to rail, screw, motor, support and access errors, then use a measured assembly and commissioning process to prevent them.
- Select or check first
- Can it be manufactured. Show how cutters, probes, taps and deburring tools reach critical features. Match corner radii, surface specifications and tolerances to an identified process.
- Controlling assumption
- Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
- Top risk
- Never diagnose binding by reaching into a powered axis. Unexpected motion, stored energy, gravity and automatic restart can crush or trap. Isolate all energy sources, verify the safe state, and independently support loads before physical inspection or adjustment.
- Proof
- Can it be restored. Decide which replacements require realignment and which locating features can repeat position; retain records of shims, measurements and tightening results.
Start with the basics Optional foundation before “How Assembly Errors Damage Motion Systems”
Mechanical-design basics
Mechanical parts must carry loads, guide motion and remain aligned; similar-looking components can behave very differently under real force and duty.
- Force and torque
- Force pushes or pulls along a line. Torque is a turning effect equal to force multiplied by its perpendicular lever arm.
- Speed and acceleration
- Speed describes how fast position changes. Acceleration describes how fast speed changes and often creates the highest inertial load.
- Strength and stiffness
- Strength concerns permanent damage or failure. Stiffness concerns elastic deflection under load; a part can be strong enough yet too flexible for accurate motion.
- Load path
- The load path is the complete route by which force travels through shafts, bearings, fasteners, frames and foundations. Every interface on that route must be checked.
- Tolerance, clearance and alignment
- Tolerance permits controlled variation, clearance provides intentional space, and alignment keeps interacting axes or surfaces in the required relationship.
How to use this article: Sketch the load path and motion direction first, then attach units, worst-case loads, duty and acceptance limits to every calculation.
On this page
A catalogue can describe a rail, screw, coupling and motor correctly while the assembled axis still performs badly. The cause is often geometric: two rails disagree about the travel line, the screw pulls the carriage sideways, the motor shaft is offset, or a flexible bracket changes position under load. The motor may force the mechanism through the error, hiding tight spots while bearing load, friction and wear rise. Good integration makes the intended degrees of freedom easy and prevents components from fighting one another.
Over-constraint makes accurate parts fight one another
A carriage guided by two parallel rails has one intended translation. The rails, blocks, carriage plate and base together constrain the other motions. If rail height, straightness or parallelism errors exceed what the selected guide and preload can accommodate, tightening the carriage plate forces elastic deformation or creates extra contact loads. A similar conflict appears when a rigid nut housing forces a screw axis that is not parallel and coplanar with the guide axis.

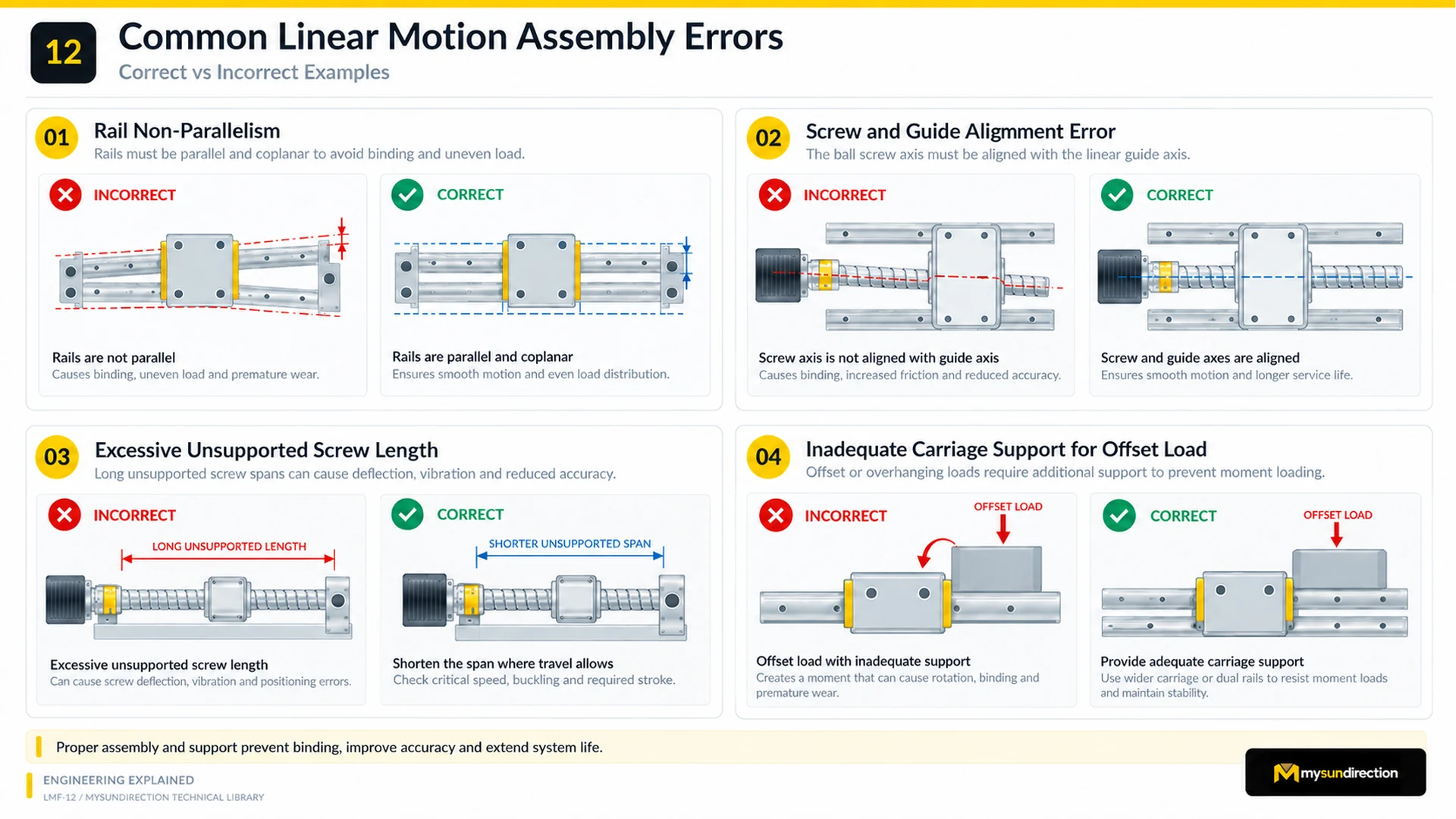

Diagram description
Four paired diagrams compare diverging rails with parallel coplanar rails; a screw axis angled away from the guide path with aligned screw and guides; a long unsupported screw span with a shorter span; and an offset load on a narrow carriage with a broader dual-rail support. Notes associate the errors with binding, friction, vibration, moment loading, wear and reduced accuracy.
| Integration error | Likely mechanical reaction | Evidence to collect |
|---|---|---|
| Rails not parallel or coplanar | Carriage plate and blocks are forced to twist or shift; rolling resistance and block load vary with position | Rail geometry, carriage running force through stroke, witness marks and block temperature |
| Screw axis not aligned with guide path | Nut or screw is side loaded and coupling/bearings absorb cyclic displacement | Screw-to-guide geometry, motor current versus position, nut-housing loosen-and-float test under an approved procedure |
| Unsupported screw span too long | Shaft deflection or vibration increases and critical-speed or compression margin falls | Actual mounting length, root diameter, support condition, rpm and vibration trend |
| Payload offset without sufficient guide spacing | Overturning moment creates unequal block reactions and angular deflection | Load line, centre of gravity, block reactions, plate/base deflection and permissible moments |
| Both ends unintentionally locate thermal growth | Temperature change creates internal axial load and changes bearing or screw preload | Bearing functions, cold/hot position, temperature, thrust and assembly fits |
The motor mount is part of the alignment system
A flexible coupling can accommodate only the stated offset, angular and axial displacement while transmitting its rated torque. It cannot make a soft mounting plate rigid or erase a large shaft offset. If a motor plate bends under coupling reaction, alignment changes as torque changes. Excessive shaft or coupling overhang increases bending moment at the motor bearing. Poor access encourages improvised tightening and makes later measurement or replacement harder.

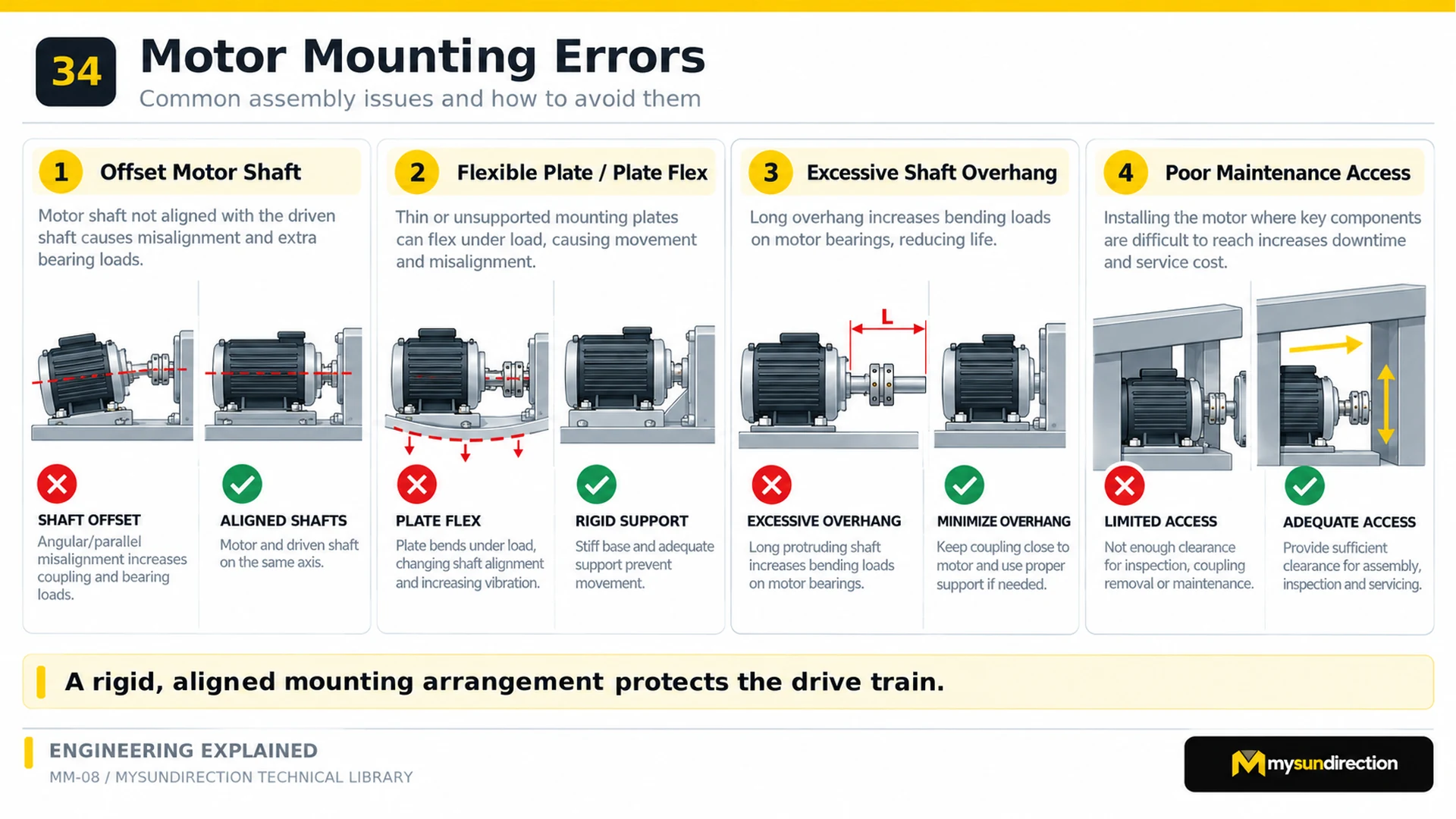

Diagram description
Four columns show red incorrect and green corrected arrangements. The first compares angled, offset shafts with collinear shafts. The second shows a motor plate bending versus a rigid support. The third marks a long exposed shaft length L versus a coupling close to the motor. The fourth compares a motor trapped inside a frame opening with an arrangement that leaves tool and removal clearance.
Read symptom patterns across position, direction and time
Useful diagnosis asks when a symptom changes. A current peak at the same carriage location suggests a geometric or contamination-related tight spot. A direction-dependent position shift points toward reversal clearance, compliance or force direction. Temperature that rises steadily with speed may involve lubricant, preload, seals, bearing load or alignment. Vibration at a narrow rpm range deserves a critical-speed or resonance review; vibration proportional to torque may point elsewhere. These are investigation clues, not one-to-one fault codes.
| Observed symptom | Possible causes | Useful next checks |
|---|---|---|
| Tight spot at one position | Rail error, debris, damaged raceway, screw bend, local base distortion or cable interference | Isolated hand/run-force profile, visual inspection, geometry near the position and service routing |
| Resistance high over the whole stroke | Excess preload, incompatible seals/lubricant, parallelism error, motor or bearing drag | Compare subassemblies under safe isolation and follow manufacturer breakaway/running-force methods |
| Uneven wear on one block or side | Offset load, unequal height, twisted carriage plate, wrong block orientation or poor load sharing | Load-location drawing, contact marks, block reactions, rail height and plate flatness |
| Coupling wear or recurring motor-bearing heat | Shaft offset, angular error, overhang, soft foot, plate flex or excessive transmitted load | Shaft alignment, mount stiffness, operating movement and coupling condition |
| Position varies with payload | Structural compliance, moment deflection, loose interfaces, bearing movement or feedback upstream of the load | Direct load-position measurement and staged load/deflection tests |
| Noise or vibration grows near one rpm | Screw critical speed, structural resonance, imbalance, bent shaft or looseness | Speed sweep performed under an approved test plan, vibration spectrum, supports and runout |
Why motor current can hide and reveal mechanical errors
A closed-loop drive may increase torque to force the carriage through binding, so commanded position can look normal while current and heat rise. Trending current at repeatable speed, acceleration, payload and temperature can expose position-dependent resistance.
Current is not a direct friction measurement. Motor constants, acceleration, gravity, controller tuning, regeneration and electrical conditions affect it. Confirm a suspected mechanical cause with safe physical and geometric checks.
Design the measurement and service path before releasing the parts
Assembly quality improves when the design provides a clear master datum, controlled follower alignment, accessible fasteners and a feasible tightening sequence. Adjustment needs a measurement method and enough motion range; repeatable replacement may need shoulders, dowels or other locating features. Manufacturing tools need entry and exit clearance, and service parts need a removal path that does not require disturbing every aligned component.

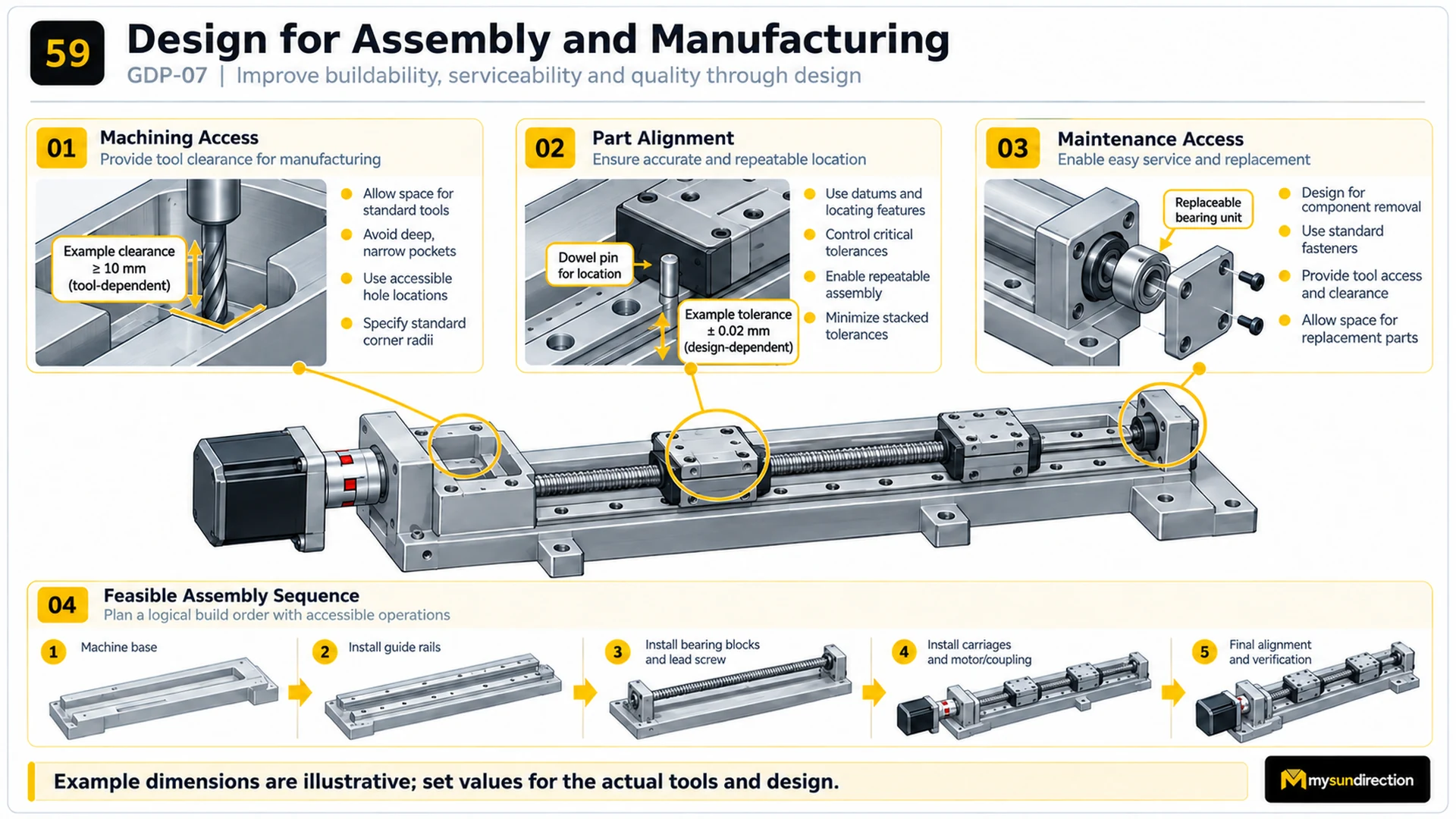

Diagram description
Three upper panels show cutter access to a pocket with an example clearance, a dowel locating a carriage with an example tolerance, and a removable end bearing cover. A central rendering shows a motor, coupling, twin rails, screw and bearing supports. Along the bottom, five small illustrations progress from machining the base through rail installation, screw and bearing installation, carriage and motor assembly, and final alignment and verification.
Questions for the design review
- Can it be manufactured?Show how cutters, probes, taps and deburring tools reach critical features. Match corner radii, surface specifications and tolerances to an identified process.
- Can it be located?Define primary, secondary and tertiary datums and which interfaces locate versus clamp. Avoid redundant locators that fight each other.
- Can it be adjusted and measured?Provide jacking or adjustment points where needed, stable indicator or sensor locations, and a documented acceptance method.
- Can it be assembled in sequence?Check that each fastener, rail, block, coupling and cable can be installed after the preceding part without impossible tool angles.
- Can it be maintained safely?Plan access to lubrication, guards, sensors and replaceable supports while providing isolation and independent support for stored or gravity energy.
- Can it be restored?Decide which replacements require realignment and which locating features can repeat position; retain records of shims, measurements and tightening results.
Use an assembly sequence that exposes errors before the motor can mask them
Build and verify in controlled layers
- 1. Qualify the base and datums.Remove burrs and contamination, inspect mounting surfaces and verify the specified flatness, straightness and reference edges before covering them.
- 2. Install the master guide.Follow its marked reference face, tightening sequence, fastener specification and product procedure. Do not use bolts to drag a displaced rail into a hole.
- 3. Align the follower guide.Use the approved straightedge, indicator, jig, carriage plate or other method while progressively moving through the stroke and tightening.
- 4. Verify guide running behavior.Before adding drive force, measure running resistance or use the approved manual check. Investigate local changes rather than accepting that the motor will overcome them.
- 5. Install and float the screw system.Mount supports and nut housing using the selected manufacturer's sequence so the screw axis follows the verified guide path without side loading.
- 6. Align the motor and coupling.Correct soft foot or plate movement, set shaft relationship within every component's limits, and tighten while checking that alignment is retained.
- 7. Commission at controlled demand.Run low-speed, no-load checks first, then staged speed and load while trending current, temperature, vibration, position and protective functions.
- 8. Record the accepted baseline.Save geometry, running-force/current trends, alignment, fastener and test results so future maintenance can distinguish change from normal behavior.
The component load paths are developed in From a Motor to a Moving Carriage, while Supporting and Protecting a Long Screw and Linear Guides and Their Load Ratings explain the two common structural checks behind several symptoms. Assembly quality closes the loop: the finished machine must preserve the geometry and load paths assumed by those calculations.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for How Assembly Errors Damage Motion Systems?
Can it be manufactured. Show how cutters, probes, taps and deburring tools reach critical features. Match corner radii, surface specifications and tolerances to an identified process.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
Never diagnose binding by reaching into a powered axis. Unexpected motion, stored energy, gravity and automatic restart can crush or trap. Isolate all energy sources, verify the safe state, and independently support loads before physical inspection or adjustment.
How do I verify the result in the real system?
Can it be restored. Decide which replacements require realignment and which locating features can repeat position; retain records of shims, measurements and tightening results.
