Connecting and Mounting a Motor Correctly
Learn the physical interfaces between a motor, coupling, drive screw and machine frame.
You need to understand the internal functions in “Connecting and Mounting a Motor Correctly” before selecting, connecting or troubleshooting the real equipment.
Design and assemble the motor flange, mounting plate, coupling, screw supports, guides and base as one aligned load path, with correct fits, shaft engagement, fastening and verification.
- Select or check first
- 1. Isolate and secure the machine. Remove hazardous energy and prevent gravity or stored mechanical energy from moving the axis.
- Controlling assumption
- Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
- Top risk
- Do not force precision shafts and bearings into alignment. Hammering hubs, levering a motor into place or pulling a crooked assembly together with bolts can brinell bearings, mark a ball-screw raceway, bend a shaft or preload the coupling.
- Proof
- 7. Re-measure after final fastening. Plate and base movement during bolt tightening can change alignment. Check gap, offset, angle, runout and free motion again.
Start with the basics Optional foundation before “Connecting and Mounting a Motor Correctly”
Mechanical-design basics
Mechanical parts must carry loads, guide motion and remain aligned; similar-looking components can behave very differently under real force and duty.
- Force and torque
- Force pushes or pulls along a line. Torque is a turning effect equal to force multiplied by its perpendicular lever arm.
- Speed and acceleration
- Speed describes how fast position changes. Acceleration describes how fast speed changes and often creates the highest inertial load.
- Strength and stiffness
- Strength concerns permanent damage or failure. Stiffness concerns elastic deflection under load; a part can be strong enough yet too flexible for accurate motion.
- Load path
- The load path is the complete route by which force travels through shafts, bearings, fasteners, frames and foundations. Every interface on that route must be checked.
- Tolerance, clearance and alignment
- Tolerance permits controlled variation, clearance provides intentional space, and alignment keeps interacting axes or surfaces in the required relationship.
How to use this article: Sketch the load path and motion direction first, then attach units, worst-case loads, duty and acceptance limits to every calculation.
On this page
A motor connection is a chain of interfaces. The motor flange locates against a mounting plate; the plate joins the machine base; the coupling joins two shafts; bearings support and locate the screw; guides carry the carriage loads. If one interface is crooked, loose, flexible or over-constrained, the coupling may hide the problem briefly while bearings, screw, encoder, fasteners and positioning performance absorb the consequences.
Understand every part of the connection chain

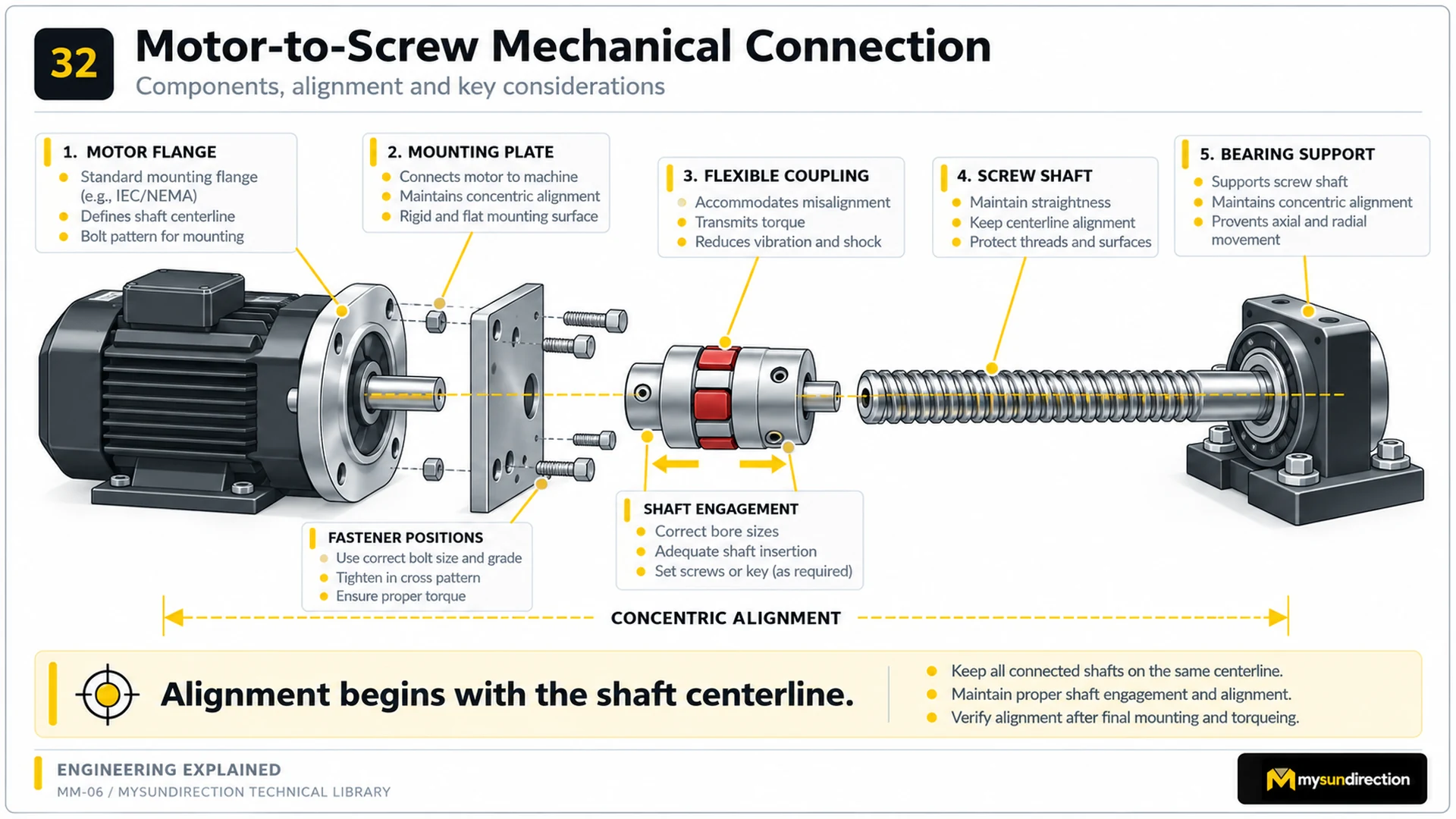

Diagram description
An industrial motor, separate plate, flexible jaw coupling, machined screw shaft end and bearing support are arranged left to right. Callouts identify flange location, plate rigidity, coupling engagement, fastener pattern and bearing support.
| Interface | Primary job | Critical checks |
|---|---|---|
| Motor flange to plate | Locate the motor axis and support reaction torque | Pilot fit, face contact, bolt pattern, flatness, access and thermal path |
| Plate to base or bearing housing | Place the motor axis relative to the screw axis | Datum scheme, perpendicularity, stiffness, dowels or adjustment method and fastener preload |
| Motor shaft to coupling hub | Transmit torque without slip or harmful shaft stress | Bore and shaft fit, key or clamp method, engagement depth, hub position and screw torque |
| Coupling to screw shaft | Transmit motion while accepting specified residual displacement | Shaft-end runout, hub spacing, axial relaxation, rated misalignment, torque and speed |
| Screw to fixed support | Locate the screw axially and carry thrust | Bearing arrangement, shoulder and nut seating, preload, axial runout and locking |
| Screw to floating support | Support the distant end while accommodating the intended axial behavior | Correct bearing fit, thermal-expansion path, radial alignment and no unintended axial constraint |
| Nut and guides to carriage | Convert rotation to translation while guides resist external forces and moments | Parallelism, height, preload, mounting sequence and absence of binding |
Design the mounting plate from datums and load paths

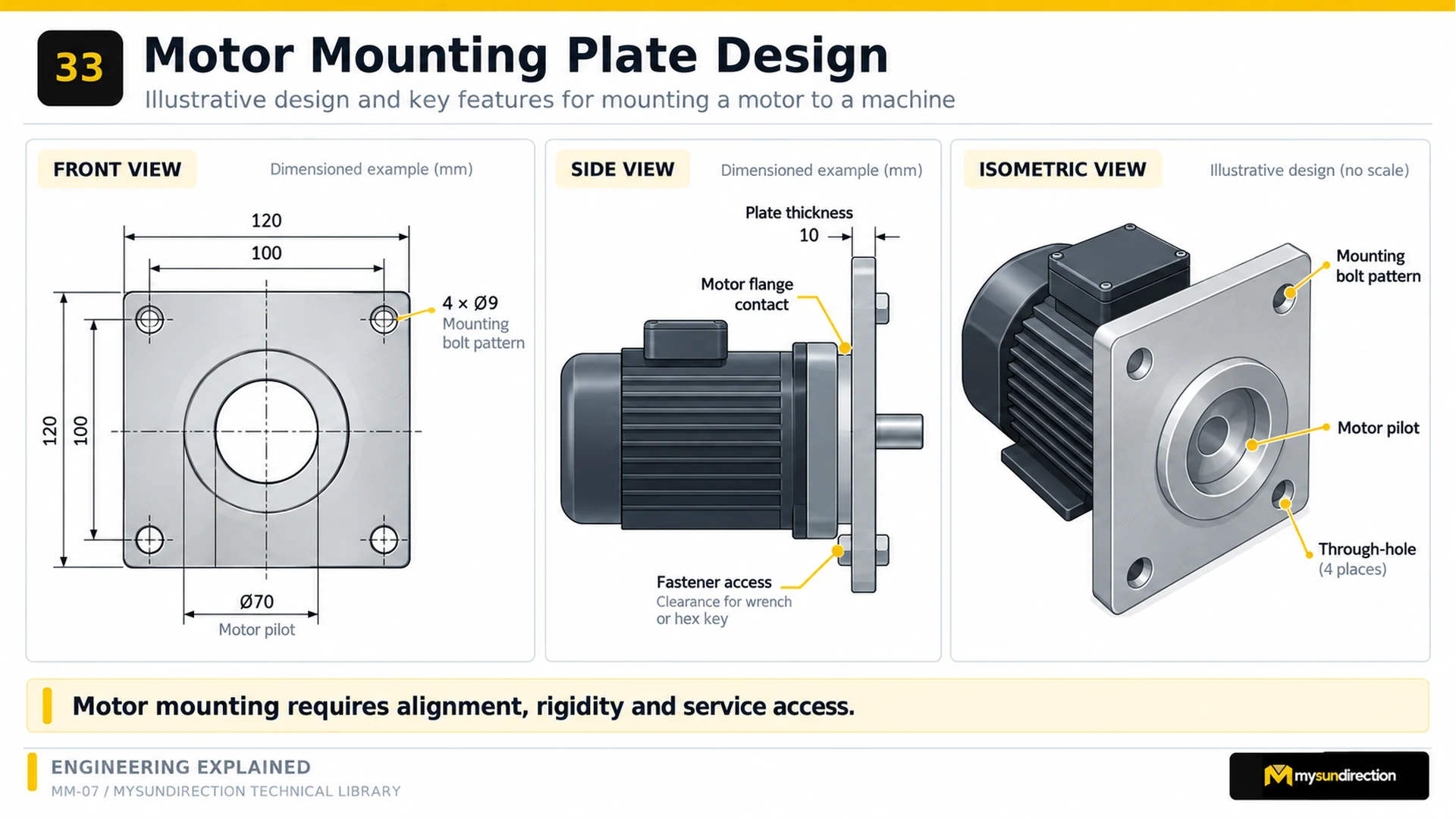

Diagram description
A square plate example shows four clearance holes on a square pattern, a central pilot feature and a ten-millimetre illustrated thickness. A side view highlights flange contact and wrench access; an isometric view identifies the pilot and holes.
| Feature | Design question | Verification |
|---|---|---|
| Datum structure | Which face establishes axial position and which feature establishes centerline? | Drawing references functional datums and measurable tolerances |
| Pilot or register | Does its diameter, depth, lead-in and fit match the motor flange without bottoming? | Inspect diameter, position and contact before final assembly |
| Bolt pattern | Are hole size, position, thread engagement, washers and tool paths correct? | Exact motor drawing and fastener calculation pass |
| Central clearance | Can the shaft, shoulder, seal and coupling move without rubbing? | Worst-case tolerance and assembly envelope pass |
| Thickness and ribs | Is stiffness adequate under motor weight, reaction torque and belt or process loads? | Deflection and natural-frequency assessment appropriate to the machine |
| Face quality | Are contact regions flat, clean and free of paint, burrs or raised damage where prohibited? | Contact and indicated alignment remain stable after torqueing |
| Service access | Can technicians reach hub screws, motor bolts, connectors and inspection points? | Tools can be used at required torque without dismantling unrelated equipment |
| Thermal path | Does the motor rating rely on heat transfer through the flange or plate? | Material, contact and airflow meet manufacturer conditions |
Plate thickness alone does not define rigidity. Span between supports, material, cut-outs, ribs, joint slip and how the plate attaches to the base all matter. A thick plate on a flexible bracket can still move. Motor reaction torque reverses with acceleration and deceleration, so evaluate joint behavior in both directions as well as static motor weight.
Control angular, parallel and axial conditions separately
| Condition | What it looks like | Typical verification |
|---|---|---|
| Parallel or offset | Shaft axes point in the same direction but do not share a centerline | Indicator, laser or manufacturer-approved measurement across rotation |
| Angular | Shaft centerlines meet at an angle | Face or gap measurements at several angular positions, or approved laser method |
| Axial | Shaft-end distance or hub position compresses, stretches or blocks the coupling | Measure distance between shaft ends, hub spacing and free coupling length |
| Runout | A shaft or locating surface moves radially or axially as it rotates | Dial indicator relative to the functional bearing or datum axis |
| Soft foot or unstable contact | A machine foot does not sit uniformly and the frame distorts as bolts tighten | Check contact and movement before and after controlled fastening |
Manufacturer coupling limits describe what that coupling can accommodate under specified conditions, not an ideal installation target. Align as closely as practical and account for all simultaneous errors. A coupling rated for one maximum offset and one maximum angle may not allow both maxima together. Thermal growth and base movement can also change hot alignment from the cold measurement.
Why turning freely by hand is useful—but not sufficient
With power safely isolated and the manufacturer permitting manual rotation, smooth travel can reveal gross binding, contact or assembly error. It does not quantify alignment, prove the coupling is within limits, verify fastener preload or reproduce operating temperature and dynamic load. A low-friction ball screw can also backdrive unexpectedly, especially on a vertical axis.
Use measured geometry and a controlled commissioning plan. Observe the full stroke at low speed before increasing speed, acceleration and load, and compare current or torque estimate, noise, vibration, following error and temperature against the acceptance record.
Install the coupling as a precision component
A manufacturer-led coupling installation sequence
- 1. Isolate and secure the machine.Remove hazardous energy and prevent gravity or stored mechanical energy from moving the axis.
- 2. Inspect mating parts.Verify exact bores, shaft diameters, keyways, surface condition, runout and the absence of burrs or contamination; follow the coupling maker's cleaning and lubrication rules.
- 3. Establish shaft alignment.Position the motor and screw supports so offset and angle are inside the coupling's combined limits before using the coupling to join them.
- 4. Set hub engagement and spacing.Insert each shaft to the specified depth, keep clear of internal flexing or relieved regions where required, and set the prescribed hub or shaft-end gap.
- 5. Leave the flexible element relaxed.For coupling types that require it, rotate or position the assembly at its free length before clamping the second hub; never preload it axially by guesswork.
- 6. Tighten correctly.Use the specified fastener sequence, seating torque, key or clamp method and calibrated tool. Do not substitute a generic torque value.
- 7. Re-measure after final fastening.Plate and base movement during bolt tightening can change alignment. Check gap, offset, angle, runout and free motion again.
The motor connection works only inside a complete axis

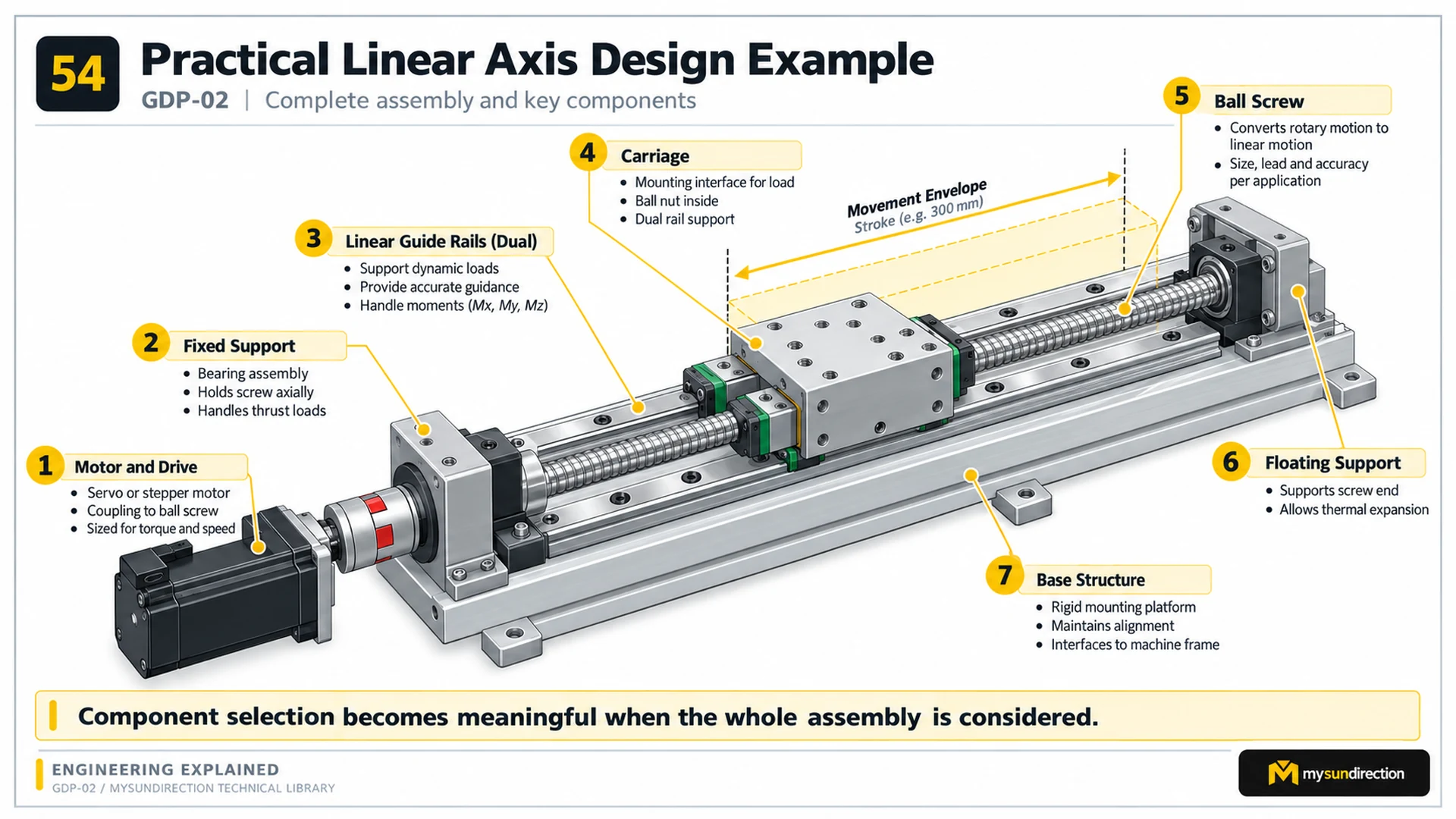

Diagram description
A motor drives a ball screw through a flexible coupling. A fixed support near the motor carries thrust, a distant support provides radial support, dual rails guide a carriage and the assembly is mounted to a rigid base over an illustrated stroke.
The screw should generate axial drive force while the linear guides support the carriage's transverse forces and overturning moments. Using the screw as the only guide can impose unintended radial and moment loads on the nut. The fixed bearing set locates the screw axially and carries thrust; a correctly designed opposite support provides the intended radial support and thermal-expansion behavior. Incorrect fits can accidentally constrain both ends or leave the screw inadequately located.
| System relationship | Failure if ignored | Evidence to collect |
|---|---|---|
| Screw axis to guide travel | Nut side load, torque variation, heat and shortened life | Parallelism, height and running-torque measurements across full stroke |
| Fixed support to screw shoulder | Axial play, preload error, runout or bearing damage | Assembly dimensions, locking method and axial indicator check |
| Carriage to nut and bearing blocks | Parts are pulled into conflict when bolts tighten | Controlled tightening sequence and free-travel checks at stages |
| Base to machine frame | A good bench alignment distorts after installation | Final in-machine measurements at installed bolt torque |
| Cable and hose routing | Side load, snagging or connector stress changes over travel | Full-stroke clearance and bend-radius inspection |
| Temperature and lubrication | Growth, friction and wear change the aligned condition | Warm-cycle measurements and maintenance specification |
| Stops and end detection | Overtravel damages nut, support or coupling | Verified limits, buffers or stops and controlled stopping distance |
Commission the mounted axis progressively
- 1. Document the cold geometry.Record alignment, hub positions, fastener torque, axial play or preload evidence and full-stroke free movement before power.
- 2. Verify controls and end protection.Confirm direction, feedback, current limits, homing, travel limits and stopping behavior at safely reduced energy.
- 3. Run slowly through full travel.Watch for current or torque changes, noise, contact, cable pull and position-dependent binding.
- 4. Increase one variable at a time.Raise speed, acceleration, duty and load in controlled steps while logging relevant behavior.
- 5. Recheck in the warm state.Measure temperature, alignment-sensitive symptoms, fastener security and positioning after thermal stabilization.
- 6. Preserve an acceptance baseline.Store measurements and assembly settings so maintenance can identify drift rather than relying on memory.
Review What Shaft Couplings Actually Do and Choosing a Coupling That Can Tolerate Misalignment before specifying the joint. Use How Assembly Errors Damage Motion Systems to diagnose binding and distortion across the axis. The finished connection is acceptable only when its geometry, fastening, motion, temperature and service access remain correct together.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Connecting and Mounting a Motor Correctly?
1. Isolate and secure the machine. Remove hazardous energy and prevent gravity or stored mechanical energy from moving the axis.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
Do not force precision shafts and bearings into alignment. Hammering hubs, levering a motor into place or pulling a crooked assembly together with bolts can brinell bearings, mark a ball-screw raceway, bend a shaft or preload the coupling.
How do I verify the result in the real system?
7. Re-measure after final fastening. Plate and base movement during bolt tightening can change alignment. Check gap, offset, angle, runout and free motion again.
